Product Description
Portable Oil Tank Cleaning Machine:
The Portable Oil Tank Cleaning Machine also known as oil tank Washing machine. It is the most ideal tool for modern ship cargo tank cleaning.The Portable Oil tank cleaning machine provides 360° impact indexed coverage for the cleaning of the inside of tanks and process vessels.Tank washing machine is designed for cleaning the tanks of oil tankers and chemical tankers,made of copper alloy or stainless steel which has the effect of antirust and antiseptic
Portable Oil Tank Cleaning Machine:
Tank washing machine type YQJ shall be installed in the vertical position. Both fixed type and portable type has a strainer
installed in the inlet of tank washing machine in order to prevent from blocking. The connector between tank washing machine and pump can be flange or screw joint, in order to supply the correct accessories, customers shall give the requirements when placing order. Individual stop valve and pressure meter shall be installed in each tank washing piping in order to control the hydraulic pressure for tank washing machine.
installed in the inlet of tank washing machine in order to prevent from blocking. The connector between tank washing machine and pump can be flange or screw joint, in order to supply the correct accessories, customers shall give the requirements when placing order. Individual stop valve and pressure meter shall be installed in each tank washing piping in order to control the hydraulic pressure for tank washing machine.
NOTE: Tank washing machine will produce static electricity when operation, for avoid sparks and potential explosion, tank shall be inerted before tank washing.
Working Principle
Tank cleaning pump shall supply cleaning medium to tank washing machine. When cleaning medium enters tank washing machine, it drives impeller, worm wheel, gear rotating to make the nozzles and shell rolling at horizontal and vertical direction in 360° in order to wash every part of the tanks with emitted water. Gear box is lubricated by cleaning medium instead of oil or grease. A full cycle is created when the main body has rotated 44 turns.Attention that the practical time depends on hydraulic pressure.
Tank cleaning pump shall supply cleaning medium to tank washing machine. When cleaning medium enters tank washing machine, it drives impeller, worm wheel, gear rotating to make the nozzles and shell rolling at horizontal and vertical direction in 360° in order to wash every part of the tanks with emitted water. Gear box is lubricated by cleaning medium instead of oil or grease. A full cycle is created when the main body has rotated 44 turns.Attention that the practical time depends on hydraulic pressure.
Technical Parameter
1.Tank washing machine can be operated normally when vessel heeling 15°, rolling 22.5°, trim 5° and pitching 7.5°.
2.Operation temperature is from normal temperature to 80℃.
3.The diameter of pipes for the tank washing machines should be wide enough for all required tank washing machines to work
simultaneously under the designed parameters.
4.Tank washing pump can be cargo oil pump or specialized pump the flow of which can make several tank washing machines can work
under designed operation pressure and flow.
Supply Parameter
Tank washing machine type YQJ B/Q is operated with the cleaning medium with flow of about 10 to 40m3/h and with the operation
pressure of 0.6-1.2MPa.
Weight
The weight of tank washing machine type YQJ is about 7 to 9kg.
Material
Material for tank washing machine type YQJ is copper alloy, stainless steel including 316L.
Performance data.
Following table shows the inlet pressure, nozzle diameter, probable flow and jet length for each tank washing machine.
1.Tank washing machine can be operated normally when vessel heeling 15°, rolling 22.5°, trim 5° and pitching 7.5°.
2.Operation temperature is from normal temperature to 80℃.
3.The diameter of pipes for the tank washing machines should be wide enough for all required tank washing machines to work
simultaneously under the designed parameters.
4.Tank washing pump can be cargo oil pump or specialized pump the flow of which can make several tank washing machines can work
under designed operation pressure and flow.
Supply Parameter
Tank washing machine type YQJ B/Q is operated with the cleaning medium with flow of about 10 to 40m3/h and with the operation
pressure of 0.6-1.2MPa.
Weight
The weight of tank washing machine type YQJ is about 7 to 9kg.
Material
Material for tank washing machine type YQJ is copper alloy, stainless steel including 316L.
Performance data.
Following table shows the inlet pressure, nozzle diameter, probable flow and jet length for each tank washing machine.
Details Images

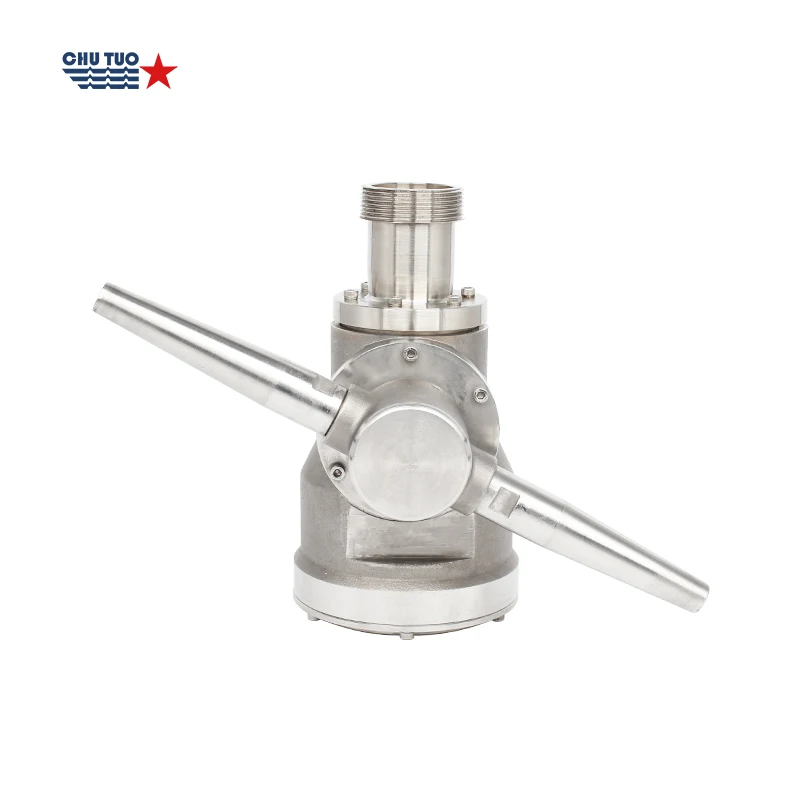

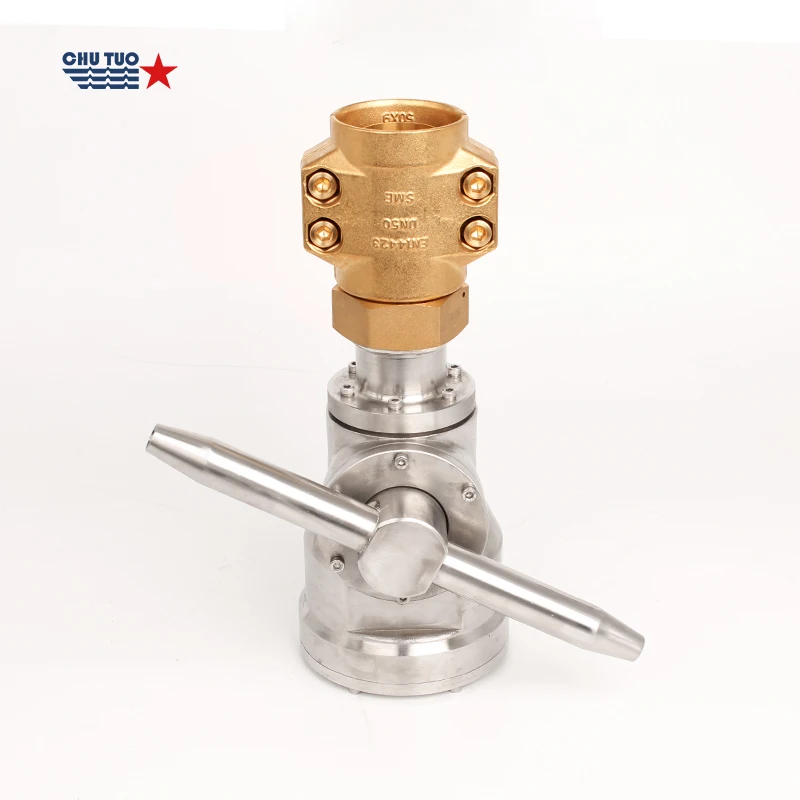

Cargo Tank Washing Machine Stainless Steel 316 DN 50

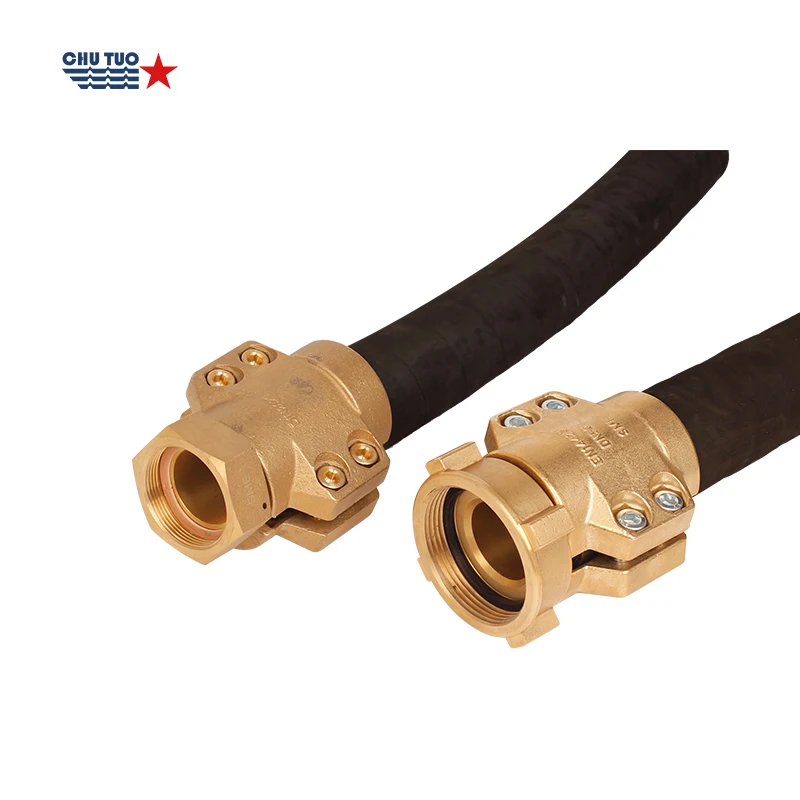

Tank Cleaning Hose
Anti static Oil Tank Cleaning Hose with couplers
Size : 50mmx15mtrs 50mmx20mtrs
Tank Cleaning Hose Saddles
Material: Stainless Steel or Aluminum Alloy
For 40mm or 50mm ID cleaning hose

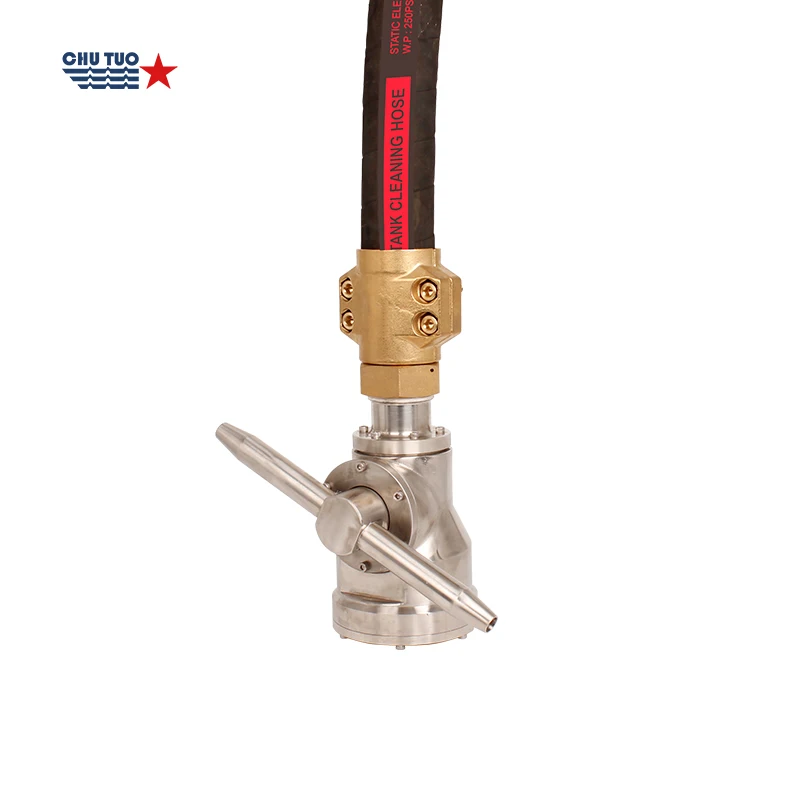

Tank Cleaning Hose and Accessories
NO. | DESCRIPTION | UNIT |
2 | TANK CLEANING MACHINE , S. STEEL 2X12MM NOZZLE | SET |
3 | TANK CLEANING MACHINE, S. STEEL 2X14MM NOZZLE | SET |
6 | TANK CLEANING MACHINE, S.STEEL 2X7MM NOZZLE | SET |
7 | TANK CLEANING MACHINE, S.STEEL 2X8MM NOZZLE | SET |
8 | TANK CLEANING MACHINE, S.STEEL 2X9MM NOZZLE | SET |
9 | TANK CLEANING MACHINER, S.STEEL 2X10MM NOZZLE | SET |
0 | TANK CLEANING MACHINE, S.STEEL 2X11MM NOZZLE | SET |
