Автоматическая горизонтальная упаковочная машина JKMF для печенья упаковки
- Категория: Packaging Machines >>>
- Поставщик: Foshan,Jike,Bee,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 4165.0 $* | 4373.9 $* |
| Aug-18-2025 | 4130.25 $* | 4337.17 $* |
| Jul-18-2025 | 3465.7 $* | 3638.68 $* |
| Jun-18-2025 | 4060.7 $* | 4263.63 $* |
| May-18-2025 | 3535.52 $* | 3712.43 $* |
| Apr-18-2025 | 3990.19 $* | 4190.60 $* |
| Mar-18-2025 | 3955.74 $* | 4153.57 $* |
| Feb-18-2025 | 3920.69 $* | 4116.39 $* |
| Jan-18-2025 | 3885.33 $* | 4079.4 $* |
Характеристики

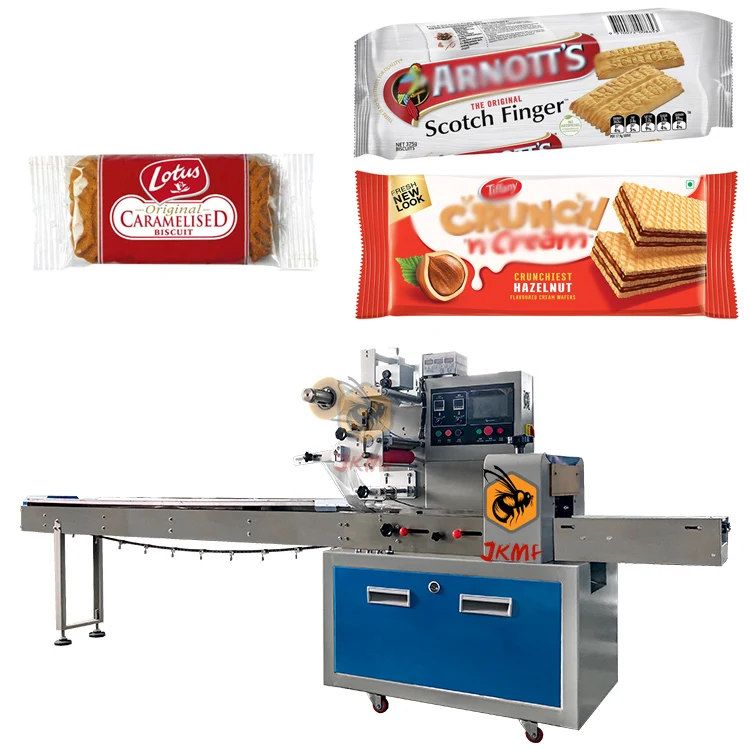

JKMF Full Automatic Horizontal Small Cookies Biscuit Packing Machine Biscuit Pillow Wafer Biscuit Flow Packing Machine
Products Description
The JK-B model flow packing machine features quick, easy changeover and adjustment that minimizes product and film waste and reduces maintenance costs.

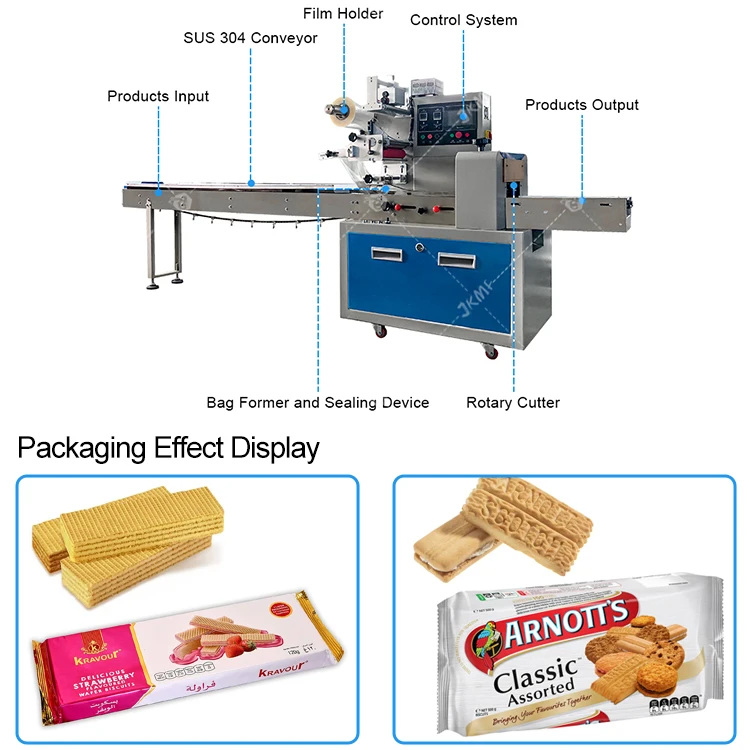

The machine working starts with a cylindrical roll of film. The flow wrapping machine will transfer the film from the roll and through to the forming collar (sometimes referred to as tube or plow). At the same time, a conveyor has lined up individual products for wrapping. The film is fed through the collar and the product is surrounded with film, sealed and the film is then cut. The finished individual product is then gathered downstream to be bagged or cartoned prior to boxing and palletizing.
The machine working starts with a cylindrical roll of film. The flow wrapping machine will transfer the film from the roll and through to the forming collar (sometimes referred to as tube or plow). At the same time, a conveyor has lined up individual products for wrapping. The film is fed through the collar and the product is surrounded with film, sealed and the film is then cut. The finished individual product is then gathered downstream to be bagged or cartoned prior to boxing and palletizing.
Automatic flow packing machine is a widely used packing machine.
Suitable for all kinds of product packaging. Including medical supplies, vegetables and meat, baked bread, snacks and candy, daily necessities, hardware accessories, etc.
Model | JK-250B | JK-320B | JK-350B | JK-450B | JK-600B | ||||
Film Width | Max.250 mm | Max.320 mm | Max.350 mm | Max.450 mm | Max.600 mm | ||||
Bag Length | 65~330 mm | 65~330 mm | 65~330 mm | 120~450 mm | 130~600 mm | ||||
Bag Width | 30~110 mm | 50~150 mm | 50~160 mm | 60~210 mm | 60~280 mm | ||||
Product Height | MAX. 40/55 mm | MAX. 45/80 mm | MAX. 110 mm | MAX. 110 mm | MAX. 150 mm | ||||
Packing Speed | 40~230 bags/min | 40~230 bags/min | 40~230 bags/min | 30~180 bags/min | 20~150 bags/min | ||||
Powder | 220V,50/60Hz,2.4KW | ||||||||
Main Features
1.Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.

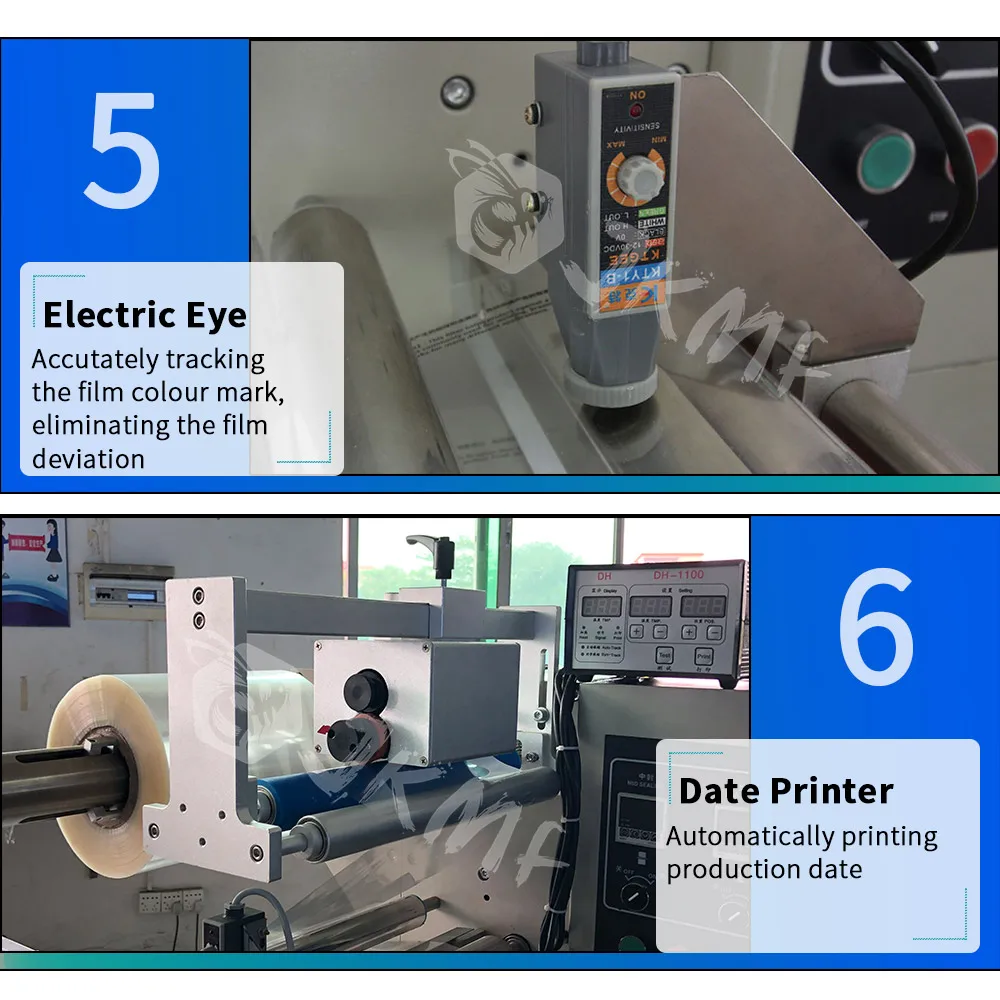

4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Positioned stop function, without sticking knife or wasting film.
7.Simple driving system, reliable working, convenient maintenance.
8.All control is realized through software, easy for function adjusting and technical upgrade.
2.Interface features easy and quick setting and operation.
3.Self failure diagnosis, clear failure display.
4.High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5.Temperature independent PID control, more suitable for packaging different materials.
6.Positioned stop function, without sticking knife or wasting film.
7.Simple driving system, reliable working, convenient maintenance.
8.All control is realized through software, easy for function adjusting and technical upgrade.
Machine Working Process
1st step: Put the packaging film on the holder and wear the film as required.

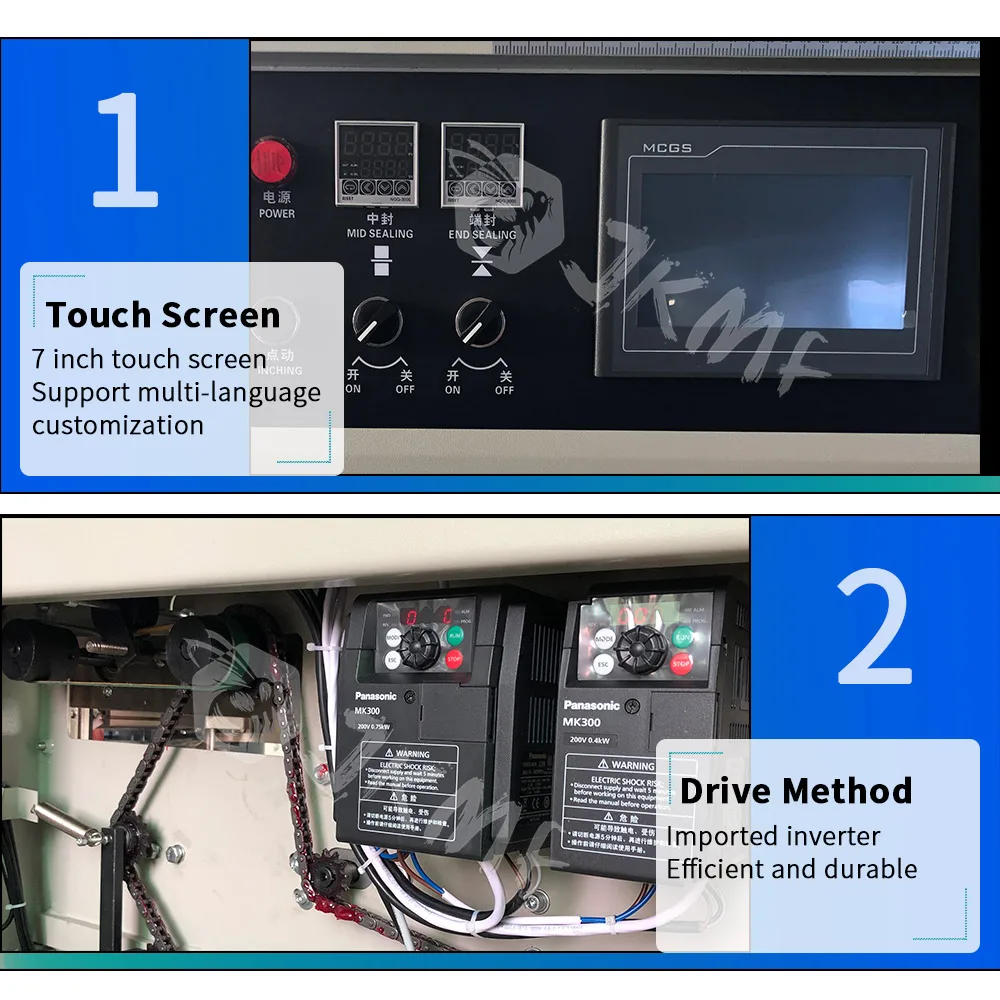

2nd step: Setting the parameters you want by touch screen.
3rd step:Put the materials to be packed on the conveyor belt
4th step: The bag former will make the bag automatically.
5th step: The horizontal and vertical cutter device will seal the middle
and of the bag.
6th step: You will get the nicely paper or plastic bag type.
Why Choose Us
JIKE BEE MACHINERY has a professional team to provide customers with various packaging solutions. Fully understanding the needs of customers,engineers design the most suitable solution. We have our own processing and assembly workshop and quality inspection and debugging process to ensure the quality of the machine.
After acceptance by the customer, they are packed in international standard wooden cases and shipped.
We will package the machine's instruction manual and a USB flash drive with machine operation videos together with the machine.
Ensure that you can use the machine as soon as you receive it. If you have something you don't understand, our after-sales team will also help you answer in time.
Ensure that you can use the machine as soon as you receive it. If you have something you don't understand, our after-sales team will also help you answer in time.
Our customers have covered more than 80 countries around the world.
And give us unanimous praise.
Company Profile
Foshan Jike Bee Automation Equipment Co., Ltd. is a manufacturer of automatic packaging equipment.We are a production-oriented enterprises focused on product innovation, factory direct sales and perfect after-sales service in one.The automatic packaging equipment for granule, powder, liquid and sauce produced by the JKMF company is at the advanced level of the industry,it can be customized production automatic material packaging line for all kinds of products .Mainly applicable to: food, hardware, drugs, daily chemicals, pesticides, fruits and vegetables, cosmetics, other industries.The company has its own patent and product technical certification, which can bring customers high quality equipment and worthy of customer trust.
Certifications
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
