Характеристики

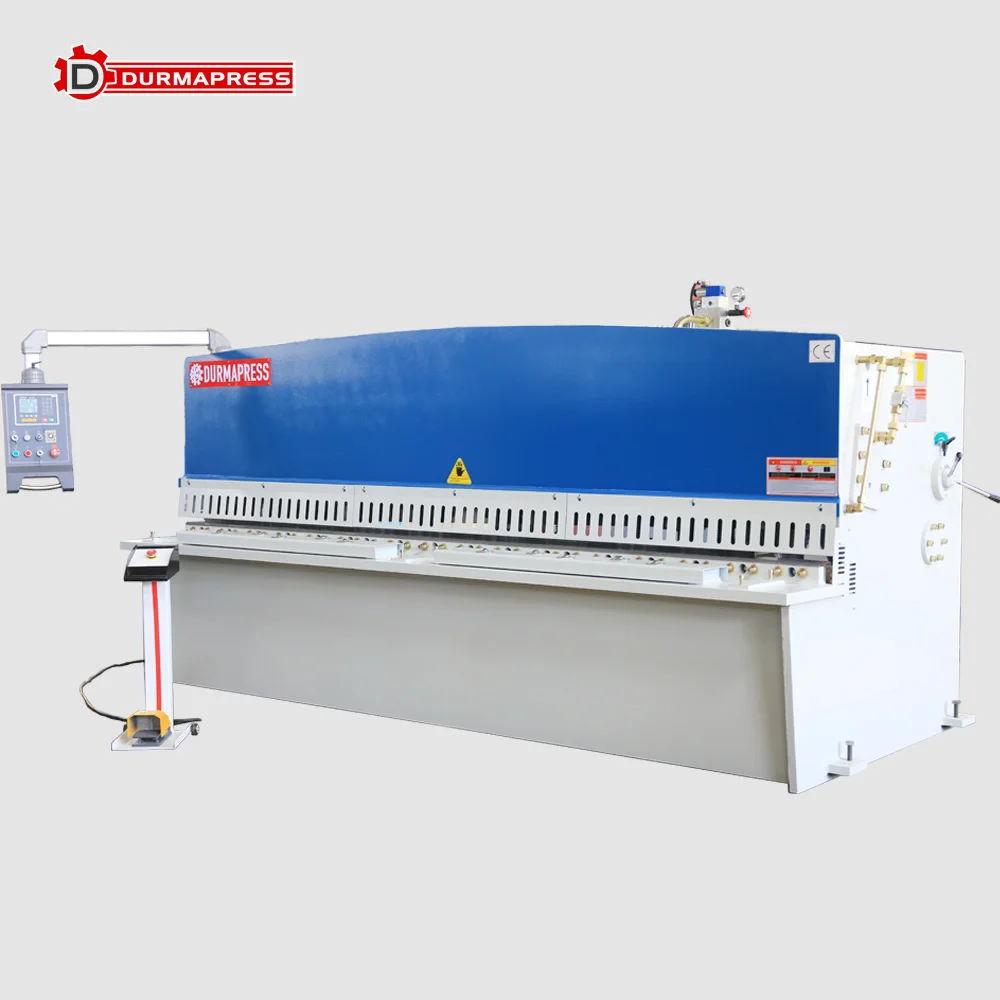

Products Description
MAIN FEATURES
● The Metal Shearing Machine's motors for backguage are controlled by inverter which can achieve high positioning accuracy 0.05 mm
of the backgauge by changing the frequency and voltage of motor. ● Top blade with two cutting edges and bottom blade with four
cutting edges(6bCrw2si) ● X axis (Backgauge) and cutting time can be programmed by E21S system controller , which can store up to
40 groups of programs. ● Hydraulic overload can be protected by everflow valve , knife rack returns by Nitrogen cylinders. ● Foot
Switch with emergency button can stop the machine immediately when accident happens. ● Adjusting knife gap between upper and
bottom blades can achieve better cutting performace. ● Front arms with ruler and roll balls can ensure the cutting accuracy and
feed the material easily.
of the backgauge by changing the frequency and voltage of motor. ● Top blade with two cutting edges and bottom blade with four
cutting edges(6bCrw2si) ● X axis (Backgauge) and cutting time can be programmed by E21S system controller , which can store up to
40 groups of programs. ● Hydraulic overload can be protected by everflow valve , knife rack returns by Nitrogen cylinders. ● Foot
Switch with emergency button can stop the machine immediately when accident happens. ● Adjusting knife gap between upper and
bottom blades can achieve better cutting performace. ● Front arms with ruler and roll balls can ensure the cutting accuracy and
feed the material easily.

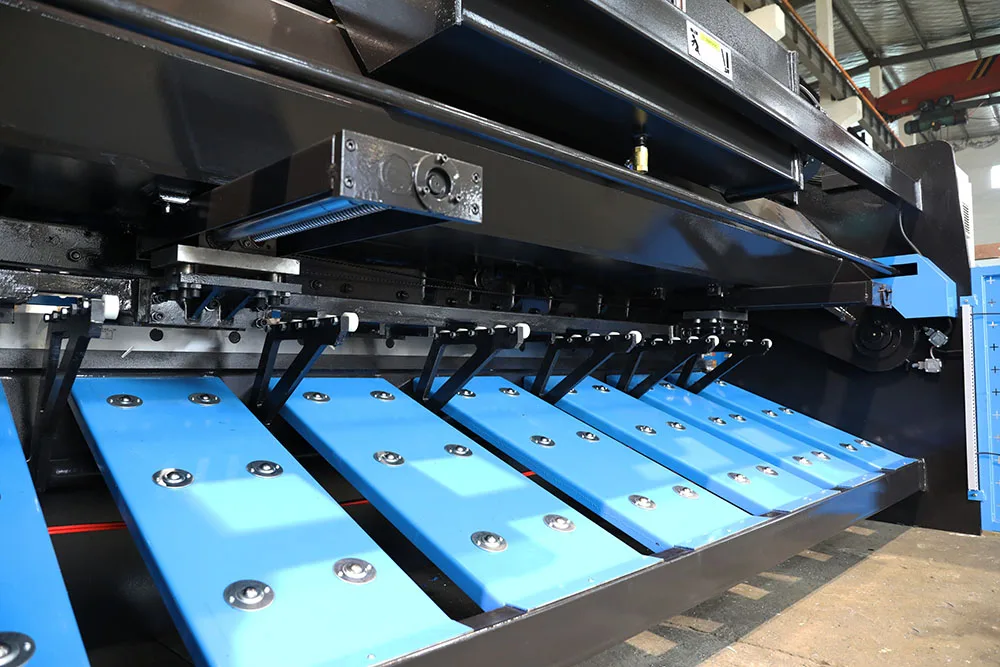

Pneumatic sheet supporting system
Supporting for thick plate
Ball Integrated Front Tables
Rolling steel balls will be helpful to reduce surface scratches on the sheet. Minimizes the friction force and ensures the gapless
rolling during the movement of the tool holder. Strength, good rigidity and good precision retention.
rolling during the movement of the tool holder. Strength, good rigidity and good precision retention.
Ball Screw
Taiwan PMI ball screw is adopted to ensure the movement of the backgauge in high precision.

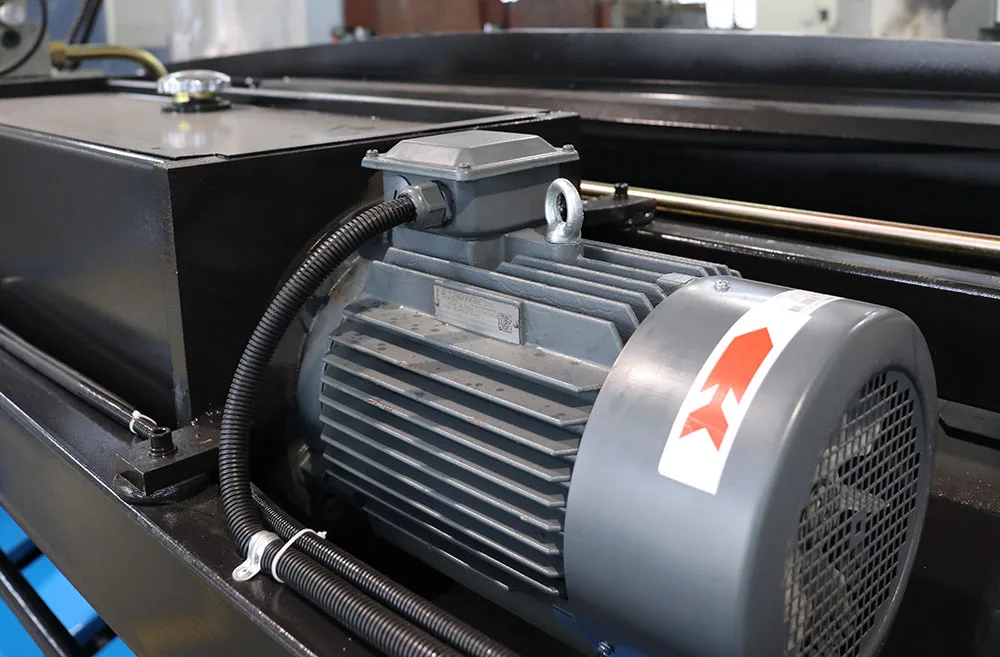

Siemens motor
We’re using the Siemens motor to ensure the service life of the machine.

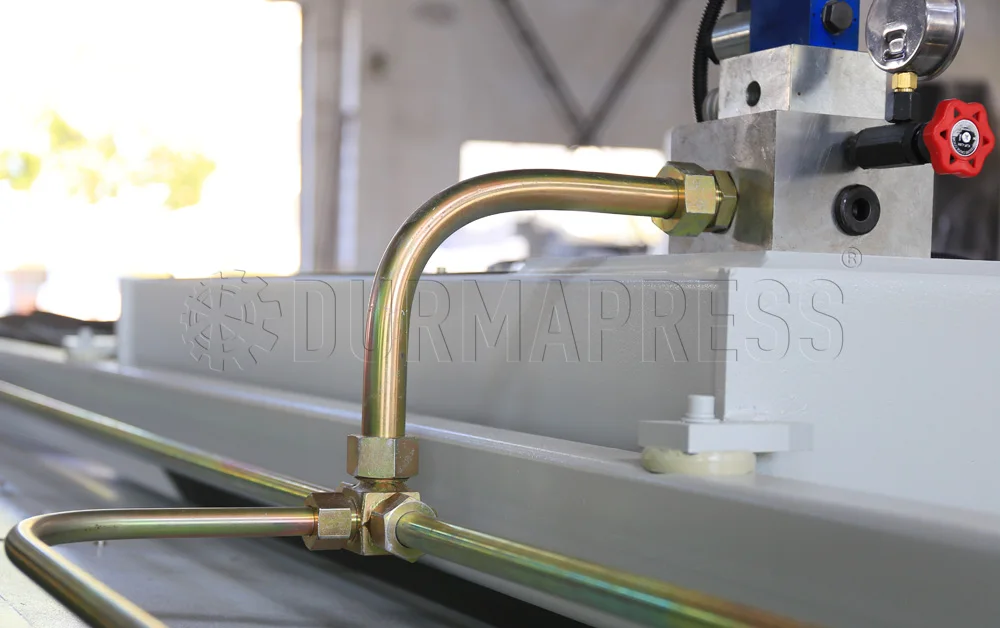

Hydraulic Valve
The BOSCH(Rexroth) integrated hydraulic system is compact. The system pressure control adopts electro-hydraulic proportional
pressure valve, and the whole process pressure can be programmed and controlled to ensure stable and reliable machine performance.
pressure valve, and the whole process pressure can be programmed and controlled to ensure stable and reliable machine performance.
Product Paramenters
Type | 4*2500 | |
Cutting thickness | mm | 4 |
Cutting length | mm | 2500 |
Cutting angel | ° | 1°30“ |
Material strength | Kn/mm | 《=450 |
Travel times | 次/分 | 10 |
Power | Kw | 5.5 |
Dimension | mm | 3040*1610*1620 |
