Простой в использовании двойной зажим фазовый амперметр тестер фазы JS8020
- Категория: Other Electronic Measuring Instruments >>>
- Поставщик: Baoding,NCEL,Electrical,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.75 $* | 0.10 $* |
| Aug-17-2025 | 0.82 $* | 0.58 $* |
| Jul-17-2025 | 0.67 $* | 0.21 $* |
| Jun-17-2025 | 0.59 $* | 0.37 $* |
| May-17-2025 | 0.12 $* | 0.81 $* |
| Apr-17-2025 | 0.40 $* | 0.55 $* |
| Mar-17-2025 | 0.38 $* | 0.92 $* |
| Feb-17-2025 | 0.72 $* | 0.30 $* |
| Jan-17-2025 | 0.7 $* | 0.44 $* |
Характеристики
Product Description

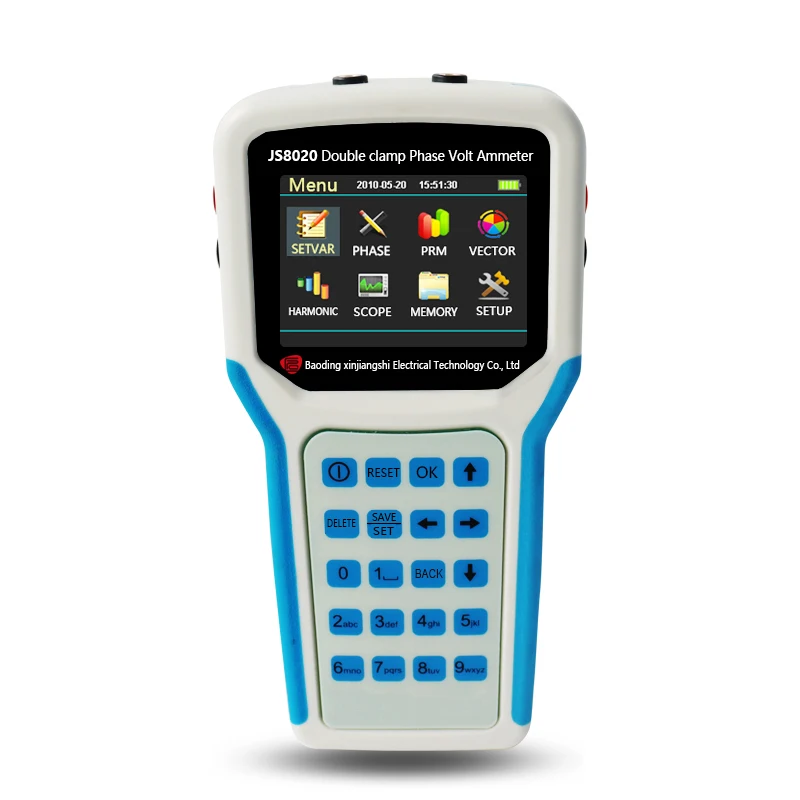

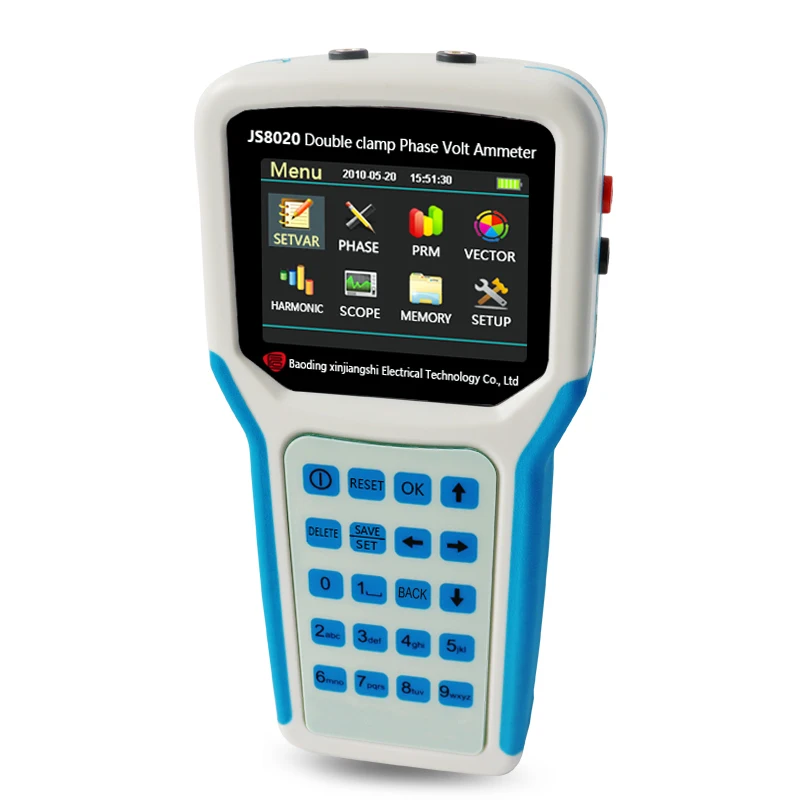

NCEL JS8020 Digital Double Clamp Phase Voltammeter
Function and features:
1, can simultaneously measure 4 input (2 voltage, 2 current) signals.
2, 3.2 inch 320×240 true color TFT LCD screen, can display the true RMS value of voltage and current, phase, power, power factor and other electrical parameters.The measurement results are shown in vector graph, effective value, phase, power and other ways.
3,real-time display voltage, current waveform, waveform distortion can be measured
4,Can display 2nd-57th harmonic content and histogram, with power quality analysis function
5,According to the measured electrical parameters, the transformer wiring group and inductive capacitive load can be distinguished, the secondary circuit and the bus protection system can be tested, the phase relationship between the CT of each group of differential protection can be read out, and the wiring of the electricity meter can be checked correctly.
6,The display mode of l vector graph includes measurement mode and relay mode, and the phase display range is 0° -360 ° and -180° -180°, which is convenient for users with different habits.
7,Current: 10A current clamp, the min 1mA can measure the Angle value;Voltage: mini 1V can measure the Angle value.Convenient for various light load or transformer no-load operation occasions.
8,When measuring the phase between U1-U2, the two input circuits are completely insulated and isolated, so it completely avoids the possible short-circuit of the tested circuit caused by misconnection and the burning of the measuring instrument.
9,Built-in 120MB Flash memory, the instrument can be seen as a 120MB USB Flash disk. store 10000 groups of measurement data, meanwhile can be viewed on the instrument.
10,Equipped with Bluetooth module, user can connect to mobile APP, share data.
11,Built-in high-energy lithium ion battery, long life, easy to use
1, can simultaneously measure 4 input (2 voltage, 2 current) signals.
2, 3.2 inch 320×240 true color TFT LCD screen, can display the true RMS value of voltage and current, phase, power, power factor and other electrical parameters.The measurement results are shown in vector graph, effective value, phase, power and other ways.
3,real-time display voltage, current waveform, waveform distortion can be measured
4,Can display 2nd-57th harmonic content and histogram, with power quality analysis function
5,According to the measured electrical parameters, the transformer wiring group and inductive capacitive load can be distinguished, the secondary circuit and the bus protection system can be tested, the phase relationship between the CT of each group of differential protection can be read out, and the wiring of the electricity meter can be checked correctly.
6,The display mode of l vector graph includes measurement mode and relay mode, and the phase display range is 0° -360 ° and -180° -180°, which is convenient for users with different habits.
7,Current: 10A current clamp, the min 1mA can measure the Angle value;Voltage: mini 1V can measure the Angle value.Convenient for various light load or transformer no-load operation occasions.
8,When measuring the phase between U1-U2, the two input circuits are completely insulated and isolated, so it completely avoids the possible short-circuit of the tested circuit caused by misconnection and the burning of the measuring instrument.
9,Built-in 120MB Flash memory, the instrument can be seen as a 120MB USB Flash disk. store 10000 groups of measurement data, meanwhile can be viewed on the instrument.
10,Equipped with Bluetooth module, user can connect to mobile APP, share data.
11,Built-in high-energy lithium ion battery, long life, easy to use
Specification
item | value |
Warranty | 1 year |
Certification | ISO |
Customized support | OEM |
Place of Origin | China |
Brand Name | NCEL |
Model Number | JS8020 |
Product name | JS8020 Digital Double Clamp Phase Voltammeter |
Power supply | 750mAh/7.4V lithium battery |
Working power consumption | <3VA |
Working temperature | -20℃ ~ +50℃ |
Built-in USB disk capacity | 120MB |

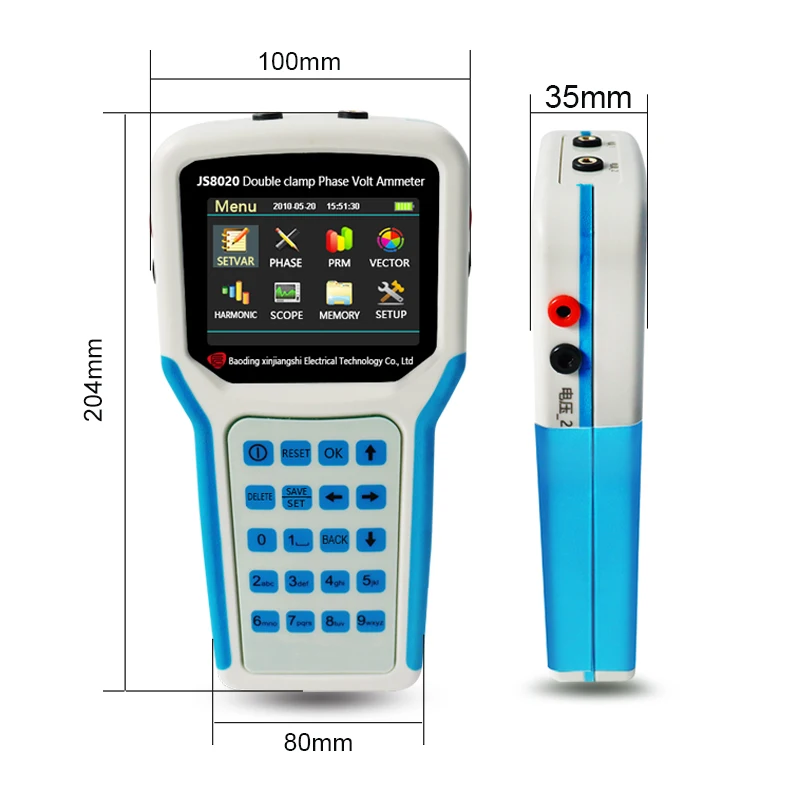

External size | 240x100x35 (mm) |
Weight | 0.5kg |
Range | 10A-2000A |
Voltage range | 0 ~ AC600V |
working range | AC1V ~ AC600V |
Company Profile
FAQ
1.How can I choose the suitable one ?
Dear customer , please tell us your detailed requirements by email or online , we will recommend the suitable one as your request
2.How can I pay ? and payment term ?
Dear customer ,we accept many payment term ,such as T/T ,Western Union ...
Payment ≤$10000，100% in advance ;Payment≥10000,30%T/T in advance ,balance before shipping .
3.When I receive it after pay ?
Dear customer ,normal models can be delivered with 5-7 days , please contact us to check transport time to your address.
4.How to deliver ?
Dear customer , we can send by Express , by Sea and by Air .
5.Is will be broken during transport ?
Dear customer ,please don't worry , we do standard export package .
6.What should I do if I don't know how to use ?
Dear customer ,please don't worry,manual user will be sent together , you can also contact us with more technological support.
Dear customer , please tell us your detailed requirements by email or online , we will recommend the suitable one as your request
2.How can I pay ? and payment term ?
Dear customer ,we accept many payment term ,such as T/T ,Western Union ...
Payment ≤$10000，100% in advance ;Payment≥10000,30%T/T in advance ,balance before shipping .
3.When I receive it after pay ?
Dear customer ,normal models can be delivered with 5-7 days , please contact us to check transport time to your address.
4.How to deliver ?
Dear customer , we can send by Express , by Sea and by Air .
5.Is will be broken during transport ?
Dear customer ,please don't worry , we do standard export package .
6.What should I do if I don't know how to use ?
Dear customer ,please don't worry,manual user will be sent together , you can also contact us with more technological support.
