1kw 1.5kw 2kw ручной лазерный сварочный аппарат волокна для
- Категория: Laser Welders >>>
- Поставщик: Shandong,Magick,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 9520.74 $* | 9996.34 $* |
| Aug-19-2025 | 9440.63 $* | 9912.29 $* |
| Jul-19-2025 | 7920.24 $* | 8316.93 $* |
| Jun-19-2025 | 9280.87 $* | 9744.87 $* |
| May-19-2025 | 8080.12 $* | 8484.20 $* |
| Apr-19-2025 | 9120.2 $* | 9576.42 $* |
| Mar-19-2025 | 9040.83 $* | 9492.25 $* |
| Feb-19-2025 | 8960.26 $* | 9408.25 $* |
| Jan-19-2025 | 8880.6 $* | 9324.36 $* |
Характеристики

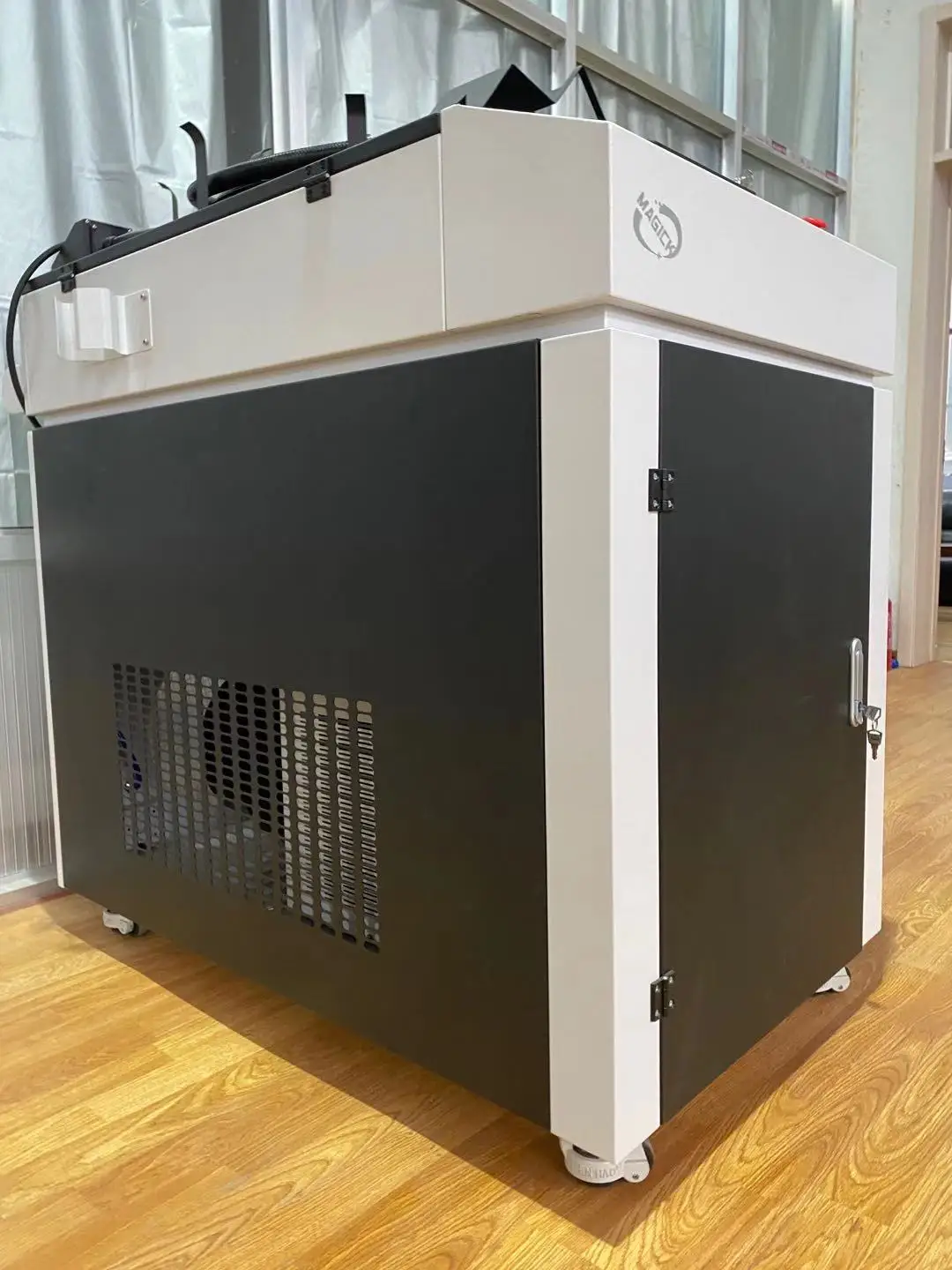

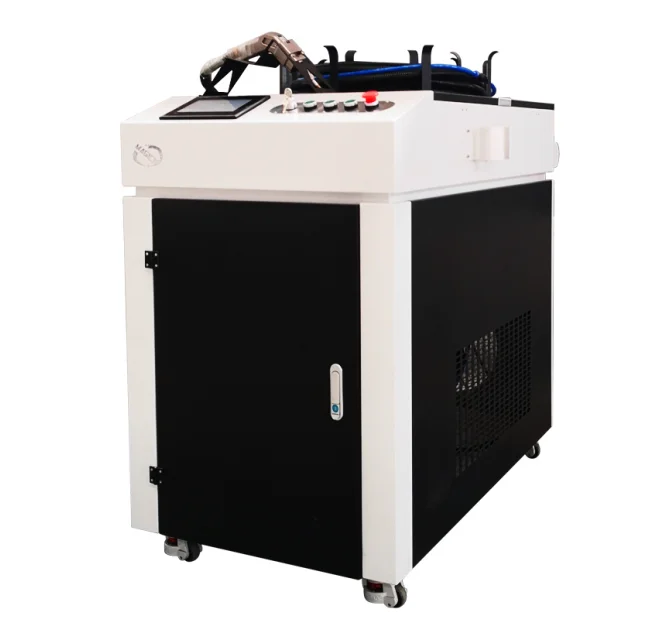

1kw 1.5kw 2kw hand laser welding machine fiber for metal
Product Overview
1.
Adopt integrated structure, that's its control system, laser system and cooling system are all built-in and integrated.
2.
2.

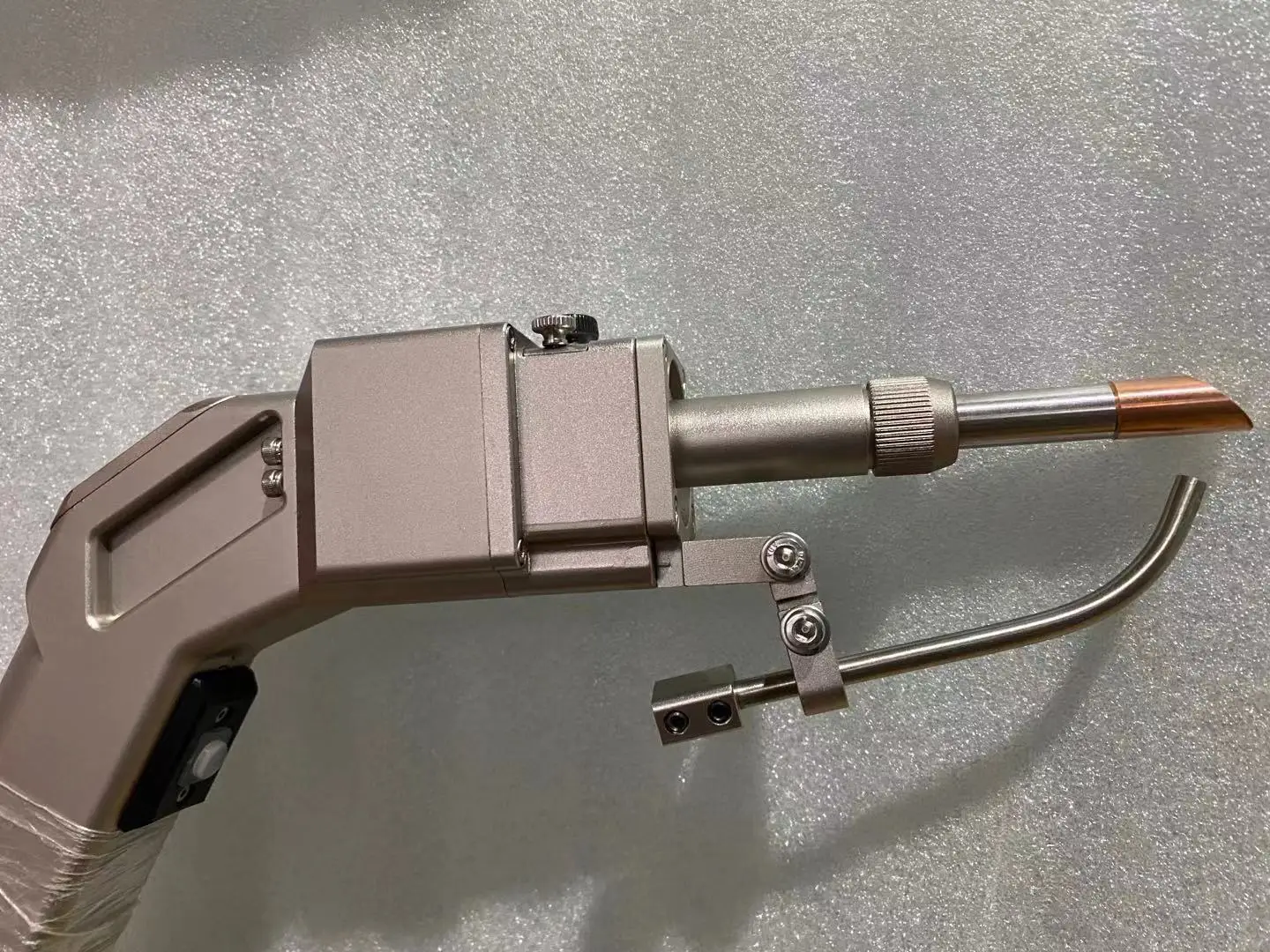

Handheld holding welding head is easily operated, picking and moving.
3.
3.
Using the fiber laser source. The laser beam quality is quite good, and its output power is stable which can assure the high
welding performance.
4.
welding performance.
4.
The machine is with the safety control box, which can control the laser beam only comes out when welding starts.
5.
5.
Using special welding software .It has function of continuous laser beam, and the adjustable output waveform , which can assure
the precious and high-speed welding.
6.
the precious and high-speed welding.
6.
It costs very low working consumption. Using laser machine one hour only consume 1-1.5 degree electricity, and weld all kinds
of thin metal plates.
7.
of thin metal plates.
7.
It can weld a wide range of metal, includes the stainless steel, carbon steel, cooper ,aluminum alloy , Zinc plated board.
8.
8.
Very nice welding performance .No deformation, small thermal effect.
9.
9.
2-step trigger and welding part contact sensor enhance operator safety.
10.
10.
Safety interlock verifies integrity of laser delivery to the welding gun.
11.
Machine can be equpped with automatic filler wire system, laser power 1000W can be filed with a diameter of 0.8-1mm welding
wire, and for the laser power 1500W and 2000W can be filled with a diameter of 1.2mm welding wire, even if there are gaps in the
welding position can also be efficient welding.
wire, and for the laser power 1500W and 2000W can be filled with a diameter of 1.2mm welding wire, even if there are gaps in the
welding position can also be efficient welding.
PRODUCT SPECIFICATIONS
Item | Data |
Laser power | 1000W/1500W/2000W |
Laser wavelength | 1070 NM |
Fiber length | 10M ~15M |
Working mode | Continuous / modulation |
Welder speed | 0~120 mm/s |
Cooling water | Built-in water cooler |
Temperature | 15~35 ℃ |
Welding thickness | 0.5-3mm |
Welding penetration depth | 0.1-3mm |
FEATURES AT A GLANCE
Welding Thickness
1. 1000w/1kw handheld laser welder can weld 0.5-3mm steel; 2. 1500w/1.5kw fiber laser welder is used to weld 0.5-4mm steel;
3. 2000w/2kw laser welder can weld 0.5-5mm steel,0.5-4mm aluminum.
The above data is based on the triangular light spot. Due to the difference of the plate and labor, please refer to the actual welding.
1. 1000w/1kw handheld laser welder can weld 0.5-3mm steel; 2. 1500w/1.5kw fiber laser welder is used to weld 0.5-4mm steel;
3. 2000w/2kw laser welder can weld 0.5-5mm steel,0.5-4mm aluminum.
The above data is based on the triangular light spot. Due to the difference of the plate and labor, please refer to the actual welding.
Application
Magick laser welding machine is widely used in cabinet kitchen and bathroom, stair elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home.
Packing&Shipping
1. Test the machine before shipment and send the test videos/pics to customers
2. Use plastic film and foam packaging machine
3. Packing machine with reinforced wood case
2. Use plastic film and foam packaging machine
3. Packing machine with reinforced wood case
Company Profile
Shandong Magick Intelligent Technology Co.,Ltd is a manufacturer specialized in laser marking machines, laser engraving machines, and laser cutting machines. At present, we have a young and experienced team,first-class technical center and a
professional production base.We have established long and stable relationships with many famous universities and science andtechnology institutes in Shanghai and Beijing. Technology and innovation is always our focus.We have always been striving topromote the quality and technological innovation of our products.
professional production base.We have established long and stable relationships with many famous universities and science andtechnology institutes in Shanghai and Beijing. Technology and innovation is always our focus.We have always been striving topromote the quality and technological innovation of our products.
Magick products always give wonderful experience to thecustomers and we hope to cooperate with the customers from all over the world. Welcome to visit us!
FAQ
Q1.how to get the most suitable machine and best price
please tell the material you want to working on?How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Then we will supply you 2-3 solution for advice.
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance,the balance prior to the shipment.
Q3.What is the producing time after order?
The production time is about 10-20 days depend on the exact machine and the quantity.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will
have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or what’sapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.The testing video and pictures
will be sent to you before the delivery.
please tell the material you want to working on?How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Then we will supply you 2-3 solution for advice.
Q2.What is the payment?
The payment is 30% or 50% T/T or Alibaba trade assurance in advance,the balance prior to the shipment.
Q3.What is the producing time after order?
The production time is about 10-20 days depend on the exact machine and the quantity.
Q4.If we don't know how to use the machine,can you teach us?
Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will
have the special engineer to your country,but you need to bear some fee,like tickets and hotel and meal.
Q5.How about your after-sales service?
we offer you 24 hours service phone,skype or what’sapp, our engineer also can go to door install or training.
Q6. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.The testing video and pictures
will be sent to you before the delivery.
