Чип 0805 1 чип серии высокой яркости T0.8mm типа SMD LED
US $0.02-$0.05
Светодиодные smd-чипы 6 в 1 Вт 2835 широко используются цифровых продуктах светодиодные чипы по хорошей
- Категория: SMD LED >>>
- Поставщик: Zhongshan,Copda,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.80 $* | 0.78 $* |
| Aug-17-2025 | 0.65 $* | 0.41 $* |
| Jul-17-2025 | 0.15 $* | 0.69 $* |
| Jun-17-2025 | 0.8 $* | 0.79 $* |
| May-17-2025 | 0.51 $* | 0.53 $* |
| Apr-17-2025 | 0.0 $* | 0.7 $* |
| Mar-17-2025 | 0.46 $* | 0.11 $* |
| Feb-17-2025 | 0.56 $* | 0.45 $* |
| Jan-17-2025 | 0.9 $* | 0.49 $* |
Характеристики
Product Description
6V 1W 2835 led smd chips widely used in digital products led chips good price
Main Specifications
Item | Symbol | Min Value | Standard | Max Value | Unit | Testing Condition |
Forward Voltage | VF | 6.0 | 6.4 | 6.8 | V | IF=150mA |
Reverse Current | IR | - | - | 1 | uA | VR=7V |
Color Temperature | TC | 2800 | - | 7200 | K | IF=150mA |
Lumen | Φ | 115 | - | 125 | lm | IF=150mA |
Color Rendering Index | CRI | 80 | - | - | - | IF=300mA |
Viewing Angle | 2θ1/2 | - | 120 | - | Deg | IF=300mA |
Maximum Specifications(TA=25°C)
Item | Symbol | Maximum Specifications | Unit | |
Forward Current | IF | 150 | mA | |
Peak Forward Current | IFP | 160 | mA | |
Reverse Voltage | VR | 7 | V | |
Power Consumption | PD | 1000 | mW | |
Junction Temperature | ≤125°C | |||
Pin Application Temperature | ≤105°C | |||
Working Temperature | -40°C~+85°C | |||
Storage Temperature | -40°C~+85°C | |||

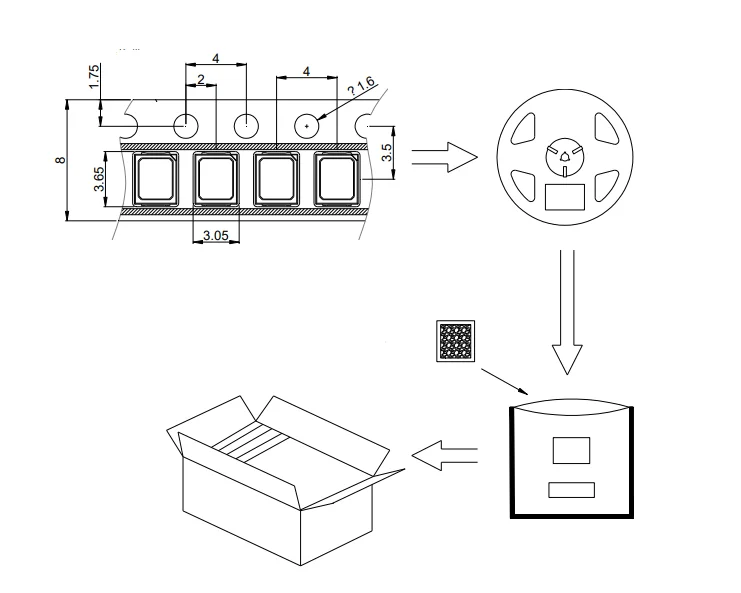

Packaging & Shipping
