Цифровой датчик давления воды PT210 0bar-600 бар стандартный водопроводной трубы
- Категория: Pressure Sensors >>>
- Поставщик: Shanghai,Sensoriot,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 29.47 $* | 30.65 $* |
| Aug-17-2025 | 28.41 $* | 29.4 $* |
| Jul-17-2025 | 24.97 $* | 25.12 $* |
| Jun-17-2025 | 28.37 $* | 29.65 $* |
| May-17-2025 | 24.35 $* | 25.86 $* |
| Apr-17-2025 | 27.57 $* | 28.51 $* |
| Mar-17-2025 | 27.23 $* | 28.58 $* |
| Feb-17-2025 | 27.43 $* | 28.46 $* |
| Jan-17-2025 | 27.36 $* | 28.15 $* |
Характеристики

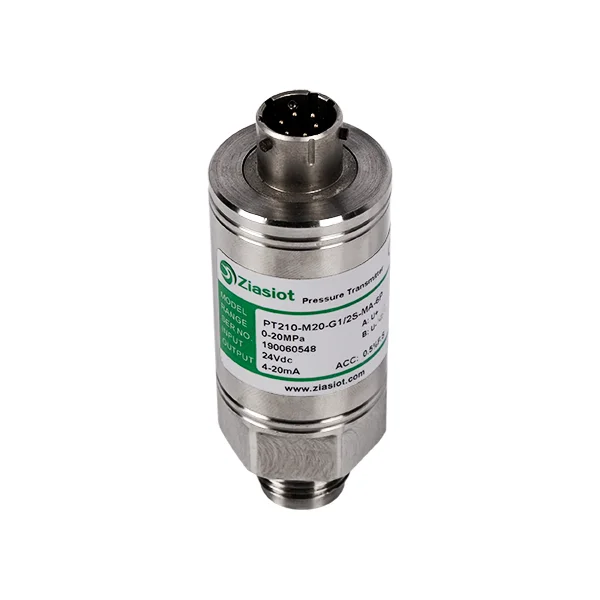

Products Show
Features：
accuracy superior to 0.5% F.S
strain wheastone bridge structure
gauge pressure:0-10bar,0-600bar
ingress protection:IP65
multiple e-connection option
gauge pressure:0-10bar,0-600bar
ingress protection:IP65
multiple e-connection option
multiple threaded connection options
Product Description：
PT210 series standard pressure sensor is a civil and industrial product with large consumption. This series of products is widely
used for pneumatic and hydraulic detection even in very harsh medium environment such as sewage, vapor, slight corrosive liquid
and gas.
PT210 series pressure transmitter adopts superior 17-4PH material as elastomer and imported strain gauge, it can convert gauge
pressure of measured medium into standard signal output of voltage and current. It has wide pressure measuring range, stainless
steel housing, accurate and durable, small size and many types of pressure ports available, which is easy to install and use.
used for pneumatic and hydraulic detection even in very harsh medium environment such as sewage, vapor, slight corrosive liquid
and gas.
PT210 series pressure transmitter adopts superior 17-4PH material as elastomer and imported strain gauge, it can convert gauge
pressure of measured medium into standard signal output of voltage and current. It has wide pressure measuring range, stainless
steel housing, accurate and durable, small size and many types of pressure ports available, which is easy to install and use.
Application：
Industrial process detection&control
Hydraulic System
Industrial mechinery manufacturing
General industrial applications
Hydraulic System
Industrial mechinery manufacturing
General industrial applications
Product Paramenters
Attribute | Technical Parameters | ||||
Pressure Range | 0～10 bar,0～600bar | ||||
Accuracy | ±0.5% F.S | ||||
Overload Capactity | 1.5 times rated pressure | ||||
Breakdown Pressure | 3 times rated pressure | ||||
Pressure Type | gauge pressure | ||||
Electrical Environmental Temp | -25℃～ 85 ℃ | ||||
Mechanical Shock | 100g/1msec | ||||
Mechanical Vibration | ≤20g(15-2000Hz) | ||||
Temperature Drift | ≤0.04% /℃ | ||||
Compatible Medium | all corrosive medium compatible with material1Cr18Ni9Ti and material 17-4PH | ||||
Electrical Performance | 2-wire | 3-wire | 3-wire | ||
Output | 4-20mA | 0-10 V | 0-5V | ||
Response Time | ≤3msec | ≤10msec | ≤10msec | ||
Supply | 10-30VDC | 12-30VDC | 10-30VDC | ||
Overload Resistance | (U-10)/0.02Ω | ＞25KΩ | ＞25KΩ | ||
E-Connection | lead-wire,M12×1 round connector,Hirschmann connector | ||||
Ingress Protection | IP65 | ||||
Pressure Connector | G1/4,1/4NPT,G1/2,M20 | ||||
Application
Company Profile
Certifications
Exhibition
Transport
FAQ
Q: What is the warranty of your products?
A: 1 years from shipment date
Q: What is your shipping method?
A: Small orders are delivered with DHL, FedEx, TNT, UPS , EMS. Large orders are recommended to ship by sea or air.
Q: How long will you give me the reply?
A: We can support you 24Hours online service via email, skype, what’sapp, facebook etc within 1 hour.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer, committed to producing high accuracy, long-term stability, cost-efficient pressure/ level/ temperature/flow/ differential pressure measuring instruments.
Q: What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q: How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity and stock of your order.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q: Which countries have you exported to ?
A: So far, we have sold our products to many countries and regions.Such as Germany ( like Siemens), Sweden, Spain, USA, Australia,Saudi Arabia,UAE,Brazil,Indonesia,Malaysia,India,Russia,South Africa etc.
A: 1 years from shipment date
Q: What is your shipping method?
A: Small orders are delivered with DHL, FedEx, TNT, UPS , EMS. Large orders are recommended to ship by sea or air.
Q: How long will you give me the reply?
A: We can support you 24Hours online service via email, skype, what’sapp, facebook etc within 1 hour.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer, committed to producing high accuracy, long-term stability, cost-efficient pressure/ level/ temperature/flow/ differential pressure measuring instruments.
Q: What is your terms of packing?
A: Generally, we pack our goods in brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q: How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity and stock of your order.
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q: Which countries have you exported to ?
A: So far, we have sold our products to many countries and regions.Such as Germany ( like Siemens), Sweden, Spain, USA, Australia,Saudi Arabia,UAE,Brazil,Indonesia,Malaysia,India,Russia,South Africa etc.
