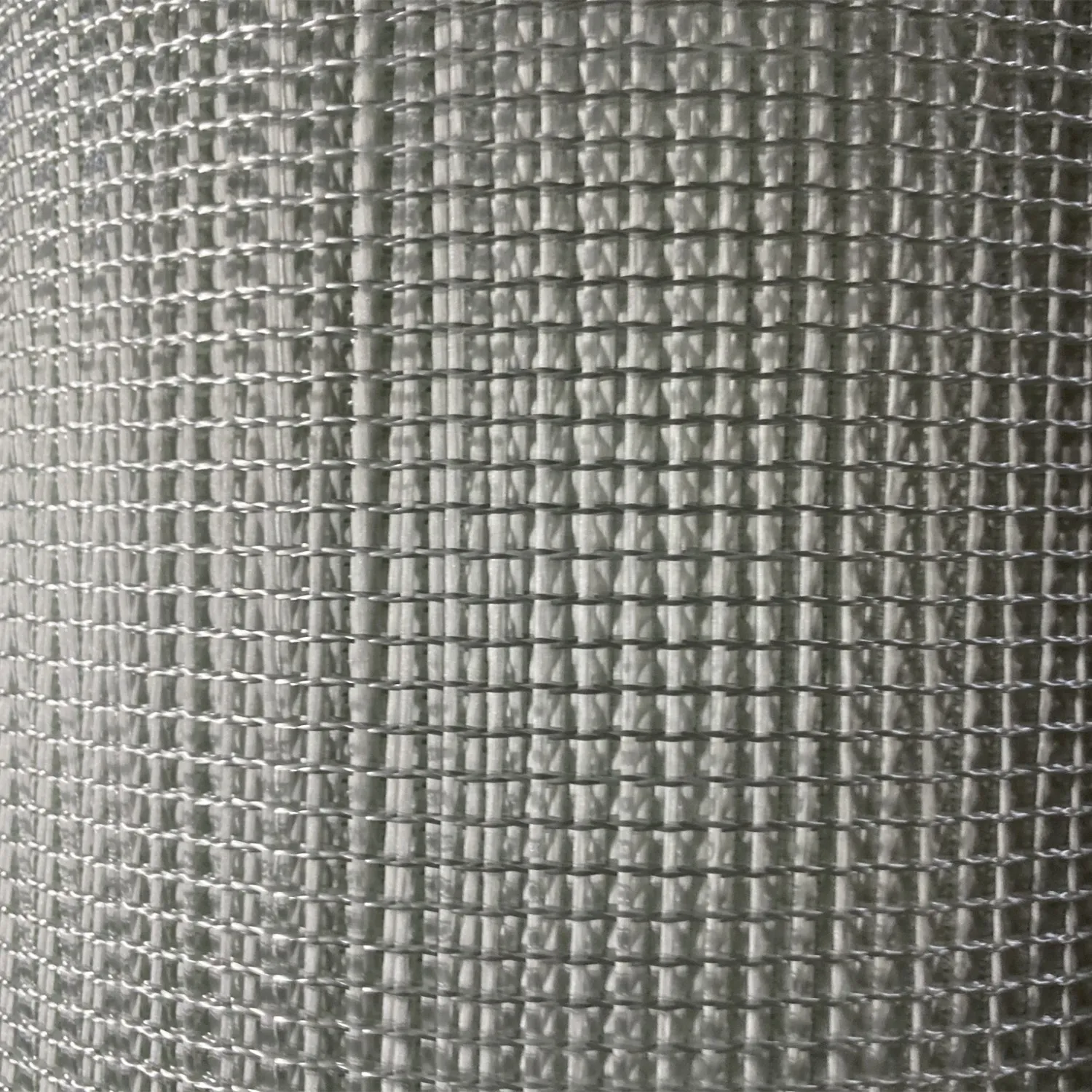

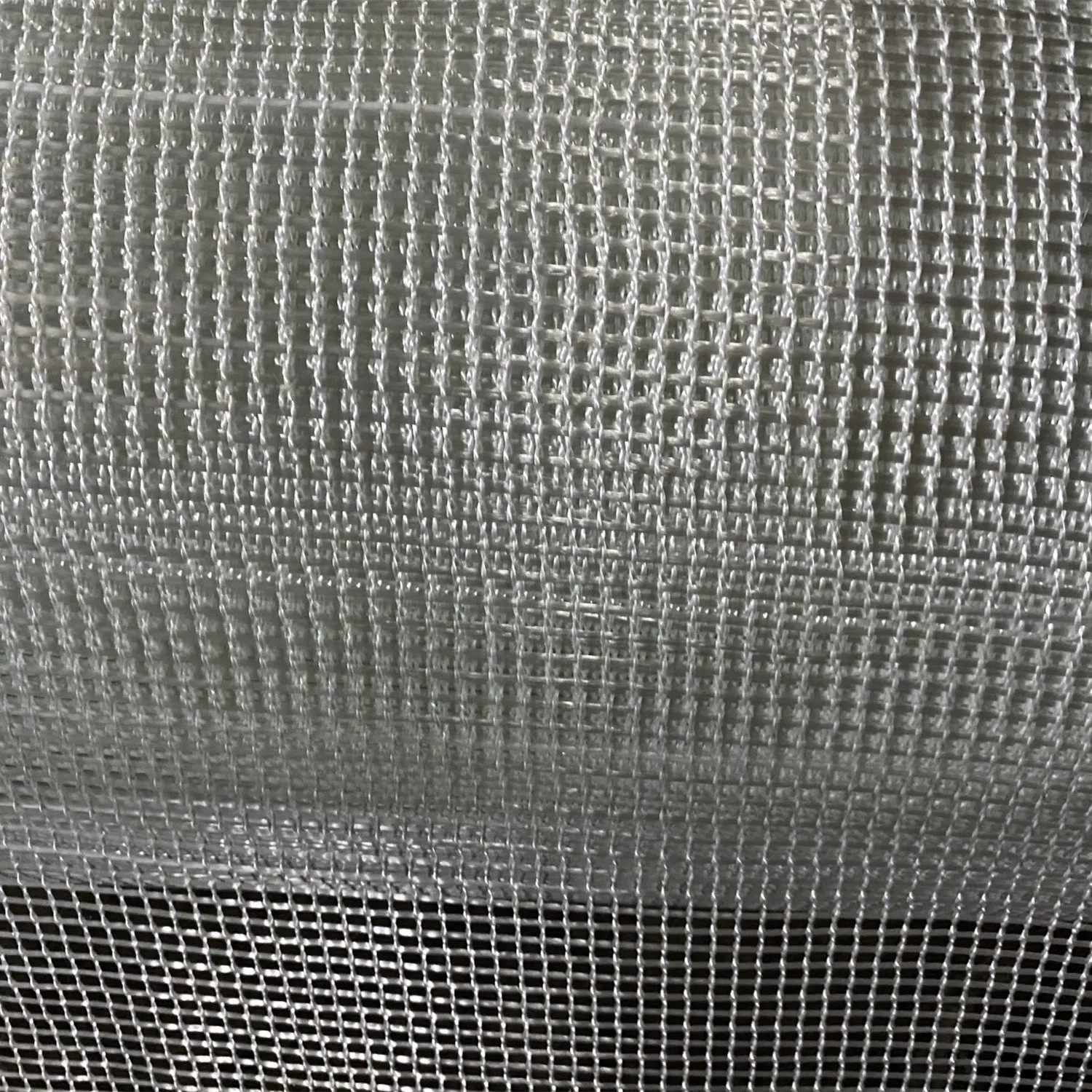

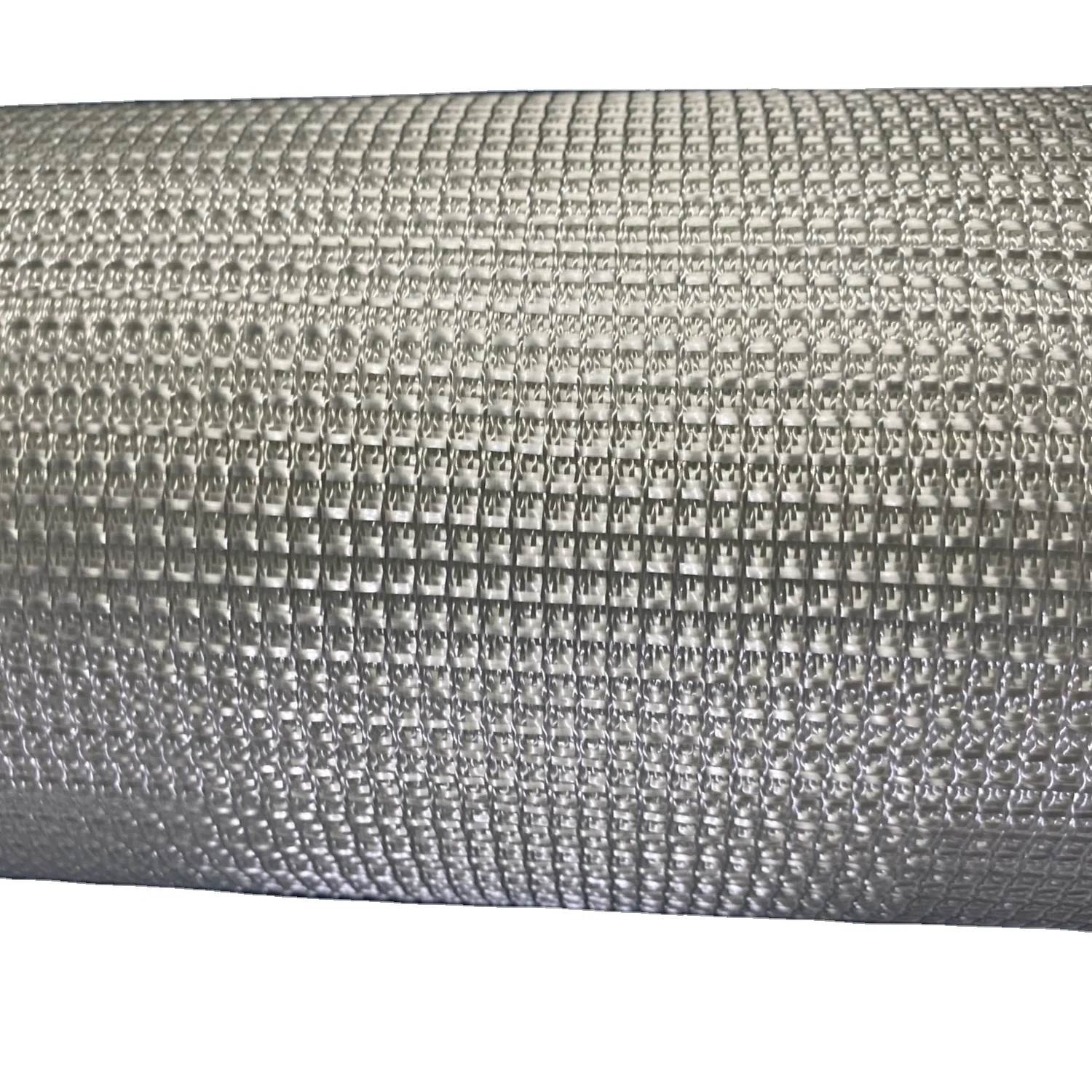

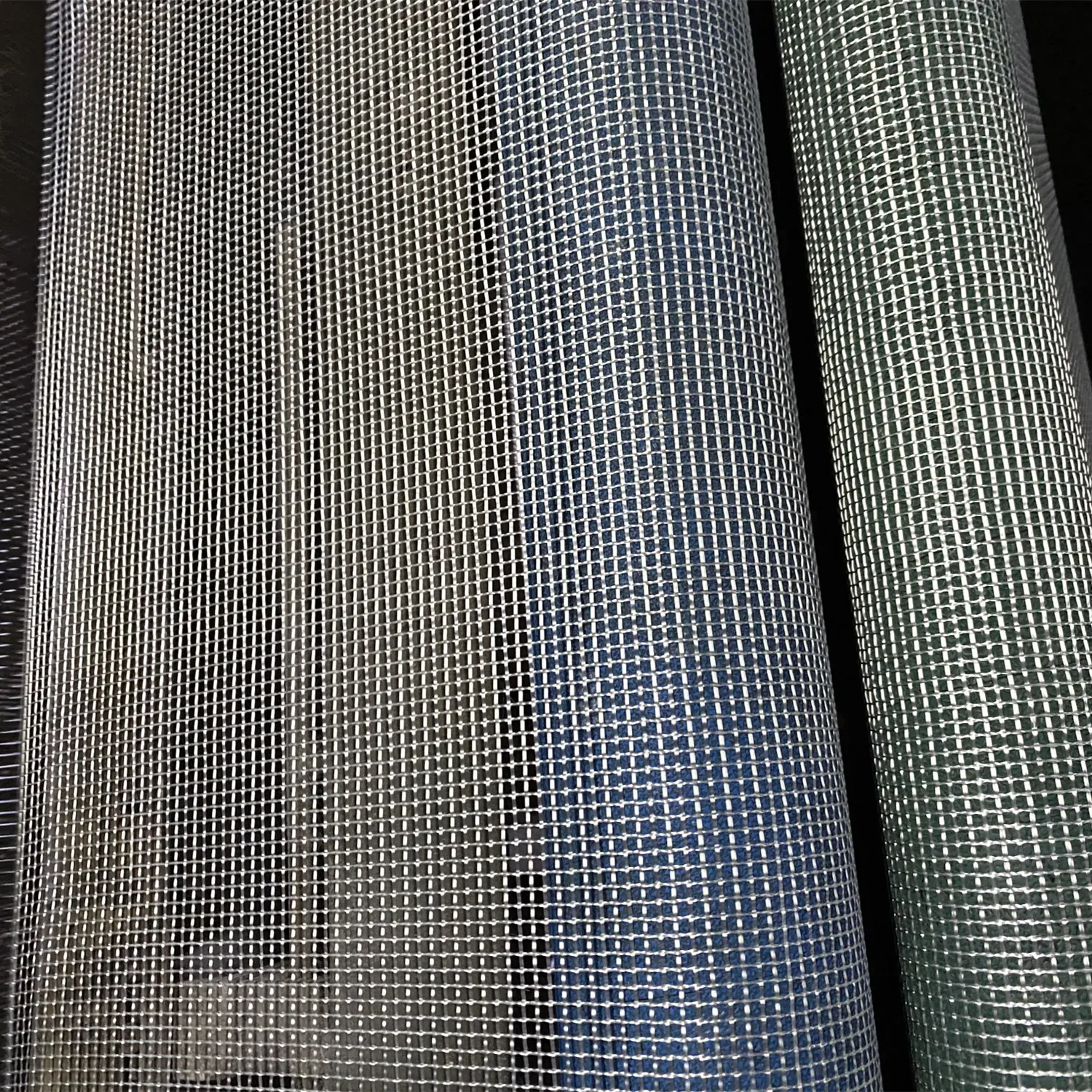

Fiberglass Grinding Wheel Mesh



The fabric is woven by fiberglass yarn which is treated with silane coupling agent. There are two kind, plain and leno weave. With many unique characteristics like high strength, good bonding performance with resin, flat surface and low elongation, it is used as an ideal base material for making fiberglass reinforced grinding wheel disc.







• High Strength, Low Extensibility


• Coating with Resin Easily, Flat Surface


• High Temperature Resistant



ITEM	WEIGHT (g/m2)	DENSITY COUNT(25mm)		TENSILE STRENGTH(N/50mm)		WOVEN STRUCTURE
		WARP	WEFT	WARP	WEFT
DL5X5-190	190±5%	5	5	≥1500	≥1500	leno
DL5X5-240	240±5%	5	5	≥1700	≥1800	leno
DL5X5-260	260±5%	5	5	≥2200	≥2200	leno
DL5X5-320	320±5%	5	5	≥2600	≥2600	leno
DL6X6-100	100±5%	6	6	≥800	≥800	leno
DL6X6-190	190±5%	6	6	≥1550	≥1550	leno
DL8X8-125	125±5%	8	8	≥1000	≥1000	leno
DL8X8-170	170±5%	8	8	≥1350	≥1350	leno
DL8X8-260	260±5%	8	8	≥2050	≥2050	leno
DL8X8-320	320±5%	8	8	≥2550	≥2550	leno
DL10X10-100	100±5%	10	10	≥800	≥800	leno





































The regular supply of fiberglass grinding wheel mesh is DL5x5-240, DL5x5-320, DL6x6-190, DL8x8-170, DL10x10-90, etc.

With high strength and Low Extensibility, it can be used for cutting grinding wheel discs.





1.Weaving from yarns without twist: Reduce the damage on yarns during textile process so that to achieve better reinforcement for glass fiber discs; Theoretically speaking, yarns without twist will be thinner coalition yarns, could reduce the thickness of glass fiber discs(under data analysis), beneficial to thin or ultrathin grinding wheels.



2.New weaving technique: reduce the damage on wrap yarns during coalition process, uniform the tensile strength from wrap and fill direction, make better reinforcement for glass fiber discs. Also the new weaving technique can help reduce the thickness of products.



 1. E-glass has higher tensile strength than C-glass, better reinforcement for the grinding wheels

 2. E-glass has higher Elongation, it will help to reduce the glass fiber abrasive cutting ratio during the forming process of the grinding wheels when it in a high stress.

     3. E-glass has higher volume density, around 3% volume smaller in the same weight, increase the abrasive dosage and improve the grinding efficiency & result of grinding wheels.

     4. E-glass has better properties on humidity resistance, water resistance & aging resistance, strength the weather ability of fiberglass discs & extend the guarantee period of the grinding wheel.





Reinforcement for Fiberglass Grinding Wheel Mesh



Fiberglass grinding wheel mesh is usually used as a reinforcing material in composite materials, electrical insulation materials and thermal insulation materials, circuit boards and other fields of the national economy.

It is widely used in wall reinforcement, exterior wall insulation, roof waterproofing, etc., and can also be used to enhance wall materials such as cement, plastic, asphalt, marble, mosaic, etc. It is an ideal engineering material for the construction industry.



With features of high tensile strength and deflection resistance, good combination with abrasives, excellent heat resistance when cutting, it is the best base material for making different retinoid grinding wheels.







Warmly welcome domestic and foreign customers to contact with us!
