Направляющий бинокулярный телескоп с тепловизионным изображением IR516B Прямая поставка
- Категория: Outdoor Telescope >>>
- Поставщик: Wuhan,Guide,Sensmart,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 11937.97 $* | 12176.52 $* |
| Jul-15-2025 | 9681.46 $* | 9875.3 $* |
| Jun-15-2025 | 11749.78 $* | 11984.2 $* |
| May-15-2025 | 11655.27 $* | 11888.60 $* |
| Apr-15-2025 | 9305.43 $* | 9491.82 $* |
| Mar-15-2025 | 11467.40 $* | 11696.87 $* |
| Feb-15-2025 | 11373.4 $* | 11600.96 $* |
| Jan-15-2025 | 11279.65 $* | 11505.89 $* |
Характеристики
Products Description

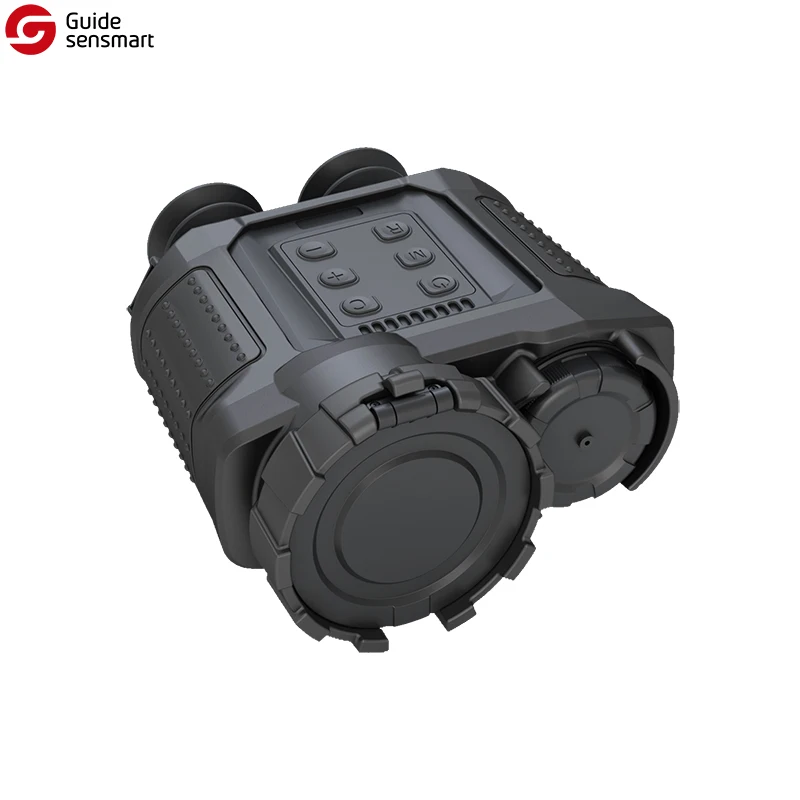

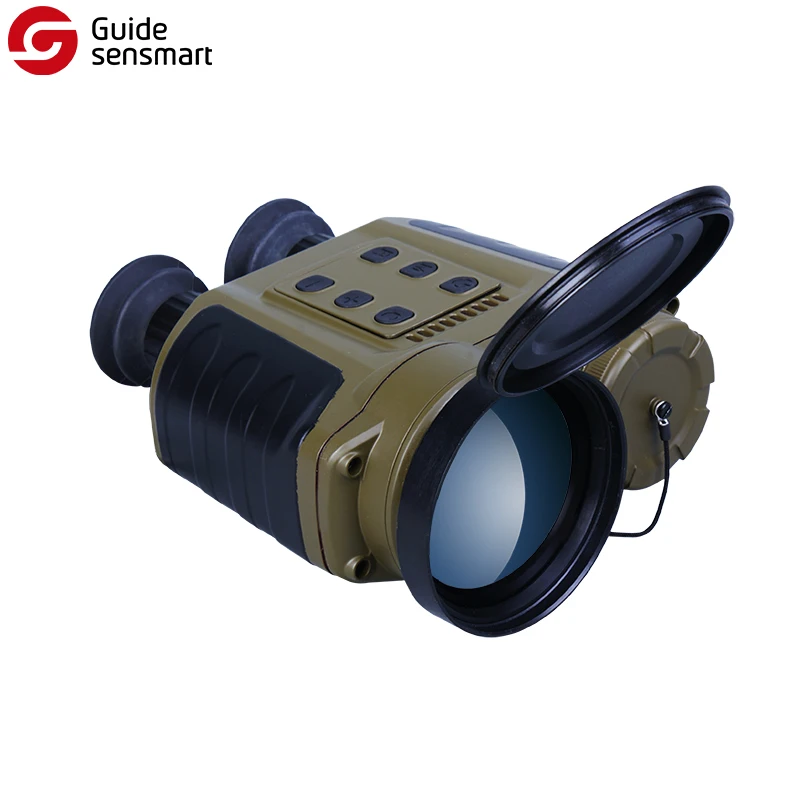

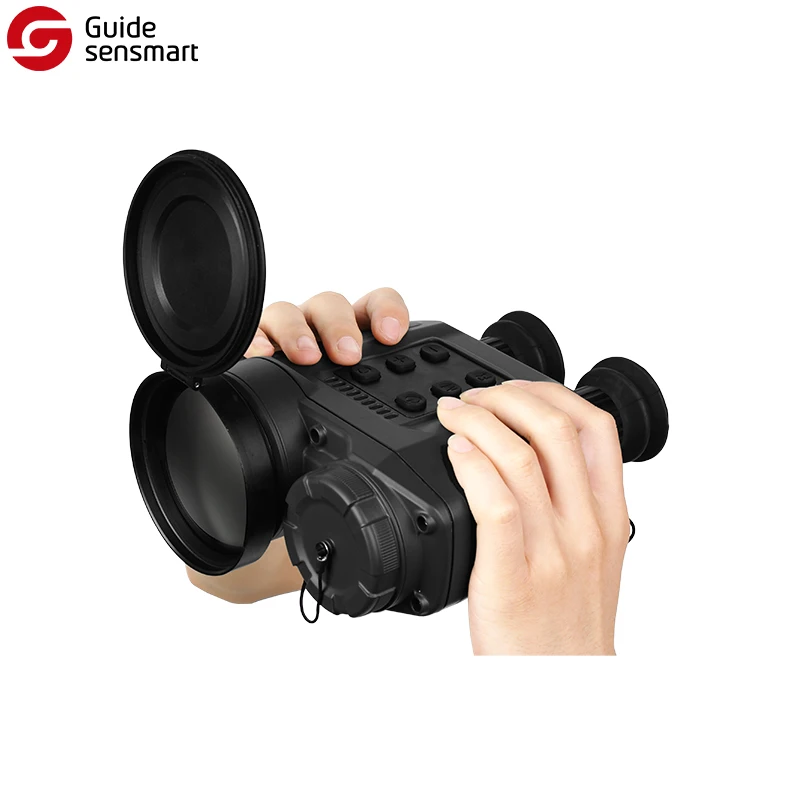

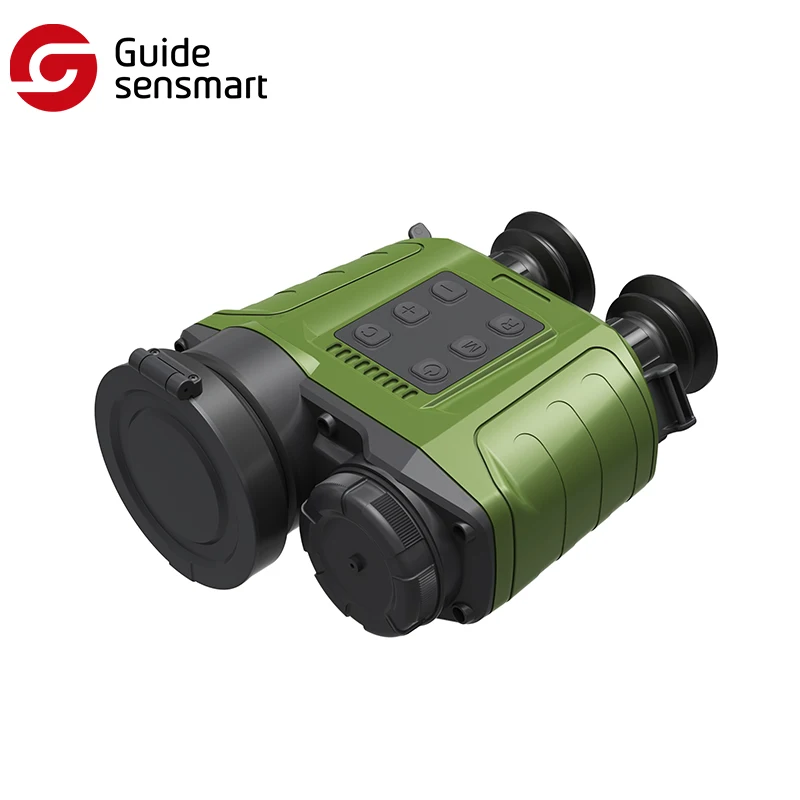

Guide IR516B Thermal Imaging Binocular Telescope Factory Direct Supply
Introduction
IR516A/IR516B Series is your ideal choice for day-and-night observation and surveillance. With all these features, it’s an essential tool in wildlife observation, hunting, public safety, police and security operations.
Application
Counter-terrorism / Law Enforcement / Outdoor /Patrol / Search & Rescue / Personal Security
IR516A/IR516B Series is your ideal choice for day-and-night observation and surveillance. With all these features, it’s an essential tool in wildlife observation, hunting, public safety, police and security operations.
Application
Counter-terrorism / Law Enforcement / Outdoor /Patrol / Search & Rescue / Personal Security
Main Features of Guide IR516B Thermal Imaging Binocular Telescope Factory Direct Supply
•Two detectors for option, normal version 400*300 and high version 800*600
• With the integrating function of taking photo, video and reviewing, which can be output by USB
• Power control, contrast and brightness adjustment, image polarity conversion and 2x digital zoom
• Binocular display, can be contacted with external display device
Guide IR516B Thermal Imaging Binocular Telescope Factory Direct Supply
• With the integrating function of taking photo, video and reviewing, which can be output by USB
• Power control, contrast and brightness adjustment, image polarity conversion and 2x digital zoom
• Binocular display, can be contacted with external display device
Guide IR516B Thermal Imaging Binocular Telescope Factory Direct Supply
Product Paramenters
Model | IR516A | IR516B | ||
Detector | ||||
Detector Resolution | 400×300，17μm | 800×600，17μm | ||
Spectral Range | 8μm～14μm | 8μm～14μm | ||
Lens | ||||
Focus | 70mm | |||
FOV | 5.6°×4.2°(±5%) | 11.1°×8.31°(±5%) | ||
Image | ||||
Image Enhancement | Auto image filtering and sharp | |||
Brightness/Contrast | Auto/Manual | |||
Polarity | White-hot/black-hot，palette | |||
Digital Zoom | 2× | |||
Video Storage | Built-in 16GB SD card | |||
View Finder | OLED 1280×1024, visual acuity | |||
Power | ||||
Power Input | 12V power adapter or built-in Li-ion battery | |||
Working Time | ≥4h（without changing battery） | |||
Interface | ||||
Electrical Interface | power、video PAL（NTSC can customizable）、communication RS232 | |||
Mechanical Interface | 1/4 inch standard interface | |||
Environment Parameters | ||||
Working Temperature | －40°C～60°C（Except for display equipment） | |||
Encapsulation | IP67 | |||
Electromagnetic Compatibility | GJB151A-97 | |||
Physical Characteristics | ||||
Weight | ≤1.5kg（including battery） | |||
Size | ≤210mm×170mm×100mm | |||
Standard | AL18650x4(rechargeable)battery,Charger,Power adapter, External connection cable,Safety box,User Manual | |||
Optional | Tripod, Carrying bag | |||
Detection Range | ||||
1.8m×0.5m Human | >1.6km | |||
2.3m×2.3m Vehicle | >3.1km | |||
Recognition Range | ||||
1.8m×0.5m Human | >0.85km | |||
2.3m×2.3m Vehicle | >1.1km | |||
