Купить Холодильный агрегат для больших грузовиков с тонким конденсатором в
- Категория: Other Refrigeration & Heat Exchange Equipment >>>
- Поставщик: Zhengzhou,Huabon,Thermo,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.38 $* | 0.84 $* |
| Aug-17-2025 | 0.86 $* | 0.12 $* |
| Jul-17-2025 | 0.33 $* | 0.41 $* |
| Jun-17-2025 | 0.81 $* | 0.97 $* |
| May-17-2025 | 0.70 $* | 0.45 $* |
| Apr-17-2025 | 0.62 $* | 0.76 $* |
| Mar-17-2025 | 0.69 $* | 0.26 $* |
| Feb-17-2025 | 0.40 $* | 0.37 $* |
| Jan-17-2025 | 0.22 $* | 0.23 $* |
Характеристики
Product Description
Standard Features
► R404A Eco-friendly refrigerant.
► Reasonable product design; Aluminum alloy shell, 4 condenser fan and 4 evaporator fan.
► Reasonable product design; Aluminum alloy shell, 4 condenser fan and 4 evaporator fan.
► Direct-drive by the vehicle engine, with big and fast cooling, high-efficiency and reliability.
► Quick and easy installation, simple maintenance, saving operation cost
► Digital and multi-functional control panel, double screen display, precise temperature control and simple operation, with e-diagnostics.
► Standard CPR heating and optional STANDBY
► Quick and easy installation, simple maintenance, saving operation cost
► Digital and multi-functional control panel, double screen display, precise temperature control and simple operation, with e-diagnostics.
► Standard CPR heating and optional STANDBY
Specification
Models | HT-1280 | ||||
Cooling Capacity (+38℃/100℉) | Temperature | Watt | Btu | ||
0℃ | 12870 | 43912 | |||
-18℃ | 7850 | 26784 | |||
Temp. range | -18℃~+30℃ | ||||
Voltage | DC12V/24V | ||||
Defrosting | Hot gas defrost | ||||
Evaporator Airflow Volume | 5000m³/h | ||||
Refrigerant and volume | R404a/4.2kg | ||||
Compressor | Model | QP31 | |||
Displacement | 313cc/r | ||||
Condenser | Coils | Parallel flow condenser | |||
No. of fan | 4Pcs | ||||
Dimensions | 2000*390*340mm | ||||
Weight | 65Kg | ||||
Evaporator | Coils | Inner grooved copper tube & aluminum fin | |||
Dimensions & Weight | No. of fan | 4Pcs | |||
Dimensions | 1500*650*350mm | ||||
Recommend Box Volume | Weight | 57Kg | |||
Recommended Vehicle Box Volume | 60~70m³ | ||||
Details Images
Packing & Delivery
Packing: export standard package: carton box, wooden case, pallet...
Delivery time: 1-2 weeks commonly.
Recommend Products
Company Profile
Located at Zhengzhou city, China, an important traffic hub on the One-Belt-One-Road , we are Zhengzhou Huabon Thermo Co., Ltd., a manufacturing enterprise specializing in the production, sales and service of transport refrigeration units. We have a production capacity of more than 10,000 transport refrigeration units annually and a full range of refrigeration units for trucks and vans: Direct-drive units, DC-powered units, Full electric units, Standby units, etc. Our products meet the various demands of clients: fresh, frozen, dual-temperature, heating...
HUABON products are featured as high-reliability, exquisite appearance, thoughtful service and high performance.
After years of quality assurance and after-sales accumulation, nowadays Huabon has become a leading supplier of transport refrigeration units and refrigeration solution provider in China, with products supplying FAW, FOTON, CIMC, HONGYU, SONGCHUAN and many other domestic manufacturers of refrigerated trucks and special vehicles. At the same time Huabon company has developed the dealer and after-sales service network system, and strives to provide professional, timely and efficient services for every customer.
HUABON company keeps up with the changes of domestic market, national standards and customers' demands, standardizes product design and production management, improves product quality, passes ISO9001, ISO/TS16949 quality management system certification and obtains EU CE product certification.
Based on our high quality products and services, we have been actively expanding overseas markets since 2018 and have developed long-term cooperative distributorship in many countries such as Russia, Chile, Hungary, Serbia, Thailand, Indonesia, India, Peru, Brazil, Mexico, South Africa, etc. In addition to the existing business, HUABON company has also expanded its products and services related to parking air conditioners and parking heaters; in addition, it can provide OEM customized design and manufacturing services to continuously provide customers in different countries with local transport refrigeration and air conditioning solutions.
Professional, Pragmatic, Innovative, Honest HUABON THERMO is the Most Reliable Supplier in the Field of Transport Refrigeration Equipment!
Main Products
Transport Refrigeration Units
In-Cab Heaters and Air Con Systems
Refrigeration and Air Conditioning Spare Parts

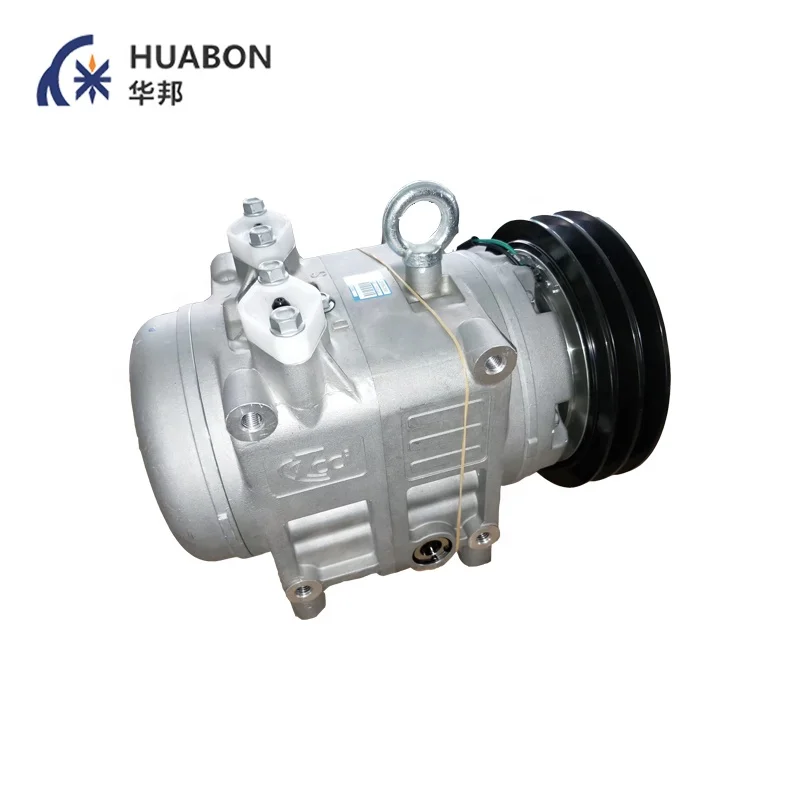

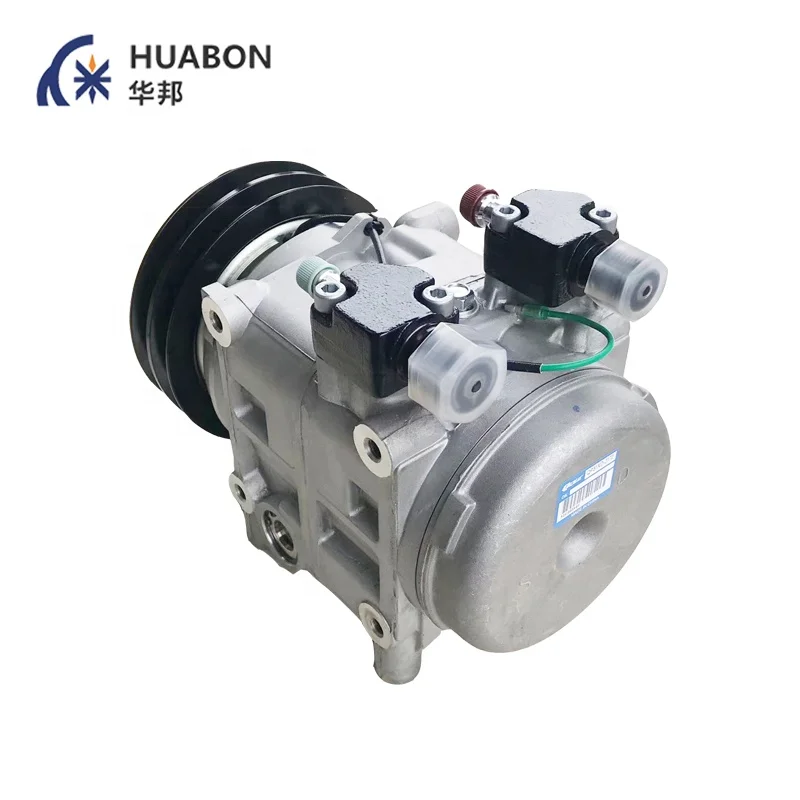

- Compressors

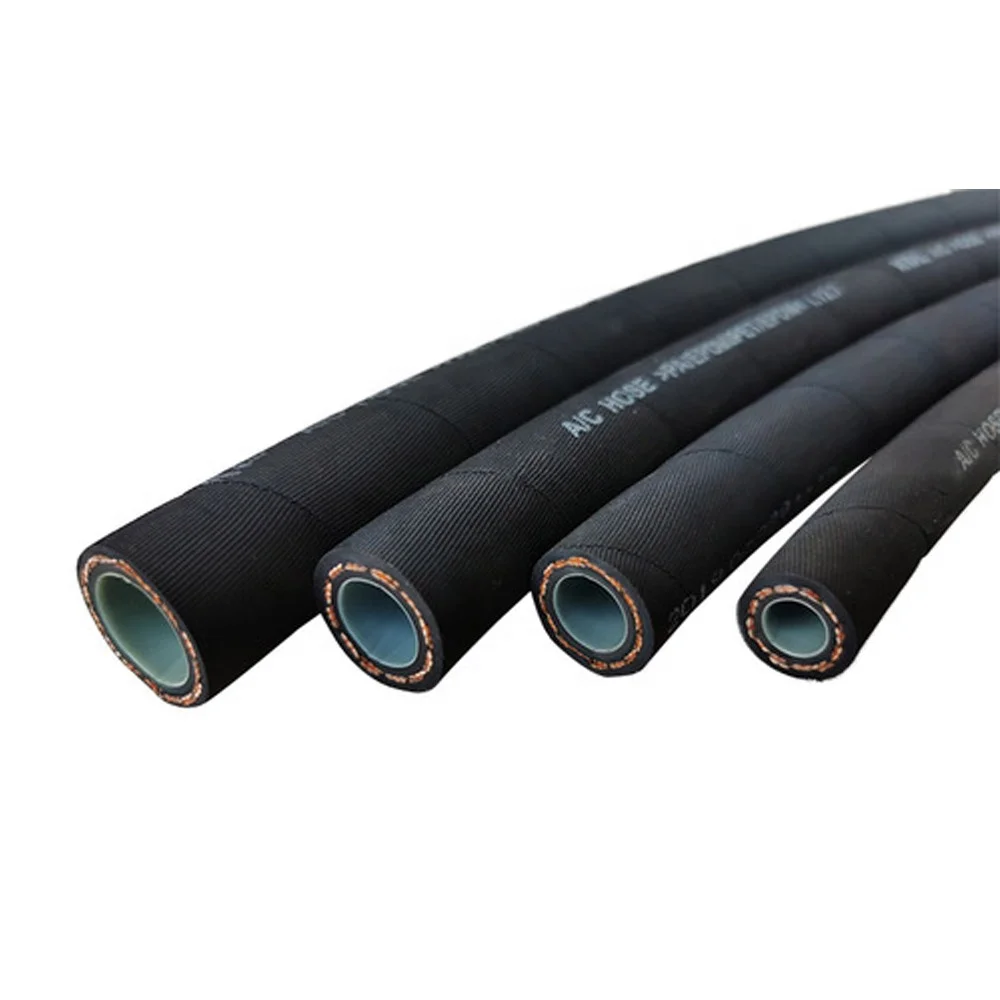

- Auto. A/C Hoses and Fittings
- Electric control Systems for Transport Refrigeration Units
- Evaporator and Condenser Fan Motors
- Oil Separators
- Driers
Why Choose Us?
1. Over 10 years experience in transport refrigeration and air conditioning industry.
2. We offer the ultimate One Stop Shop for all of your automotive cooling and heating requirements.
3. We are a company that puts the customer firstly by offering:
High performance products that is comply with ISO and CE certifications
Quality components with a reliable supply chain
Professional after-sales services 24/7
12 Months warranty period
Fast and reliable delivery time
HUABON products are featured as high-reliability, exquisite appearance, thoughtful service and high performance.
After years of quality assurance and after-sales accumulation, nowadays Huabon has become a leading supplier of transport refrigeration units and refrigeration solution provider in China, with products supplying FAW, FOTON, CIMC, HONGYU, SONGCHUAN and many other domestic manufacturers of refrigerated trucks and special vehicles. At the same time Huabon company has developed the dealer and after-sales service network system, and strives to provide professional, timely and efficient services for every customer.
HUABON company keeps up with the changes of domestic market, national standards and customers' demands, standardizes product design and production management, improves product quality, passes ISO9001, ISO/TS16949 quality management system certification and obtains EU CE product certification.
Based on our high quality products and services, we have been actively expanding overseas markets since 2018 and have developed long-term cooperative distributorship in many countries such as Russia, Chile, Hungary, Serbia, Thailand, Indonesia, India, Peru, Brazil, Mexico, South Africa, etc. In addition to the existing business, HUABON company has also expanded its products and services related to parking air conditioners and parking heaters; in addition, it can provide OEM customized design and manufacturing services to continuously provide customers in different countries with local transport refrigeration and air conditioning solutions.
Professional, Pragmatic, Innovative, Honest HUABON THERMO is the Most Reliable Supplier in the Field of Transport Refrigeration Equipment!
Main Products
Transport Refrigeration Units
In-Cab Heaters and Air Con Systems
Refrigeration and Air Conditioning Spare Parts
- Compressors
- Auto. A/C Hoses and Fittings
- Electric control Systems for Transport Refrigeration Units
- Evaporator and Condenser Fan Motors
- Oil Separators
- Driers
Why Choose Us?
1. Over 10 years experience in transport refrigeration and air conditioning industry.
2. We offer the ultimate One Stop Shop for all of your automotive cooling and heating requirements.
3. We are a company that puts the customer firstly by offering:
High performance products that is comply with ISO and CE certifications
Quality components with a reliable supply chain
Professional after-sales services 24/7
12 Months warranty period
Fast and reliable delivery time
Customer Photos
FAQ
1. What's the Minimum Order Quantity?
1Pcs.
2. How is product quality ensured?
All of our products are strictly produced with requirements of the ISO9001, CE... Certifications. We have our own Purchasing Management Systems that supervise the purchasing, production, and delivery procedures comprehensively and scientifically.
Besides, we provide 12 months warranty period for transport refrigeration units, and 7*24h on line services, so as to ensure customer's compensation and after-sales problems could be solved in time and effectively.
3. If the custom-made products are available in your company?
Only custom-made logo is available per to exact order quantities..
4. How can I select the right products?
Please tell us the refrigerated truck box size and temperature demands for the cooling units(Or what goods to delivery), and contact with us by Mobile/Wechat/ Whatsapp: +86 15638109913 /// Email: info@huabonthermo.com; we will give professional recommendations for you in the first time.
5. How can I ask for compensation if there is a failure of the units?
Please take photos and video of the failure parts and send to us in the first time; we will send you free spare parts after confirmation if goods are within warranty period. For failures out of warranty period, to be negotiable. Technical support is available for the product life time.
2. How is product quality ensured?
All of our products are strictly produced with requirements of the ISO9001, CE... Certifications. We have our own Purchasing Management Systems that supervise the purchasing, production, and delivery procedures comprehensively and scientifically.
Besides, we provide 12 months warranty period for transport refrigeration units, and 7*24h on line services, so as to ensure customer's compensation and after-sales problems could be solved in time and effectively.
3. If the custom-made products are available in your company?
Only custom-made logo is available per to exact order quantities..
4. How can I select the right products?
Please tell us the refrigerated truck box size and temperature demands for the cooling units(Or what goods to delivery), and contact with us by Mobile/Wechat/ Whatsapp: +86 15638109913 /// Email: info@huabonthermo.com; we will give professional recommendations for you in the first time.
5. How can I ask for compensation if there is a failure of the units?
Please take photos and video of the failure parts and send to us in the first time; we will send you free spare parts after confirmation if goods are within warranty period. For failures out of warranty period, to be negotiable. Technical support is available for the product life time.
6. Do your company install units after selling?
For international business, we won't provide installation service, but operation and install manual is available if there is a demand.
