Прицеп для деревянного крана 6

Категория: Farm Trailer >>>
Поставщик: Yantai,Wemax,Machinery,Co.,Ltd.

Цена:5 000,00 $ - 5 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	5950.91 $*	6248.82 $*
Aug-17-2025	5900.14 $*	6195.7 $*
Jul-17-2025	4950.78 $*	5198.20 $*
Jun-17-2025	5800.59 $*	6090.73 $*
May-17-2025	5050.85 $*	5303.16 $*
Apr-17-2025	5700.2 $*	5985.25 $*
Mar-17-2025	5650.82 $*	5933.64 $*
Feb-17-2025	5600.82 $*	5880.60 $*
Jan-17-2025	5550.83 $*	5828.86 $*

Характеристики

Product Description

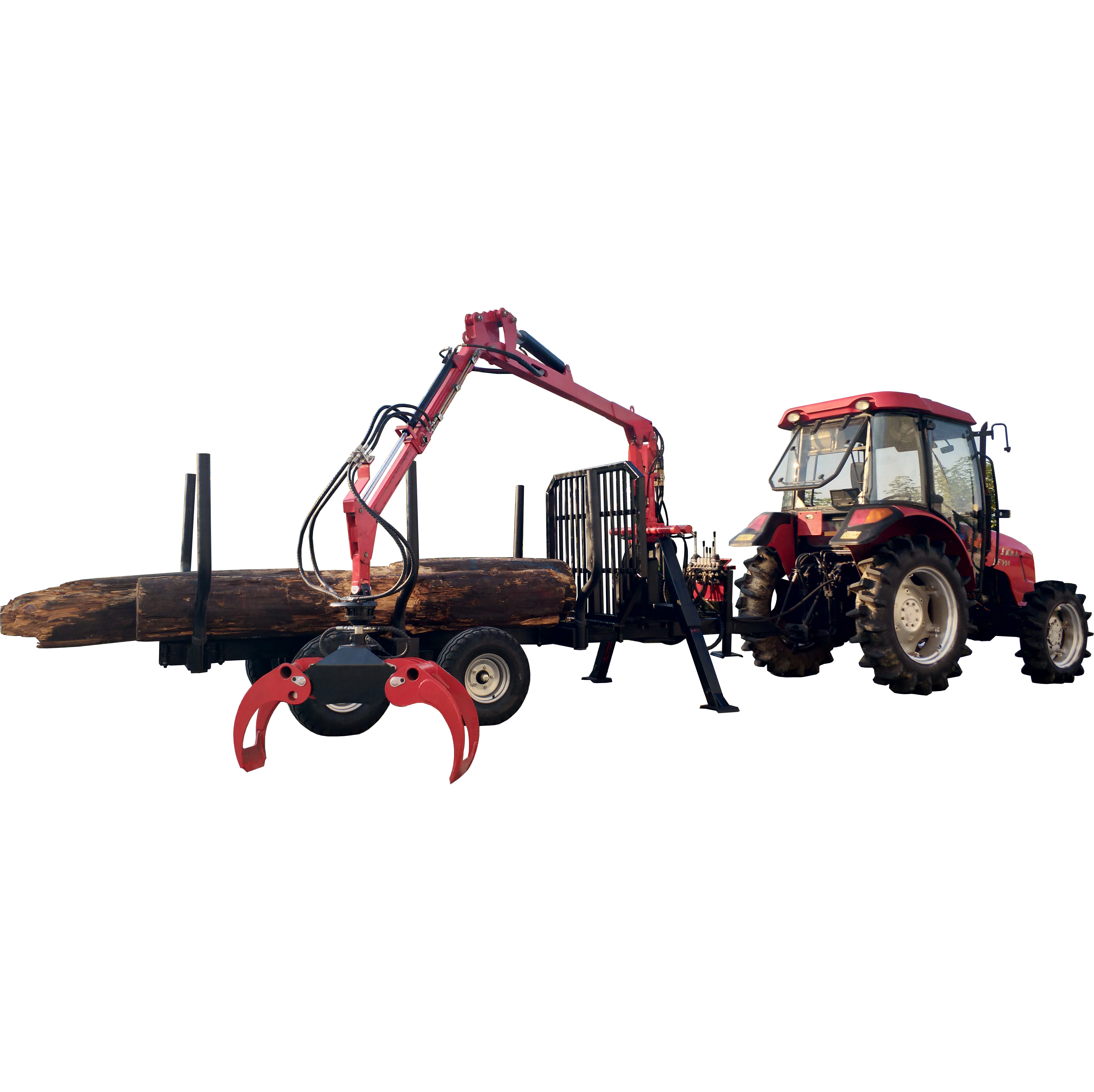

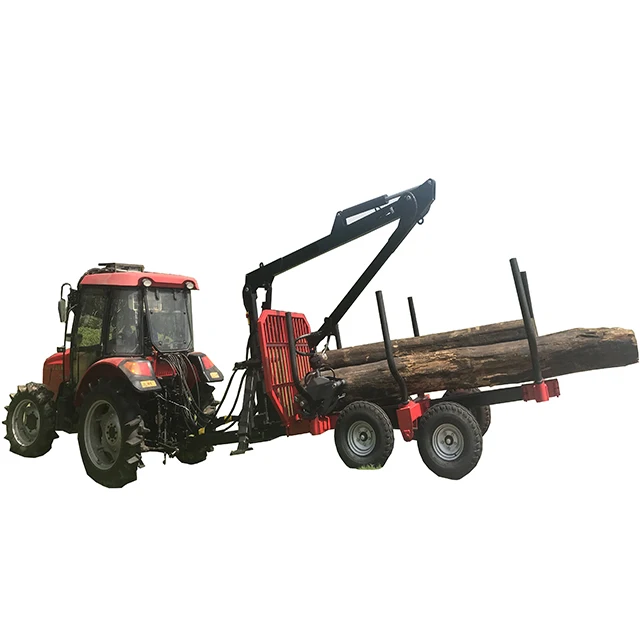

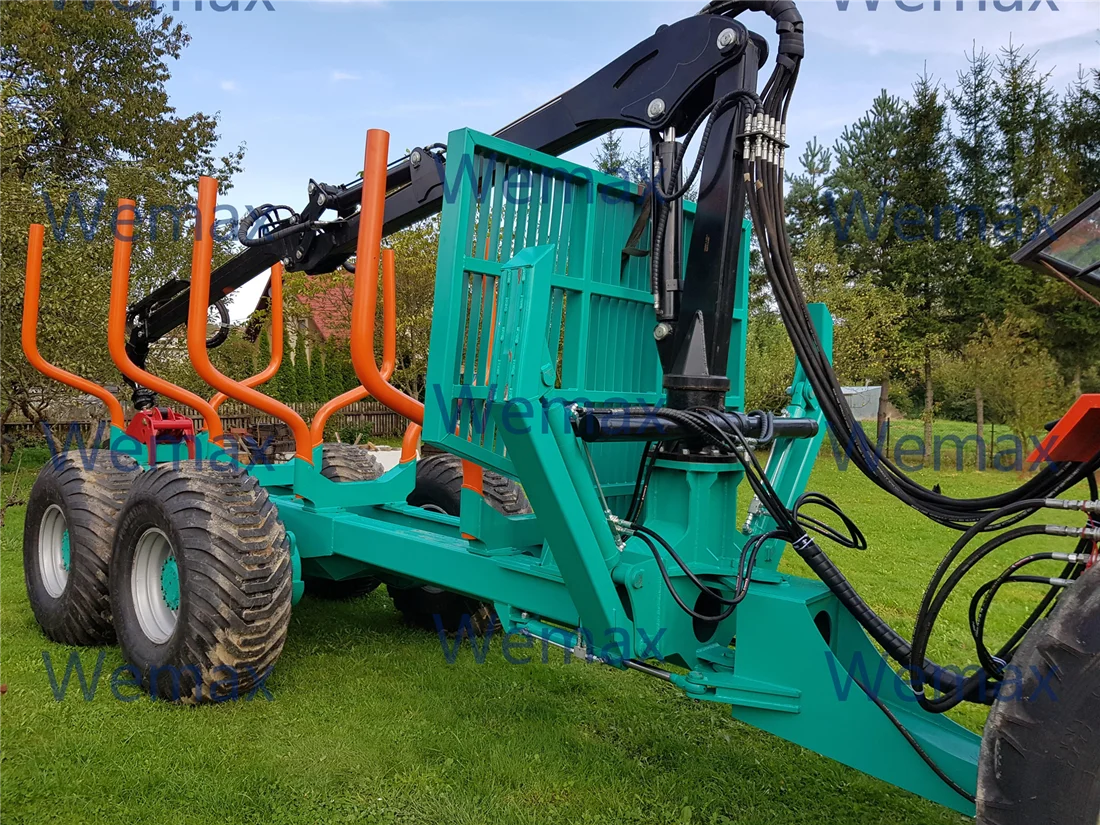

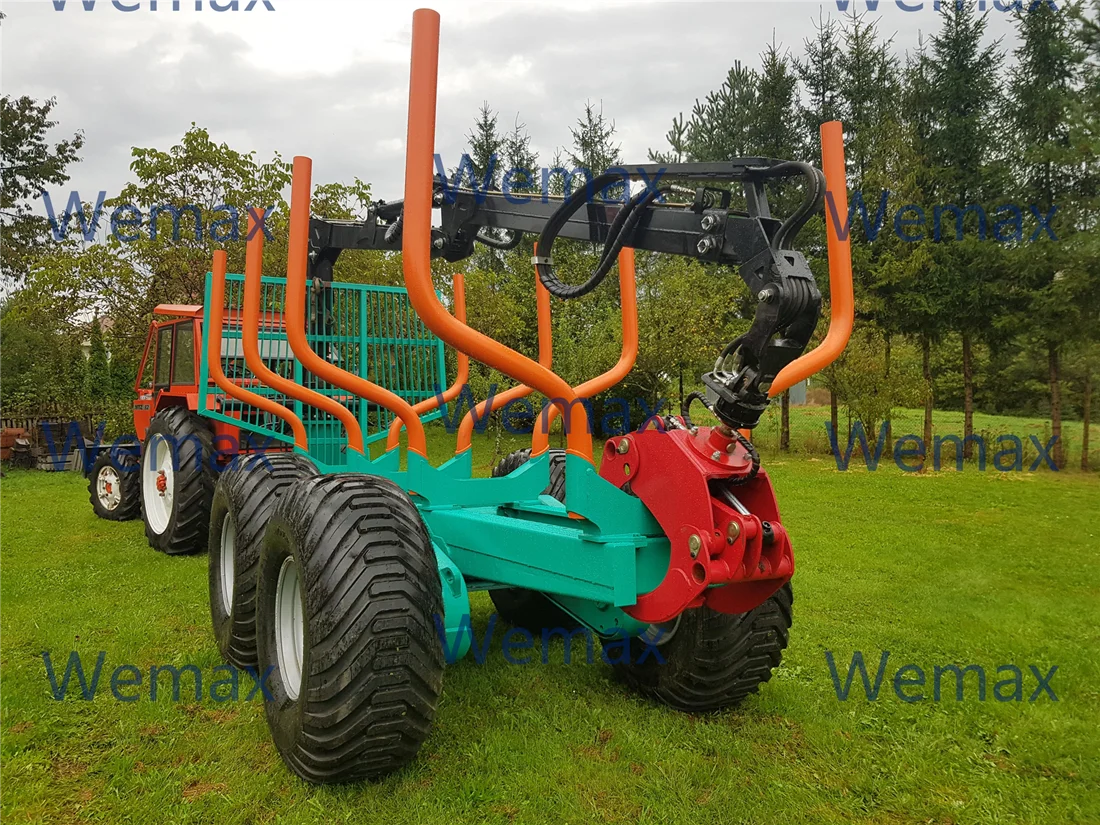

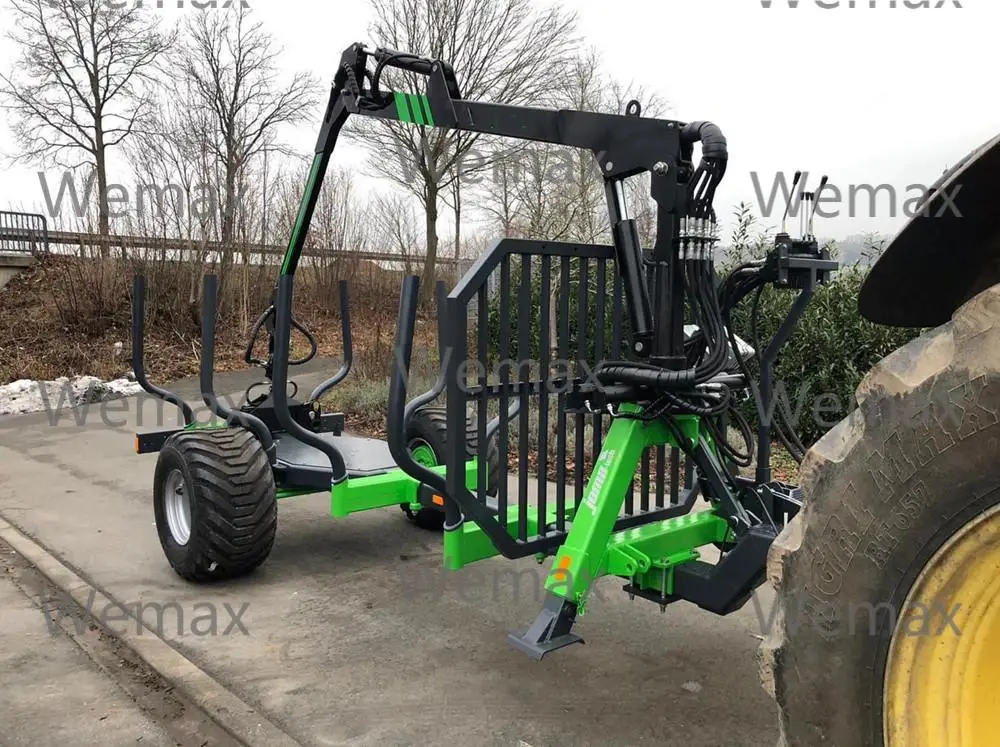

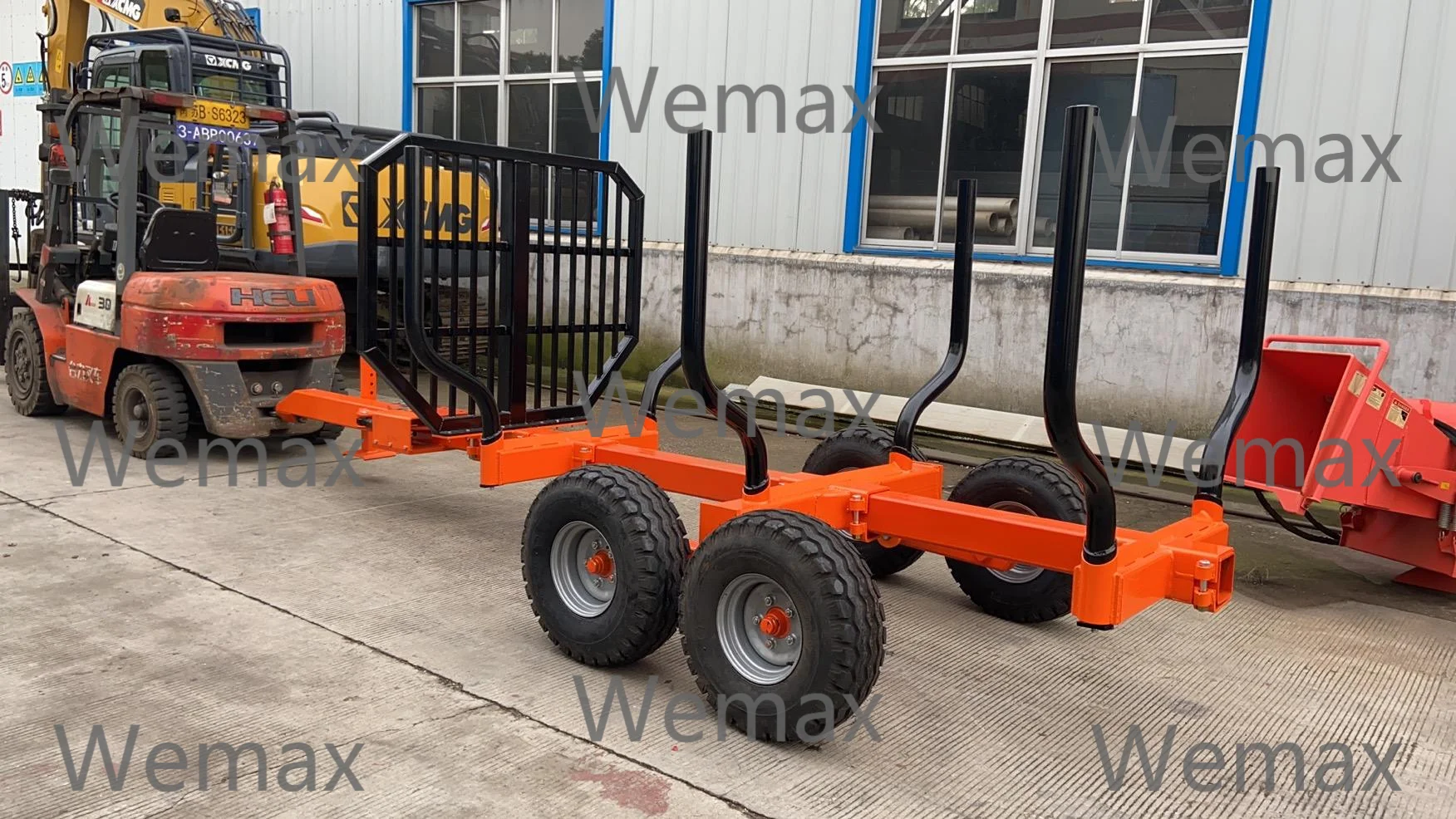

Forestry loader cranesmounted on a truck and forest trailers. Ideal for lifting,handling and transportinglong logs and firewood with speed and precision. Specifically designed for anygrab need related to timber loading, they have great lifting and loading capacity thanks to their special geometry.

Model	RT06
Max Outreach	4.7m
Lifting Moment, gross KNm	28 KNm
Lifting capacity at 4 m (excl. grapple and rotator)	400 KG
Lifting capacity at full reach (excl. grapple and rotator)	300 KG
Valve Block	5/7
Slewing torque	7 KNm
Rotator	3 Ton
Grapple	0.18 m²
Slewing angle	360°
Slewing cylinders	4 PCS
Working pressure	175 BAR
Crane's weight (without outriggers and valve block)	350 KG
3-Point Linkage	Cat-1&2
A type outriggers weight	170 KG
B type outriggers weight	210 KG
Load capacity up to 40 km/h	6000kg
Length of loading area	3288mm
Total length	5332mm
Total width with standard wheels	1980mm
Standard wheels	10.0/80-12
High of the bloster “S”	1.2m
Number of the bloster “S”	3 sets
Height of the front gate	1300mm
Centre distance between the tyres	970mm
Cargo Width at the top wagon	1700mm
Cargo Width at the bottom trailer	1.1 m
Weight(without tyres)	760kg
