Характеристики
Product Description

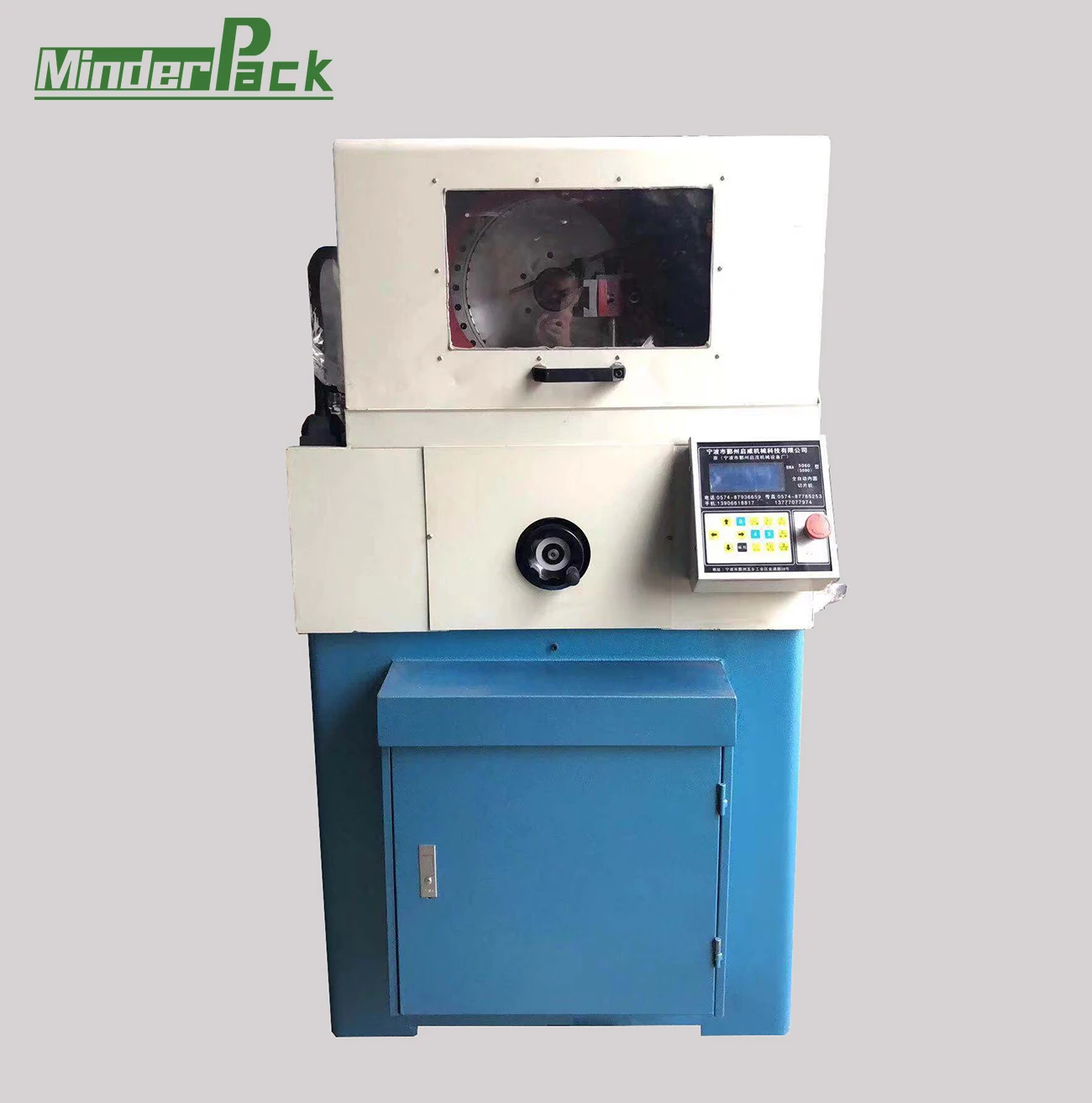

The automatic inner circle slicer is a special equipment for cutting various optical glass, semiconductors, crystals, gems, glass, ceramics, graphite, neodymium iron boron magnetic materials, samarium cobalt, ferrite, etc.
The circular inner-blade diamond blade mounted on the spindle cutter rotates at high speed, and the worktable is controlled by the computer to move horizontally and vertically to cut the material on the fixture into the desired product.
One worker can operate about 20 sets of automatic inner circle slicers at the same time.
The circular inner-blade diamond blade mounted on the spindle cutter rotates at high speed, and the worktable is controlled by the computer to move horizontally and vertically to cut the material on the fixture into the desired product.
One worker can operate about 20 sets of automatic inner circle slicers at the same time.

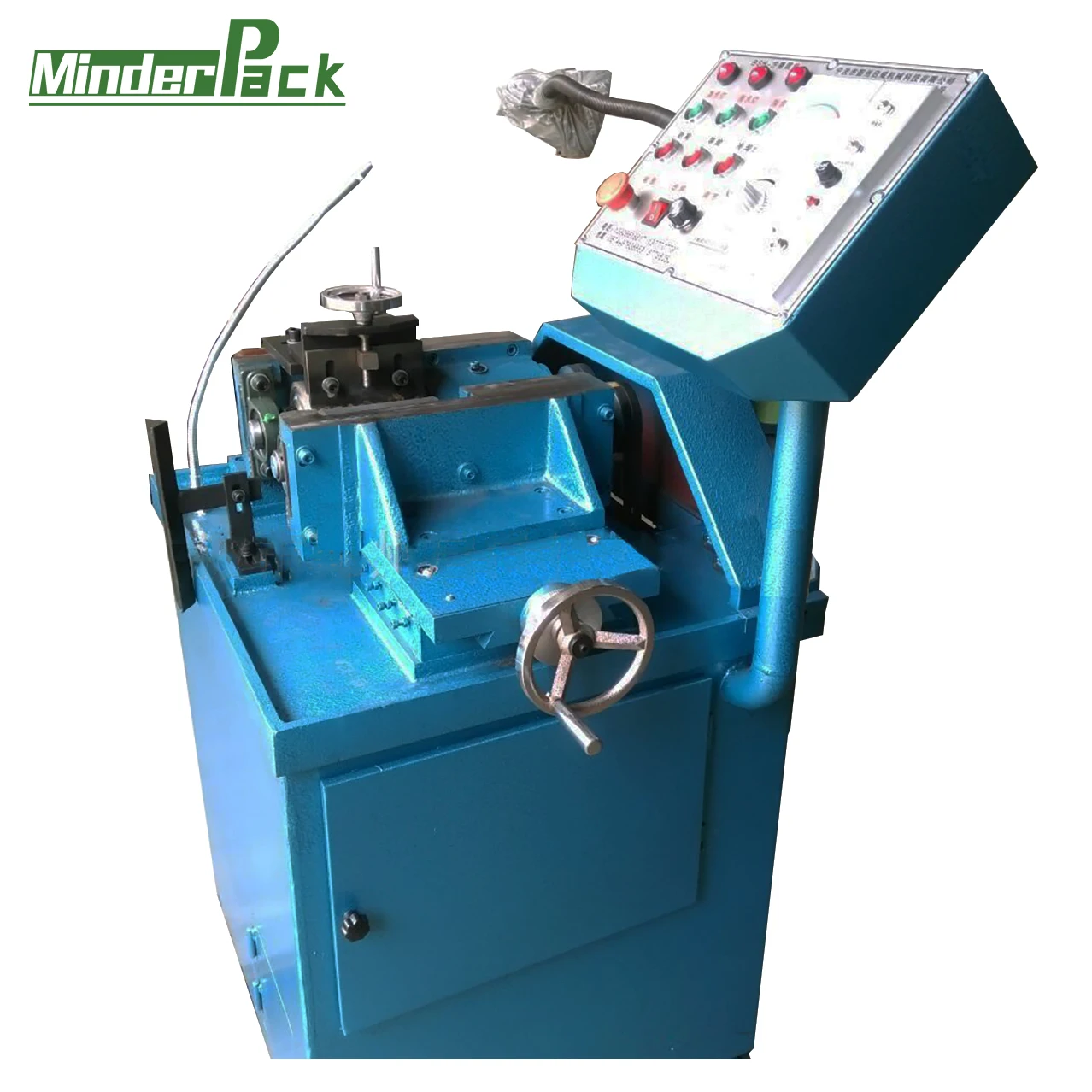

Square grinding is a special equipment for grinding small cylinders of neodymium iron boron magnetic materials, optical glass rods, graphite rods, and ceramic rods. It uses a gold steel grinding wheel mounted on the main shaft and a guide wheel to rotate in the positive direction to grind the small square bars into small cylinder.
There are two types of semi-automatic and full-automatic square grinding machines in our factory. One semi-automatic square grinding machine can be operated by one worker, and one full-automatic square grinding machine can operate multiple machines at the same time.
There are two types of semi-automatic and full-automatic square grinding machines in our factory. One semi-automatic square grinding machine can be operated by one worker, and one full-automatic square grinding machine can operate multiple machines at the same time.
Equipment advantages:
1. Automatic knife withdrawal protection after power failure: the device can retract the knife by itself when the power is cut off, protecting the equipment and materials to the greatest extent.
2. The starting point position is directly programmed into the computer control in the program, which solves the hidden dangers of high failure rate such as aging and corrosion of the traditional limit switch circuit, and at the same time improves the accuracy of the control starting point position and simplifies the operation.
2. The starting point position is directly programmed into the computer control in the program, which solves the hidden dangers of high failure rate such as aging and corrosion of the traditional limit switch circuit, and at the same time improves the accuracy of the control starting point position and simplifies the operation.
3. The screw is designed with three points and one line, so that the screw is completely separated from the stepper motor (according to the survey, other manufacturers are still the traditional old two-point one-line design. The disadvantage of the old two-point one line is that the screw passes through the stepper motor. , So the equipment is used for a year and a half, due to the increase in the gap between the screw and the stepper motor, the tolerance will become larger and larger), and our three-point one-line design, the screw and the stepper motor are driven by gears, even if If the gear is worn, it does not affect the stability of the threaded rod. To ensure that the equipment can be used for N years, the tolerance can also be guaranteed. This is the key to ensuring the equipment tolerance.
4. Environmental protection cover design. Purify the working environment of the workshop.
Product details
Specification
Max machining size(mm) | φ60 ×80 mm |
Cutting speed (㎝²/㎜) | 3-6(㎝²／㎜) |
Degree of balance sheets by cutting deviation（mm) | ±0.005㎜ |
Cutting film thickness(mm) | ≥0.30 |
The thin-cut tolerance (mm) | ±０.015㎜ |
Horizontal stroke（mm) | 120㎜ |
Longitudinal travel(mm) | 100㎜ |
Longitudinal degrees | 0-100Grid, each grid To 0.01,Each turn a lap in order to1㎜ |
Spindle Electrical | 3 Phase 380V 0.75kw |
Spindle Speed (r/min) | 3500Rev /min |
Adjust the amount of work table Horizontal angle | ±45º |
Pitch angle of elevation | ±10º |
Vertically（mm): | 24 |
Cooling tank capacity（kg） | 50kg |
Cooling tank motor | 3 Phase 380V 0.12kw 2780r/min |
Power | Three-phase four-wire 50Hz 380V |
Dimensions(mm): | 1000 ×1100 ×1600 |
Weight（kg): | 1000（kg） |
MD-J5060 / MD-IDC6080
Main technical parameters
Main technical parameters
Max machining size（mm） | φ95 ×80 mm |
Cutting speed （㎝²／㎜） | 3-6（㎝²／㎜） |
Degree of balance sheets by cutting deviation（mm) | ±0.005㎜ |
Cutting film thickness（mm) | ≥０.３０ |
The thin-cut tolerance（mm） | ±０.005㎜ |
Horizontal stroke（mm) | 120㎜ |
Longitudinal travel（mm） | 110㎜ |
Spindle Electrical | 3 Phase 1.1kw |
Spindle Speed （r/min) | 2800Rev/min |
Adjust the amount of work clamp: Horizontal angle | ±45º |
Pitch angle of elevation | ±10º |
Vertically（mm) | 20 |
Cooling tank capacity（kg | 50kg |
Cooling tank motor | 3 Phase 0.12kw 2780r/min |
Power | Three-phase four-wire 50Hz 380V |
Dimensions(mm) | 1130 ×850 ×1 500 |
Weight（kg) | 1400（kg） |
MD-IDC9580/ MD-J5090
Main technical parameters
Main technical parameters

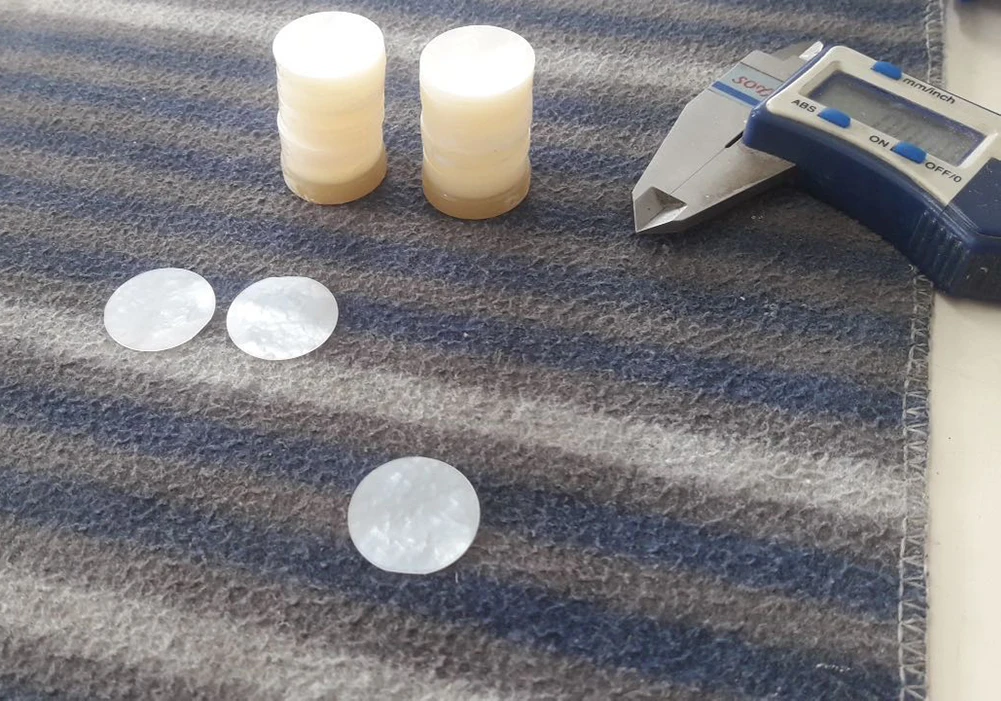

Sample

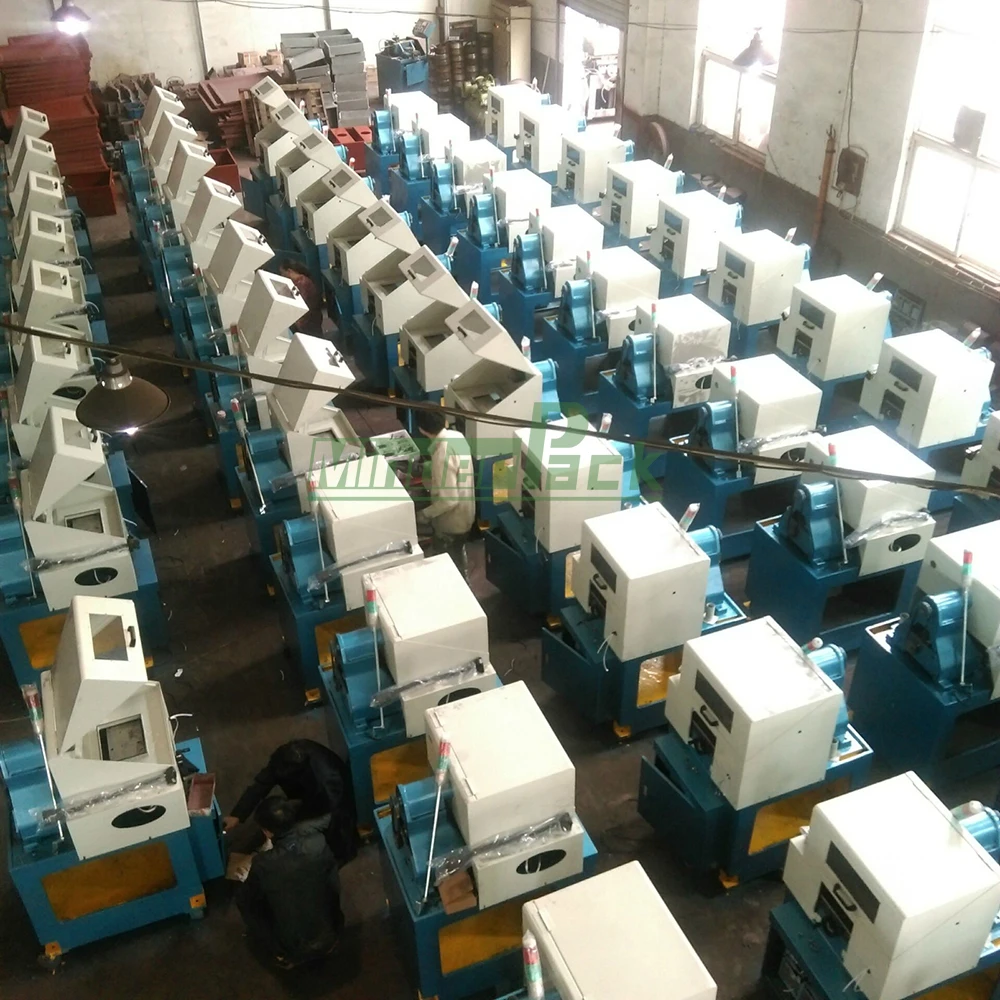

Factory
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
