BIOBASE Китай Вертикальная сушилка для замораживания тестирования лабораторных биомедицинских
- Категория: Freeze Drying Equipment >>>
- Поставщик: Biobase,Biotech,(Jinan),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.31 $* | 0.72 $* |
| Aug-17-2025 | 0.60 $* | 0.52 $* |
| Jul-17-2025 | 0.79 $* | 0.44 $* |
| Jun-17-2025 | 0.63 $* | 0.92 $* |
| May-17-2025 | 0.77 $* | 0.79 $* |
| Apr-17-2025 | 0.29 $* | 0.42 $* |
| Mar-17-2025 | 0.56 $* | 0.1 $* |
| Feb-17-2025 | 0.7 $* | 0.84 $* |
| Jan-17-2025 | 0.99 $* | 0.92 $* |
Характеристики
Production Description
Product Description

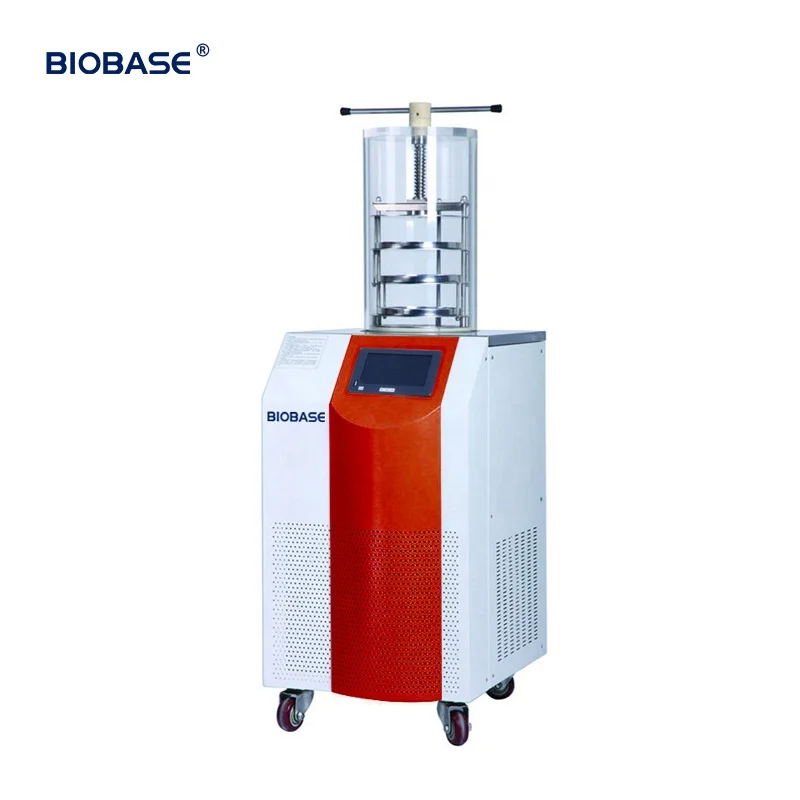

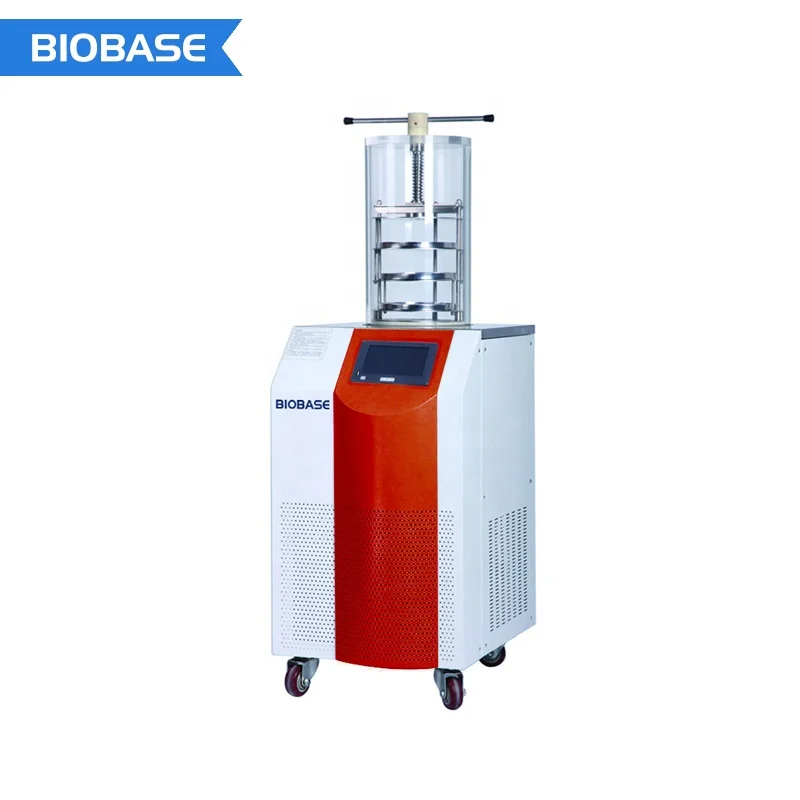

Vertical Freeze Dryer
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics,vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics,vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Features:
1.LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.
Parameters
Technical Parameters
Model | BK-FD12T(-60/-80) | ||||||||||
Type | Stoppering chamber | ||||||||||
Freeze Drying Area | 0.09 m2 | ||||||||||
Tray | 3 pcs | ||||||||||
Height Between Trays | 68mm | ||||||||||
Cold Trap Temperature | ≤-60℃/-80℃ | ||||||||||
Cold Trap Capacity | 9.5L | ||||||||||
Cold Trap Size (Dr*H) | Φ215*260mm | ||||||||||
Vacuum Degree | <10 Pa | ||||||||||
Water Capture Capacity | 4kg/24h | ||||||||||
Tray Size (D*H) | Φ200*20mm | ||||||||||
Freeze Drying Time | 24h | ||||||||||
Loading Capacity/Shelf (Liquid) | 0.3L | ||||||||||
Total Loading Capacity (Liquid) | 0.9L | ||||||||||
Drying Chamber Size (D*H) | Φ260*450mm | ||||||||||
Can Load Vials Qty | Φ22mm | 195 | |||||||||
Φ16mm | 360 | ||||||||||
Φ12mm | 690 | ||||||||||
Refrigerant | R600a+R290+R23 | ||||||||||
Cooling System | Air cooling | ||||||||||
Consumption | -60℃: 0.9kW,-80℃: 1.5kW | ||||||||||
Power Supply | AC220V, 50Hz, 60Hz (single phase); | ||||||||||
110V/220V, 60Hz (single phase, only for -60℃) | |||||||||||
Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models),Conical-mouth flasks 500mlx8 (only for model BK-FD12P/PT) | ||||||||||
Optional Function & Accessory | Tray heating (for all models), | ||||||||||
Cold trap defrosting (for all models), | |||||||||||
Conical-mouth flask and wide-mouth flask (for BK-FD12P/PT), | |||||||||||
Import vacuum pump | |||||||||||
External Size (W*D*H) | 460*620*920/1370mm | ||||||||||
Package Size (W*D*H)mm/ | Main Body | 590*710*1170/90kg | |||||||||
Gross Weight | Drying Chamber | 390*390*670/12kg | |||||||||
Vacuum Pump | 590*380*220/22kg | ||||||||||
