Best Selling Silicone Baby Stuff LSR Silicone Injection



Horizontal Liquid Silicone Rubber (LSR) injection molding machine



Direct pressure mould opening and closing system, horizontal injection structure, it can adjust the mould faster, and control the position more precisely. It is more suitable for producing the LSR parts which can be automatically removed from the mould.





The main feature of TYM vertical LSR molding machine:

1.Newly-optimized integrated all-in-one design.

2.Meet multiple requirements on the automatic manufacturing technique for LSR products.

3.Shorter the mould closing and opening time, improve the production efficiency.

4.Active pin valve-pattern nozzle sealing system, which can guarantee the injection more accurately.

5.Multi-section mould closing and opening and injection, speed adjusting stepless.

6.High-performance servo motor system is installed, which can guarantee the machine work more accurately and more energy-saving.

7. Adopts the international brand component for keeping machine running stable, reliable and accurately.

8. User-friendly LCD display which owns diverse languages system indicates various functions and working situation.

9. TYM horizontal injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time.

Mechanical Characteristics for TYM-W4545

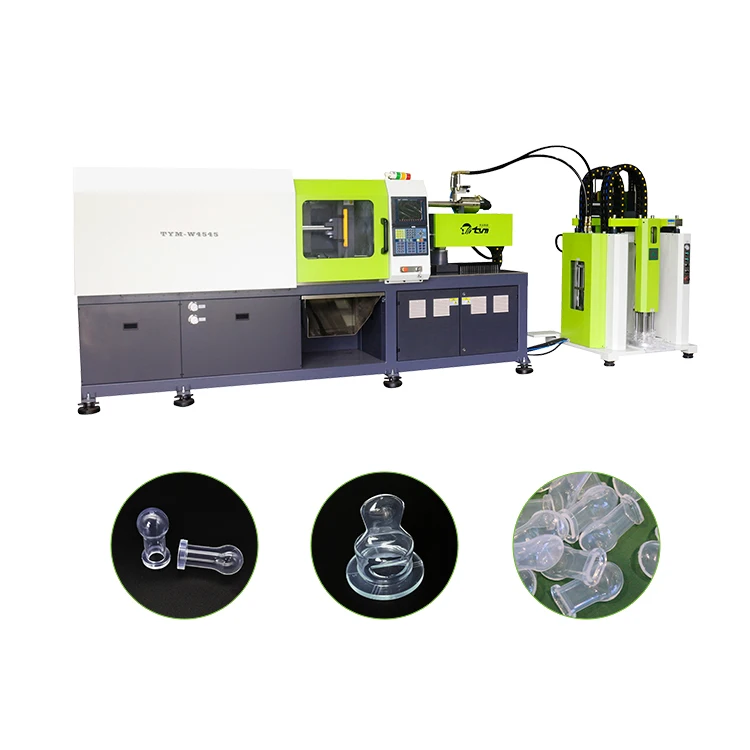

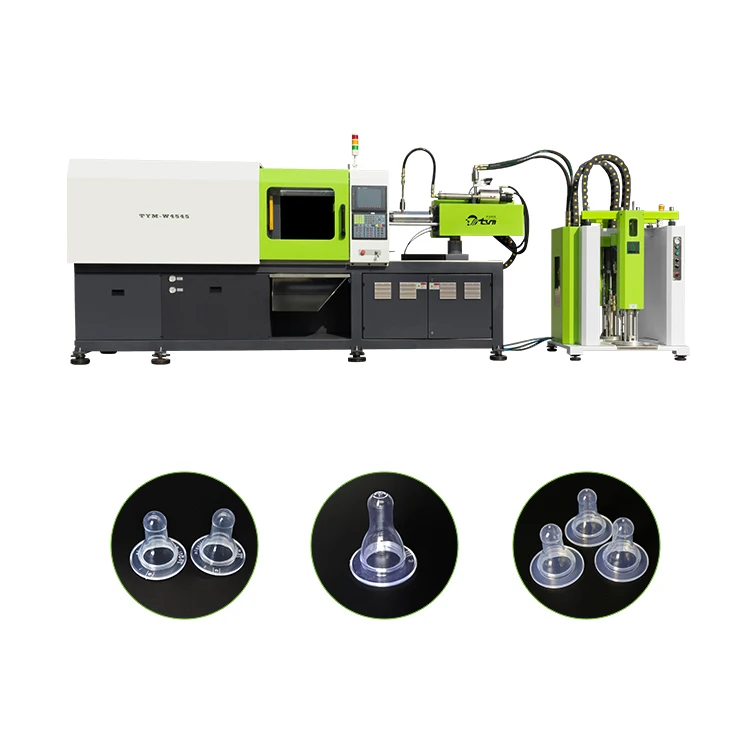

TYM-W4545 Horizontal LSR injection molding machine
Injection Unit
Shot Volume	165 g
Injection Rate	30 g/s
Injection Pressure	19.6 T
Clamping Unit
Clamping Force	130 T
Opening Stroke	200-700 mm
Tie-Bars Space	450*450mm
Ejection Force	7.8 T
Ejection Stroke	150 mm
Others
Pump Pressure	21 Mpa
Motor Power	11KW
Heater Power	9 KW
Mould Orientation Ring Diameter	Φ 100 mm
Machine Weight	5.2T
Machine Dimension	4.0*1.2*2.0 m
LSR feeding machine Dimension	1.2*1.2*2.0m

One-stop complete solution

 "raw material + liquid silicone injection molding machine + mold +technical support + personnel training + finished products”



1. Provide considerate suggestion to choose suitable material with low cost high-performance.

2. Help customer make mold design, manufacturing and testing.

3. According to customer's demand, supply machine solution,including whole produce line.

4. Correctly guide customer to operate machine by video or on-site training.

5.Help client purchase essential accessory .

Application:

TYM injection molding machine is suitable for multi-purpose silicone rubber molding.Our LSR injection machines have been widely used in medical industry, food industry, auto industry, infant industry, electronics industry, diving industry and so on.

TYM have specialized in liquid silicone for more than 18 years , we got more than 60 patents ,including 12 invention patents . TYM has rated as a national high-tech enterprise in 2013 . Also , TYM horizontal machine has got the gold award of  international exhibition invention.

we had sold the machines as well as the products to more than 30 countries all over the world.
