Идентификация отпечатков пальцев, анализ отпечатков пальцев
US $520.00-$730.00
Модуль отпечатков пальцев H160A емкостный полупроводниковый датчик с помощью собственного алгоритма Круглый и вертикальный
- Категория: Fingerprint Scanner >>>
- Поставщик: Guangzhou,Gouku,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 12.71 $* | 13.12 $* |
| Aug-19-2025 | 12.45 $* | 13.40 $* |
| Jul-19-2025 | 10.82 $* | 11.41 $* |
| Jun-19-2025 | 12.52 $* | 13.76 $* |
| May-19-2025 | 10.77 $* | 11.65 $* |
| Apr-19-2025 | 11.22 $* | 12.39 $* |
| Mar-19-2025 | 11.82 $* | 12.77 $* |
| Feb-19-2025 | 11.8 $* | 12.31 $* |
| Jan-19-2025 | 11.37 $* | 12.88 $* |
Характеристики
Product Description
The H160A is an integrated fingerprint module, which integrates capacitive fingerprint sensor and algorithm processor. Connected to host with UARTs , it implements many functionalities including image acquisition, feature extraction, template generation,fingerprint input, fingerprint matching, fingerprint deletion and others. The simple and easy to use control instruction set is very convenient for secondary development and can be quickly embedded in a variety of products that requiring fingerprint authentication.

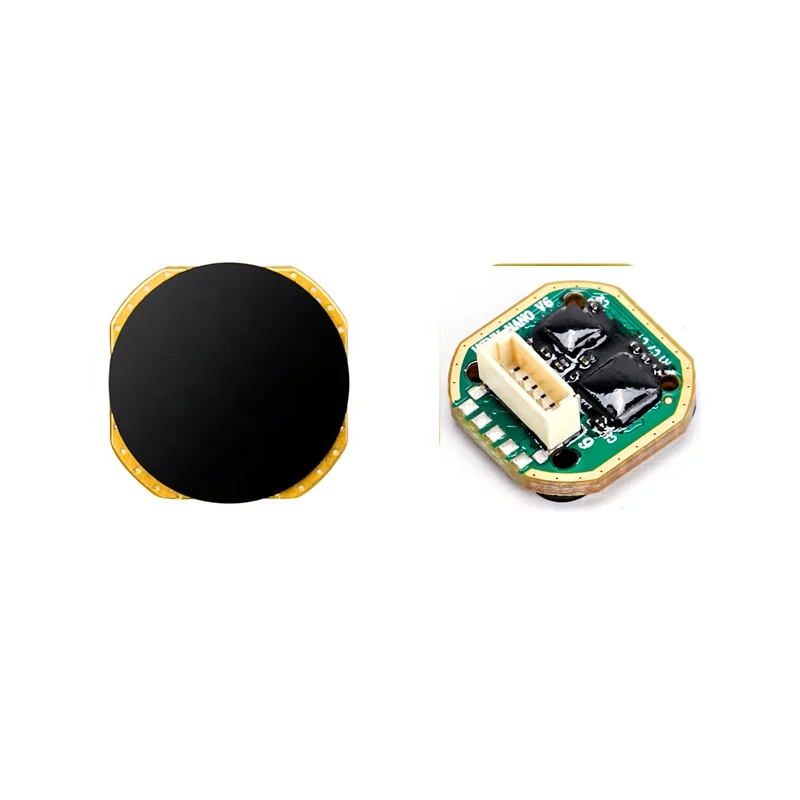

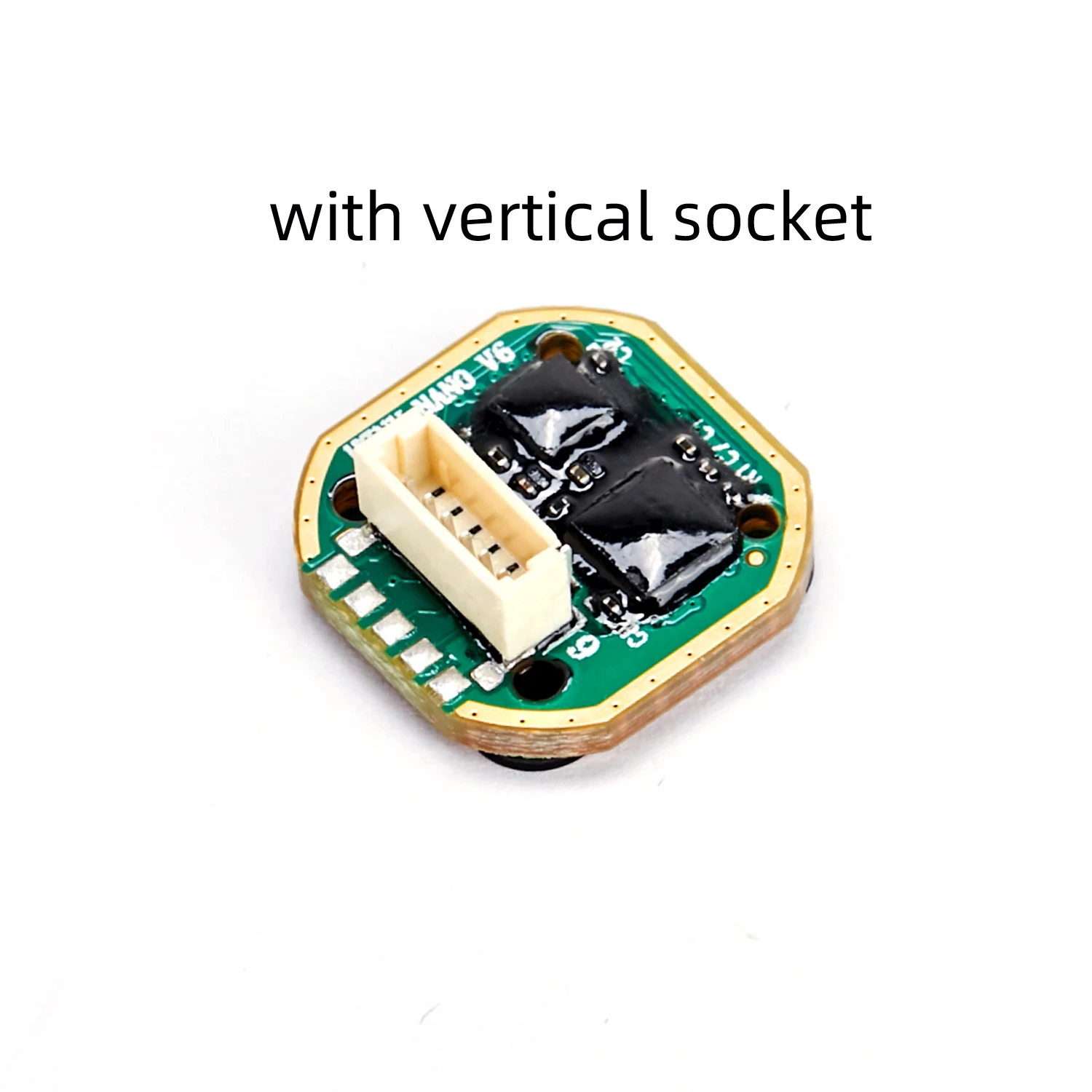

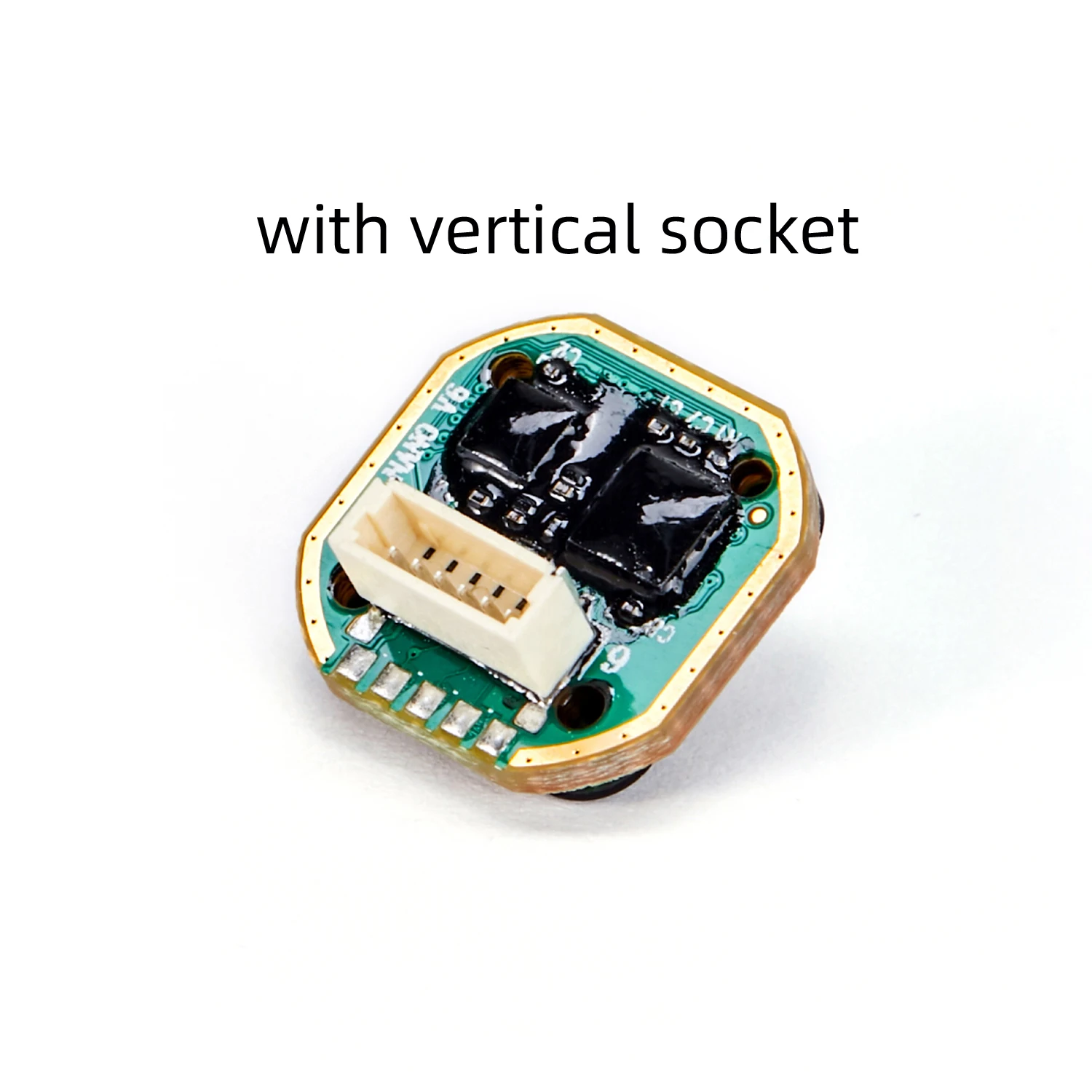

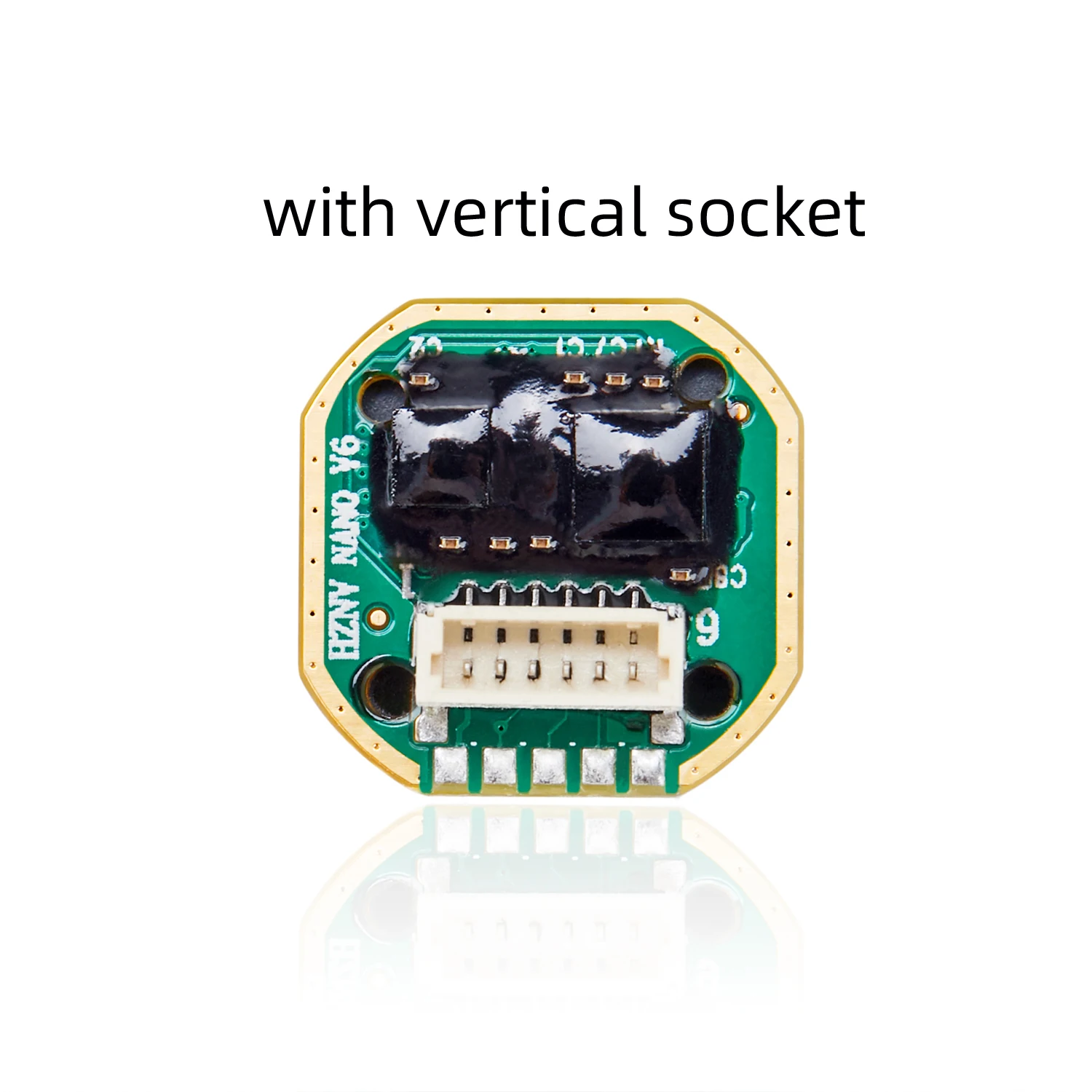

In order to adapt to different product types and facilitate product design, the front of our fingerprint module has two shapes: round and square.There are two kinds of sockets on the back of our product: vertical sockets and horizontal sockets.
So, there are four types of combination:
1. Circular + horizontal socket;
2. Round + vertical socket;
3. Square + horizontal socket;
4. Square + vertical socket.
Tell me what you need.
So, there are four types of combination:
1. Circular + horizontal socket;
2. Round + vertical socket;
3. Square + horizontal socket;
4. Square + vertical socket.
Tell me what you need.
Features
1. Fingerprint capacity : 300(default),1000(maximum)
2. High speed of Fingerprint recognition：0.15S@1:1000
3. Supports import and export fingerprint template
4. Supports ISO 19794-2 and ANSI 378-2004 international fingerprint templates
5. Ultra-low power consumption：Operating current 8.8mA ，Standby current 8uA
6. Supports wake-on-touch
7. High ESD capability：contact: ±8K ,air: ±15KV
8. Capacitive semiconductor sensor, round and square packages are selectable
9. Supports glass cover
2. High speed of Fingerprint recognition：0.15S@1:1000
3. Supports import and export fingerprint template
4. Supports ISO 19794-2 and ANSI 378-2004 international fingerprint templates
5. Ultra-low power consumption：Operating current 8.8mA ，Standby current 8uA
6. Supports wake-on-touch
7. High ESD capability：contact: ±8K ,air: ±15KV
8. Capacitive semiconductor sensor, round and square packages are selectable
9. Supports glass cover
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | Zhongyi |
Model Number | H160A |
Warranty | 1 Year |
Resolution | 508 DPI |
Certification | none |
Special Features | Portable |
Customized support | Customized logo, OEM, ODM, Software reengineering, Coating, Glass cover |
shape | round/ square |
Company Profile
Certifications
Good Development Ability
Our fingerprint module is independently developed by us, and the algorithm is written by ourselves, which is in the world's leading level.
We have a strong technical team, the technical director graduated from China's top 10 university, and after working for a very famous enterprise in the industry for ten years, he led more than 10 engineers to spend a year to develop the low power consumption, high performance of intelligent fingerprint recognition algorithm, the algorithm is in a leading position in China even all over the world.
This picture shows that we have obtained the computer software copyright registration certificate issued by the National Copyright
Administration of the People's Republic of China, which proves our strong development ability.
We have a strong technical team, the technical director graduated from China's top 10 university, and after working for a very famous enterprise in the industry for ten years, he led more than 10 engineers to spend a year to develop the low power consumption, high performance of intelligent fingerprint recognition algorithm, the algorithm is in a leading position in China even all over the world.
This picture shows that we have obtained the computer software copyright registration certificate issued by the National Copyright
Administration of the People's Republic of China, which proves our strong development ability.
