Полипропиленовая осадочная вода 5 микрон крученый фильтрующий картридж

Описание и отзывы

Трекер стоимости

Характеристики

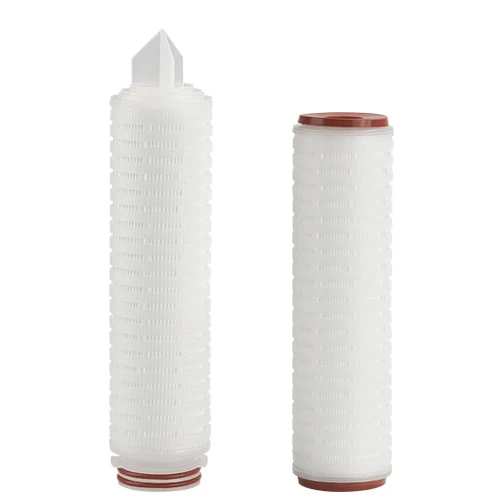

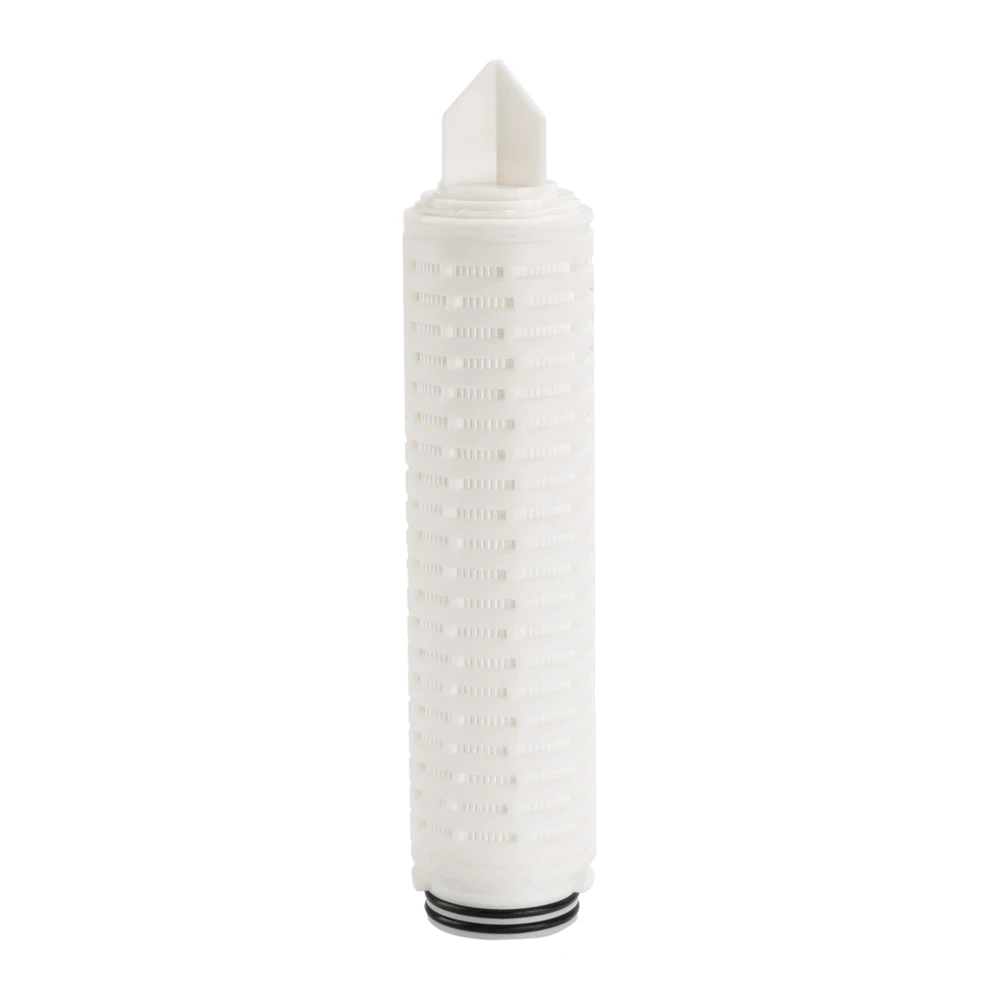

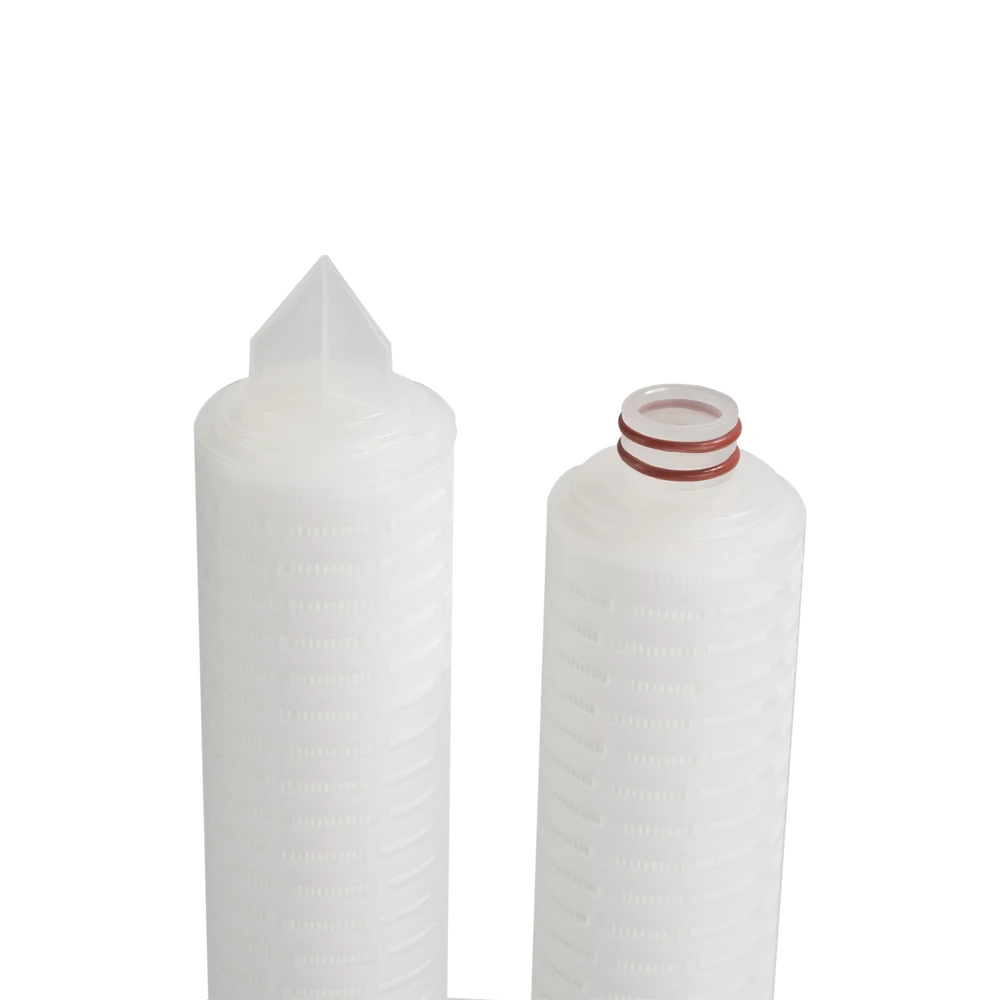

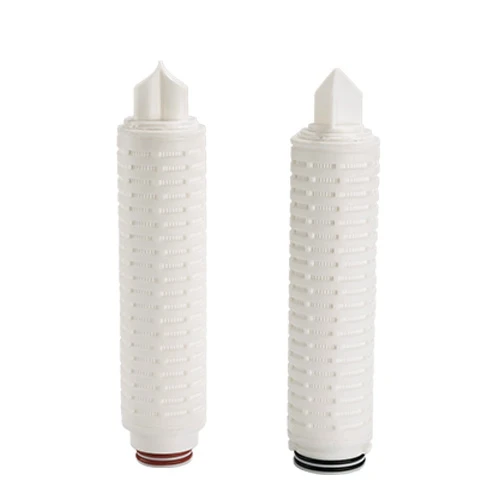

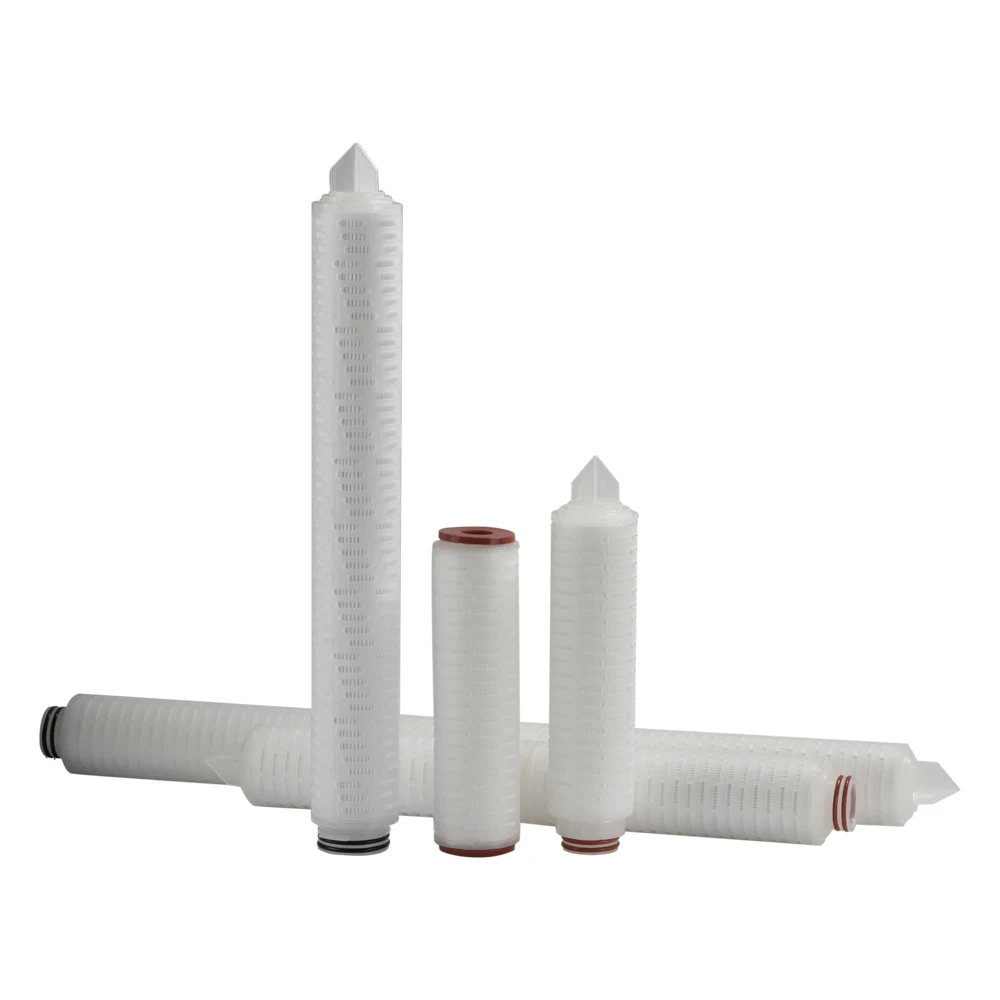

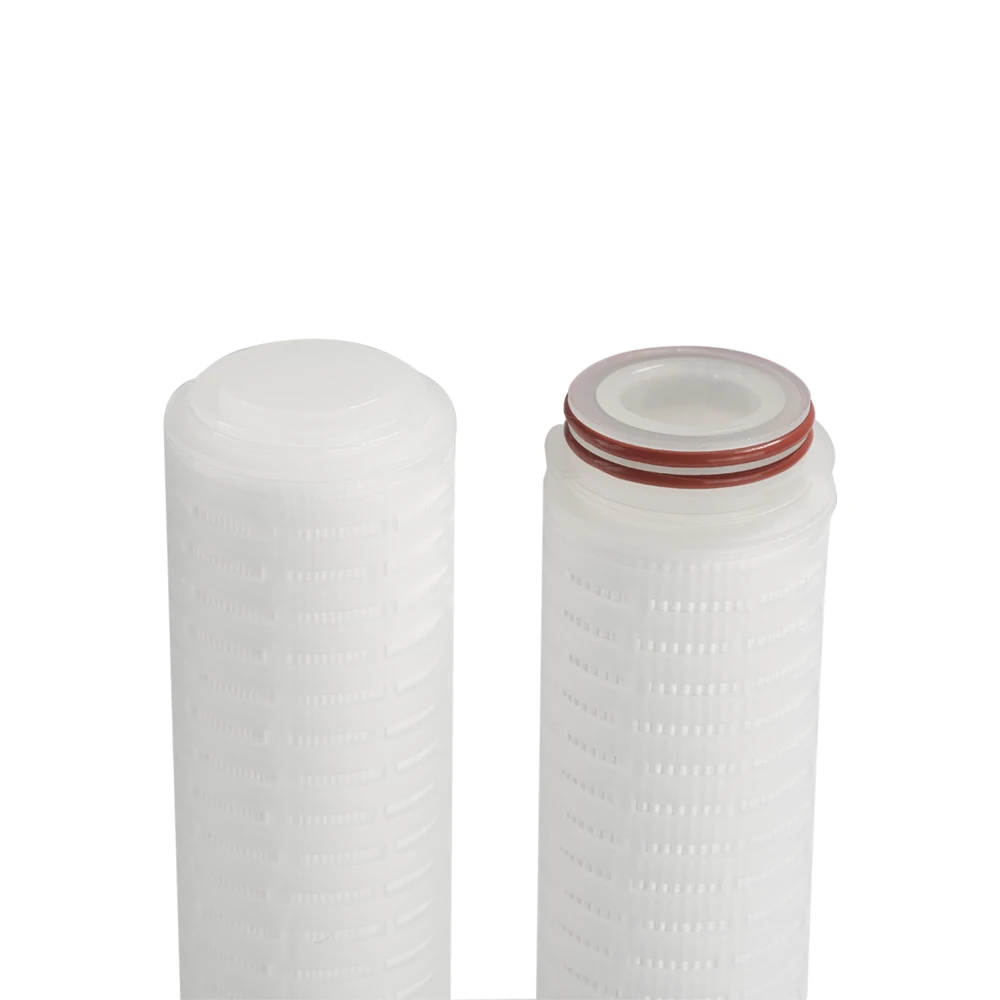

PP Membrane Pleated Water Filter Cartridge China Manufacturers



General Description:



It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.

Microporous pleated filter element, the main filter material is : Polypropylene,  Nylon, etc.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.

Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.



Specifications:

Item	Technical Parameters
Micron	0.20μm,0.45μm,1.0μm,3μm,5.0μm,10μm,20μm
Filtration area	0.4-0.7m²
Filter Medium	Polypropylene (PP)
Support/Drainage	Polypropylene (PP)
Core/Cage/End Cap	Polypropylene (PP)
Outside diameter	2.7" (68.5mm)
Max. operating differential pressure	ΔP≤0.35MPa at 25℃
Max. operating differential pressure (reverse direction)	ΔP≤0.28MPa at 60℃
Max. operating temperature	80℃(Stainless steel support is recommended for temperature exceeds 50℃)
Sterilization temperature	30 minute cycles @121℃
Max. operating pressure	4.0bar/21℃
	2.4bar/80℃



Ordering info:

Series	Filter Fineness	Length	Connection Type	Seal Material
PPM	0030=0.3μm	05=5"	C1=226/tripod	E=EPDM
PPM	0050=0.5μm	10=10"	C3=222/tripod	S=silicone rubber
PPM	0100=1.0μm	20=20"	C5=222/flat head	V=fluororubber
PPM	0300=3.0μm	30=30"	C6=226/flat head	P=FEPsleeved
PPM	0500=5.0μm	40=40"	C9=the two end



Products details:

High-quality raw material with precise  designs. Pleated material combines deep filtration technology and pleated technology to promising filtration efficiency. Skeleton is using PP material with hollow-caved design, through  testing, it meet the requirements of working conditions.



Certificate document:



Our Factory:





FAQ

1. MOQ

As manufacturer, 1 piece is acceptable.

2.Payment Term

Flexible payment method. We can accept L/C, T/T, Western Union, Money Gram, etc.

3.Certification:

We had ISO9001,ISO14001

4.Shipping :

Courier service: TNT, DHL, FedEx, UPS, etc.

By sea, by Air, according to customer's request.

5.Sample:

FREE, in 1-3 working days after confirmed.

6. Delivery time:

General 5-10days.
