Игольчатый клапан из нержавеющей стали 6000 psig со склада 22 мм но сварной игольчатый двух

Описание и отзывы

Трекер стоимости

Характеристики

6000psi 22mm butt weld bar stock regulating stem needle valves

Product description

Features:

Straight Pattern

Configurations
Max. Working Pressure	6000 psig (413 bar)
Inlet Type and Size	Fractional Tube from 1/8 to 1 in., Metric Tube from 3 to 28 mm                                                   Tube Fitting;Male NPT;Female NPT;Male BSPT;Female BSPT;Male BSPP; Female BSPP;Tube Butt Weld etc.
Outlet Type and Size	Fractional Tube from 1/8 to 1 in., Metric Tube from 3 to 28 mm                                                     Tube Fitting;Male NPT;Female NPT;Male BSPT;Female BSPT;Male BSPP; Female BSPP;Tube Butt Weld etc.
Body Material	Stainless Steel,Brass, Aluminum, Hastelloy C, 6Mo, Incoloy 625 and 825
Cleaning Process	Standard Cleaning and Packaging (CP-01)

Angle Pattern

Configurations
Max. Working Pressure	6000 psig (413 bar)
Inlet Type and Size	Fractional Tube from 1/8 to 1 in., Metric Tube from 3 to 28 mm                                                       Tube Fitting;Male NPT;Female NPT;Male BSPT;Female BSPT;Male BSPP; Female BSPP;Tube Butt Weld etc.
Outlet Type and Size	Fractional Tube from 1/8 to 1 in., Metric Tube from 3 to 28 mm                                                     Tube Fitting;Male NPT;Female NPT;Male BSPT;Female BSPT;Male BSPP; Female BSPP;Tube Butt Weld etc.
Body Material	Stainless Steel,Brass, Aluminum, Hastelloy C, 6Mo, Incoloy 625 and 825
Cleaning Process	Standard Cleaning and Packaging (CP-01)

Standard Materials of Construction

Configurations
Item	Component	Material Grade/ASTM Specification
		316 S.S.	Alloy 400	Titanium	Alloy C-276	Brass
1	Handle	Anodized aluminum or stainless steel
2	Screw	Nickel cadmium-plated steel
3	Upper Stem	316 S.S./A276
4	Packing Bolt	316 S.S./A276				Brass 360/B16
5	Nut	316 S.S./B783				Brass 360/B16
6	Lower Stem	316 S.S./A276 Chrome-plated	Alloy R-405/B164	Titanium Gr 4/B348	Alloy C-276/B574	316 S.S./A276 Chrome-plated
7	Gland	316 S.S./A276
8	Packing	PTFE or Graphite
9	Pin	304 S.S./A276
10	Bonnet	316 S.S./A479	Alloy R-405/B164	Titanium Gr 4/B348	Alloy C-276/B574	Brass 360/B16
11	Body	316 S.S./A469 316 S.S./A182	Alloy 400/B164,B127,B564	Titanium Gr4/B348 or Titanium Gr 4/B381	Alloy C-276/B564	Brass 360/B16

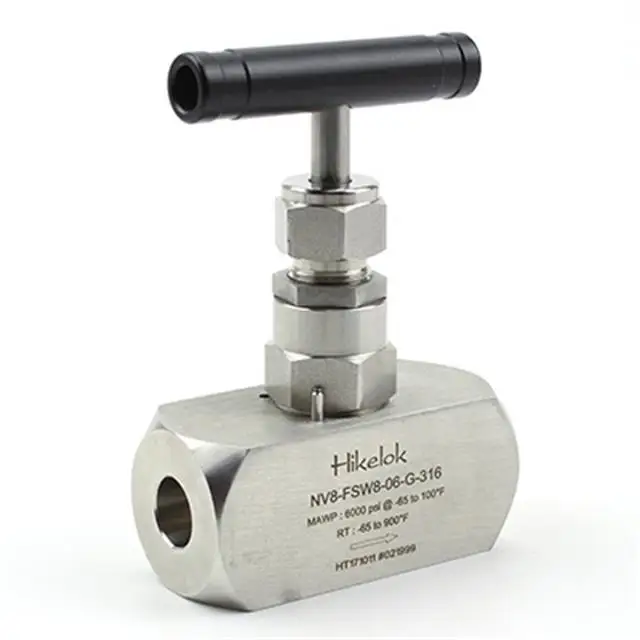

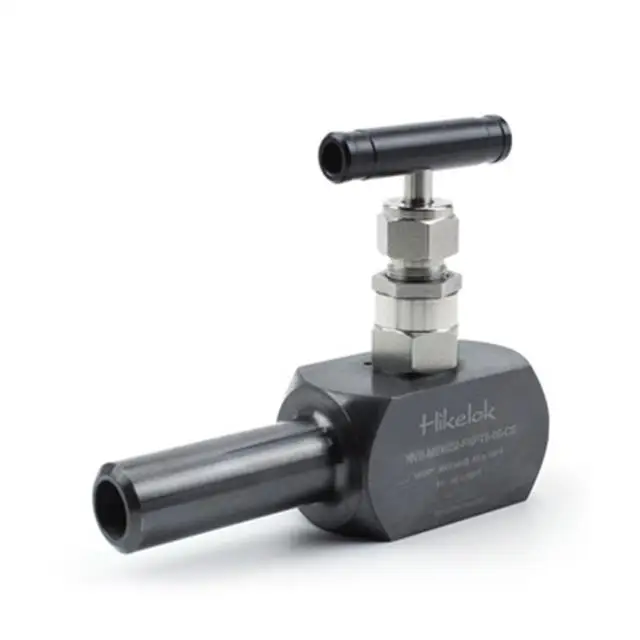

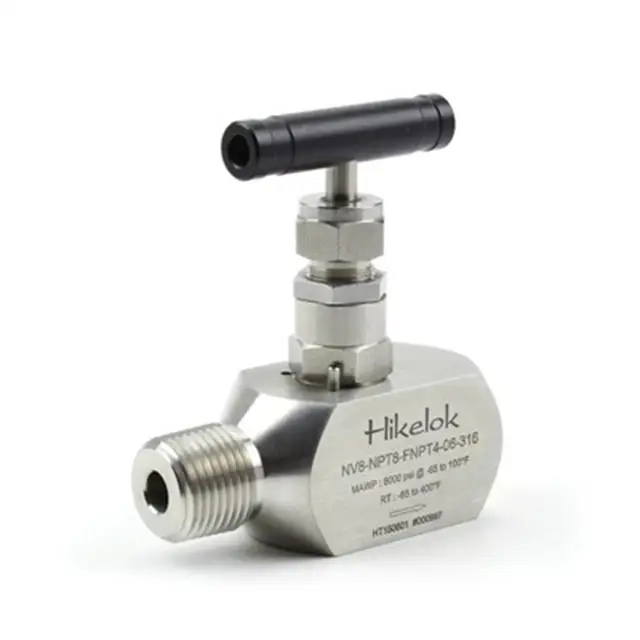

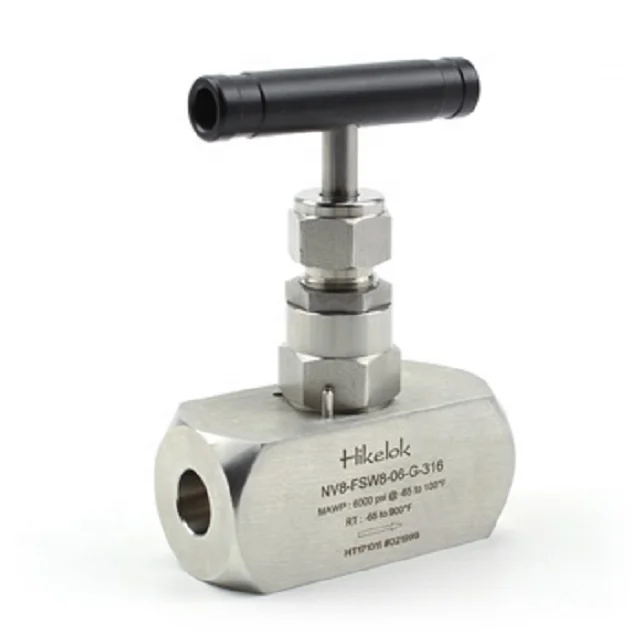

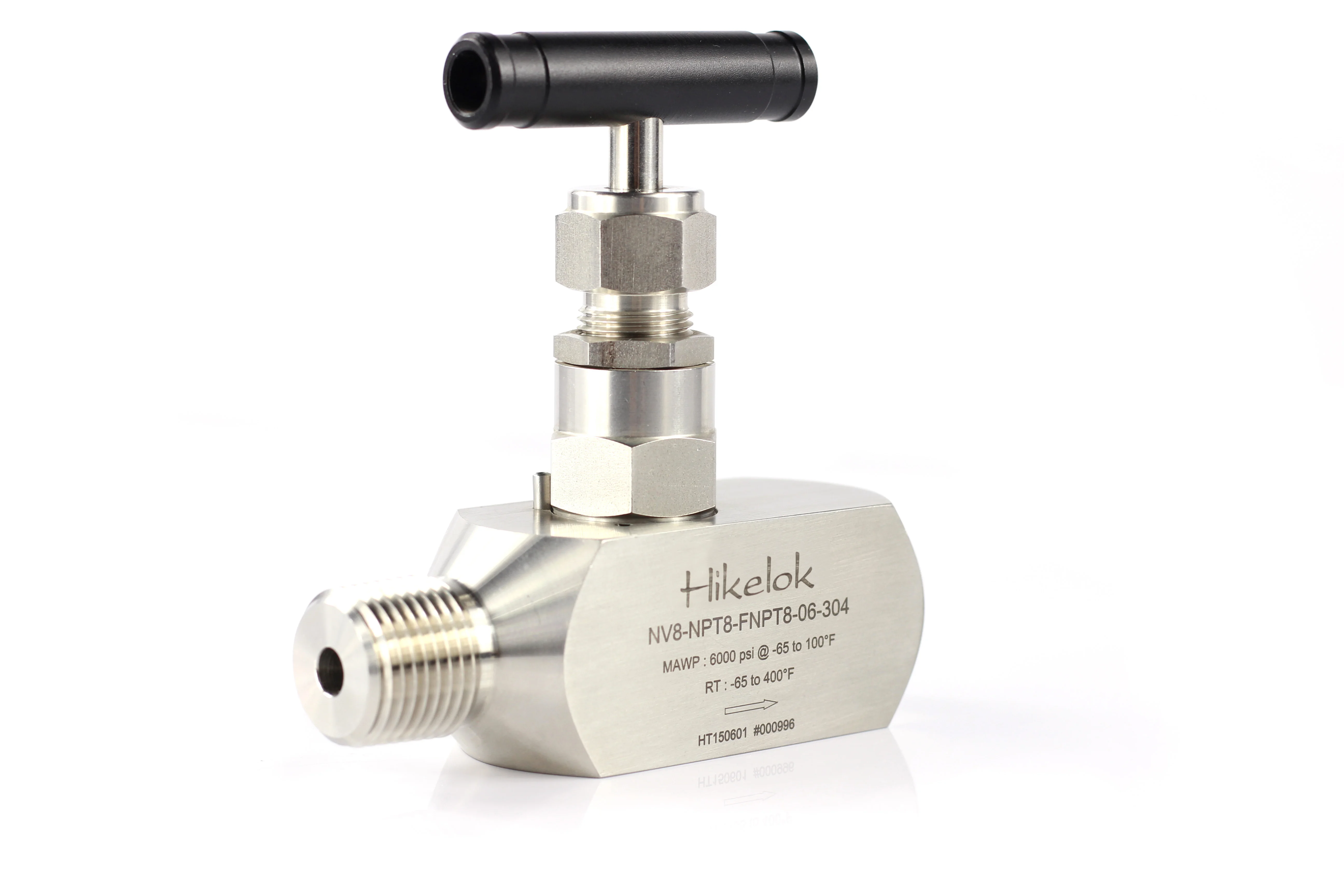

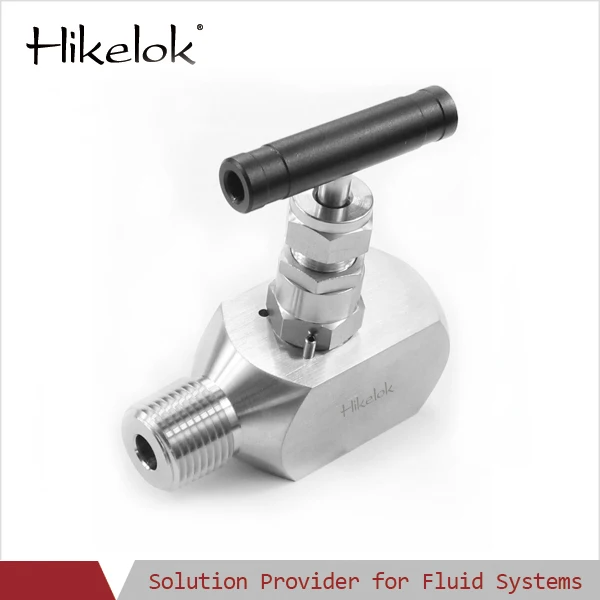

Product show





Other type needle valve

NV1 series

Maximum working pressure up to 6000 psig (413 bar)
Working temperature from -65 F to 1200 F (-53 C to 648 C)
One-piece forged body
Straight and angle patterns
Upper stem and lower stem design, Stem threads above packing protected from system media
Panel mounting available
optional handle colors available

NV2 series

One-piece heavy-wall forged body

Maximum working pressure up to 10000 psig (688bar)

Working temperatures from -65^.F to 1200^.F(-54^.C to 648^.C)

Body materials: 316,316L, 304, 321, F91

Duplex 2205/A182, and alloy 600/B156

Hikelok provide blunt, ball, regulating seat tips.

Orifice size is from 4mm-11mm

NV3 series

Maximum working pressure up to 6000 psig (413 bar)
Working temperature from -65 F to 1200 F (-53 C to 648 C)
Union-bonnet construction for safety
Straight and angle patterns
Upper stem and lower stem design, Stem threads above packing protected from system media
Panel mounting available
optional handle colors available

NV4 series

Maximum working pressure up to 5000 psig (344 bar)
Live-Loaded Packing System
Packing nut enables easy external adjustments
Straight, angle and cross patterns
Softseat stem with PCTFE tip available
Panel mounting available
Optional handle colors available

NV6 series

Maximum working pressure up to 300 psig (20.6 bar)

Nv7 Series

Maximum working pressure up to 3000 psig (206 bar)
Working temperature from -20℉ to 450℉ (-28℃to 232℃)
One-piece forged body, nonrotating-Stem design
Handle prevents contaminants from entering functional parts
Replaceable stem tip facilitates maintenance
Straight and angle patterns
Stainless steel, brass, and alloy 400 materials
