Горячая Распродажа Lingyu промышленное охлаждение холодный воздух сушилка для воздушного
- Категория: Freeze Drying Equipment >>>
- Поставщик: Zhongshan,Lingyu,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 253.88 $* | 258.82 $* |
| Jul-18-2025 | 205.74 $* | 209.62 $* |
| Jun-18-2025 | 249.32 $* | 254.72 $* |
| May-18-2025 | 247.84 $* | 252.86 $* |
| Apr-18-2025 | 197.64 $* | 201.15 $* |
| Mar-18-2025 | 243.74 $* | 248.15 $* |
| Feb-18-2025 | 241.44 $* | 246.78 $* |
| Jan-18-2025 | 239.72 $* | 244.15 $* |
Характеристики

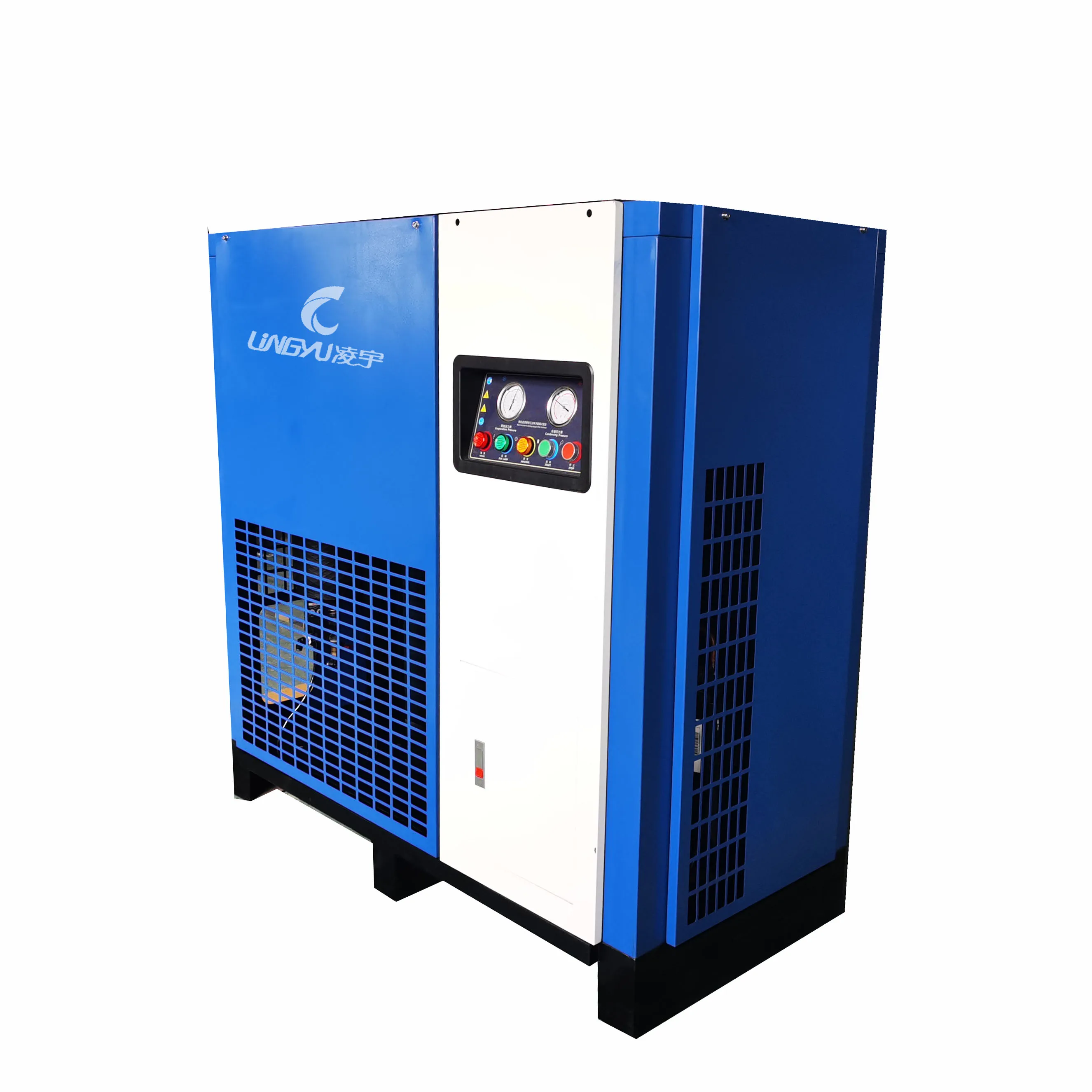

Lingyu air cooling freeze air dryer for air compressor with low dew point
Product Description
Product name | Freeze air dryer for air compressor |
Applicative gases | Compressed air / non-corrosive air |
Inlet air flow | Std.17 Nm3 /Min |1020Nm3 /Hr |
Inlet air pressure | Std.7 bar | Min 6 bar Max:10 bar |
Inlet air temperature | Std.50 ℃ | Max:80℃ |
Working environment temperature | Std.32 ℃ |Min 2℃ Max:45℃ |
Outlet air dew point | +2℃～10℃ |
Specification

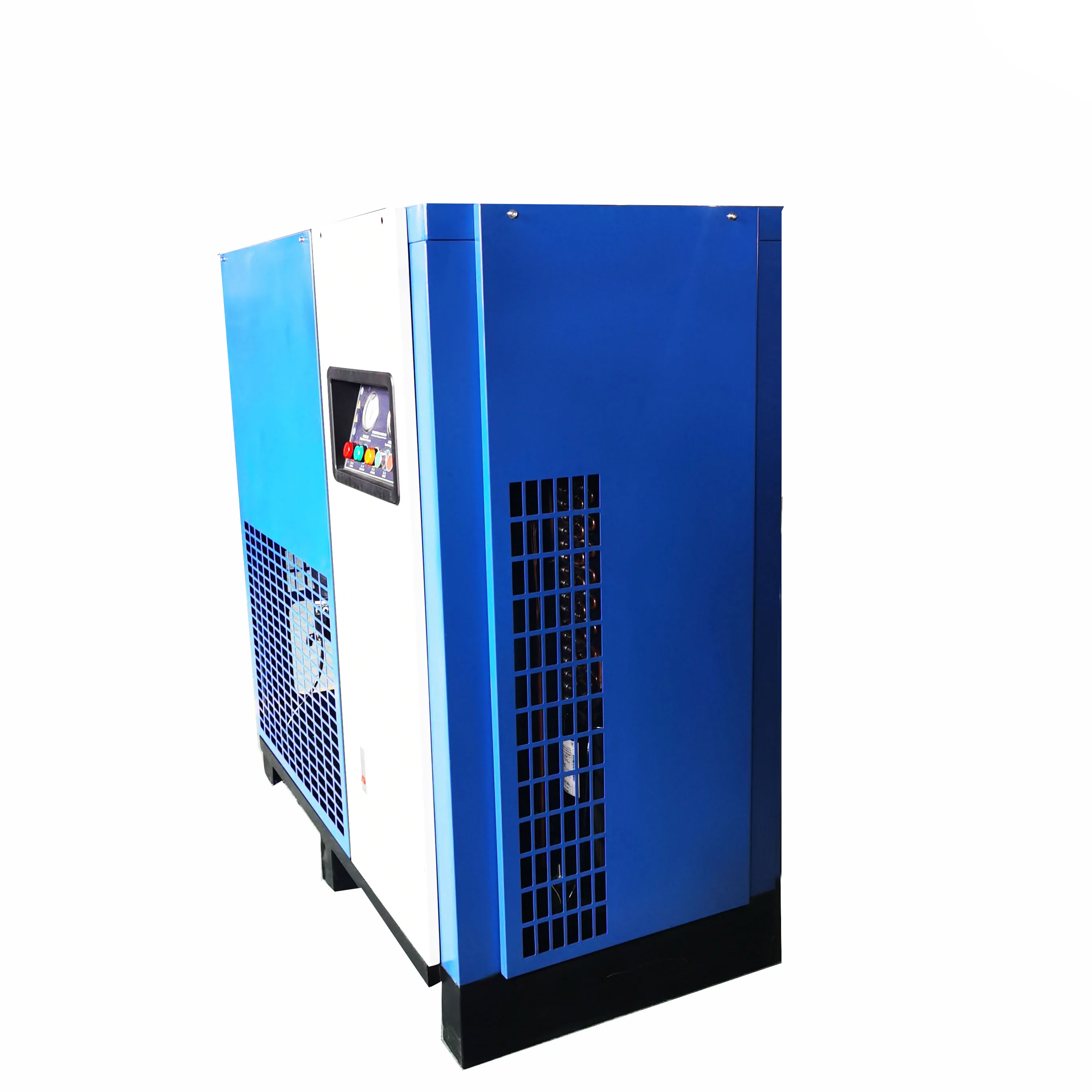

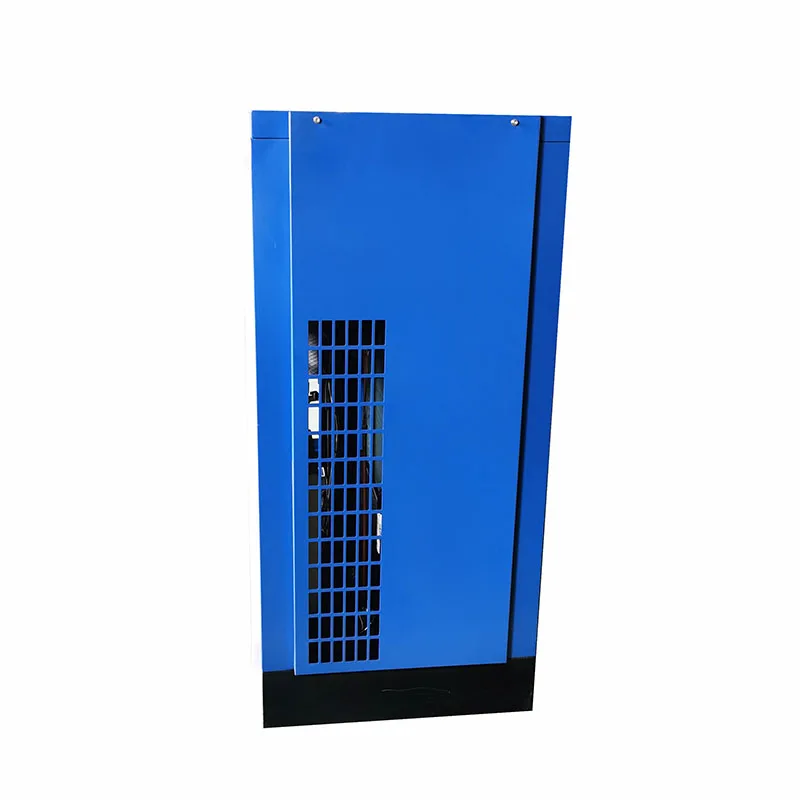

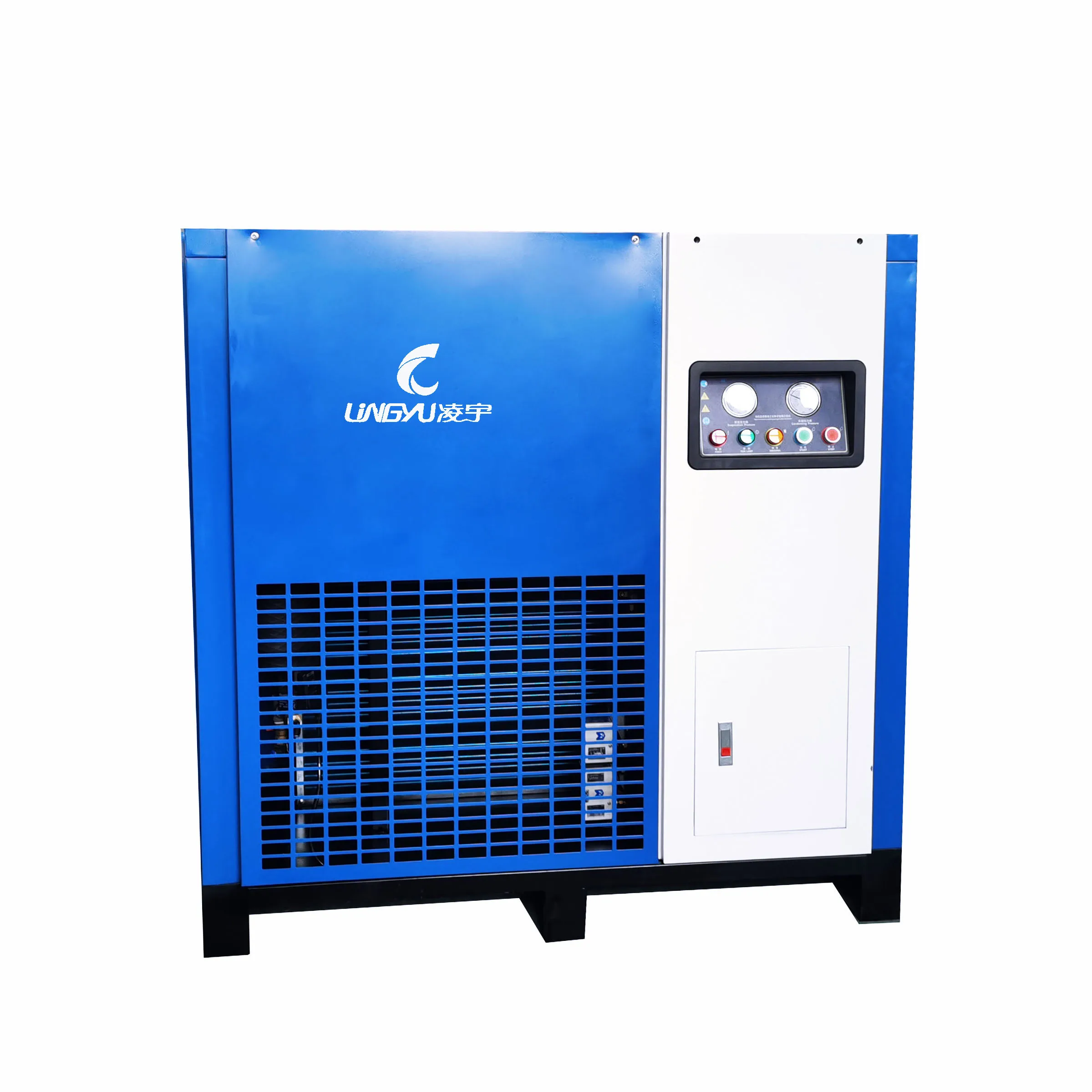

100% Real Photos

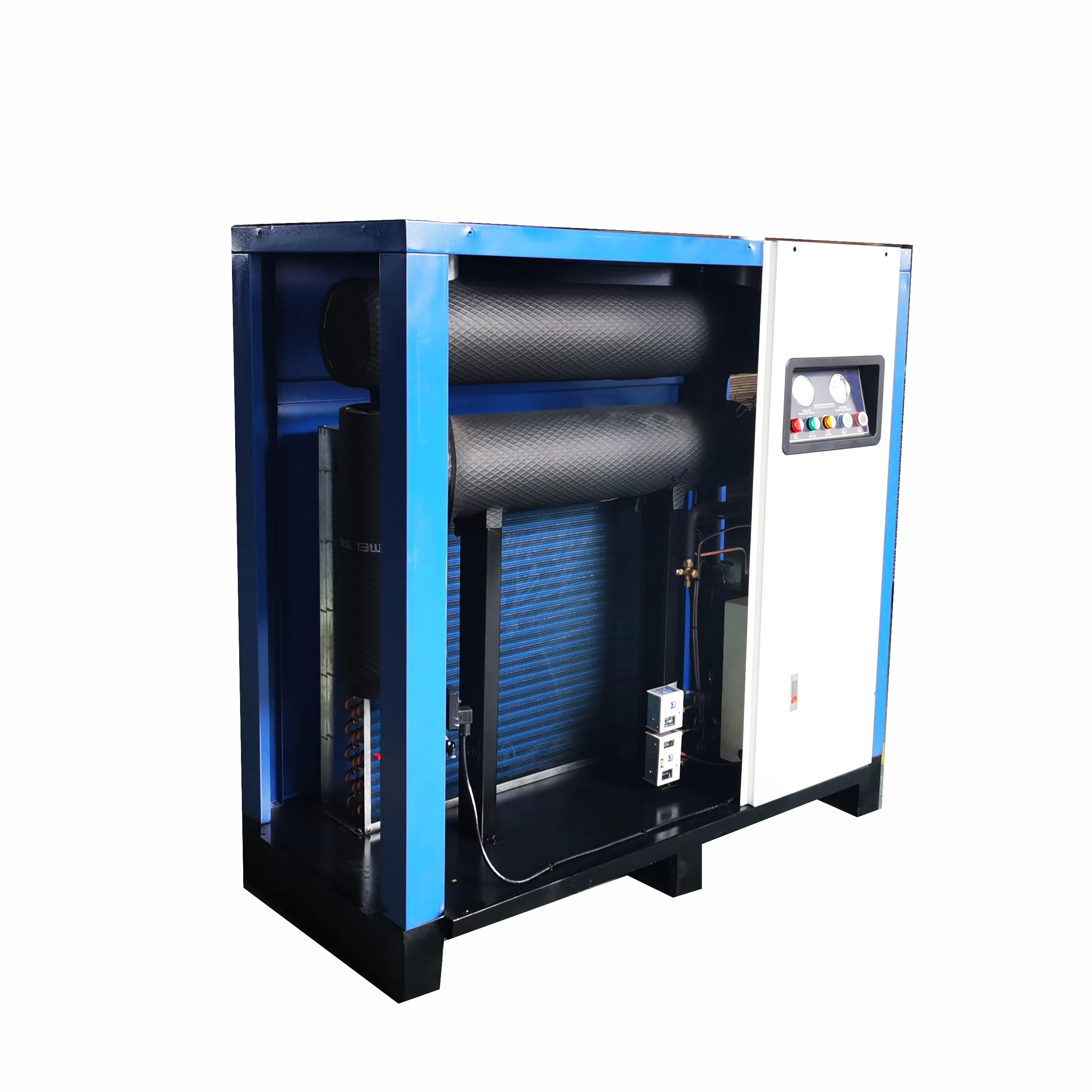

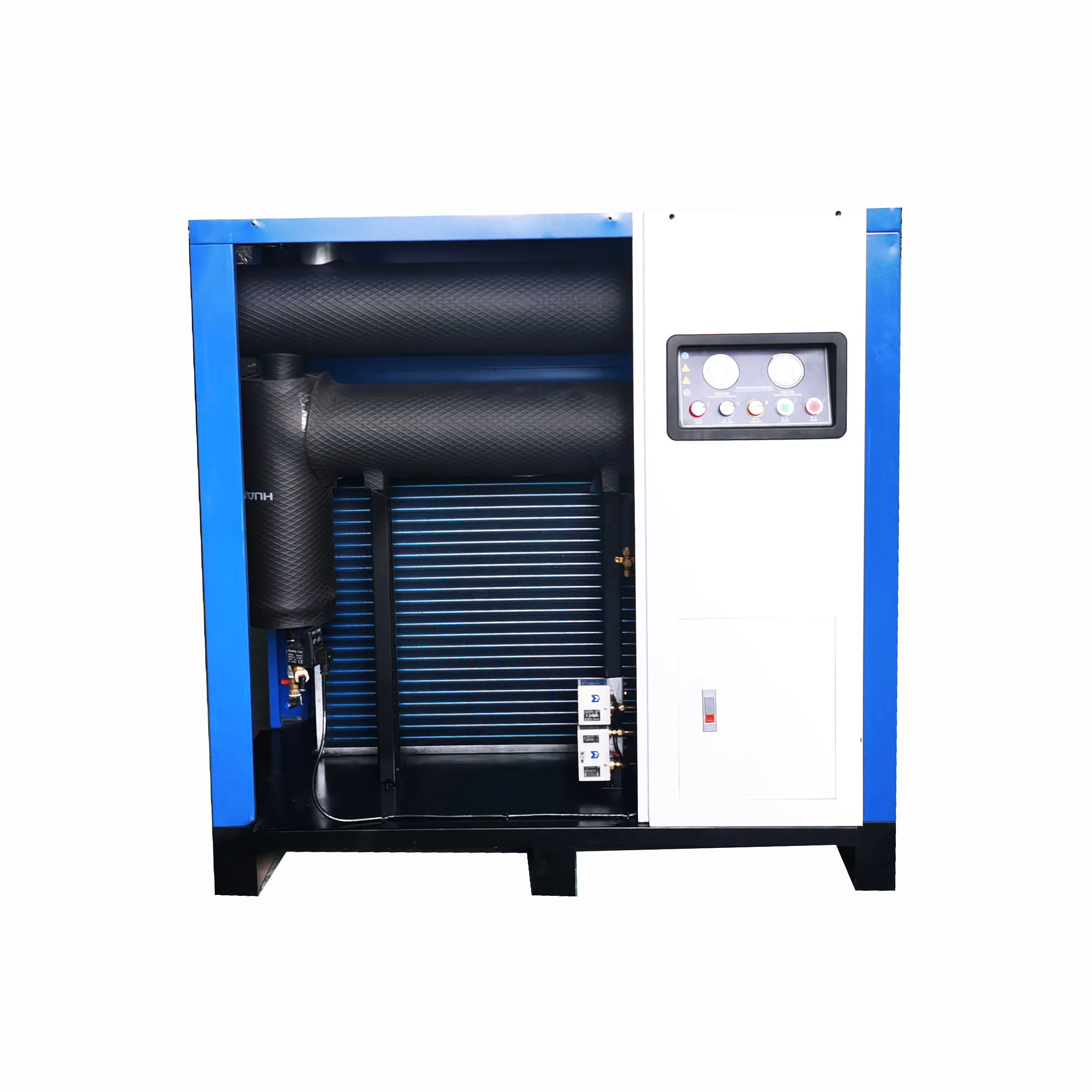

The Inside Details
Working Principle
The refrigeration dryer uses the principle of refrigeration to reduce the temperature of the compressed air, so that the
water vapor in the compressed air is supersaturated at low temperature and cold condensed into liquid water beads, and then thecondensed water (including some oil and dust) is separated from the compressed air by means of air-water separation and discharged out of the machine through the drainer, so as to obtain the dry compressed air.
water vapor in the compressed air is supersaturated at low temperature and cold condensed into liquid water beads, and then thecondensed water (including some oil and dust) is separated from the compressed air by means of air-water separation and discharged out of the machine through the drainer, so as to obtain the dry compressed air.
Application Fields
