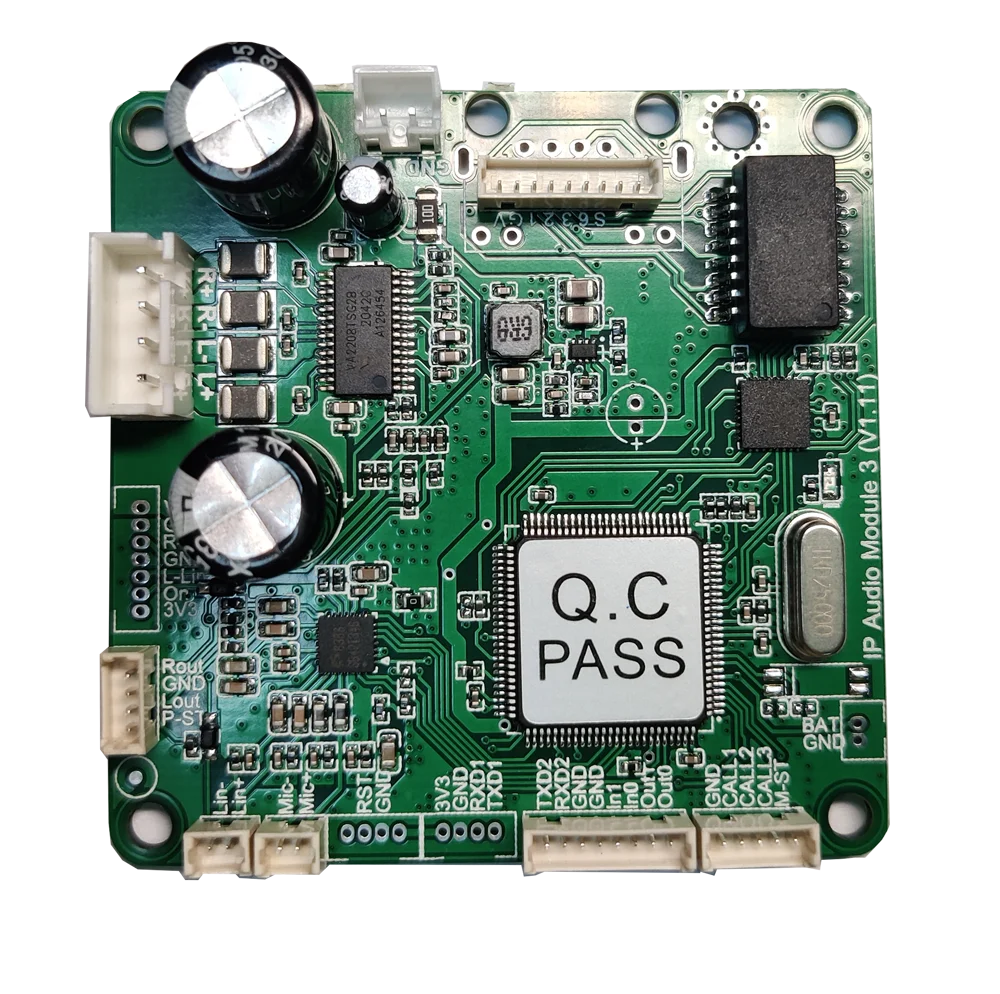

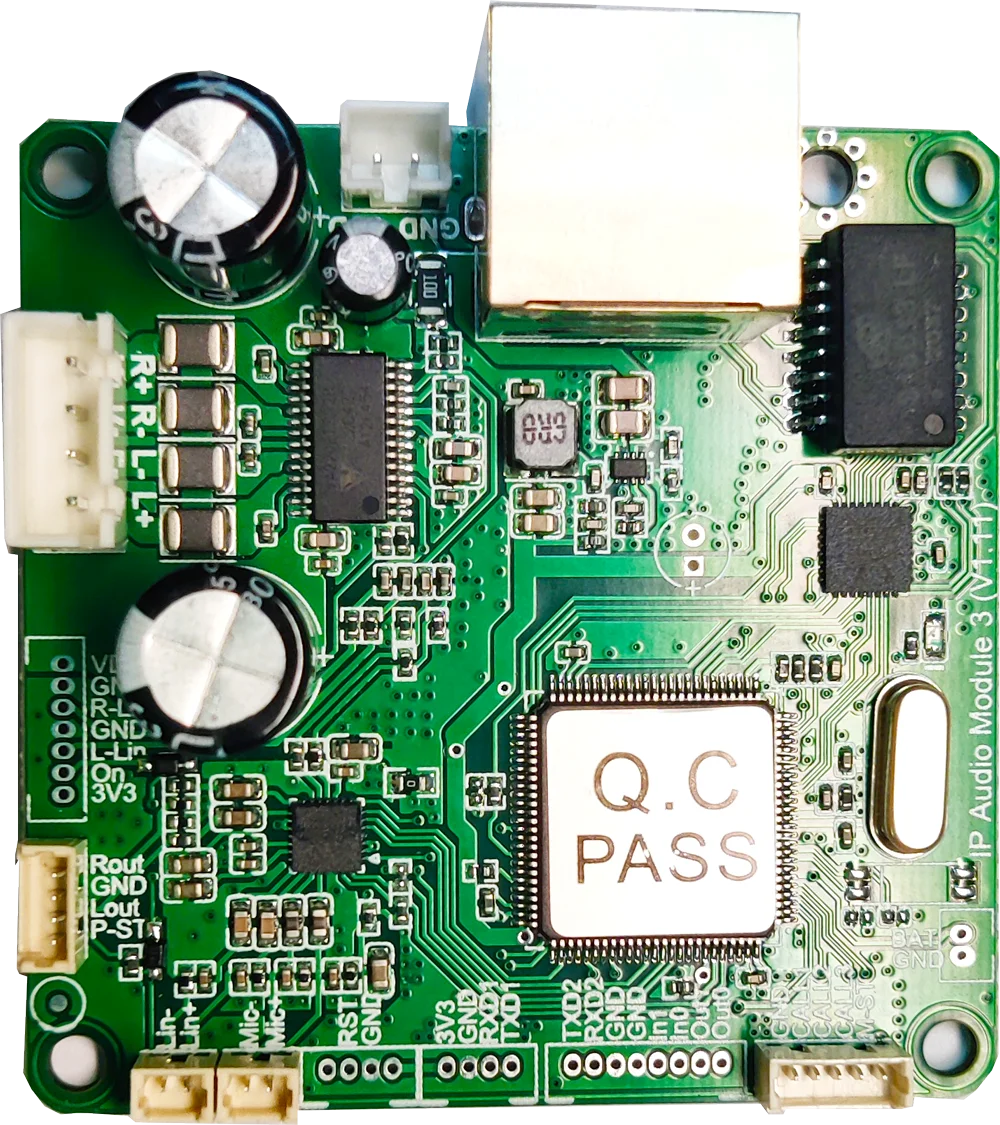

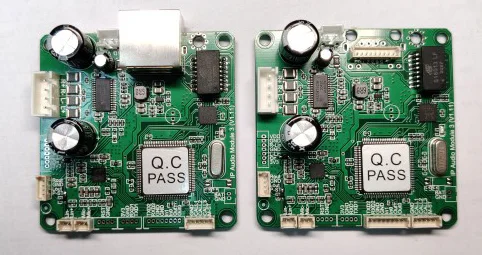

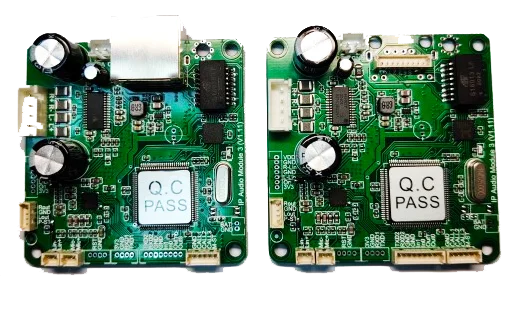

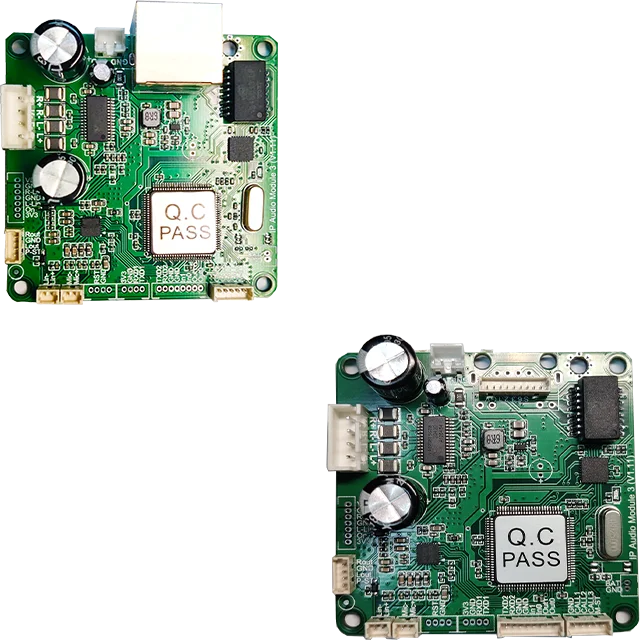

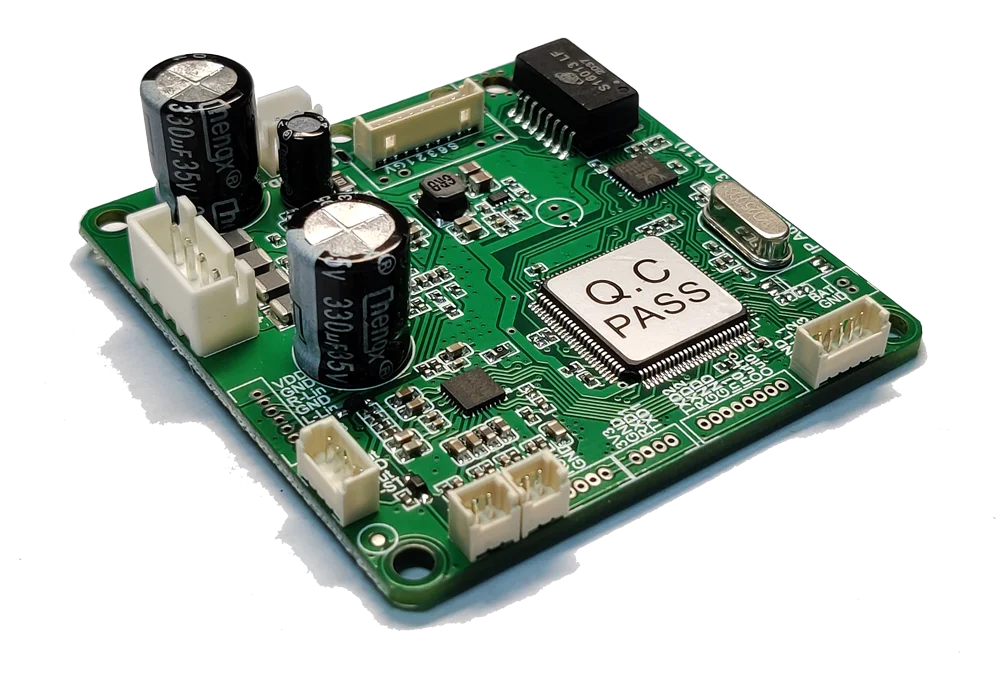

Sinrey SIP2403T цифрового вещания модуль домофон с 2*15 Вт усилитель мощности и 4
Sinrey SIP2403T цифрового вещания модуль домофон с 2*15 Вт усилитель мощности и 4
Sinrey SIP2403T цифрового вещания модуль домофон с 2*15 Вт усилитель мощности и 4
Sinrey SIP2403T цифрового вещания модуль домофон с 2*15 Вт усилитель мощности и 4
Sinrey SIP2403T цифрового вещания модуль домофон с 2*15 Вт усилитель мощности и 4
Sinrey SIP2403T цифрового вещания модуль домофон с 2*15 Вт усилитель мощности и 4
Sinrey SIP2403T цифрового вещания модуль домофон с 2*15 Вт усилитель мощности и 4

Sinrey SIP2403T цифрового вещания модуль домофон с 2*15 Вт усилитель мощности и 4


Поделиться:


Цена:65,00 $ - 85,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-19-2025 83.88 $* 85.26 $*
Jul-19-2025 67.76 $* 68.42 $*
Jun-19-2025 81.23 $* 83.87 $*
May-19-2025 81.95 $* 83.74 $*
Apr-19-2025 64.33 $* 65.95 $*
Mar-19-2025 79.11 $* 81.45 $*
Feb-19-2025 79.63 $* 81.48 $*
Jan-19-2025 78.86 $* 80.51 $*

Характеристики



Product Description




SIP2403T network audio module is a general independent SIP audio function module, which can be easily embedded into OEM products. The module encodes and decodes SIP protocol and RTP audio stream from the network.

The module supports a variety of network protocols and audio codec protocols, and can be used for VoIP and IP paging, high-quality music streaming media playback and other applications。

SIP2403T also provides two serial ports and eight digital I / O, allowing the user to program control


Specification


Power input
DC 12 ~ 24 V
Maximum working current, 2000mA
Temperature
industrial grade: - 40 ~ 65 ℃
Storage temperature range - 40 ~ 85 ℃
Network interface
10 / 100M base adaptive Ethernet interface
IPv4 capable
SIP,TCP/IP, UDP, RTP,DHCP,HTTP
Mic / linein input
typical amplitude 1000mvrms, SNR 95dB
Frequency response: 20 Hz … 20 kHz (-3 dB)
Dynamic range: 90 dB, SNR -90 dB, THD <0.05%
Line out output
load 10K Ω, typical 1000vrms,
SNR 95dB (in playback mode)
RL line input
local amplifying input,
typical amplitude 1000mvrms,
SNR 95dB
Power amplifier output
output power 2 * 15W or 1 * 40W
Bidirectional mode
（Intercom mode）
AEC(Linear and non-linear )8kHz sampling, ADPCM coding.
The minimum delay is 80 ms
Decoding mode
（playback mode）
Wav (PCM + ima ADPCM)
Mp3
G.711 a/u, G.722 and other formats.
(Provide stereo playback, maximum 48Khz, 320kbps audio stream
The minimum delay is 50ms)
Encoding mode
（recording mode）
G.711a/u, G.722
The minimum delay is 30ms
Control serial interface
baud rate 115.2kbps
GPIO
4 channels of general purpose IO, including 2 inputs and 2 outputs
Universal serial port
support transparent transmission, baud rate 2400-115.2kbps, 7,8 data bits, 1,2 stop bits, none, even, odd, space, mark check
Module size
length × width × height: 57 × 57 × 17mm


Company Profile












Xinyue is an innovation driven company located in Guangzhou that successfully develops audio over IP hardware and solutions. We are a world wide player in Intelligent Network Audio Applications that was founded in 2005.



To stay at the forefront of an ever-changing industry, we continually expand our audio knowledge, skills and development abilities into new emerging technologies. Our products are used in almost every market and we keep growing.



Thank you for being part of our mission to make audio transmission simpler and more intelligent.

We are glad to contact you. Please contact us.


FAQ


1. who are we?
We are based in Guangdong, China, start from 2012,sell to Northern Europe(30.00%),Eastern Asia(20.00%),Mid East(20.00%),North America(10.00%),Africa(10.00%),South America(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
SIP PCB Board,intelligent Audio System,Intelligent PA System,Access Control SIP intercom,Horn Speaker And Amplifier

4. why should you buy from us not from other suppliers?
To stay at the forefront of an ever-changing industry, we continually expand our audio knowledge, skills and development abilities into new emerging technologies. Our products are used in almost every market and we keep growing.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,CIP,FCA；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
