Английская прошивка Huawei echolife двухчастотный ont xpon 8145v5 FTTH GPON ONU 4GE 1 порт WiFi 2 4G и 5g
- Категория: Fiber Optic Equipment >>>
- Поставщик: Shenzhen,Lianbai,Trading,Co.,ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 31.70 $* | 33.55 $* |
| Aug-19-2025 | 31.96 $* | 33.2 $* |
| Jul-19-2025 | 26.59 $* | 27.38 $* |
| Jun-19-2025 | 30.51 $* | 32.28 $* |
| May-19-2025 | 26.43 $* | 27.7 $* |
| Apr-19-2025 | 30.73 $* | 32.77 $* |
| Mar-19-2025 | 29.54 $* | 30.86 $* |
| Feb-19-2025 | 29.34 $* | 30.20 $* |
| Jan-19-2025 | 29.76 $* | 30.37 $* |
Характеристики
EG8145V5 Specification
The EchoLife EG8145V5 is a intelligent routing-type Optical Network Terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home users. The EG8145V5 supports 802.11ac dual-frequency bands and features high-performance forwarding capabilities to ensure an excellent experience with voice, Internet, and HD video services. These features make the EG8145V5 a perfect option for broadband access.
Huawei GPON ONU EG8145V5 Product Specifications
*Dimensions (H x W x D):30 mm x 173 mm x 120 mm
*Port:1POTS+4GE+2.4G/5G Wi-Fi+1USB
*System power supply:11–14 V DC 1.5 A
*NNI:GPON
*Optical connector:SC/UPC, SC/APC
*Static power consumption:5.3 W
*Max. power consumption:18 W
*Weight:About 250 g
*Operating temperature:0°C to +40°C
*Power adapter input:100–240 V AC, 50 / 60 Hz
Dimensions (H x W x D) | 30 mm x 173 mm x 120 mm (without external antenna and pads) |
Operating temperature | 0°C to +40°C |
Operating humidity | 5% RH to 95% RH (non-condensing) |
Power adapter input | 100–240 V AC, 50 / 60 Hz |
System power supply | 11–14 V DC, 1.5 A |
Static power consumption | 5.3 W |
Max. power consumption | 18 W |
NNI | GPON |
UNI | 1POTS+4GE+2.4G/5G Wi-Fi+1USB |
Optical connector | SC/UPC, SC/APC |
Indicators | POWER/PON/LOS/LAN/TEL/USB/WLAN/WPS |
Installation mode | On the desk, or on the wall |
Compliance certification | CE/WiFi |

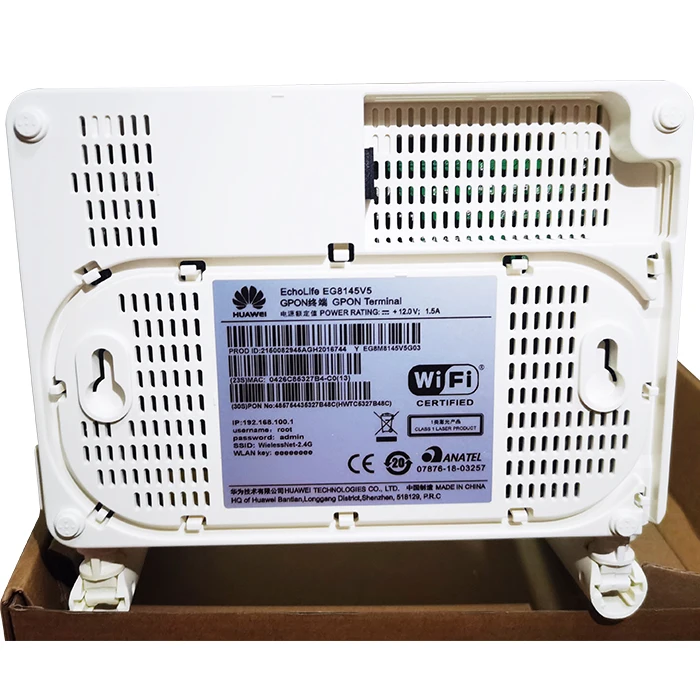

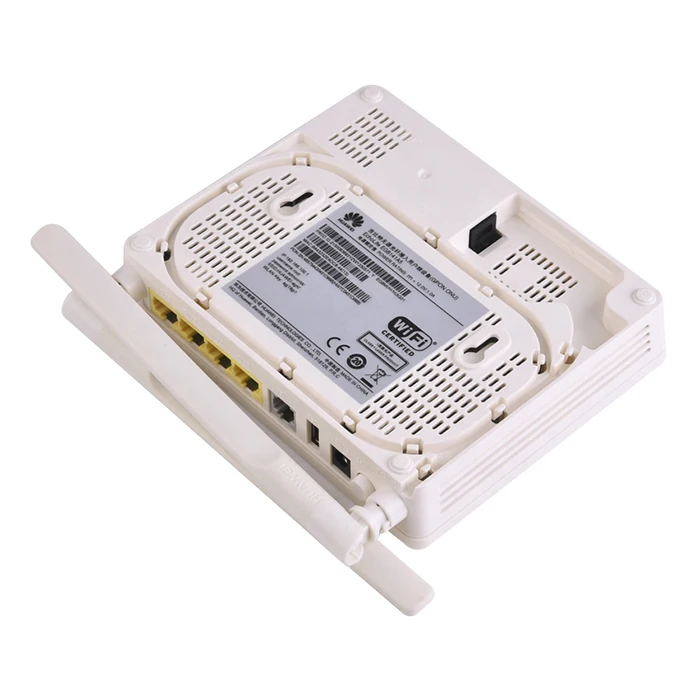

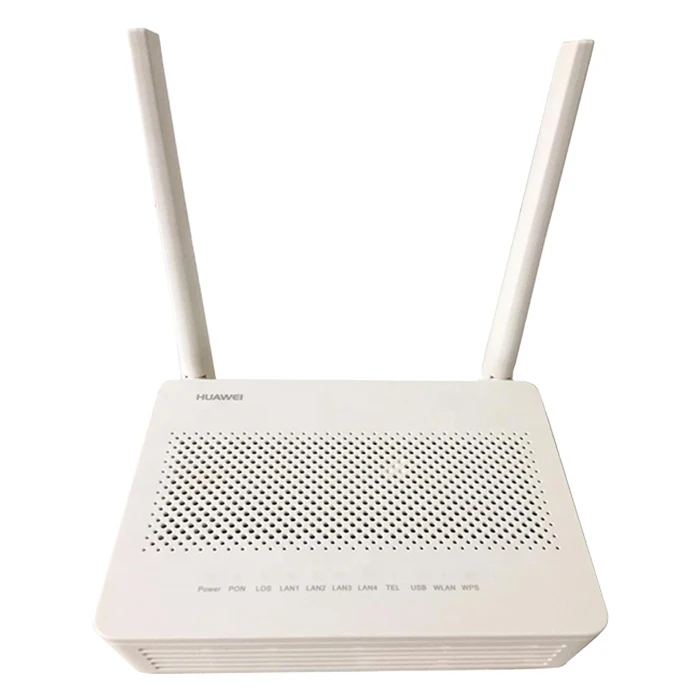

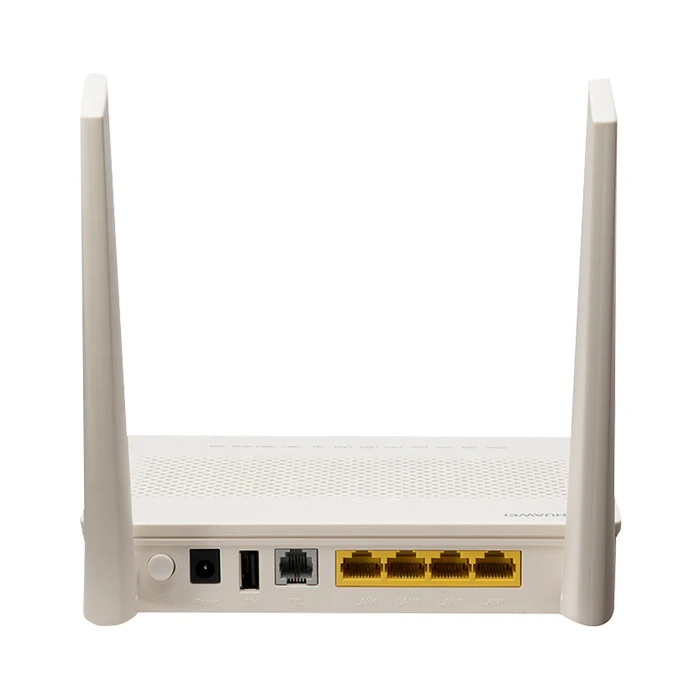

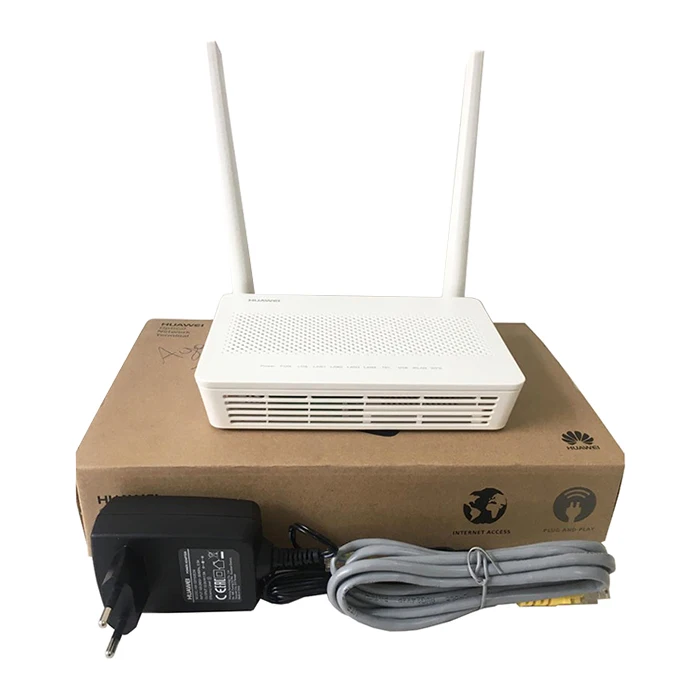

Details Images
Huawei EG8145V5 provides these features:
GPON Port
• Class B+
• Receiver sensitivity: -27 dBm
• Overload optical power: -8 dBm
• Wavelengths: US 1310 nm, DS 1490 nm
•
Wavelength blocking filter (WBF) of G.984.5
Wavelength blocking filter (WBF) of G.984.5
• Flexible mapping between GEM Port and TCONT
• GPON: consistent with the SN or
password authentication defined in G.984.3
password authentication defined in G.984.3
• Bi-directional FEC
• SR-DBA and NSR-DBA
• Type B (single-homing & dual-homing)
Ethernet Port
IEEE 802.11 a/n/ac (5G)
• 2 × 2 MIMO (2.4G&5G)
• Antenna gain: 5 dB
• Ethernet port-based VLAN tags and tag removal
• 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission
• QinQ VLAN
•Limit on the number of learned MAC addresses
• MAC address learning
• Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
IEEE 802.11 a/n/ac (5G)
• 2 × 2 MIMO (2.4G&5G)
• Antenna gain: 5 dB
POTS Port
• Maximum REN: 4
• G.711A/μ, G.729a/b and G.722 encoding/decoding
• T.30/T.38/G.711 fax mode
• DTMF
• Emergency calls
(with the SIP protocol)
(with the SIP protocol)
USB
• USB2.0
• FTP-based network storage
• File/Print sharing based on SAMBA
• DLNA function WLAN
• IEEE 802.11 b/g/n (2.4G)
