Самый продаваемый pvs0615U avmatrix портативный 6CH SDI/HDMI мульти-формата потокового видео коммутатор с 15 6 дюймов сенсорный
- Категория: Radio & TV Broadcasting Equipment >>>
- Поставщик: Zhangzhou,Matrix,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.27 $* | 0.89 $* |
| Aug-17-2025 | 0.15 $* | 0.28 $* |
| Jul-17-2025 | 0.90 $* | 0.97 $* |
| Jun-17-2025 | 0.2 $* | 0.56 $* |
| May-17-2025 | 0.48 $* | 0.18 $* |
| Apr-17-2025 | 0.81 $* | 0.2 $* |
| Mar-17-2025 | 0.59 $* | 0.94 $* |
| Feb-17-2025 | 0.0 $* | 0.90 $* |
| Jan-17-2025 | 0.37 $* | 0.19 $* |
Характеристики
Main Features
1) Portable All-In-One design with 15.6 inch FHD LCD display
2) 6 channel inputs: 4×SDI and 2×DVI-I/HDMI/VGA/USB
3) 3×SDI PGM out(1×AUX), 2×HDMI PGM & 1×HDMI multiview out, 1×USB Streaming out
4) Input format auto-detected and PGM/AUX output format selectable
5) T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
6) Luma Key/ Chroma Key for virtual studio
7) PIP/POP window size and position adjustable
8) Record PGM video to SD card, up to 1080p60
9) Audio mixer: TRS audio & SDI, HDMI, USB embedded audio
1) Portable All-In-One design with 15.6 inch FHD LCD display
2) 6 channel inputs: 4×SDI and 2×DVI-I/HDMI/VGA/USB
3) 3×SDI PGM out(1×AUX), 2×HDMI PGM & 1×HDMI multiview out, 1×USB Streaming out
4) Input format auto-detected and PGM/AUX output format selectable
5) T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
6) Luma Key/ Chroma Key for virtual studio
7) PIP/POP window size and position adjustable
8) Record PGM video to SD card, up to 1080p60
9) Audio mixer: TRS audio & SDI, HDMI, USB embedded audio
Products Description

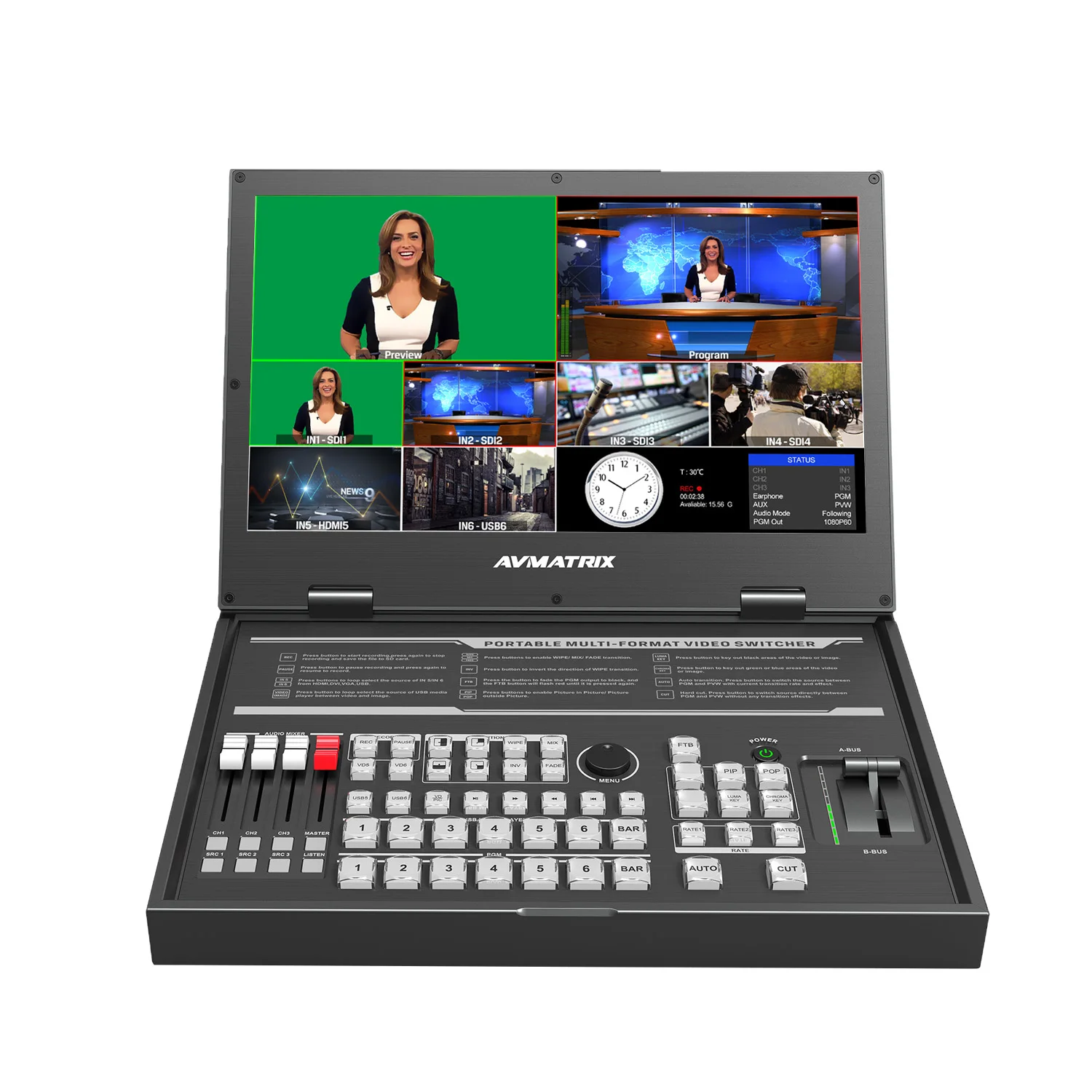

The Thinnest AIO Portable Video Switcher
The world's thinnest video switcher with an integrated 15.6 inch FHD screen and solid metal case. You can clearly view PVW, PGM with audio bar, multiviewer, clock and menu setting on the screen.
The world's thinnest video switcher with an integrated 15.6 inch FHD screen and solid metal case. You can clearly view PVW, PGM with audio bar, multiviewer, clock and menu setting on the screen.

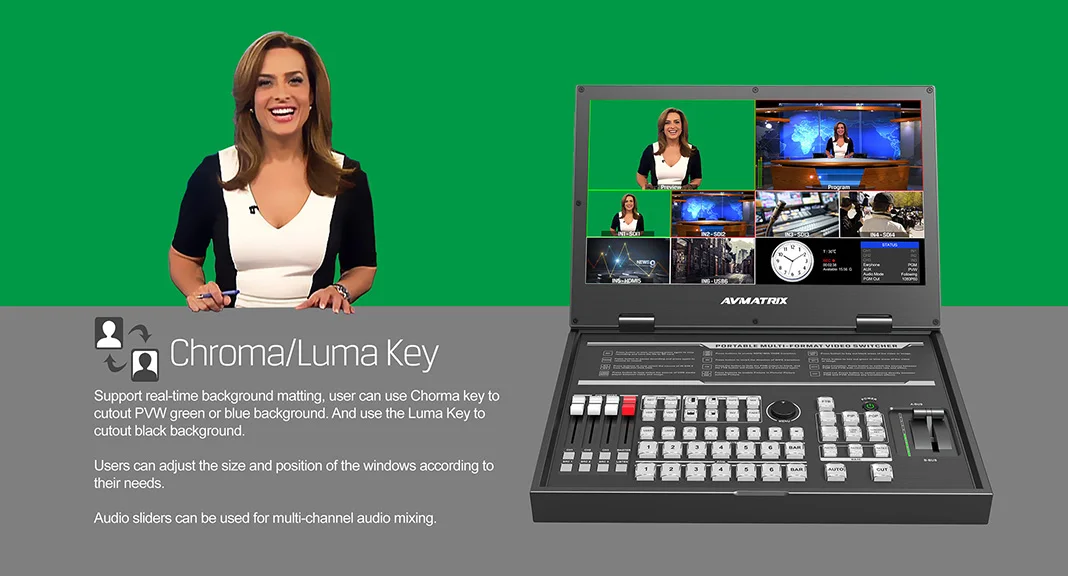

Chroma/Luma Key
Support real-time background matting, user can use Chorma key to cutout PVW green or blue background. And use the Luma Key to cutout black background. Users can adjust the size and position of the windows according to their needs. Audio sliders can be used for multi-channel audio mixing.
Support real-time background matting, user can use Chorma key to cutout PVW green or blue background. And use the Luma Key to cutout black background. Users can adjust the size and position of the windows according to their needs. Audio sliders can be used for multi-channel audio mixing.
T-bar & Transitions
T-Bar, AUTO and CUT for switching between PVW and PGM. Under T-Bar & AUTO mode, it supports various transition effects such as WIPE, MIX and FADE. There are 3 different transition rates to meet different needs.
T-Bar, AUTO and CUT for switching between PVW and PGM. Under T-Bar & AUTO mode, it supports various transition effects such as WIPE, MIX and FADE. There are 3 different transition rates to meet different needs.
PGM Recording
Extra SD card recording function, video recording up to 1080p60, which can achieve recording and pausing. Multiple recording qualities are available.
USB Media Player
The channel 5 and 6 support different signals such as USB media player, HDMI DVI and VGA which can satisfy customers to realize different signal input. USB Media Player support Video and Images.
Extra SD card recording function, video recording up to 1080p60, which can achieve recording and pausing. Multiple recording qualities are available.
USB Media Player
The channel 5 and 6 support different signals such as USB media player, HDMI DVI and VGA which can satisfy customers to realize different signal input. USB Media Player support Video and Images.
Widespread Application
The all-in-one 6 channel video switcher can be widely used in various field events, such as live sports, virtual studio,
Education, internet, concert, and so on
The all-in-one 6 channel video switcher can be widely used in various field events, such as live sports, virtual studio,
Education, internet, concert, and so on

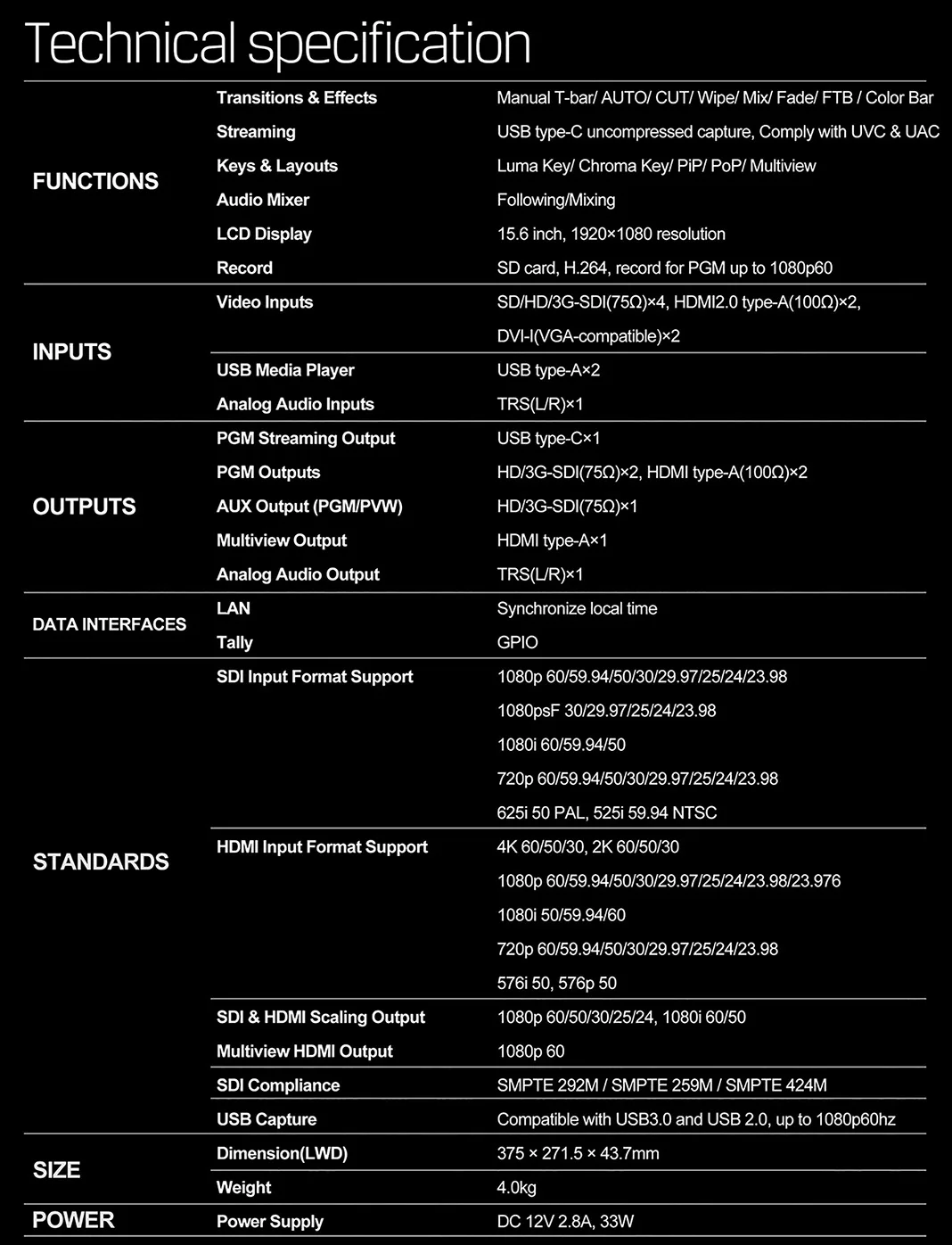

Technical Parameter
About Avmatrix
After-Sales Service
AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting
standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.
standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.
