LED tv skd 65 дюймов SKD 4K HD Интерактивная интеллектуальная панель со встроенной
- Категория: Television >>>
- Поставщик: Shenzhen,Didakuxian,Technology.Co.Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.99 $* | 0.89 $* |
| Aug-20-2025 | 0.43 $* | 0.49 $* |
| Jul-20-2025 | 0.50 $* | 0.63 $* |
| Jun-20-2025 | 0.47 $* | 0.37 $* |
| May-20-2025 | 0.56 $* | 0.53 $* |
| Apr-20-2025 | 0.72 $* | 0.7 $* |
| Mar-20-2025 | 0.90 $* | 0.96 $* |
| Feb-20-2025 | 0.55 $* | 0.37 $* |
| Jan-20-2025 | 0.97 $* | 0.12 $* |
Характеристики
Product Description
Product Paramenters

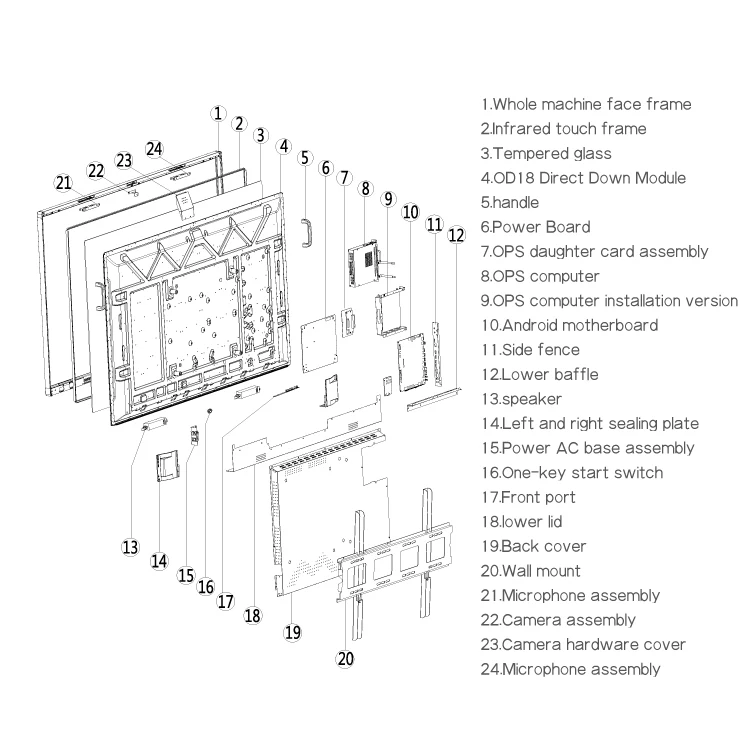

Product name | T6X65M Zero fit conference tablet solution | ||
Part name | Display Module component | ○Backlight structure ○ Backlight (including optical materials) ○Liquid crystal module [Optional solution] | |
Profile front frame | ○Four-side profile ○Inner corner ○Outer corner | ||
Tempered glass | ○Ordinary toughened glass ○Sprayed anti-glare toughened glass ○ Etched anti-glare toughened glass | ||
Front frame accessories | ○Button ○Terminal board ○Handle ○Speaker ○Various brackets | ||
Infrared touch | ○Infrared PCBA ○Connecting wire | ||
Electronic material | ○Motherboard ○Power ○OPS ○Wire [Customer-provided] | ||
Machine accessories | ○Screws of various specifications ○ Mylar film ○ EVA gasket [Customer-provided] | ||
Packaging Materials | ○Universal carton ○Plastic bag ○Pearl cotton [SKD matching, CKD customer's own] | ||
Machine parameters (reference) | Front panel (top) | Built-in camera (800w or 1200W), array microphone (6 arrays) | |
Front panel (bottom) | One-key start button in the middle of the power supply, front port: USB2.0*1 USB3.0*1 | ||
Horn parameters | Front sound 2*8Ω 10W | ||
Motherboard specifications | Optional scheme: This project corresponds to the difference between the rear cover terminal board and the board adapter board | ||
Whole machine power consumption | ≤250W | ||
Standby power consumption | ≤0.5W | ||
Whole machine life | ≥30000 hours | ||
Input power | AC 100-240V, 50/60Hz | ||

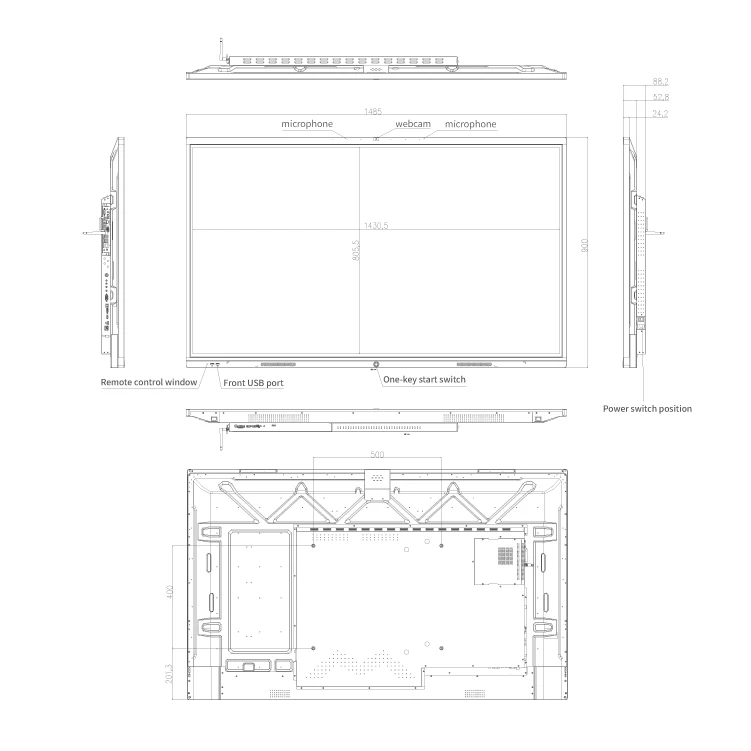

Machine size | 1485(L) x 88.2 (T) x900 (H) mm | ||

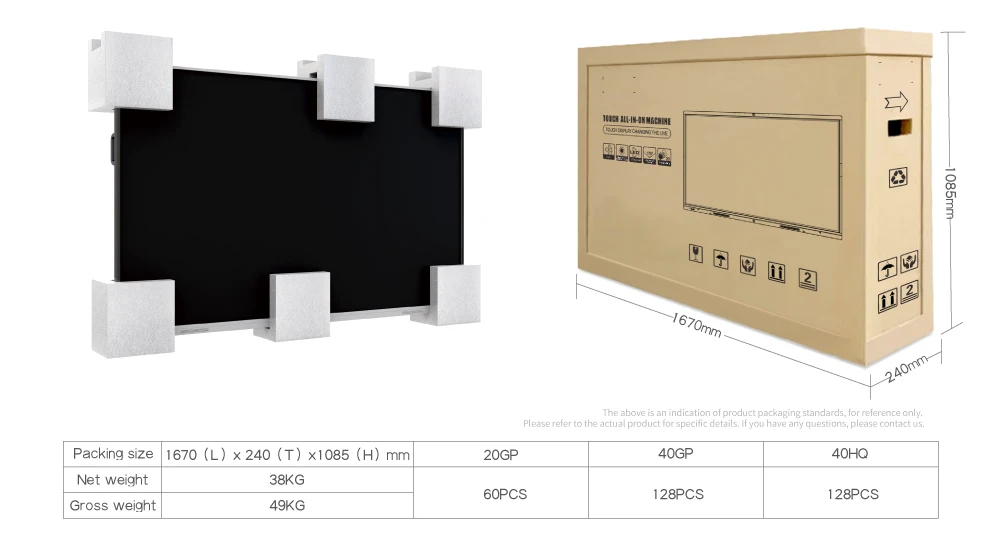

Packing size | 1670(L) x240(T) x1085(H)mm | ||
Net weight | 38KG | ||
Gross weight | 49KG | ||
Optical parameters | Optical method | DLED OD18 | |
Optical configuration | LED:7*16; Diaphragm structure: Prism film x1 + DOPx1 | ||
Electrical characteristics | Voltage:81.2-98V; Current:400mA*4 | ||
Center brightness | 8500cd/㎡ | ||
Uniformity | 70% | ||
Color temperature | Add OC8500-12000 | ||
OC adaptation | Compatible with most OCs, please refer to "Screen Configuration List" for details | ||
Touch parameter | Touch type | Infrared touch | |
Installation method | Built-in front disassembly | ||
Touch screen sensing Method | Fingers, writing pens, or other non-transparent objects ≥ Ø8mm | ||
Resolution | 32767*32767 | ||
Touch system communication port | USB 2.0+UART | ||
Responding speed | ≤8 milliseconds | ||
Positioning accuracy | ≤±2mm | ||
Anti-light intensity | 88K LUX | ||
Multi-touch | 20-point touch | ||
Number of touches | More than 60 million times in the same location | ||
Touch support operating system | WIN7, WIN8, WIN10, LINUX, Android, MAC | ||

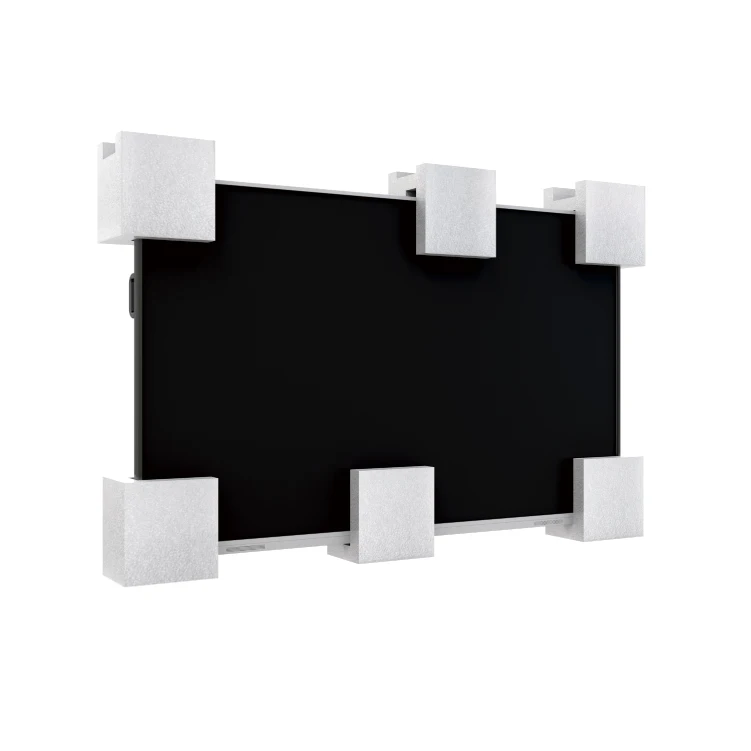

Product packaging
Company Profile
Dida display company
Dida display company was established in August 2015 and is mainly positioned in the R&D and sales of commercial display product solutions. The founding team members have been serving well-known global companies such as South Korea's LG, Samsung, Chi Mei, BOE, AUO, Skyworth, and Panasonic for many years. Has rich experience in product design, development and manufacturing management. Products as interactive display terminals such as artificial intelligence, the Internet, and intelligent IoT are mainly used in business fields such as smart cities, smart education, smart office, and smart medical care.
Certifications
Packing & Delivery
FAQ
1.Q:Can you introduce your company?
A:Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting skd. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts, backlight modules, and educational and conference integrated machine.
2.Q:Why does your company produce all-in-one Whiteboard sets?
A:1>. Because the cost of developing an all-in-one machine is very high, we want to help customers save development costs.
2>. We have a very strong R&D team and strong innovation ability. Have rich experience in SKD
3>. The purpose of our company is to achieve customer brand and help more middle-size companies to grow.
3. Q:what is your MOQ?
A:1 sets
4.Q:How about your delivery time?
A:It depends on your quantity. If the goods are in stock, usually delivered within 3-5 days. If it is customized, we need to confirm the delivery date according to the actual situation.
5.Q:What payment methods does your company accept?
A:we accept T/T Paypal LC etc.
6.Q:Where is your company located?
A:Our headquarters is in Changan town, Dongguan, China. It is 1 hour from Shenzhen and 1.5 hours from Guangzhou. Traffic is very convenient.
7.Q:How many people at your R&D department?
A:12 persons.
8.Q:Does your company has an engineer to guide us in assembling the finished product?
A:Yes, We have professional engineers to instruct you on how to assemble. Actually very simple, don't worry.
9.Q: How about transportation?
A: We can go by air or sea according to your requirements. All accessories will be placed in a sturdy cardboard box with plastic bags on the outside of the box. So, you don't have to worry about the box breaking.
A:Dida is a large-scale display product integration solution provider that integrates mold design, manufacturing, product stamping and injection molding, module back-lighting skd. The team has rich experience in product design, manufacturing, selling in the display industry. The 100,000-class dust-free workshops. Professional design and production of large-size LCD structural parts, backlight modules, and educational and conference integrated machine.
2.Q:Why does your company produce all-in-one Whiteboard sets?
A:1>. Because the cost of developing an all-in-one machine is very high, we want to help customers save development costs.
2>. We have a very strong R&D team and strong innovation ability. Have rich experience in SKD
3>. The purpose of our company is to achieve customer brand and help more middle-size companies to grow.
3. Q:what is your MOQ?
A:1 sets
4.Q:How about your delivery time?
A:It depends on your quantity. If the goods are in stock, usually delivered within 3-5 days. If it is customized, we need to confirm the delivery date according to the actual situation.
5.Q:What payment methods does your company accept?
A:we accept T/T Paypal LC etc.
6.Q:Where is your company located?
A:Our headquarters is in Changan town, Dongguan, China. It is 1 hour from Shenzhen and 1.5 hours from Guangzhou. Traffic is very convenient.
7.Q:How many people at your R&D department?
A:12 persons.
8.Q:Does your company has an engineer to guide us in assembling the finished product?
A:Yes, We have professional engineers to instruct you on how to assemble. Actually very simple, don't worry.
9.Q: How about transportation?
A: We can go by air or sea according to your requirements. All accessories will be placed in a sturdy cardboard box with plastic bags on the outside of the box. So, you don't have to worry about the box breaking.
