DualBoost II доступа свяжитесь/бесконтактный считыватель USB Смарт чипованых кредитной карты
- Категория: Access Control Card Readers >>>
- Поставщик: Shenzhen,Hcc,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 57.94 $* | 60.19 $* |
| Aug-19-2025 | 57.0 $* | 60.84 $* |
| Jul-19-2025 | 48.37 $* | 50.64 $* |
| Jun-19-2025 | 56.0 $* | 59.69 $* |
| May-19-2025 | 48.65 $* | 50.45 $* |
| Apr-19-2025 | 55.95 $* | 58.58 $* |
| Mar-19-2025 | 54.86 $* | 57.2 $* |
| Feb-19-2025 | 54.37 $* | 57.84 $* |
| Jan-19-2025 | 53.12 $* | 56.51 $* |
Характеристики
Products Description
Dimensions | 120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H) | Weight | 150 g |
Interface | USB Full Speed | Operating Distance | Up to 50 mm (depends on the tag type) |
Supply Voltage | Regulated 5V DC | Supply Current | 200mA (operating); 50mA (standby) |
Support credit card payment,NFC reader，EMV certificates ，There are more ACR readers for you to choose from, if you want to know more, please click here

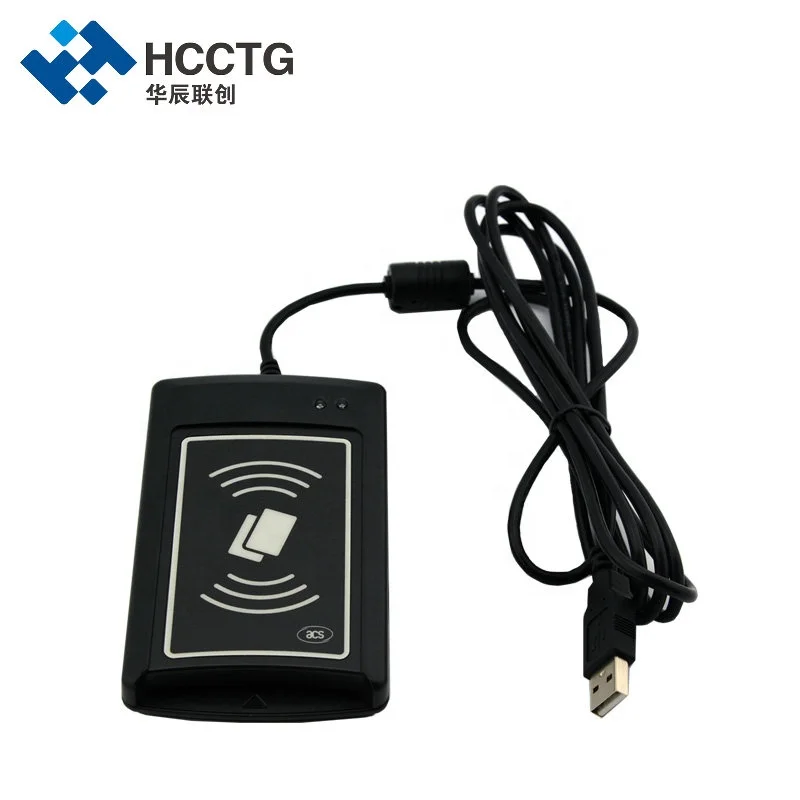

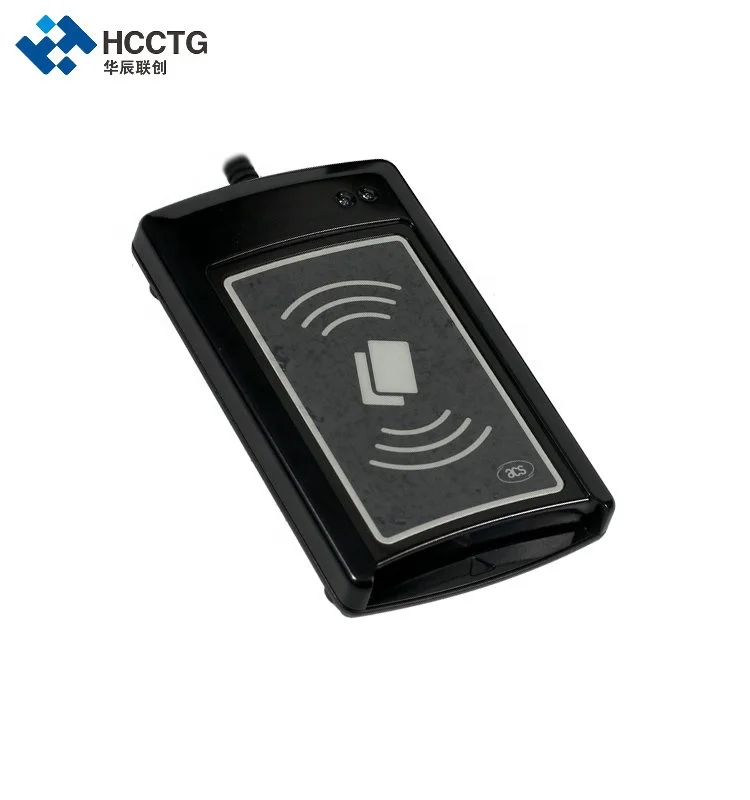

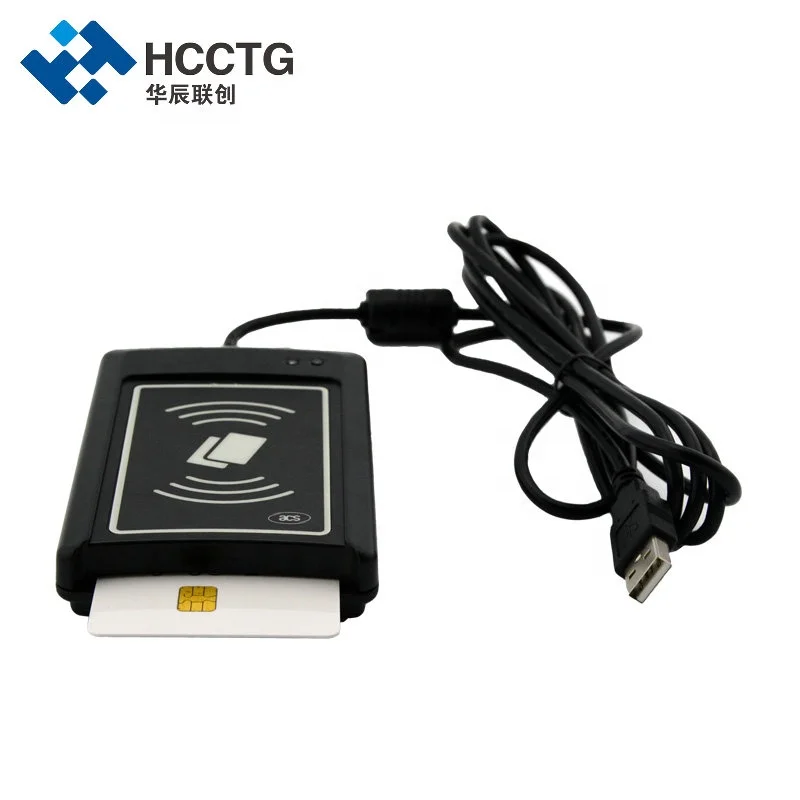

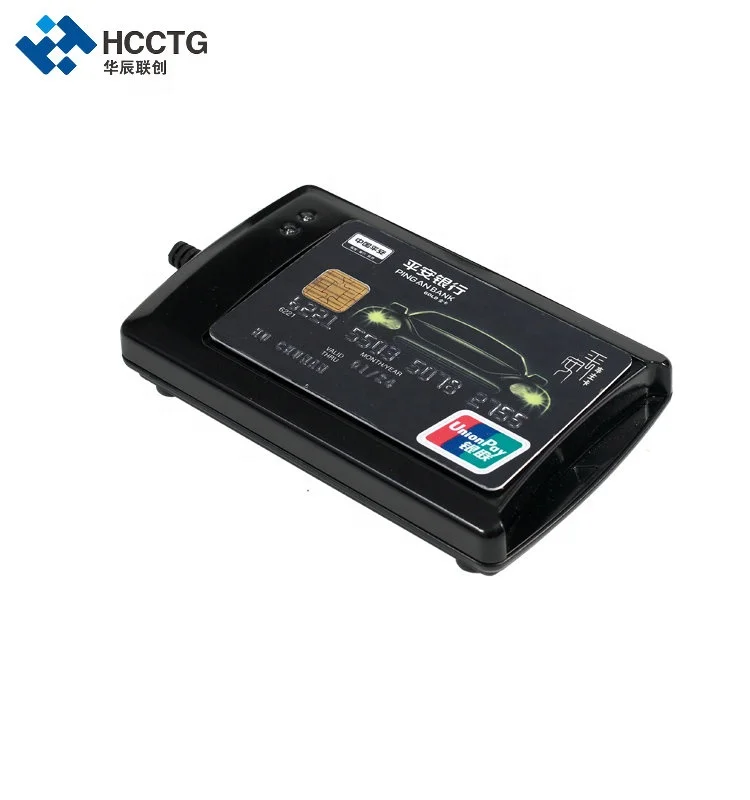

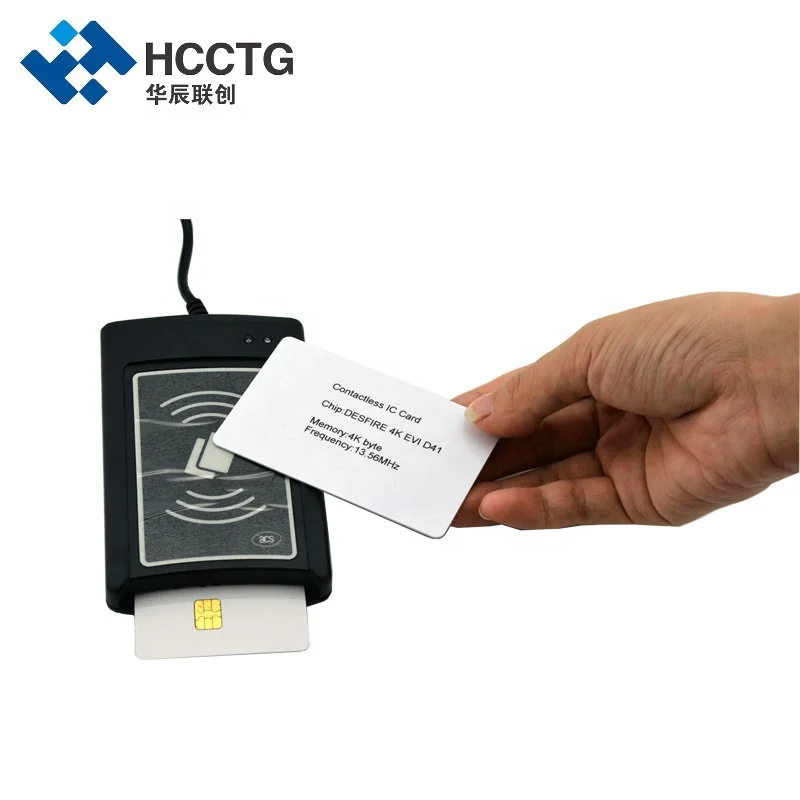

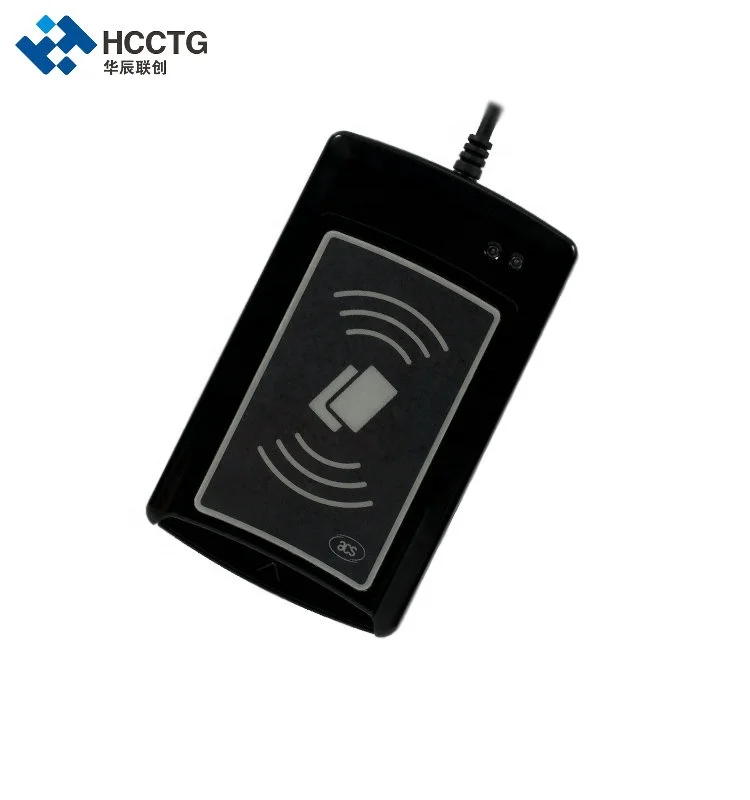

ACR1281U-C1 Dual Boost II is the second generation of ACR1281 Dual Boost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. ACR1281U-C1 Dual Boost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card; it can be used for online transactions to settle payments securely using credit cards, and it can also be used for topping up contactless cards via automated fare collection in public transport. It provides the perfect complement to the "All-in-one Card" concept that combines many kinds of smart card applications in just a single card.
Operating Temperature | 0-50⁰ C | Operating Frequency | 13.56 MHz | ||
Smart Card Interface Support | ISO-7816 Class A, B and C (5V, 3V, 1.8V) ISO-14443 Type A & B Mi fare | Compliance/Certifications | PC/SC, CCID, CE, FCC, ROHS, USB Full Speed Microsoft ® WHQL: 2000, XP, Vista, 7 | ||
Operating System Support | Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Win Server 2008 Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2008 x64, Win Server 2008 R2 x64 Mac Linux | ||||
Feature
1.Compliance with PC/SC for contact, contactless and SAM card interfaces
2.Compliance with CCID
3.Supports major contactless smart cards that conform to ISO14443 Type A and B
4.Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
5.Supports new Mi fare Plus and DESFIRE EV1
6.T=CL emulation for Mi fare 1K/4K Cards
7.Read/write speed of up to 848 kbps for contactless interface
8.Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
9.Supports extended APDU
10.Supports major contact smart cards that conform to ISO7816
11.Supports memory cards such as SLE5528, SLE5542, etc.
12.Read/write speed of up to 344 kbps for contact interface
13.Durable landing type smart card connector
14.Built-in SAM card slot
15.Intelligent support for hybrid and combine cards
16.Firmware Upgradable
17.User-controllable monotone buzzer and LEDs
18.USB Full Speed (12 Mbps)
1.Compliance with PC/SC for contact, contactless and SAM card interfaces
2.Compliance with CCID
3.Supports major contactless smart cards that conform to ISO14443 Type A and B
4.Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
5.Supports new Mi fare Plus and DESFIRE EV1
6.T=CL emulation for Mi fare 1K/4K Cards
7.Read/write speed of up to 848 kbps for contactless interface
8.Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
9.Supports extended APDU
10.Supports major contact smart cards that conform to ISO7816
11.Supports memory cards such as SLE5528, SLE5542, etc.
12.Read/write speed of up to 344 kbps for contact interface
13.Durable landing type smart card connector
14.Built-in SAM card slot
15.Intelligent support for hybrid and combine cards
16.Firmware Upgradable
17.User-controllable monotone buzzer and LEDs
18.USB Full Speed (12 Mbps)
