Автоматическая машина для сгибания и резки металла гибочная арматуры с ЧПУ

Автоматическая машина для сгибания и резки металла гибочная арматуры с ЧПУ

Категория: Metal Cutting Machinery >>>
Поставщик: Shandong,Feihong,Engineering,Machinery,Co.,Ltd.

Цена:800,00 $ - 888,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	952.22 $*	1000.80 $*
Aug-19-2025	944.26 $*	991.67 $*
Jul-19-2025	792.1 $*	832.60 $*
Jun-19-2025	928.72 $*	974.68 $*
May-19-2025	808.56 $*	848.76 $*
Apr-19-2025	912.21 $*	958.99 $*
Mar-19-2025	904.92 $*	949.5 $*
Feb-19-2025	896.53 $*	941.75 $*
Jan-19-2025	888.92 $*	932.40 $*

Характеристики

Descrption of rebar bending machine

Automatic rebar bending machine,bar bender,bar bending machine

Principle of the machine structure: The steel bending and bending hoop mainly consists of four parts: the transmission mechanism,the frame, the bending and bending hoop fixture and the electrical control. During operation, the motor drives the gear via the V-belt and the pulley, and then the gear rotates the working disk.

Technical Parameters of rebar bending machine

Model	working ability	panel thickness	voltage	power	overall size	weight
FHB40	ribbedbar≤φ32mm round bar≤φ35mm	10mm	380V 3p 50HZ ( or customized )	3kw	740830850mm	360kg
FHB40C	ribbed bar≤φ32mm round bar ≤φ35mm	8mm	380V 3p 50HZ ( or customized )	3KW-2	770740730mm	230kg
FHB42	ribbed bar≤φ32mm round bar≤φ35mm	14mm	380V 3p 50HZ ( or customized )	3KW	800740890mm	300kg
FHB50	:ribbed bar≤φ38mm round bar≤φ42mm	10mm	380V 3p 50HZ ( or customized )	3KW-2	940740770mm	350kg
FHB50pro	ribbed bar ≤φ38mm round bar≤φ42mm	/	380V 3p 50HZ ( or customized )	4KW	820870750mm	350Kg
FHB50A	:round bar:φ6-45mm ribbed bar:φ6-40mm	/	380V 3p 50HZ ( or customized )	4KW-4P	840650900mm	400KG
FHB60A	ribbed bar≤φ42mm round bar≤φ45mm	14mm	380V 3p 50HZ ( or customized )	7.5KW	1080880860mm	500kg
FHB80A	ribbed bar≤φ60mm round bar≤φ70mm	/	380V 3p 50HZ ( or customized )	8KW	10801280860mm	1500kg

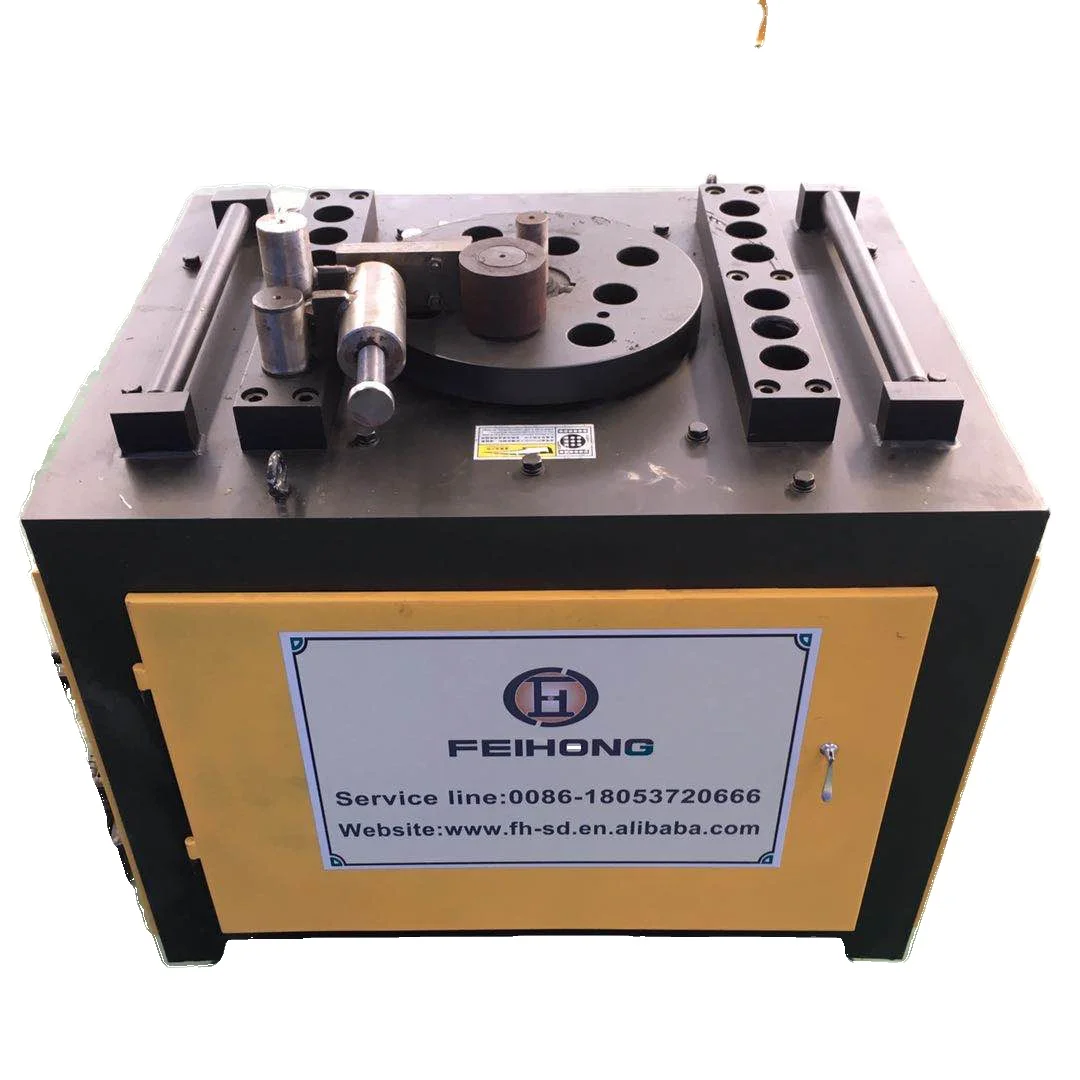

Detailed photos of rebar bending machine

Features of rebar bending machine

1.Enhance worm gear,steel-forged worm and solid external gear,Fully solid square steel,disc and suface grinding machine processing.

2.NJ215 roller bearing is adopted for the spindle.Adjustable motor board&tension triangle belt.

3.Automatic type：T-groove on the side of the working disc is provided with stop screw,and the working disc can be returned automatically when a certain angle is selected to improve efficiency.

4.CNC type:fully solid working disc,encoder and PLC CNC operating panel for easy operation and precise angle.

Company Profile:

Certification

FAQ

1. Q:Is your company manufacture or trading company ?
A:We are professional manufacturer and we have about 10 years experience in engineering machine line.
Q:Did your machine approved ISO?
A:Our all machines were had approved ISO9001 ago,that will do best quality for every customer.
3.Q:Can you help us contact the shipping agent in your loading port?
A:Of course,we have own best shipping forwarder who always provide the best services&price to us.
4. Q: Can you do OEM?
A: Yes, we can do OEM as client’s requirement.
5. Q: All products have a warranty?
A: YES, Our warranty term is One Year.
6. Q: What about the delivery time?
A: Usually 5-7 days after down payment.
