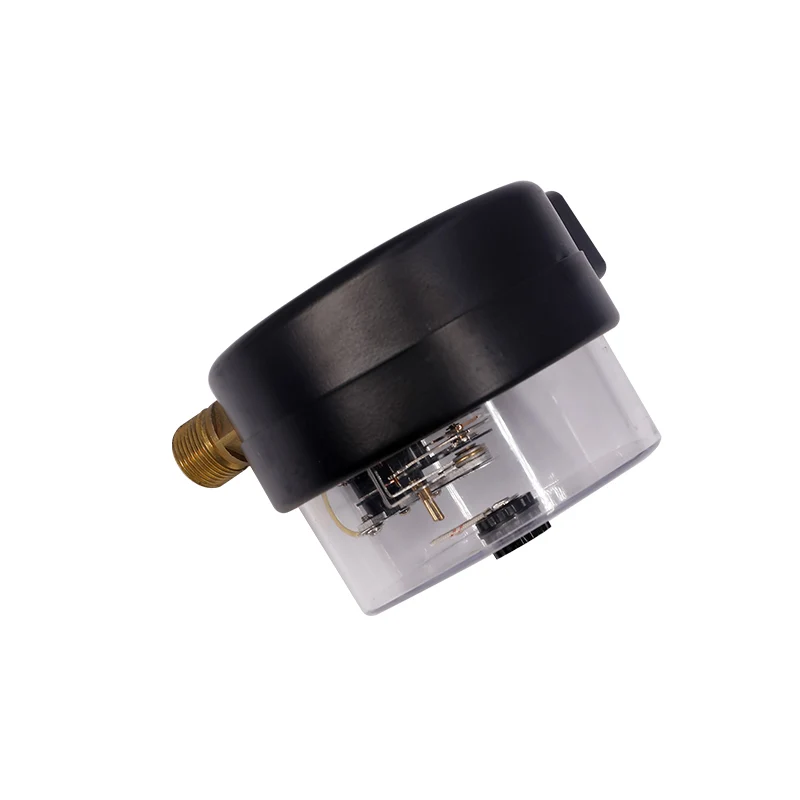

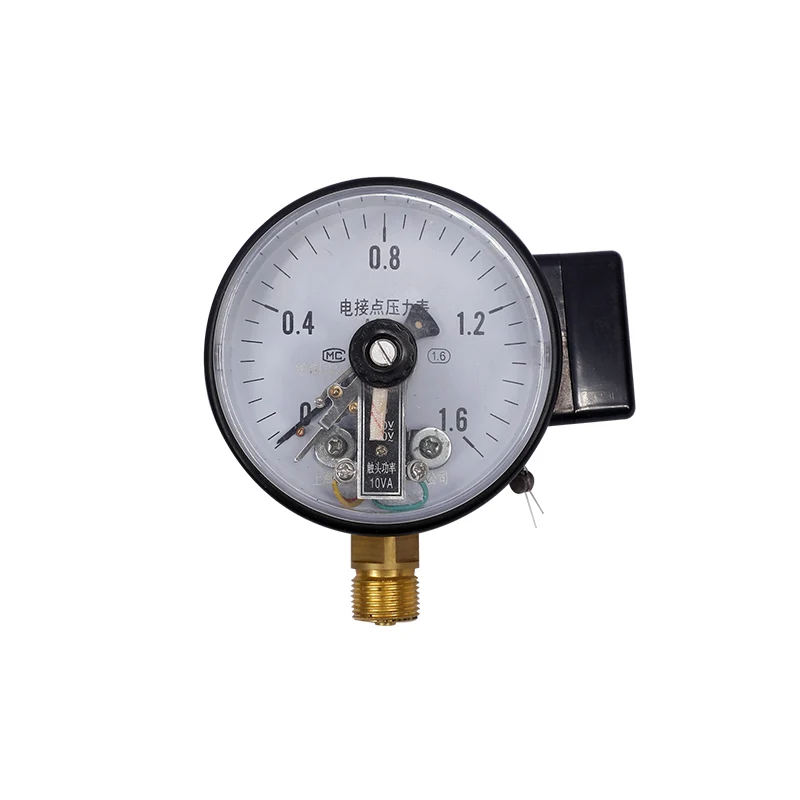

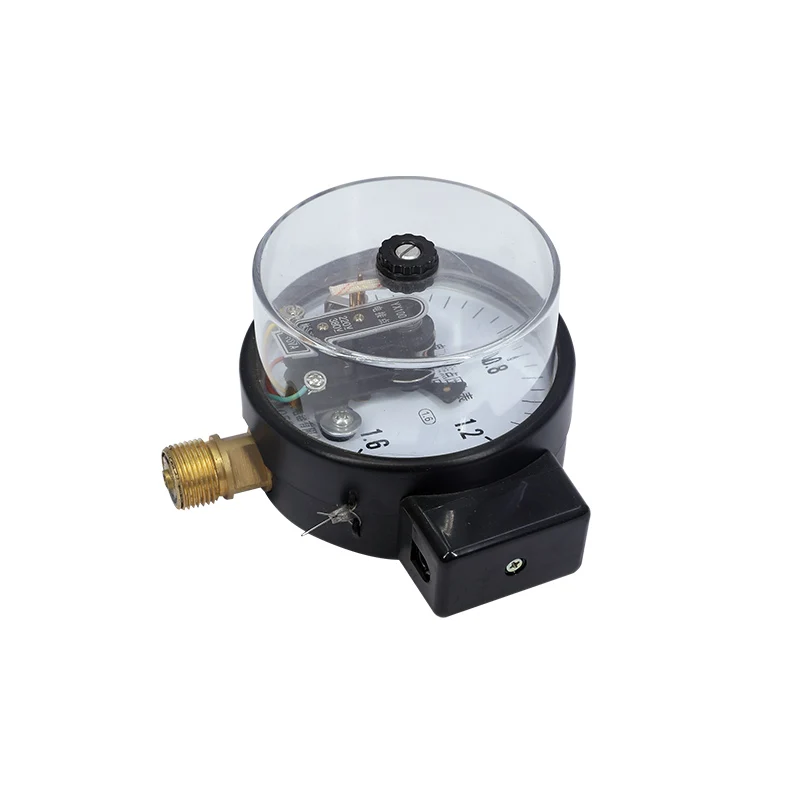

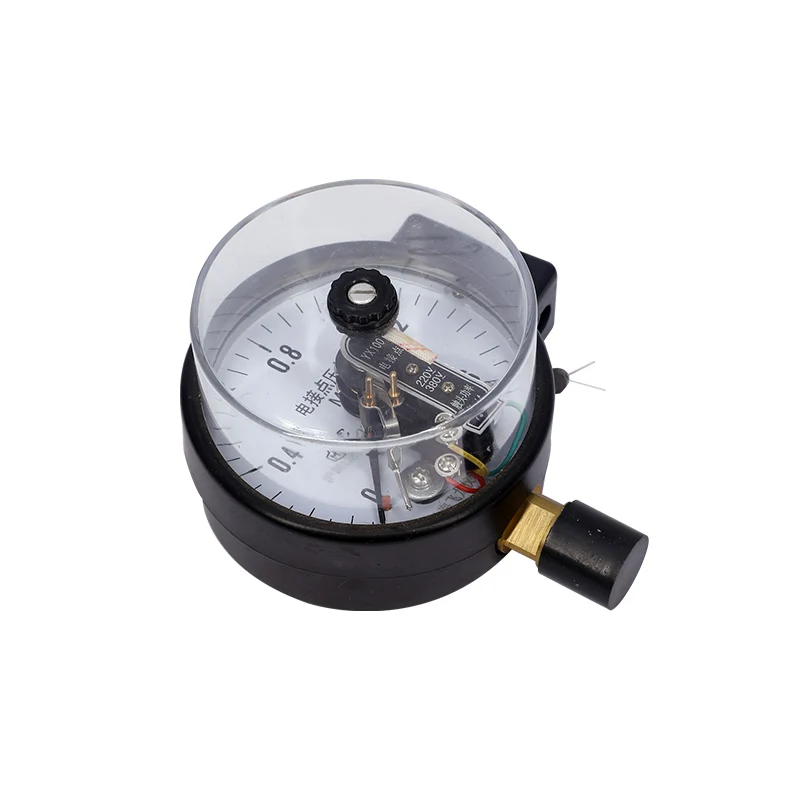

100 мм переключатель промышленного электрического устройства контактные

100 мм переключатель промышленного электрического устройства контактные

Категория: Pressure Gauges >>>
Поставщик: Taizhou,Haoqi,Electric,Co.,Ltd.

Цена:38,00 $ - 42,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	45.43 $*	47.73 $*
Aug-17-2025	45.61 $*	47.63 $*
Jul-17-2025	38.94 $*	40.14 $*
Jun-17-2025	44.61 $*	46.52 $*
May-17-2025	38.57 $*	40.40 $*
Apr-17-2025	43.82 $*	45.5 $*
Mar-17-2025	43.47 $*	45.72 $*
Feb-17-2025	43.22 $*	45.87 $*
Jan-17-2025	42.22 $*	44.87 $*

Характеристики

Product Description

The general pressure gauge is suitable for measuring the pressure of liquid, steam, gas and other media that have no explosion hazard, no crystallization, no solidification, and no corrosion to steel alloys. The pressure gauge uses the elastic deformation of the sensitive elements (Bourdon tube, bellows, bellows) in the watch, and then the pressure deformation is transmitted to the pointer by the conversion mechanism of the movement in the watch, causing the pointer to rotate to display the pressure. In the process of industrial process control and technical measurement, mechanical pressure gauges are used more and more widely because of their high mechanical strength and convenient production characteristics due to their elastic sensitive elements.

Specification

item	value
Warranty	1 years
Certification	ISO9001, CE, GB, Rohs, ASTM
Customized support	OEM
Place of Origin	China
	Jiangsu
Brand Name	Hapqi
Model Number	Wss-351
Name	Electrical contact pressure gauges
Accurary class	±1%, ±1.6%, ±2.5%
Material	Stainless steel
Connection	1/8", 1/4", 3/8", 1/2", PT, BSP, NPT, etc.
Working tempeerature	: -40°c~70°c
Connection material	Brass or stainless steel
Window	Glass or plastic
Pressure range	0-1.6MPa
Size	2.5"(63mm) 4"(100MM) 6"(150MM)
Bezel	Stainless steel /black steel /plastic(customizable)
