Редукторный двигатель 16 мм с кодировщиком точное управление для
- Категория: Speed Reducers >>>
- Поставщик: Shenzhen,Panfeng,Motor,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.23 $* | 0.26 $* |
| Aug-19-2025 | 0.67 $* | 0.87 $* |
| Jul-19-2025 | 0.87 $* | 0.33 $* |
| Jun-19-2025 | 0.85 $* | 0.94 $* |
| May-19-2025 | 0.16 $* | 0.81 $* |
| Apr-19-2025 | 0.49 $* | 0.96 $* |
| Mar-19-2025 | 0.23 $* | 0.86 $* |
| Feb-19-2025 | 0.71 $* | 0.14 $* |
| Jan-19-2025 | 0.7 $* | 0.93 $* |
Характеристики
Products Description

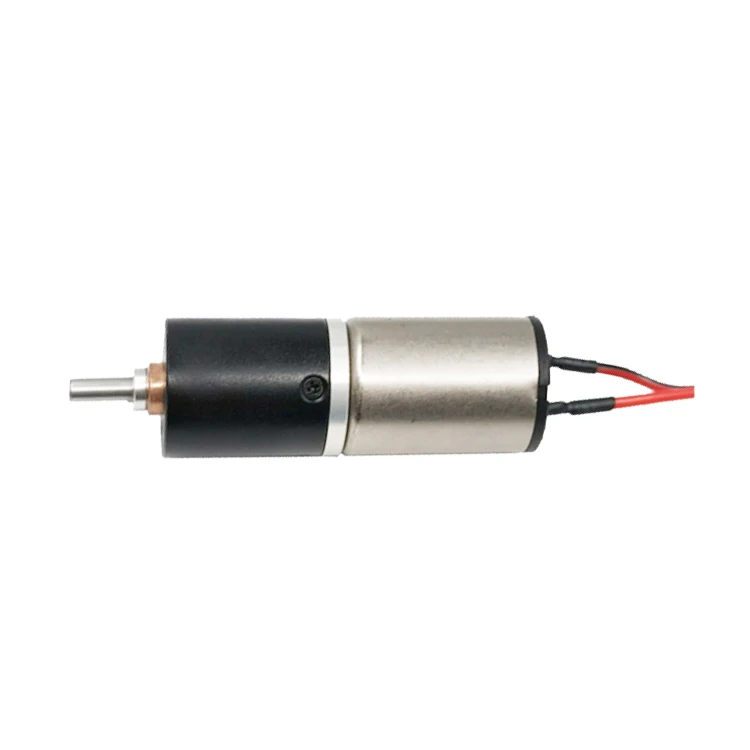

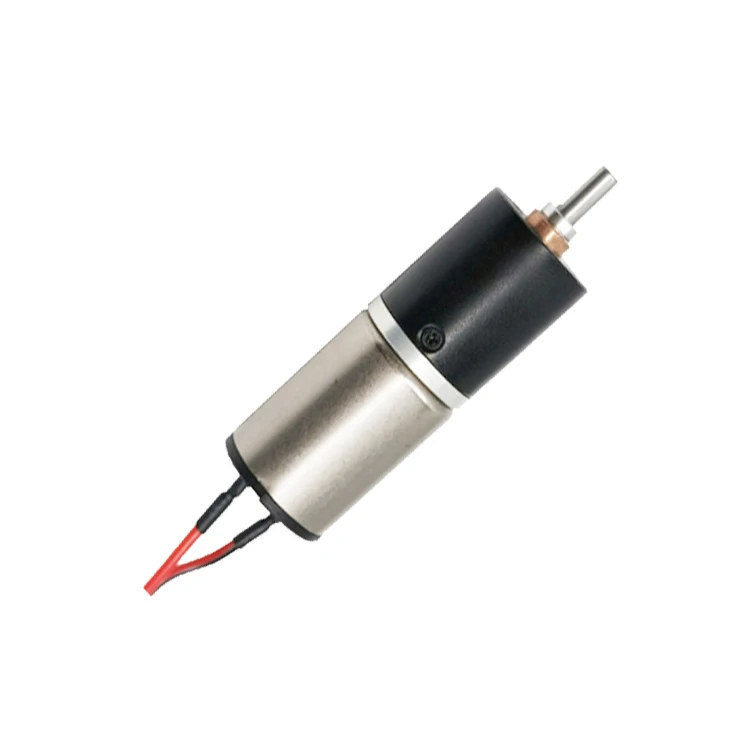

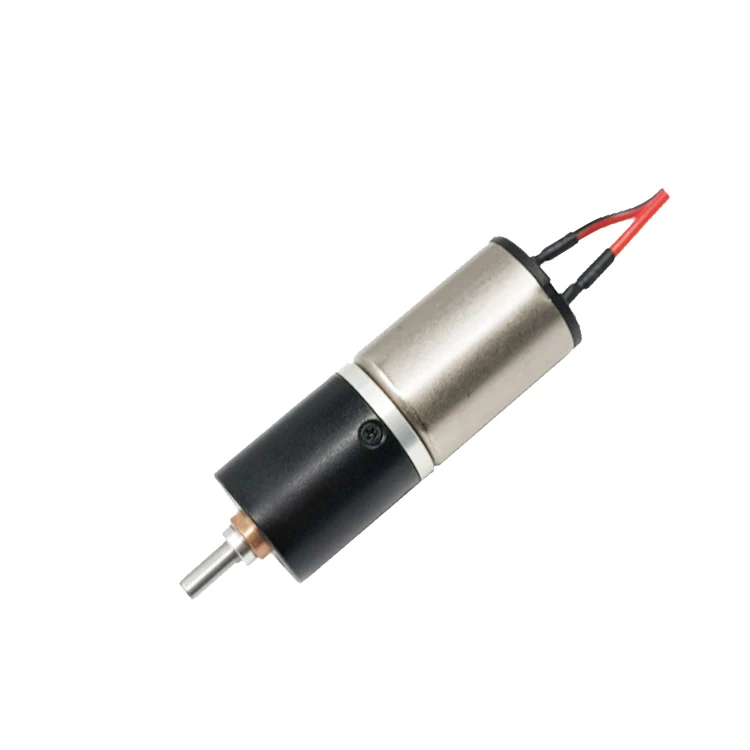

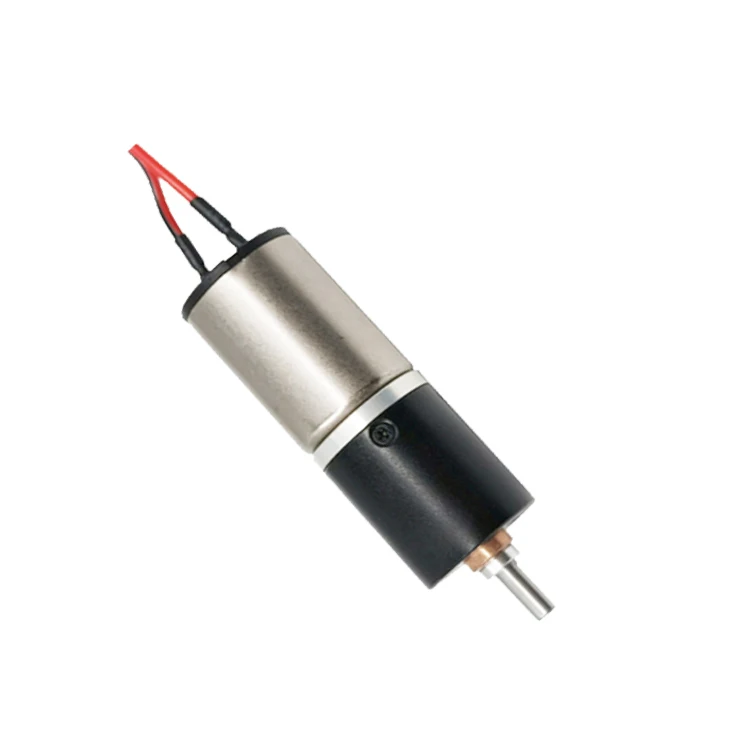

16mm gear motor with encoder accurate control for Mesotherapy
Specifications can be customized
Details Images
Technical Specifications
Gearbox Reduction Ratio | ||||||||||||||
Stage | Reduction Ratio | Nominal Torque | Max Momentary Torque | Efficiency | Length(mm) | |||||||||
1 | 3.75 | 4.67 | 5.4 | 1kg.cm | 3.5kg.cm | 94% | 12.8 | |||||||
2 | 14.06 | 17.50 | 20.25 | 2kg.cm | 4.5kg.cm | 88% | 16.5 | |||||||
21.78 | 25.2 | 29.16 | ||||||||||||
3 | 52.73 | 65.62 | 75.94 | 3kg.cm | 6.5kg.cm | 83% | 20.2 | |||||||
81.66 | 94.5 | 109.35 | ||||||||||||
101.63 | 117.6 | 136.08 | ||||||||||||
157.46 | ||||||||||||||
4 | 197.75 | 246.09 | 284.77 | 5kg.cm | 8kg.cm | 78% | 23.9 | |||||||
306.24 | 354.37 | 410.06 | ||||||||||||
381.09 | 440.99 | 510.29 | ||||||||||||
590.49 | 474.24 | 548.78 | ||||||||||||
635.02 | 734.82 | 850.31 | ||||||||||||
Gearbox Material | Plastic, Carbon Steel | Radial Load | ≤1.5kgf | |||||||||||
Backlash | ≤3° | Axial Load | ≤0.5kgf | |||||||||||
Bearing | Sleeve, Ball bearing | Shaft End Play | ≤0.03 | |||||||||||
Work Temperature Range | -10℃~+60℃ | Working Humidity Range | 10%~80% | |||||||||||
Customized specs and shaft are available. | ||||||||||||||
Company Profile
Shenzhen Panfeng Motor Co., Ltd. is specialized in designing, developing and production of miniature DC geared motor, planetary geared motor, worm geared motor, coreless and brushless motors, etc.The products are widely used in household appliances, automotive automatic facilities, robots, power tools, massage equipment,medical equipment, smart devices, financial instruments, office automation and other products, as well as other occasions where drive control is required.
Committed to developing customized DC gear motors, the company is superior to having the ability to innovate and integrate up to date technical resources. At present, the products independently researched and developed focus on gear motors from 12mm to 60mm miniature precision gear reduction motors.
Strictly product quality control Coupled with rich production experience, the product upgrades promptly, especially for
micro-small gear motors, which manifest as high torque, small backlash and low noise level. For new projects, we have a
professional team to response promptly to the various requirements of customers. The company is managed by scientifically and professionally, which is strictly accordance with the ISO9001 management system.
Collaborating with flexible and successful solutions make us a qualified and excellent supplier in international market.
Why Choose Us
Adopting ERP system to proceed the orders and strictly implement ISO9001 quality management system requirements, 100% control the quality before shipment.
Quality system
IPQC work flow
IQC work flow
Experienced engineer take part in customers application design and provide professional advice. Products widely used in verious industries including but not limited to:
Delivery
Cost-Effective transport selected to ship the goods to customers as soon as possible.
FAQ
1.Can you make customized gear motor?
Yes, we are willing to do it.
2. Can you provide gear motor datasheet before sample?
Yes, we can, we will offer a datasheet according to the requirements.
3. Can you provide samples?
Yes, sample is available
4. What is your MOQ?
Our MOQ is 1000pcs, however, we can support customer to start with small qty orders.
5. What is the payment method?
T/T, L/C, Western Union, Paypal accepted.
6. What is the lead time?
Sample lead time is around 7 days, bulk order is 25 to 30days.
7. Can we visit your factory?
Yes, warmly welcome to visit us at any time.
