Индивидуальный промышленный погружной нагреватель для воды с фланцем Электрический
- Категория: Industrial Heater >>>
- Поставщик: Suzhou,Reheatek,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 5.64 $* | 5.95 $* |
| Aug-17-2025 | 5.38 $* | 5.24 $* |
| Jul-17-2025 | 4.51 $* | 4.99 $* |
| Jun-17-2025 | 5.31 $* | 5.38 $* |
| May-17-2025 | 4.24 $* | 4.75 $* |
| Apr-17-2025 | 5.39 $* | 5.55 $* |
| Mar-17-2025 | 5.94 $* | 5.78 $* |
| Feb-17-2025 | 4.56 $* | 4.87 $* |
| Jan-17-2025 | 4.28 $* | 4.85 $* |
Характеристики

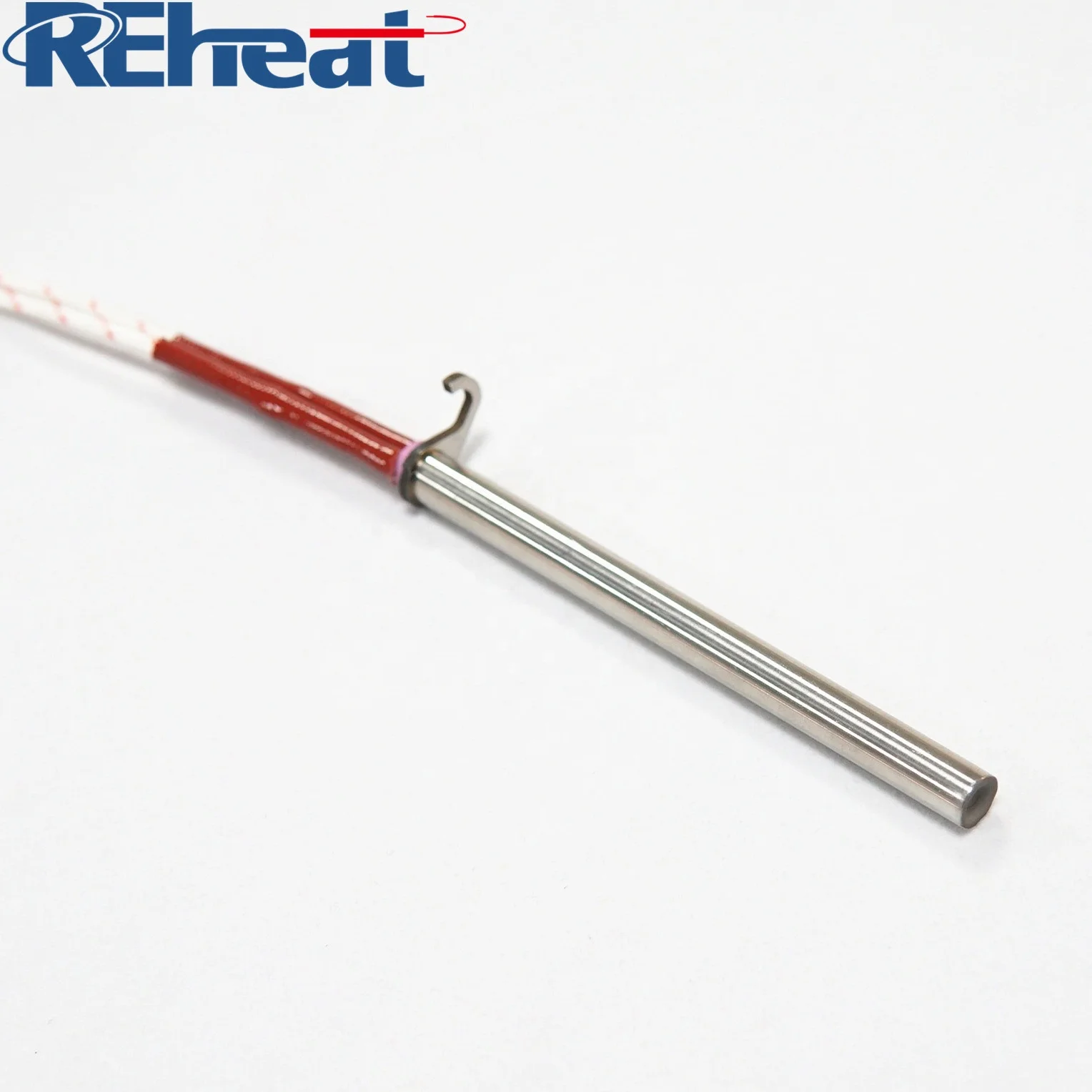

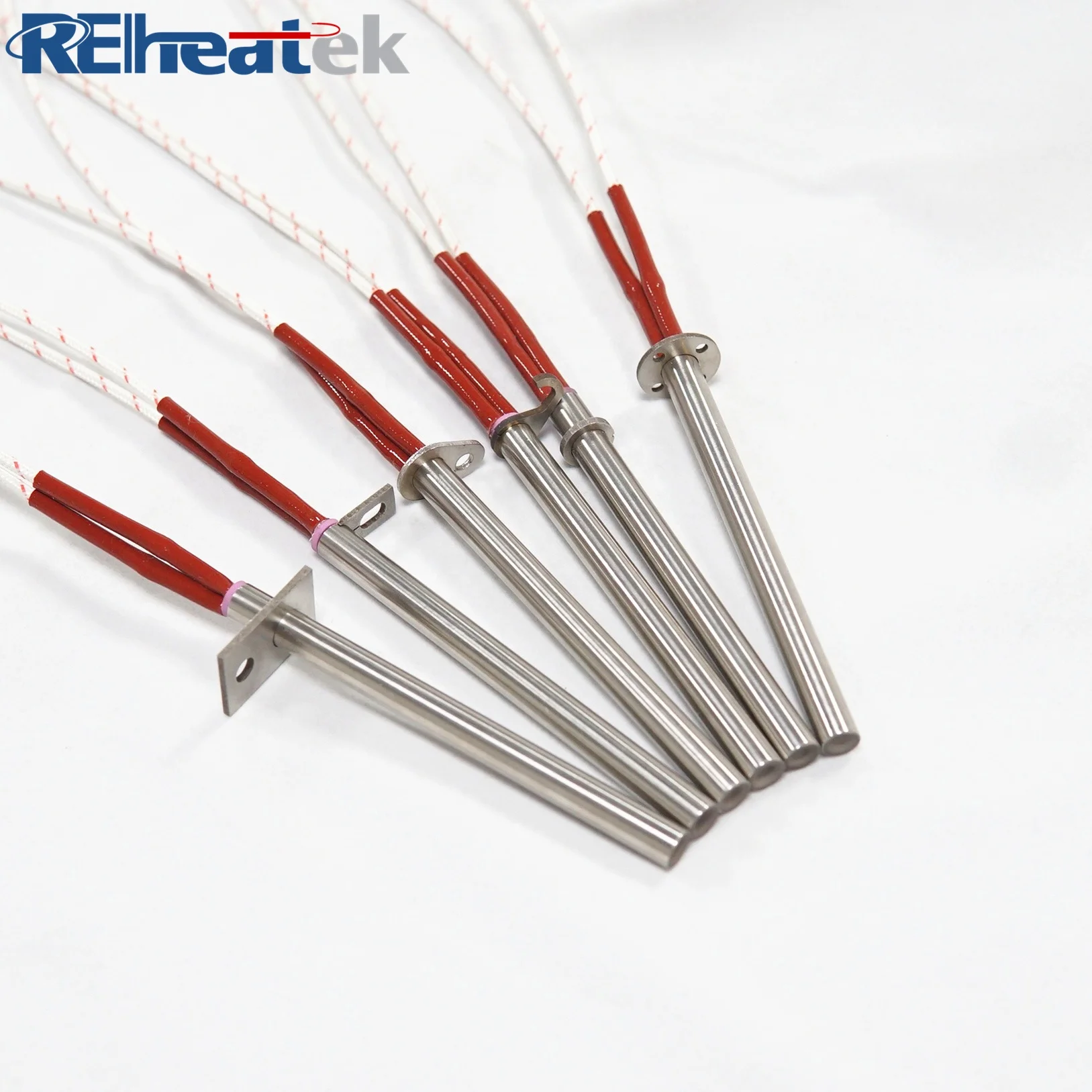

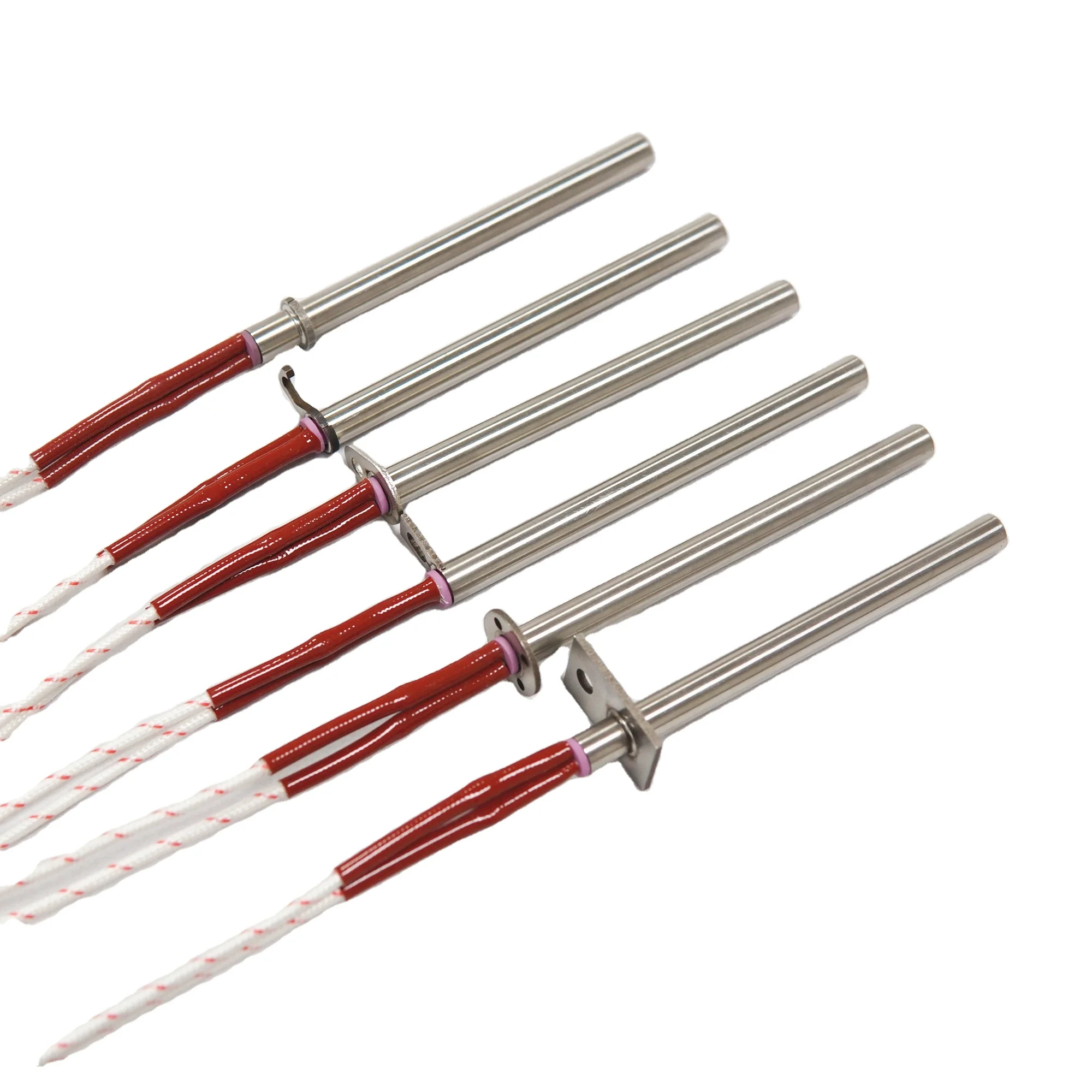

Product Display
Cartridge Heater
Flange cartridge heater is used to fix the cartridge heater to prevent from movement when use it. Fix a flange cartridge heater on the mold or metal part with screws.
It is tube-shaped heating element widely used in many industries, can be used to heat metal (moulds, platens, etc.), liquid, or air.
Typical Applications | ||||||||
>> Die, Platen Heating | >> Semi Conductor Industry | |||||||
>> Hot Melt Adhesive | >> Paper Industry | |||||||
>> Preform moulds | >> Textile Industry - heating of cutting knives | |||||||
>> Medical Equipment | >> Seal Bars | |||||||
High Standard Raw Material | ||||||||
Cartridge heater sheath | SS304/310/316L, Incoloy 800 | |||||||
Max. Sheath Temperature | 820℃ | |||||||
Heating Wire (Resistance) | Ni80Cr20 | |||||||
Insulation | High purity MgO powder | |||||||
Fiberglass (Max. Temp. 180℃) - Standard | ||||||||
Tflon (Max. Temp. 250℃) | ||||||||
High temp. fiberglass (Max. Temp.450℃) | ||||||||
Ceramic beads(Max. Temp. 800℃) | ||||||||
Silicone fiberglass - Standard | ||||||||
Stainless steel braid | ||||||||
Stainless steel hose | ||||||||
Diameter | 3-32mm | |||||||
Diameter Tolerance | -0.03 ~ -0.08mm (L ≤ 300mm) -0.05 ~ -0.1mm (L＞300mm) | |||||||
Length | 25-2500mm | |||||||
Length Tolerance | ±1.5%, min ±1mm | |||||||
Voltage | 5-480V, or other customized voltage | |||||||
Wattage Tolerance | -10%, +5% | |||||||
Insulation Resistance (cold) | ≥500MΩ | |||||||
Maxium Leakage Current (cold) | ≤0.5mA(2000V) | |||||||
Application
Cartridge heater / heating elements are widely used in many industrial applications.
Main applications of cartridge heater
- insertion in metal molds, platens:
- Stamping molds (shaping mold)
- Hot cutters
- Packaging machinery
- Injection molds
- Extrusion molds
- Rubber molds
- Melt blown molds
- Hot press molding machiner
- Paper Industry
- Semi conductor industry
- Seal Bars
How to Order
Please provide below information for quotation:
1. A Diameter
2. B Length
3. C Lead wire length (Standard is 250mm. Please advise if required longer lead wire)
4. Volt & Watt
5. Heating temperature
6. Installation (none, flange, screw), and position of accessories
3. C Lead wire length (Standard is 250mm. Please advise if required longer lead wire)
4. Volt & Watt
5. Heating temperature
6. Installation (none, flange, screw), and position of accessories
7. Ceramic end cap required or not
8. Quantity
· Sample request time | 3-7 work days according to your request | ||||||
· MOQ | 3pcs | ||||||
· Packing | PP bag with rating mark, bubble wrap, carton box | ||||||
· Delivery | Courier to door | ||||||
Cartridge heater with built in thermocouple / sensor / temperature control
Cartridge heater can be made with built-in thermocouple / sensor / temperature control to realize over heating protection.
This is widely applied to high watt density cartridge heaters.
Option: Type K/J thermocouple.

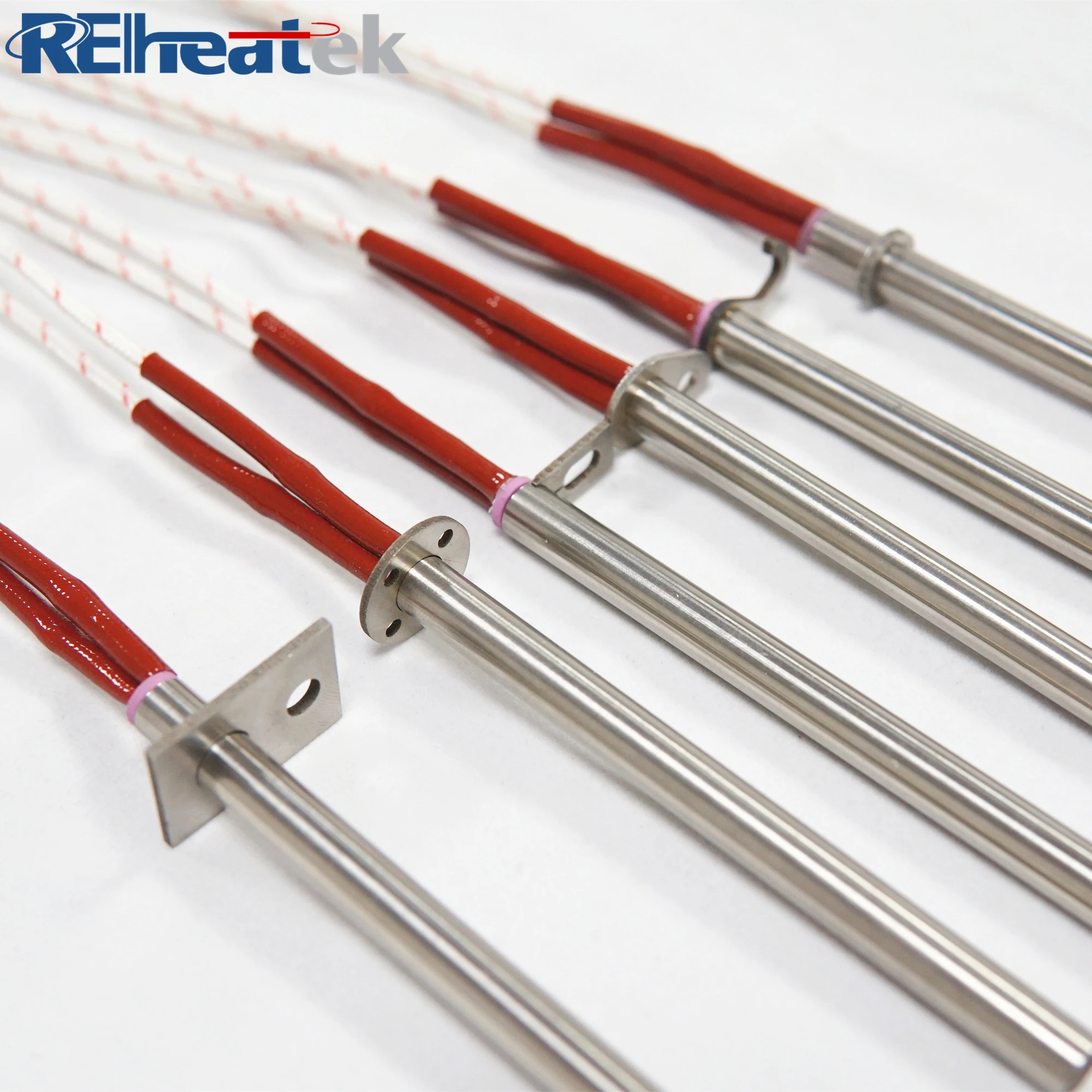

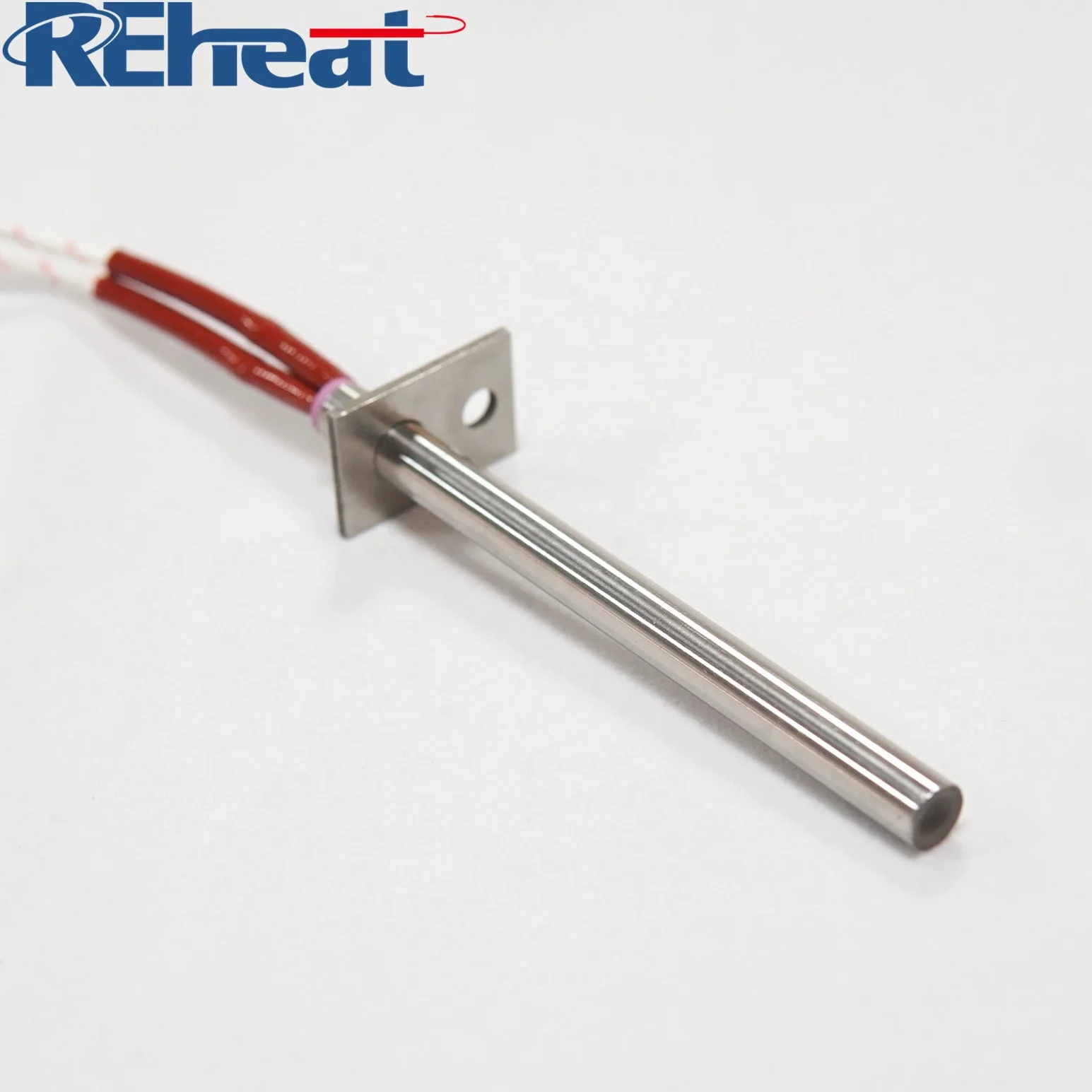

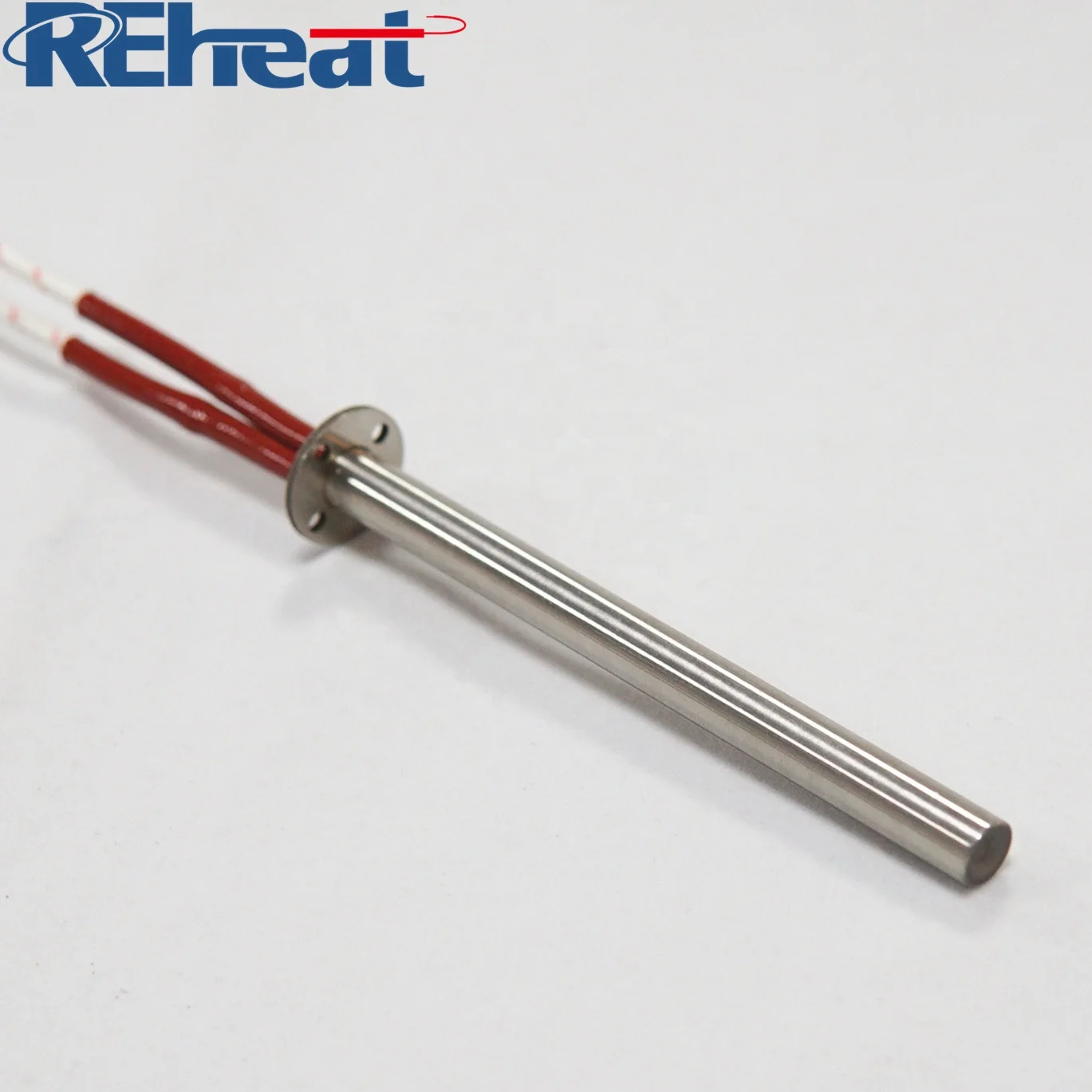

Option 1 - Welded Flange
Cartridge heaters can be welded with stainless steel flange for easier installation.
Please find below flange options.
Option 2 - Threads (screw)
Cartridge heaters can be welded with stainless steel threads.
Please find below picture to customize threaded cartridge heater.
PP bag
Bubble Wrap
Film Wrap
Custom Posibilities
Custom Options | ||||||||
Construction | External lead (standard) / Internal lead | |||||||
Seal | No seal / glue / high temp. glue | |||||||
Lead protection | Fiberglass sleeve / Stainless steel braid / hose (Armor) | |||||||
Installation | None / Flange / Thread (screw) | |||||||
Temperature control | Built in K/J type thermocouple | |||||||
Heating section | Heating section length/ Distributed wattage | |||||||
Related Products
FAQ
Q: What is the lead time for Reheatek products?
A: Samples - within 3 working days with materials in stock Mass production -usually 7-14 days (Depends on quantity and raw material situation. Please further discuss with our team. )
Q: What is the MOQ for Reheatek products?
A: Reheat products produced with common materials can be ordered at 1pc. If infrequently used materials
required, it depends on the situation of the materials.
required, it depends on the situation of the materials.
Q: Do you manufacture custom parts?
A: Yes. We have thousands of designs in our files of custom heaters and sensors designed for every imaginable application. Our Sales and Engineering teams are here to help you design a product that fits your needs.
Q: If we have heating projects, how to progress project design or select a product?
A: We have professional sales to provide pre-sale consulting services and engineering team for technical support. Any
questions about products or technical questions please communicate with our sales team and provide specific applications and requirements.
questions about products or technical questions please communicate with our sales team and provide specific applications and requirements.
