DZG-150B Прямая продажа с фабрики геотехническая буровая установка для инженерно-Jet цементного
- Категория: Earth Augers >>>
- Поставщик: Hubei,Xingda,Imp&Exp,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 176834.26 $* | 185676.84 $* |
| Aug-15-2025 | 175348.92 $* | 184115.43 $* |
| Jul-15-2025 | 147114.3 $* | 154470.23 $* |
| Jun-15-2025 | 172376.78 $* | 180995.24 $* |
| May-15-2025 | 150086.77 $* | 157590.51 $* |
| Apr-15-2025 | 169404.30 $* | 177874.71 $* |
| Mar-15-2025 | 167918.10 $* | 176314.58 $* |
| Feb-15-2025 | 166432.61 $* | 174754.92 $* |
| Jan-15-2025 | 164946.27 $* | 173193.75 $* |
Характеристики
Product Description

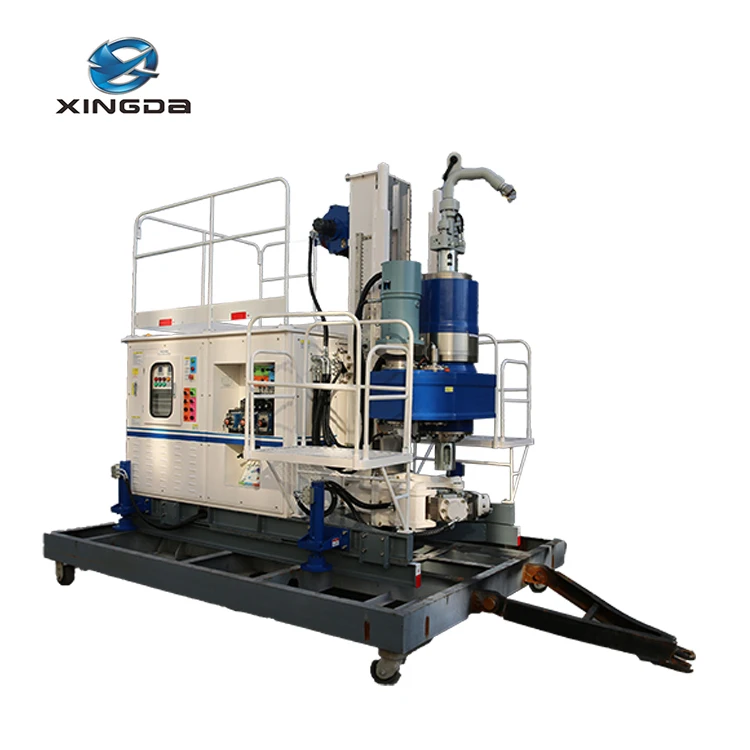

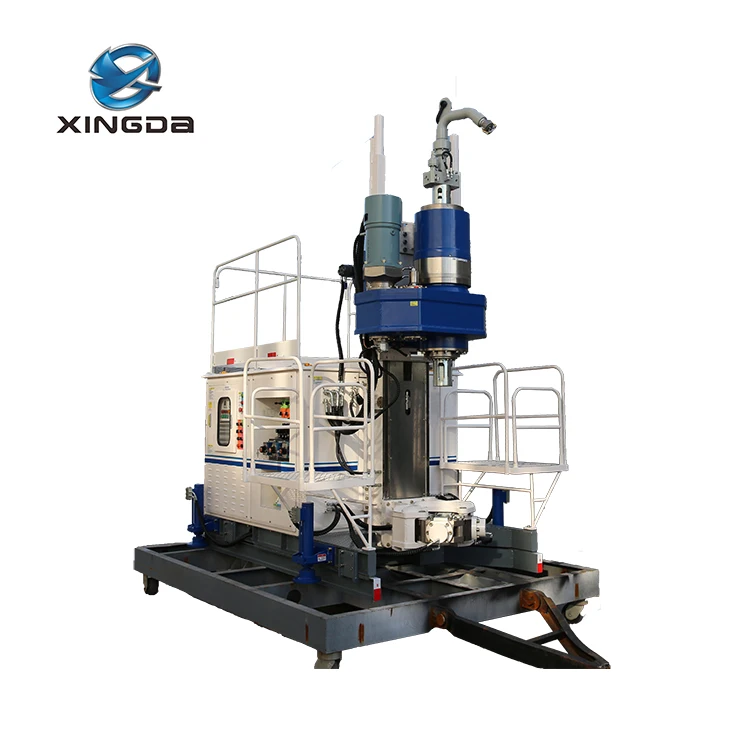

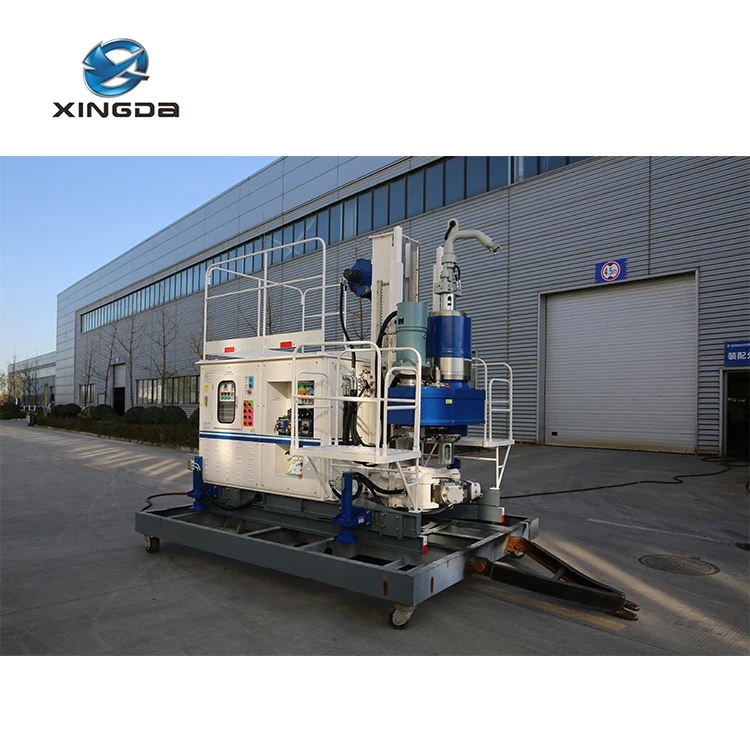

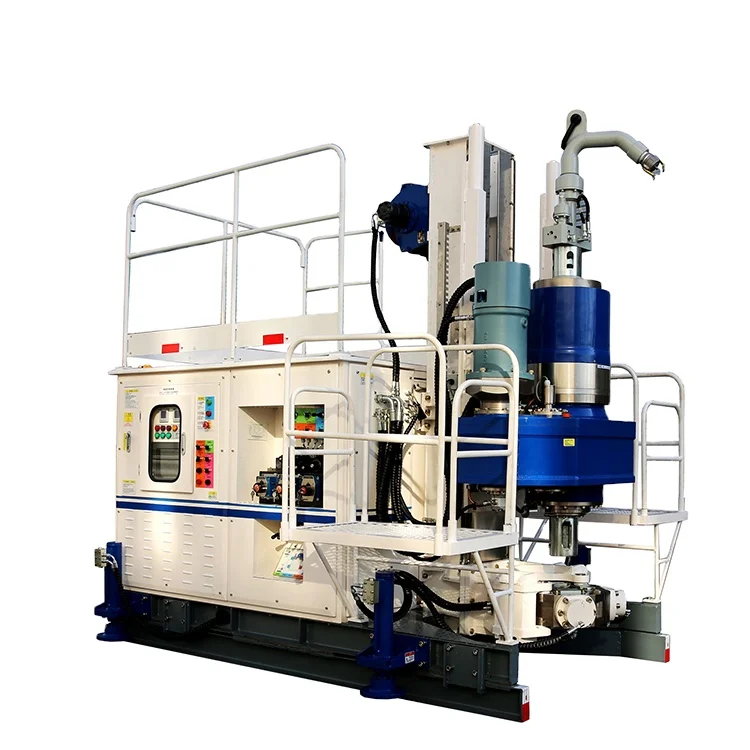

DGZ-150B All - directional multi - pipe jet grouting drilling rig
MJS multi - pipe jet grouting can be used for super - deep reinforcement, horizontal dad and inclined bottom reinforcement. The injection pressure is up to 40Mpa, the maximum pile diameter can reach 3m, and the depth can reach 50m.With a dedicated exhaust pipe, effective collection and management of mud to protect the environment.
This series of rigs are suitable for multi-pipe rotary spraying method construction with a drill pipe outer diameter of less than 142; It can display mud volume, air volume, ground pressure, slewing speed, lifting speed, lifting distance, step distance, swing spray angle, etc; Printing section: It can print the instant mud volume, accumulated mud volume, instant grouting pressure, lifting speed, pressure in the bottom of the hole, air pressure, air flow, cutting hole water pressure and cutting hole water flow.
In order to prevent the drill pipe from falling into the hole, it is equipped with upper and lower clamping device. When carrying out the inverted drill pipe, it is ensured that at least one of the upper and lower clamping devices can tighten the drill pipe, and when the upper and lower clamping device are combined with each other, it must be ensured that when one of the two clamping devices tightened the drill pipe, the other clamping device or chuck can be opened; Optional wireless transmission mode, monitoring and equipment control on the rig. The wireless transmission range for a radius of 200 meters to 300 meters stable.
MJS multi - pipe jet grouting can be used for super - deep reinforcement, horizontal dad and inclined bottom reinforcement. The injection pressure is up to 40Mpa, the maximum pile diameter can reach 3m, and the depth can reach 50m.With a dedicated exhaust pipe, effective collection and management of mud to protect the environment.
This series of rigs are suitable for multi-pipe rotary spraying method construction with a drill pipe outer diameter of less than 142; It can display mud volume, air volume, ground pressure, slewing speed, lifting speed, lifting distance, step distance, swing spray angle, etc; Printing section: It can print the instant mud volume, accumulated mud volume, instant grouting pressure, lifting speed, pressure in the bottom of the hole, air pressure, air flow, cutting hole water pressure and cutting hole water flow.
In order to prevent the drill pipe from falling into the hole, it is equipped with upper and lower clamping device. When carrying out the inverted drill pipe, it is ensured that at least one of the upper and lower clamping devices can tighten the drill pipe, and when the upper and lower clamping device are combined with each other, it must be ensured that when one of the two clamping devices tightened the drill pipe, the other clamping device or chuck can be opened; Optional wireless transmission mode, monitoring and equipment control on the rig. The wireless transmission range for a radius of 200 meters to 300 meters stable.
Model | DGZ-150B | ||||
Spindle bore | mm | 150 | |||
High speed | 0~4.8 | ||||
Low speed | 0~2.4 | ||||
High speed | 7.05 | ||||
Low speed | 14.1 | ||||
Spindle torque | mm | 1000 | |||
up | 0~4 | ||||
down | 0~8 | ||||
Drilling tower slip stroke | mm | 300 | |||
up | 100 | ||||
down | 50 | ||||
Motor Power | kW | 45+11 | |||
Walking speed | Km/h | 2 | |||
Shipping Dimension | mm | 2750×2010×2800（Without vice tower） | |||
Working dimension | mm | 2750×2010×2800（Without vice tower） | |||
Weight | kg | 6150 | |||
MOQ | Set | 1 | |||
Price | usd | 148600 | |||
Company Profile
Hubei Xingda Imp&Exp Trading Co.,Ltd is a professional manufacturer and trader, specialized in the research and development, sales and service of the industry of engineering drilling,geological exploration,jet grouting drilling, water well drilling field. It has formed three main production system including machine manufacture, drilling construction and management service.
Our factory covers more than 23, 000 square meters. Equipped with more than 20 years professional manufacturing experience and professional production team as well as more than 400 excellent skillful workers, more than 50 experienced engineers. The geological drilling rig(full hydraulic core drilling rig and vertical spindle core drill rig), multifunction engineering drilling rig(top drive engineering drill rig), tunnel rotary jet grouting drilling rig and tunnel core drilling rig, jet grouting drilling rig, dth water well drilling rig and grouting pumps and jet grouting drilling tools, like MJS, RJP grouting are our leading production. The series of all products has gained the provincial appraisal and achieved the advanced level in China and abroad. The drilling tools are our traditional well-known production for its particular manufacturing technics and reliable quality. Our productions have been sold in domestic and abroad, with general recognition and best customer satisfaction.
We have received the ISO9001-2008 quality management system certification. We also obtain the "Province Level Honoring Contracts& Keeping Promise Enterprise " certification. "Faith, all for customers, providing the first-class production and service " is our eternal target.
Our factory covers more than 23, 000 square meters. Equipped with more than 20 years professional manufacturing experience and professional production team as well as more than 400 excellent skillful workers, more than 50 experienced engineers. The geological drilling rig(full hydraulic core drilling rig and vertical spindle core drill rig), multifunction engineering drilling rig(top drive engineering drill rig), tunnel rotary jet grouting drilling rig and tunnel core drilling rig, jet grouting drilling rig, dth water well drilling rig and grouting pumps and jet grouting drilling tools, like MJS, RJP grouting are our leading production. The series of all products has gained the provincial appraisal and achieved the advanced level in China and abroad. The drilling tools are our traditional well-known production for its particular manufacturing technics and reliable quality. Our productions have been sold in domestic and abroad, with general recognition and best customer satisfaction.
We have received the ISO9001-2008 quality management system certification. We also obtain the "Province Level Honoring Contracts& Keeping Promise Enterprise " certification. "Faith, all for customers, providing the first-class production and service " is our eternal target.
Sample Room
Production Process
Exhibition
Certifications
Packing & Delivery
FAQ
1. Are you a manufacturer, trading company or a third party?
We are a manufacturer and a trading company , our factory have more than 20 years experiences, our trading company have 6 years experiences.
2. What`s your terms of payment?
TT, 30-50% in deposit, the balance will be paid before delivery,we will send you photos of the products and packages before you pay the balance.
3. what`s your terms of delivery?
FOB,CIF,CFR
4. What about delivery time ?
Generally ,it ill take 7days after receiving your advance payment,the specific delivery time depends on the items and the quantity of your order.
5. What is your minimum order quantity?
Our minimum quantity for drillng machine is 1 set.
6. Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
7.What is the warranty of our machine ?
Our main machine enjoys a 1 year warranty, but not include any vulnerable parts on it. We could offer vulnerable parts at any time when you need.
8,Could you stick customers brand on the products?
We warmly welcome the OEM orders.
We are a manufacturer and a trading company , our factory have more than 20 years experiences, our trading company have 6 years experiences.
2. What`s your terms of payment?
TT, 30-50% in deposit, the balance will be paid before delivery,we will send you photos of the products and packages before you pay the balance.
3. what`s your terms of delivery?
FOB,CIF,CFR
4. What about delivery time ?
Generally ,it ill take 7days after receiving your advance payment,the specific delivery time depends on the items and the quantity of your order.
5. What is your minimum order quantity?
Our minimum quantity for drillng machine is 1 set.
6. Is your price competitive?
A: Only good quality product we supply. Surely we will give you best factory price based on superior product and service.
7.What is the warranty of our machine ?
Our main machine enjoys a 1 year warranty, but not include any vulnerable parts on it. We could offer vulnerable parts at any time when you need.
8,Could you stick customers brand on the products?
We warmly welcome the OEM orders.
