Характеристики
Product Description
High Quality 100L Chemical Jacketed Glass Reactor with Recirculating Chiller and Heater

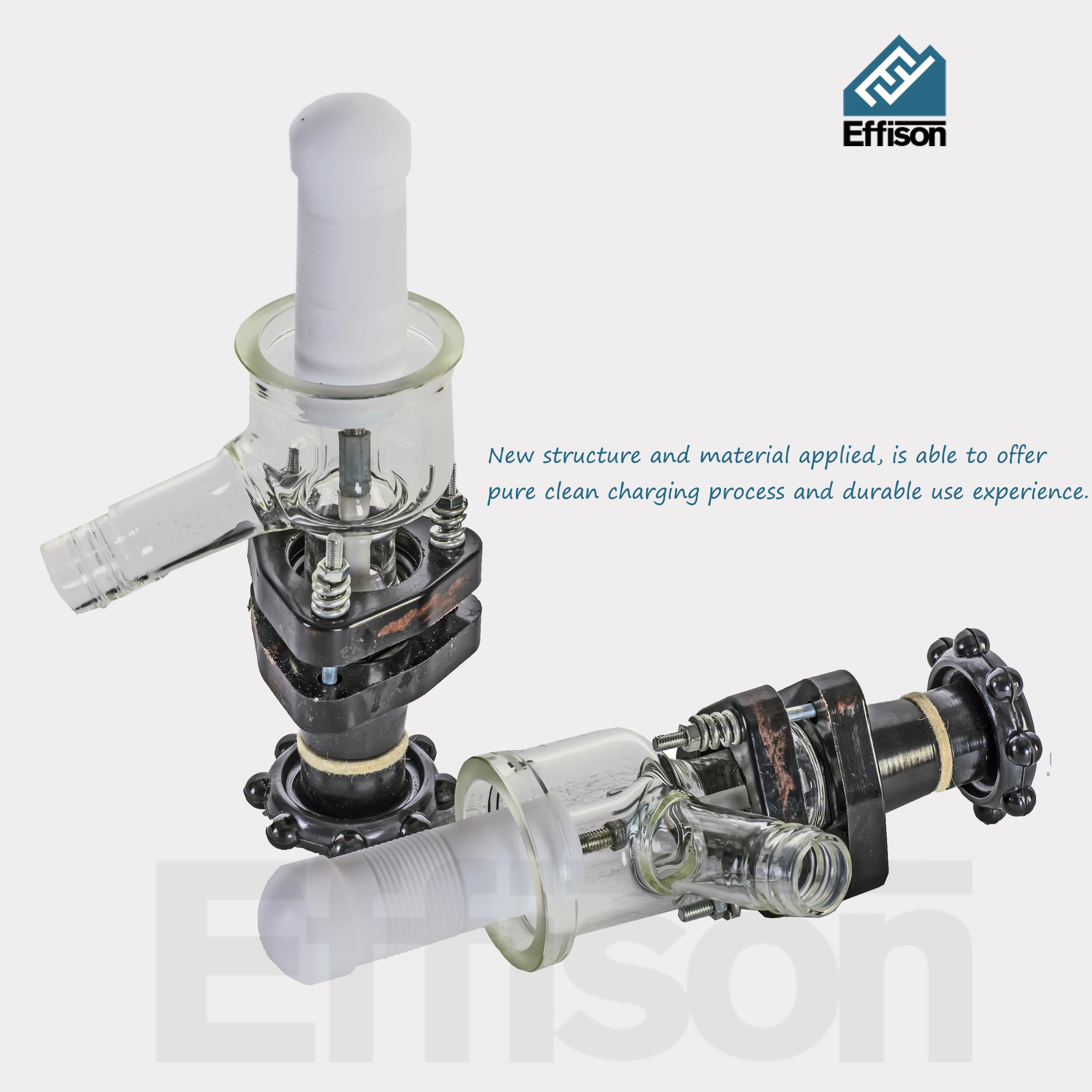

Effison S212-series jacketed glass reactor is designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.
Features of 100l chemical jacketed glass reactor:
1. Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
2. All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
3. Adjustable stirring rate provides great torque or high speed.
4. Patented PTFE stirring rod bearing for reliable and quiet operation.
5. Wide range of temperature operations, from -110°F to 400°F.
6. Large condenser cooling surface for exceptional condensation performance.

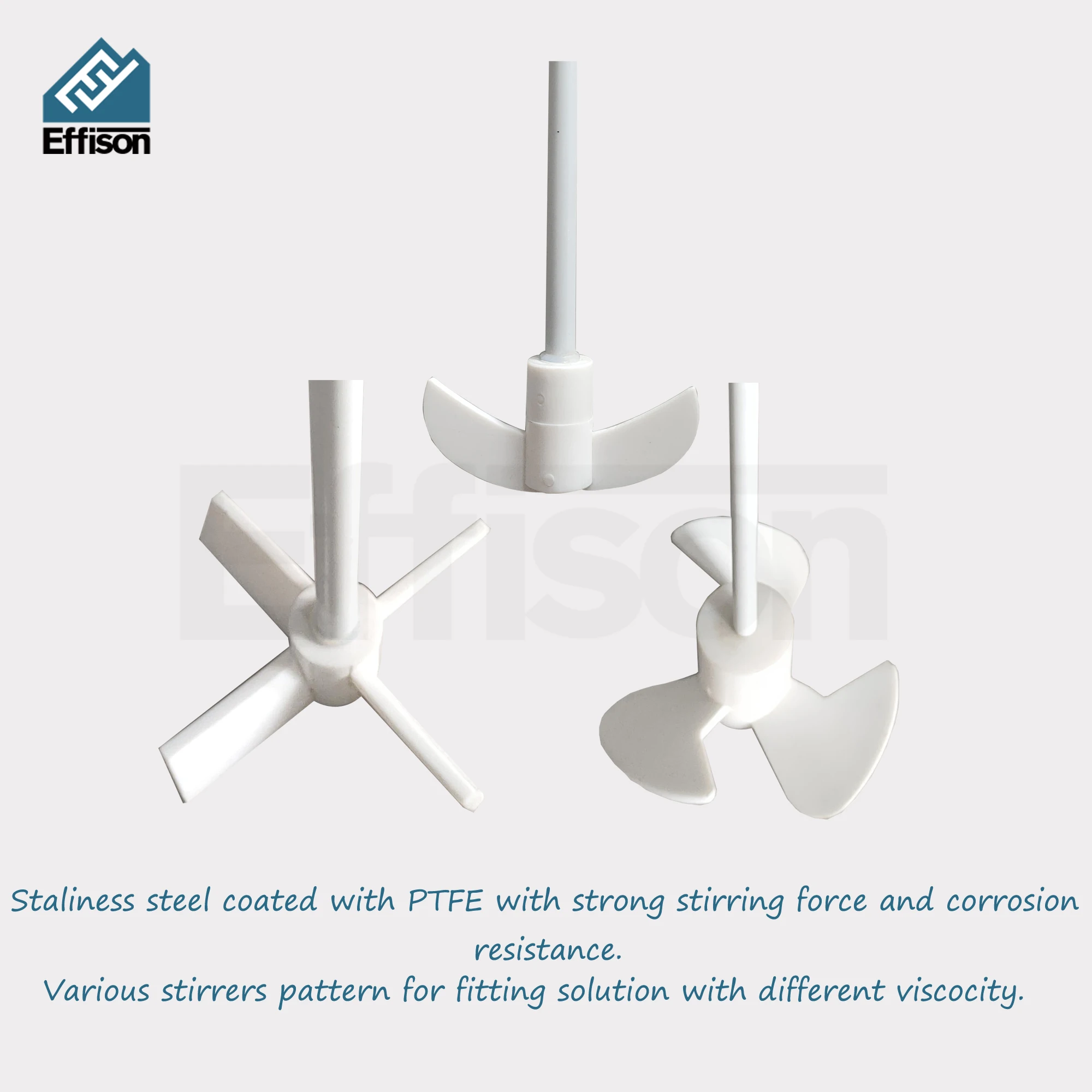

7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
8. Easily visual operation with digital speed and temperature displays.
Specifications of 50l chemical jacketed glass reactor:
| Model | S212-10L | S212-20L | S212-30L | S212-50L | S212-100L | S212-150L | S212-200L |
| Vessel Capacity | 10L | 20L | 30L | 50L | 100L | 150L | 200L |
| Jacketed Volume | 3L | 6L | 10L | 16L | 30L | 35L | 40L |
| Glass Material | GG-17 High borosilicate glass 3.3 | ||||||

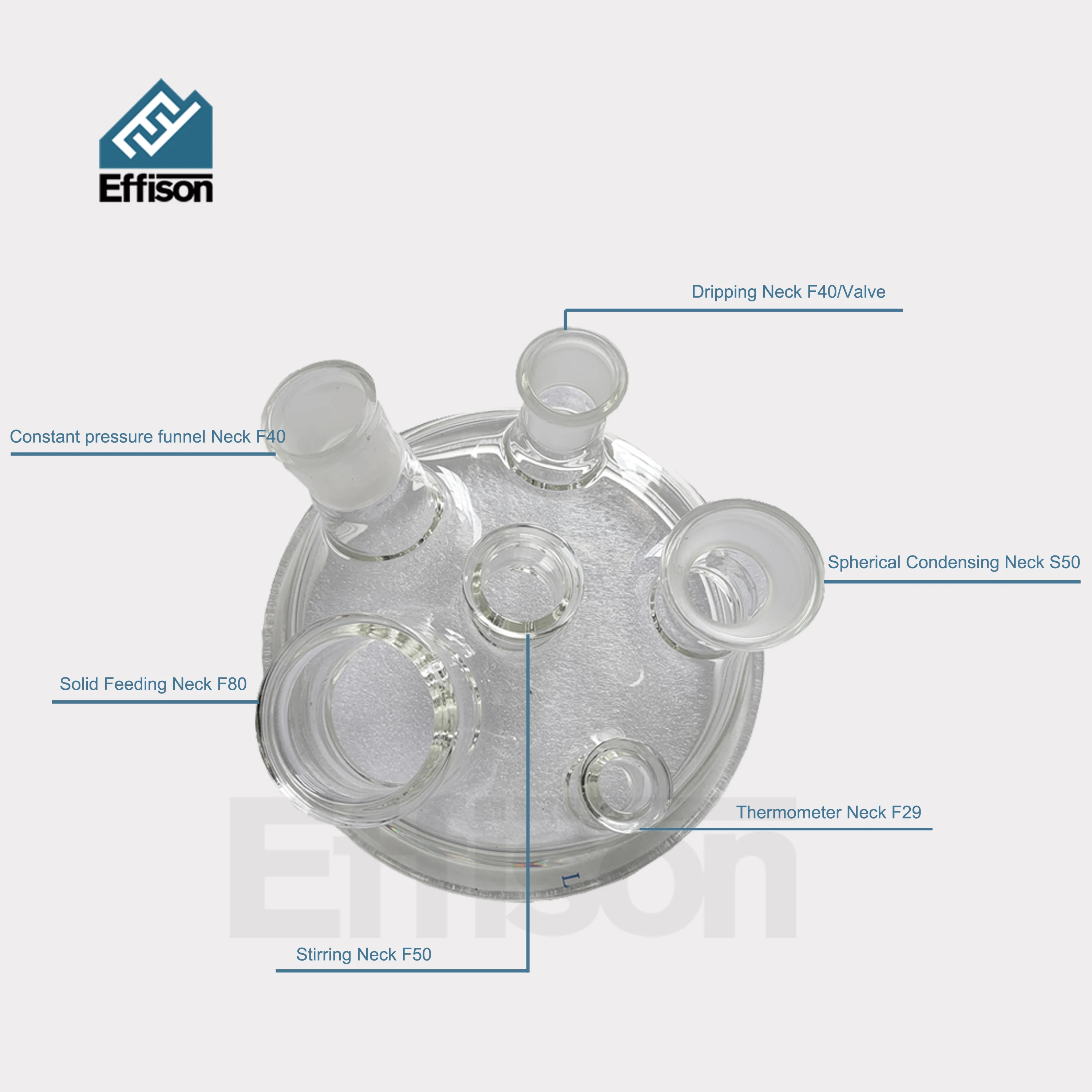

| Port nos. on Cap | 6 | ||||||
| Motor Power | 90W | 90W | 90W | 120W | 180W | 400W | 750W |
| Rotation Speed | 0~680rpm, Adjustable | ||||||
| Sealing | PTFE+quick-release connection | ||||||
| Discharge | PTFE botoom discharge valve | ||||||
| Voltage | Single phase,220V 50Hz, Single phase, 110V, 60Hz | ||||||
| Optional | Ex-proof motor, collection flask, vacuum gauge | ||||||
| Other | Customized reactor is available | ||||||
Detailed Images
