NUP 207 Cylindrical Roller Bearing

design and features

Design for high radial loads and shock loads while maintaining high-speed rotation characteristics.



Components  are separable and interchangeable, which is convenient for installation, disassembly and inspection.



The followings are several common designs of cylindrical roller bearings.The difference  is reflected in the flange design of the inner ring and the outer ring, as well as the structure and material of the cage.



NU Design Bearings have a outer ring with two integral flanges and an inner ring with no flanges,so they can accommodate axial displacement of the shaft relative to the housing in both directions . Axial fixation can be achieved with the angle ring.





N Design Bearings have an inner ring with two integral flanges and a outer ring without flanges,so they can accommodate axial displacement of the shaft relative to the housing in both directions.





NJ Design Bearings have a outer ring with two flanges and an inner ring with one flange, so they are used to axially locate the shaft in one direction. Axial fixation in the other direction can be achieved with an angle ring.

NUP Design Bearings have two integral flanges on the outer ring and one integral flange and a loose flange ring on the inner ring so they are used to locate the shaft axially in both directions.

details and service

designations:	NUP 207 ECP ECJ ECM ECML ECPH ECPHA
inside :	35 mm
outside :	72 mm
width :	17 mm
product Mass :	≈ 0.31 kg
ring material :	GCR15/ Chrome Steel
roller material :	GCR15/ Chrome Steel
cage material :	Fibreglass(plastic) or Stamped Steel or Brass
sealed:	Open
number of row:	Single Row
precision rating:	P0 P6 P5 P4 P2
application industries:	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy & Mining etc.
price list:	Negotiate
service:	OEM or Customer Logo Acceptable and Sample Offer
package:	As Customer Required
more service:	plz Contact Us ! The contact address is at the bottom.

images

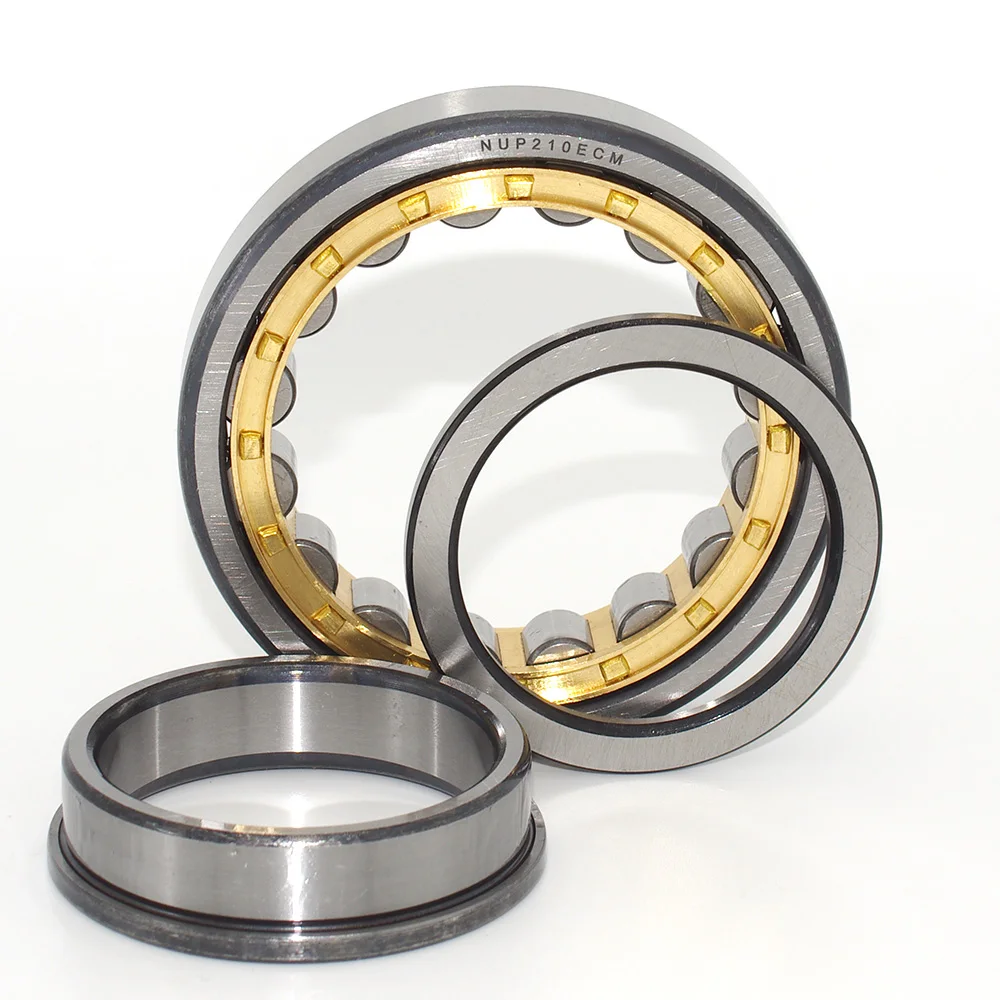

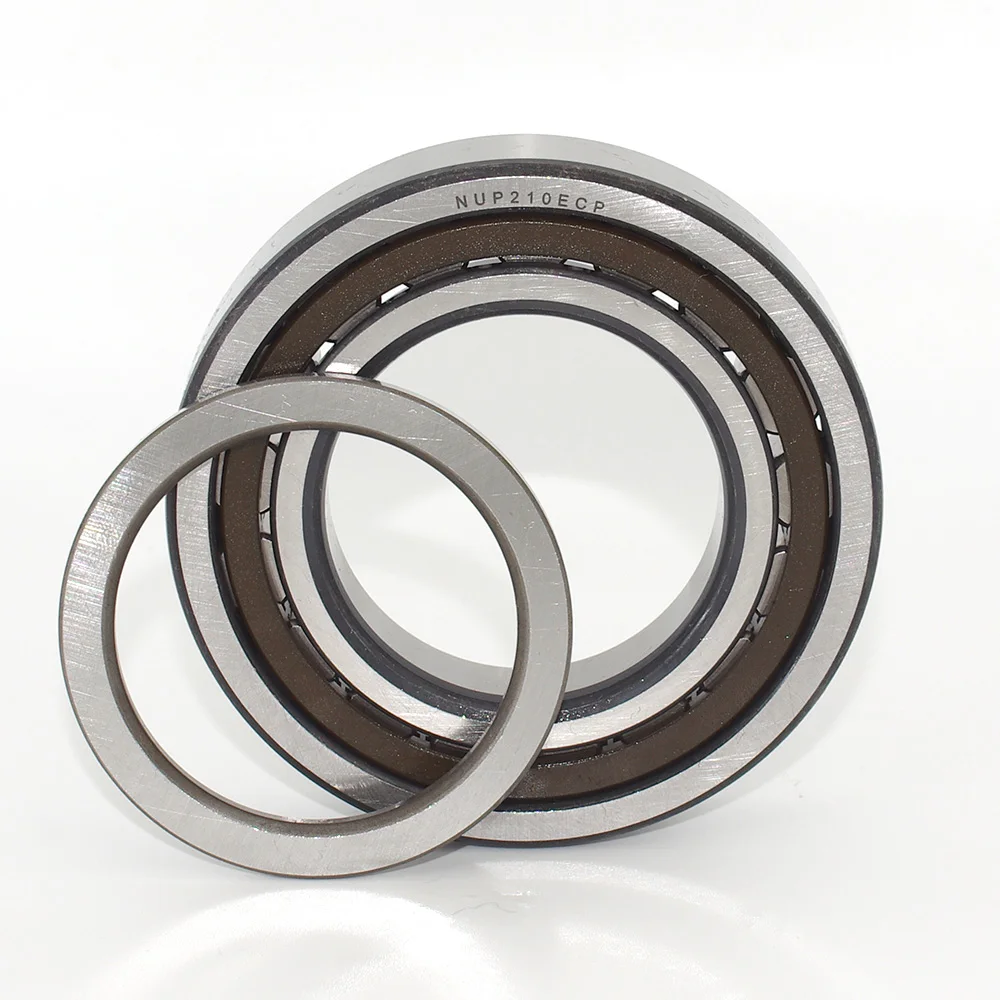

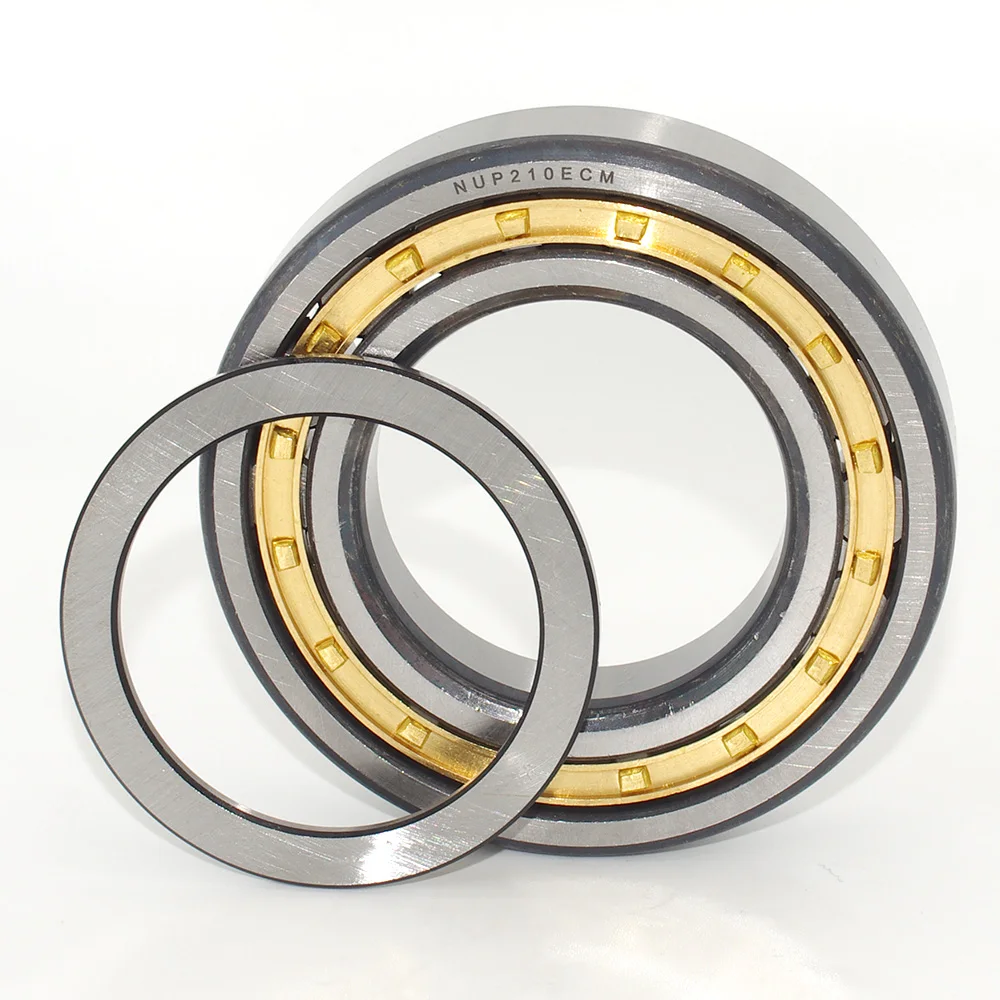

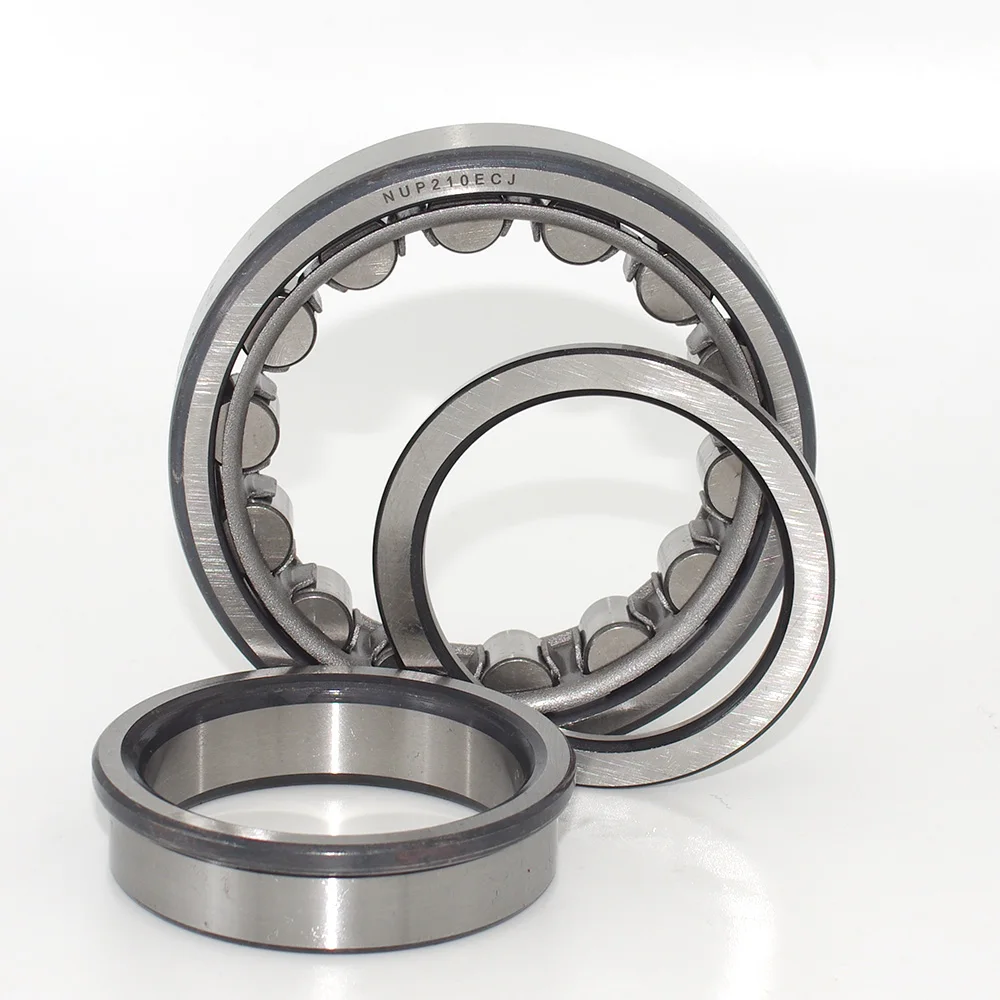

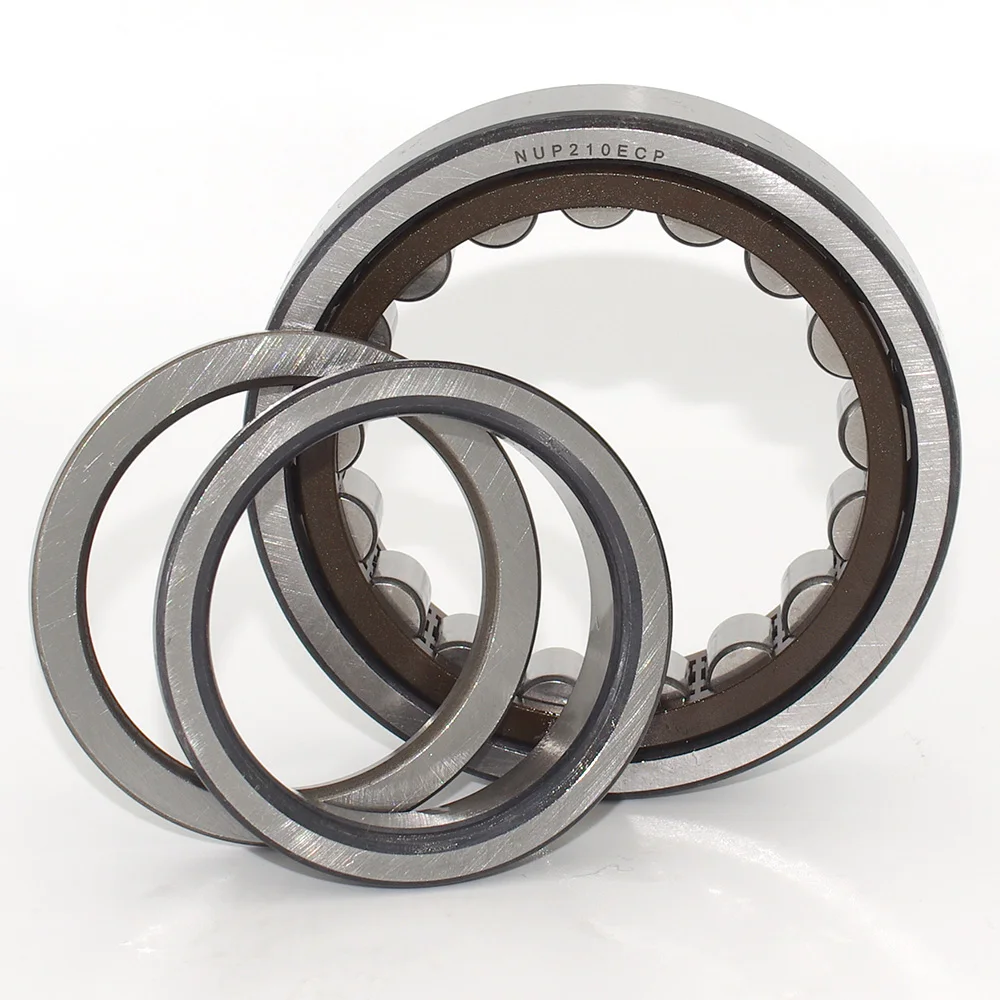

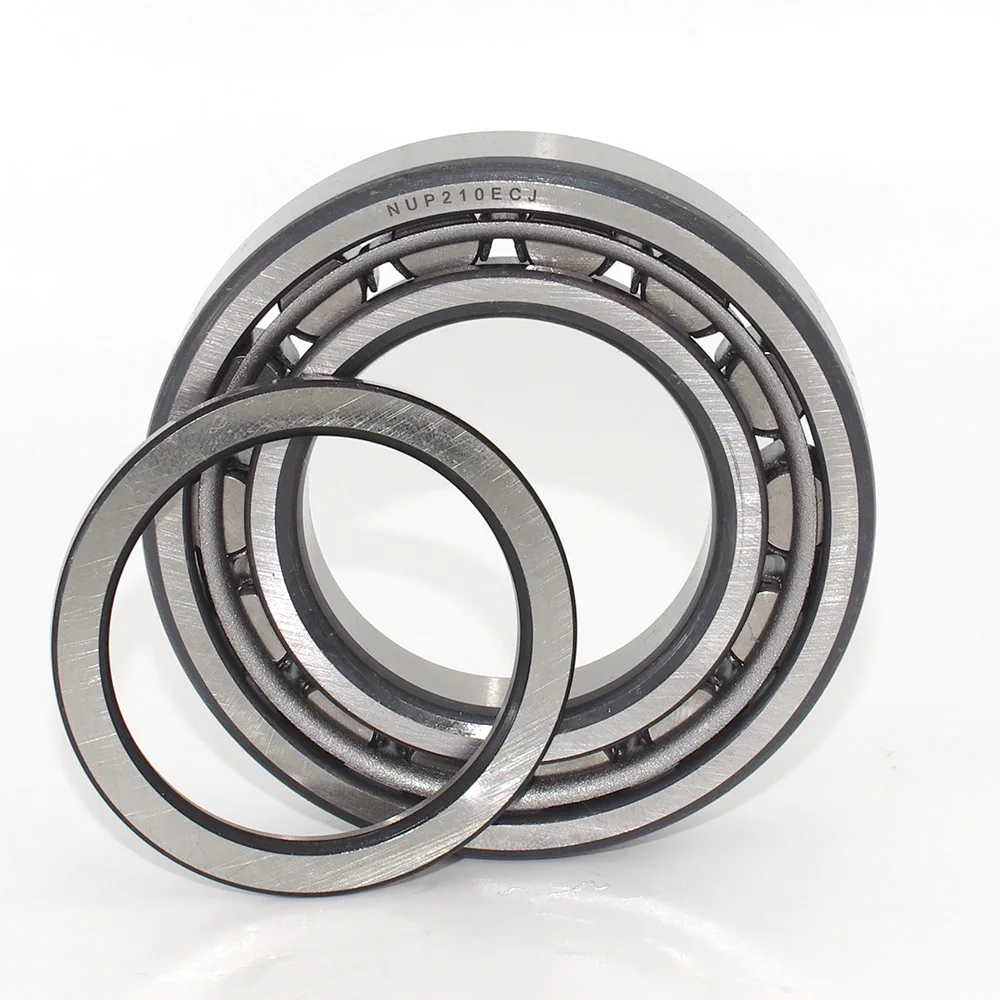

cylindrical roller bearnings

     Hi,firend ! if you do not find the products you need in this form, plz be free to contact us! Our company can customize



various designs of cylindrical roller bearings.





Q1: Are you trading company or manufacturer?
A1: We are manufacturer.

Q2: Do you provide free samples?
A2: Yes, We provide samples.

Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.

Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.

Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.

Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
