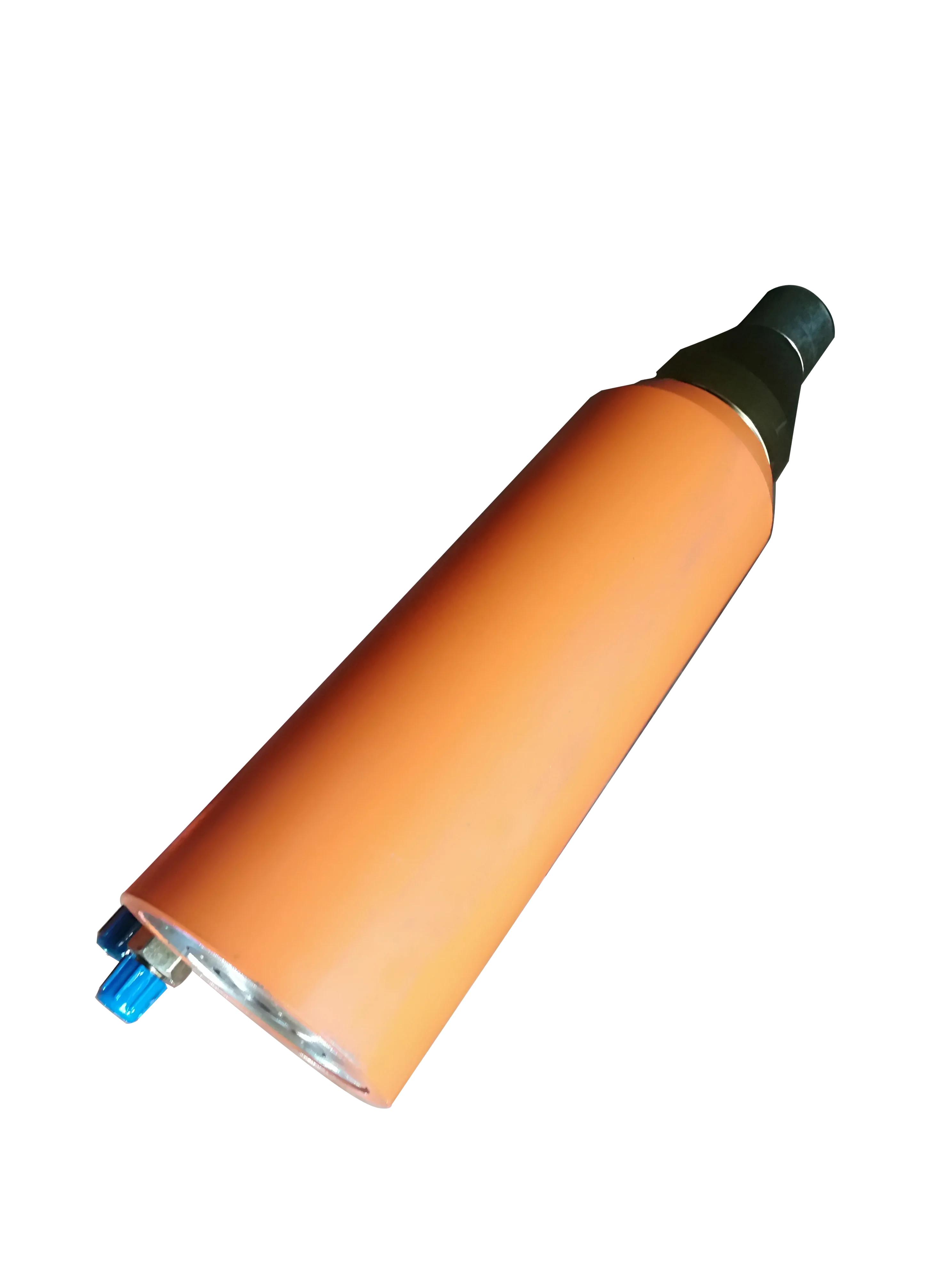

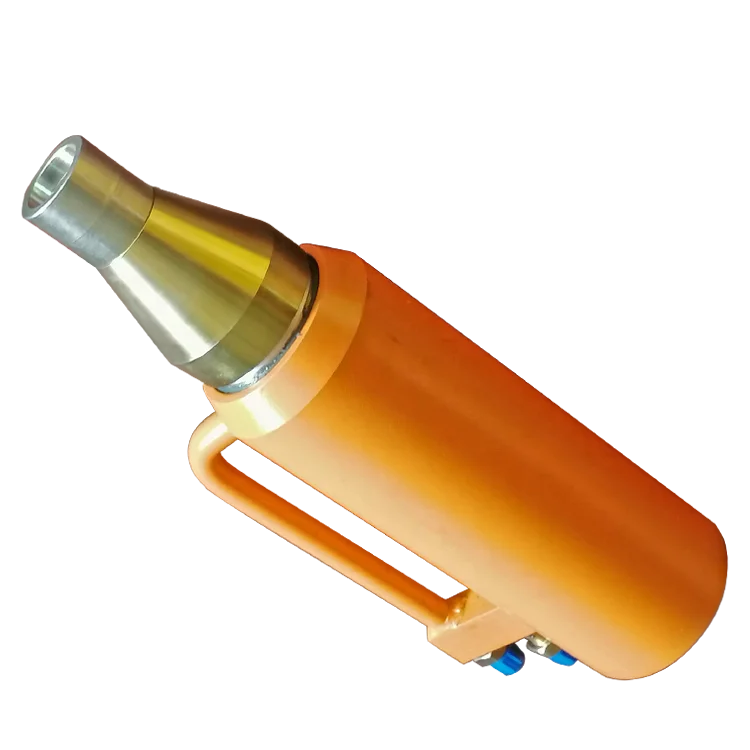

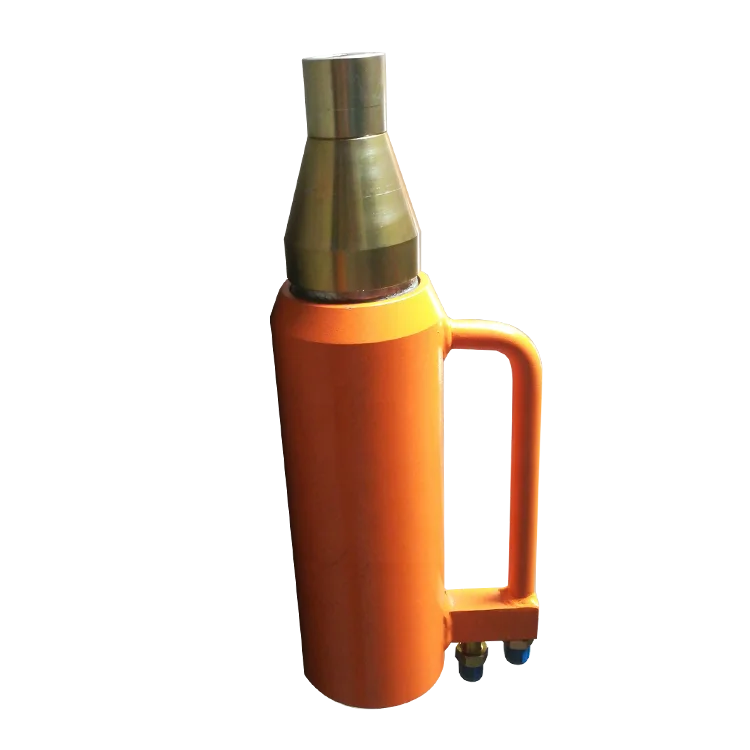

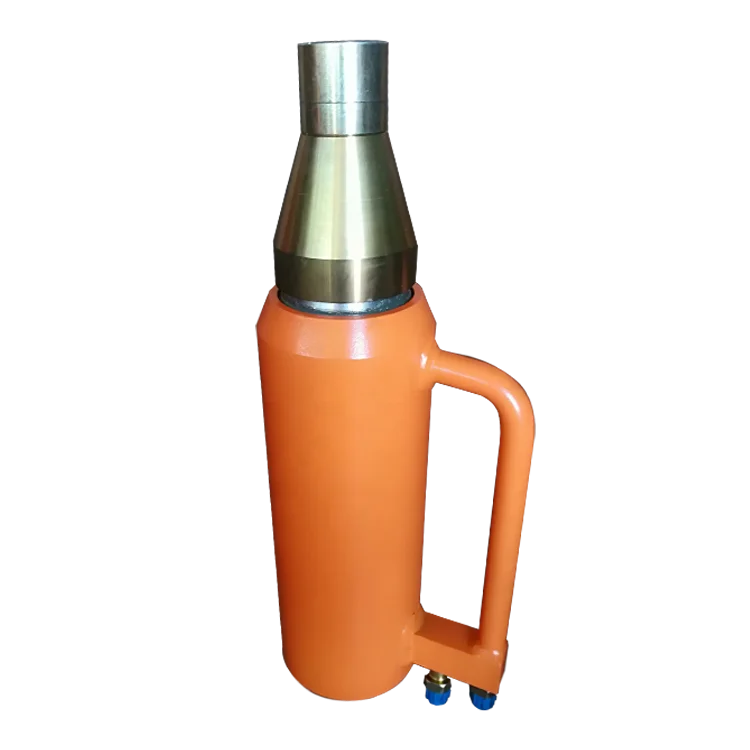

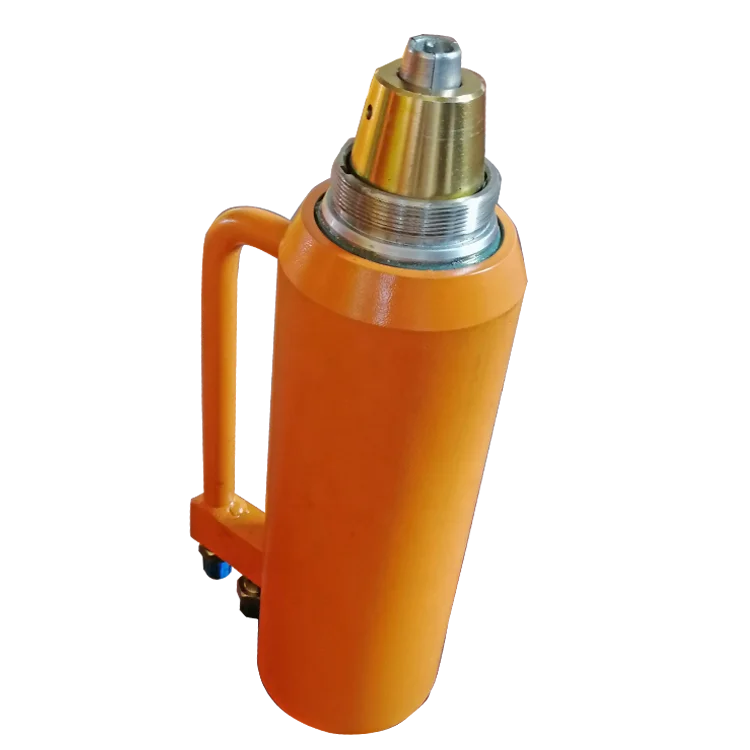

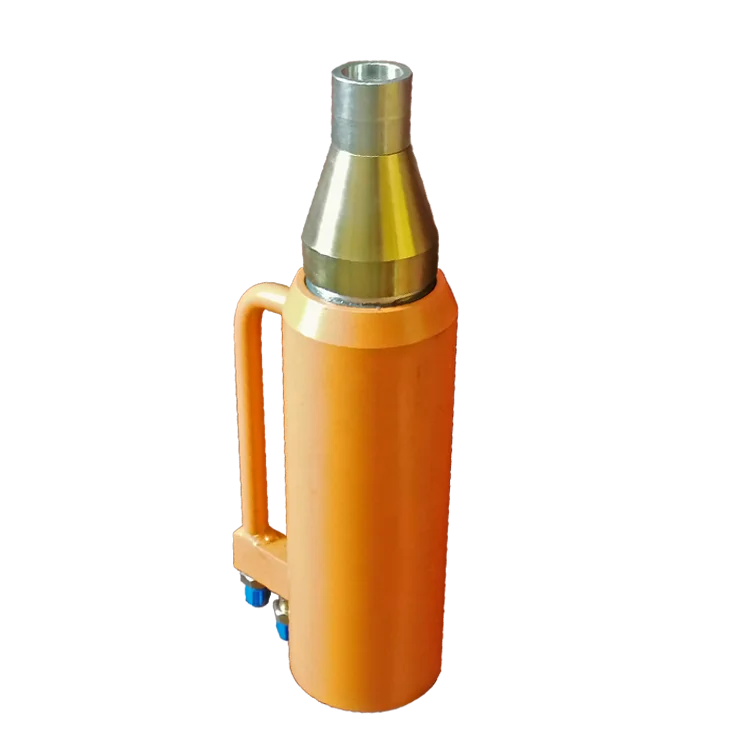

Hydraulic Front Anchoring Jack PC Strand Stressing Hydraulic Jack
Product Description
Usage & Technical Performance
Bridge construction small mono 25 tons bottle hydraulic jack price is a multipurpose prestressed tensioning device, easy to operate. Mainly used for single hole tension. also used for,porous preloaded , tensioning and troubleshooting,and cable tensioner can be applied to a variety of sizes of high strength steel wire and steel strand.
Mono hydraulic jacks: especially for high-altitude operations, easy to carry.Steel stranded wire reserve length is 200 mm can be tensioned , can save prestressed tendon material.
Mono jack Description:One set cable jack will complete with 2pcs construction jackoil pipe;stressing device,retracting device,1 set jack wedge,and hydraulic jack machine seal rings.
Product parameter
No. | Product number | YDC250QX-200 |
1 | Nominal Tension Force | 252KN |
2 | Nominal Oil Pressure | 53 MPa |
3 | Tension Piston Area | 4.77×10-3 |
4 | Return piston Area | 1.335×10-3 |
5 | Cross-core Aperture | Φ19 mm |
6 | Stroke For Tension | 200mm |
7 | Overall Size | Φ114×474ΦA×L mm |
8 | Weight | 21.5 KG |
Packaging & Shipping
Packing Methods:
1.According To Customer's Requirement.
2.Plywood wooden cases.
3.Safe and reliable
Company Information
Our company is a high-tech enterprise which is concerned with the design, research, development and production of prestressing force products, established in 2011. With the mature marketing, after-sale service and scientific research systems, our aim is to push forward the development of the presetressing force industry in China.
