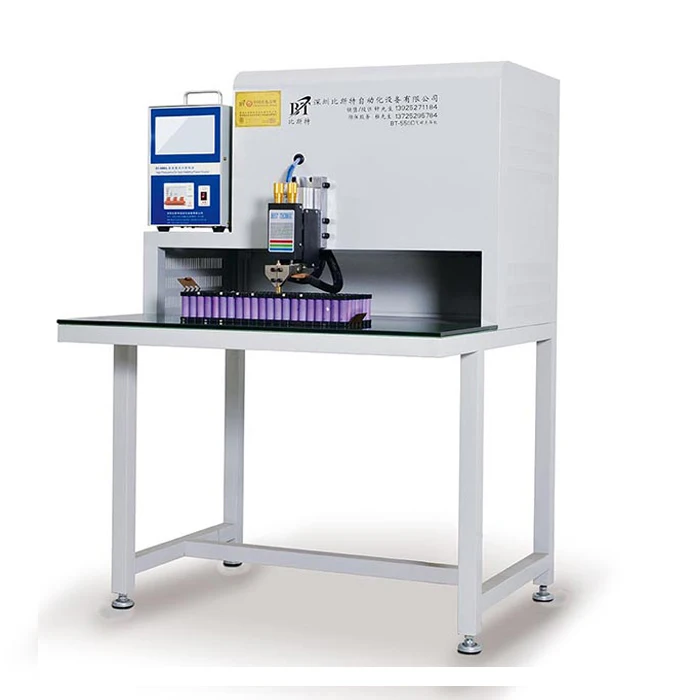

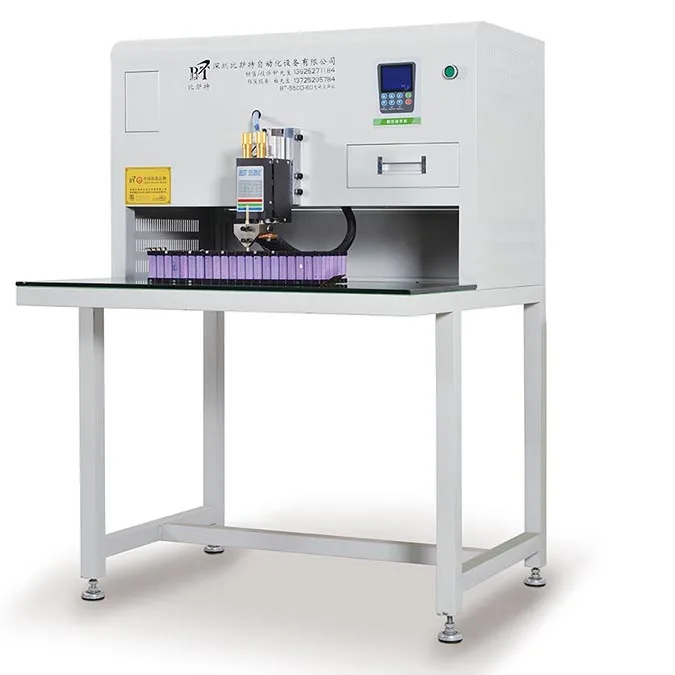

BT-550D-5000A пневматический батареи точечной сварки накопленной энергией для литий-ионного
- Категория: >>>
- Поставщик: Shenzhen,Best,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.98 $* | 0.89 $* |
| Aug-20-2025 | 0.17 $* | 0.48 $* |
| Jul-20-2025 | 0.54 $* | 0.45 $* |
| Jun-20-2025 | 0.67 $* | 0.83 $* |
| May-20-2025 | 0.75 $* | 0.1 $* |
| Apr-20-2025 | 0.57 $* | 0.97 $* |
| Mar-20-2025 | 0.55 $* | 0.81 $* |
| Feb-20-2025 | 0.69 $* | 0.29 $* |
| Jan-20-2025 | 0.89 $* | 0.69 $* |
Характеристики
Product Description
Features:
1. Beautiful appearance and light weight.
2. The welding spot is beautiful, the spark is small, no blackening, and the welding current is stable, and the welding spot size is uniform.
3. It completely overcomes the phenomenon of low voltage and water leakage after spot welding of lithium batteries. It is the ideal equipment for you to produce assembled batteries.
4. Because the machine is controlled by microcomputer single chip, it can realize single pulse, double pulse and multi-pulse welding.
5. Microcomputerization of various parameters, using LCD liquid crystal display, key surface adjustment, accurate, intuitive and convenient.
6. BT-550D-5000A has the characteristics of accurate alignment, suitable for welding of small cap batteries, and high pass rate.
7. The pressure of the two welding pins is adjusted independently, and the adjustment is convenient to ensure the welding pressure is stable and reliable.
Power supply | AC 220V ± 10% 50Hz ± 5% Hz 2KW |
Air source | 0.4-0.8Mpa without water and impurities |
Spot welding power | BT-5000A DC spot welding power |
Maximum output power | 5000A |
Welding pin | 1.7*100mm |
Nickel sheet thickness | 0.1-0.2mm |
Working way | Pneumatic |
| welding range | 40-140 Adjustable |
| Display interface | LCD dispaly |
| Parameter setting panel | PVC button surface mold |
| pre welding current | 800-2000A |
| welding time | 1-10ms |
| welding current | 1000-3000A |
Weight | 58KG |
Dimensions | 900L × 900W × 1280H (unitmm) |
