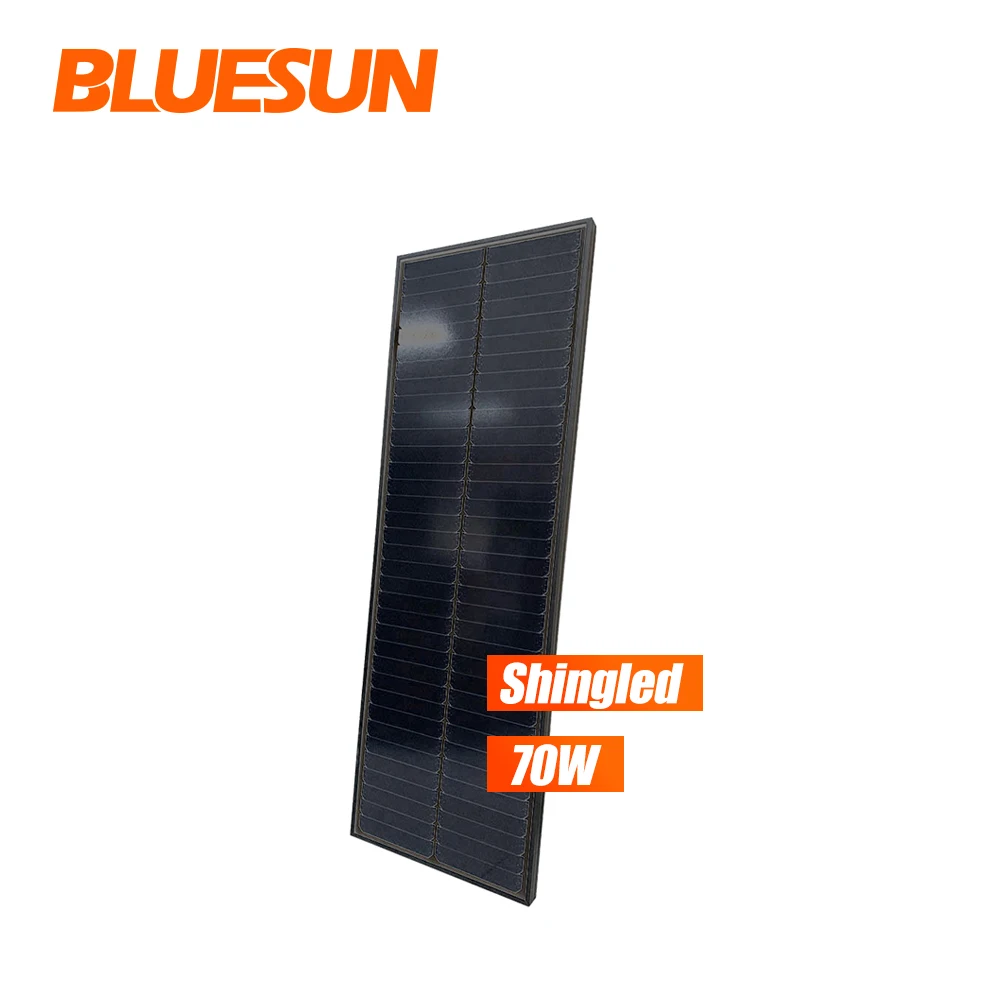

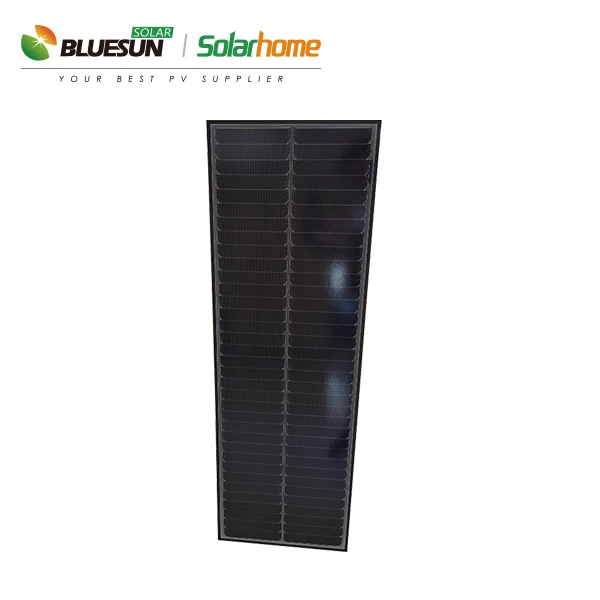

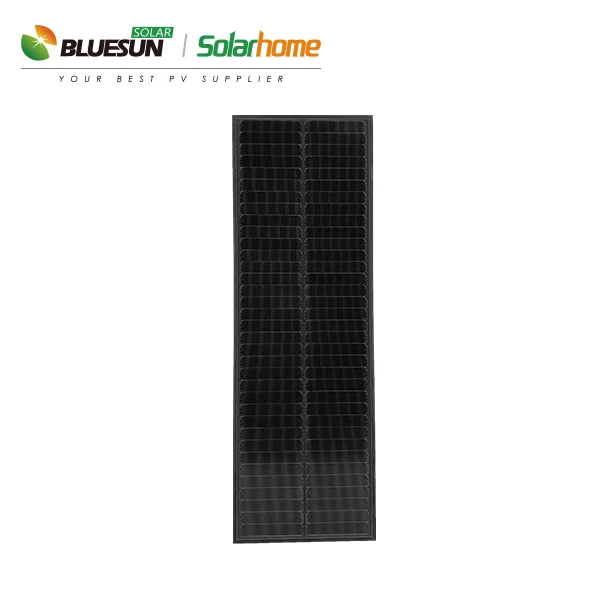

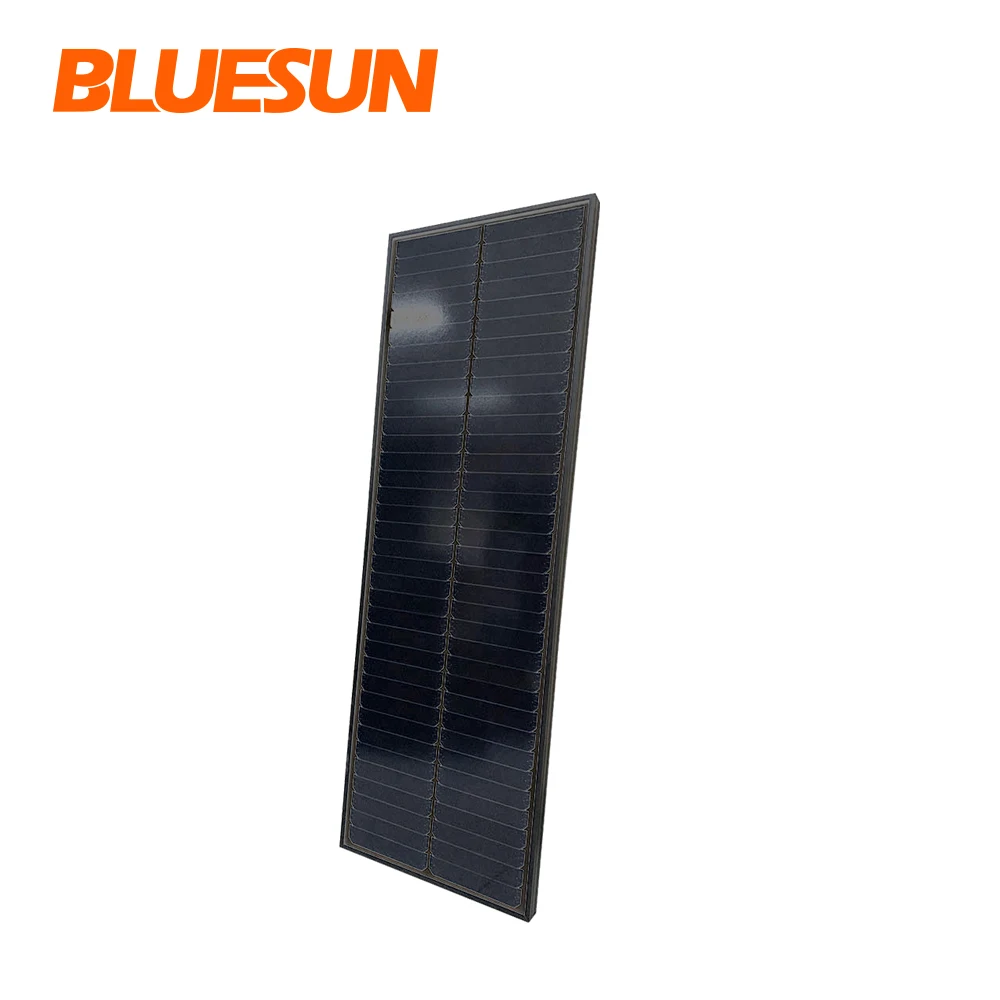

Панель солнечных батарей Bluesun 60 Вт 70
- Категория: Solar Panels >>>
- Поставщик: Bluesun,Solar,Parts,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.59 $* | 0.72 $* |
| Aug-19-2025 | 0.69 $* | 0.86 $* |
| Jul-19-2025 | 0.82 $* | 0.67 $* |
| Jun-19-2025 | 0.82 $* | 0.47 $* |
| May-19-2025 | 0.15 $* | 0.39 $* |
| Apr-19-2025 | 0.14 $* | 0.60 $* |
| Mar-19-2025 | 0.6 $* | 0.78 $* |
| Feb-19-2025 | 0.39 $* | 0.11 $* |
| Jan-19-2025 | 0.45 $* | 0.5 $* |
Характеристики
Product Description
Advantages Of Shingled Module
* Easy Installation
* High Aesthetic Value
* Wind, High Temperature Resistant
* Great Power Performance Under Weak Light
* Operating cost of a solar ship is only 17% compared with that of an ordinary diesel-powered ship* Easy Installation
* High Aesthetic Value
* Wind, High Temperature Resistant
* Great Power Performance Under Weak Light
* Operating cost of a solar ship is only 17% compared with that of an ordinary diesel-powered ship
* High Aesthetic Value
* Wind, High Temperature Resistant
* Great Power Performance Under Weak Light
* Operating cost of a solar ship is only 17% compared with that of an ordinary diesel-powered ship* Easy Installation
* High Aesthetic Value
* Wind, High Temperature Resistant
* Great Power Performance Under Weak Light
* Operating cost of a solar ship is only 17% compared with that of an ordinary diesel-powered ship
Technical Specifications
Mechanical Data Standard Test Conditions AM=1.5, E=1000W/m2, TC=25℃ | ||||||
Nominal Power | 70W | 110W | 170W | |||
Cell Type | Monocrystalline | Monocrystalline | Monocrystalline | |||
Cell Efficiency | 21.4% | 21.4% | 21.4% | |||
Maximum Power Current (Impp) | 3.74A | 4.91A | 7.54A | |||
Maximum Power Voltage (Vmpp) | 18.70V | 22.40V | 22.55V | |||
Open-circuit Voltage (Voc) | 22.10V | 26.40V | 26.65V | |||
Short-circuit Current (Isc) | 4.25A | 5.33A | 8.05A | |||
Maximum System Voltage | 500V | |||||
Output Tolerance | +3% | |||||
Cable | 900mm / 1.5mm2 | 900mm / 2.5mm2 | 900mm / 2.5mm2 | |||
Connector Type | PV Compatible | |||||
Module Structure | Aluminum Frame / Glass / EVA / Backsheet (White/Black) | |||||
Junction box rating | ≥IP67 | |||||
Number of Diodes | One | |||||
Working Temperature | -40℃~+80℃ | |||||
Packaging | ||||||
Module Dimensions | 1050*350*30mm | 1190*450*30mm | 1230*670*30mm | |||
Module Weight | 5.42kg | 6.3kg | 9.0kg | |||
Package | Single Package | |||||
Pieces per Pallet | 30 | 30 | 28 | |||
Gross Weight per Pallet | 200kg | 225kg | 300kg | |||
Pallet Dimensions | 1200*1100*510mm | 1200*1100*610mm | 1240*1100*830mm | |||
