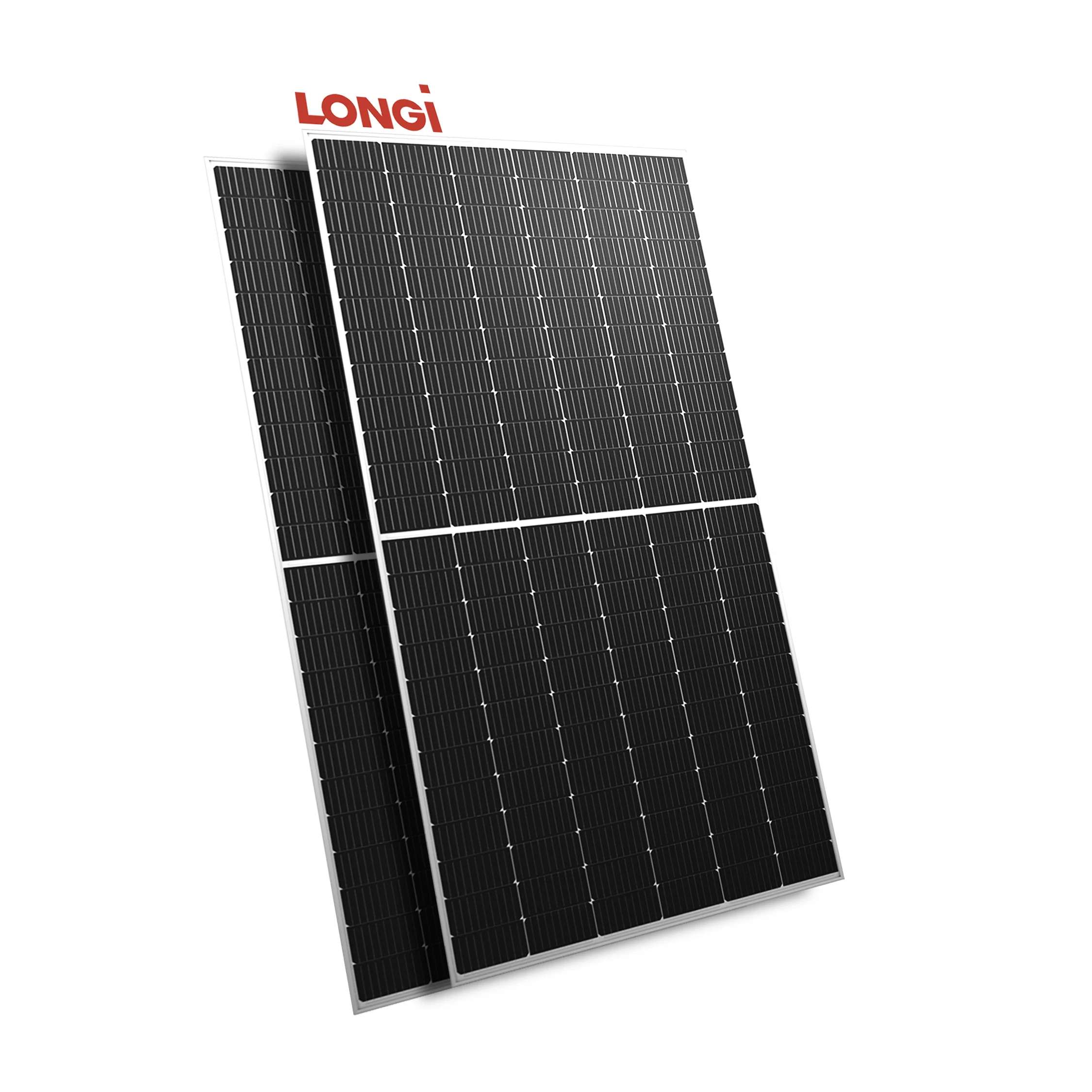

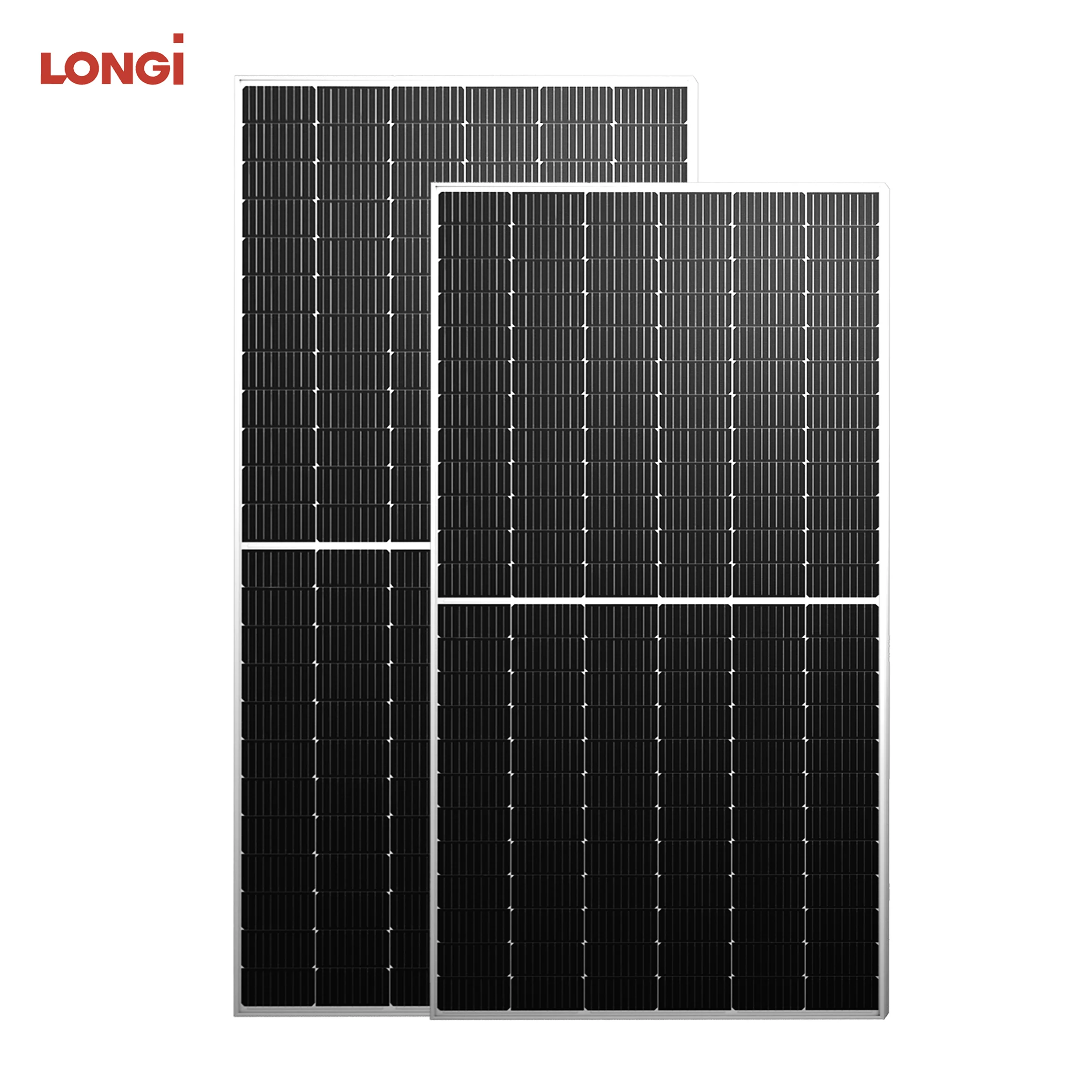

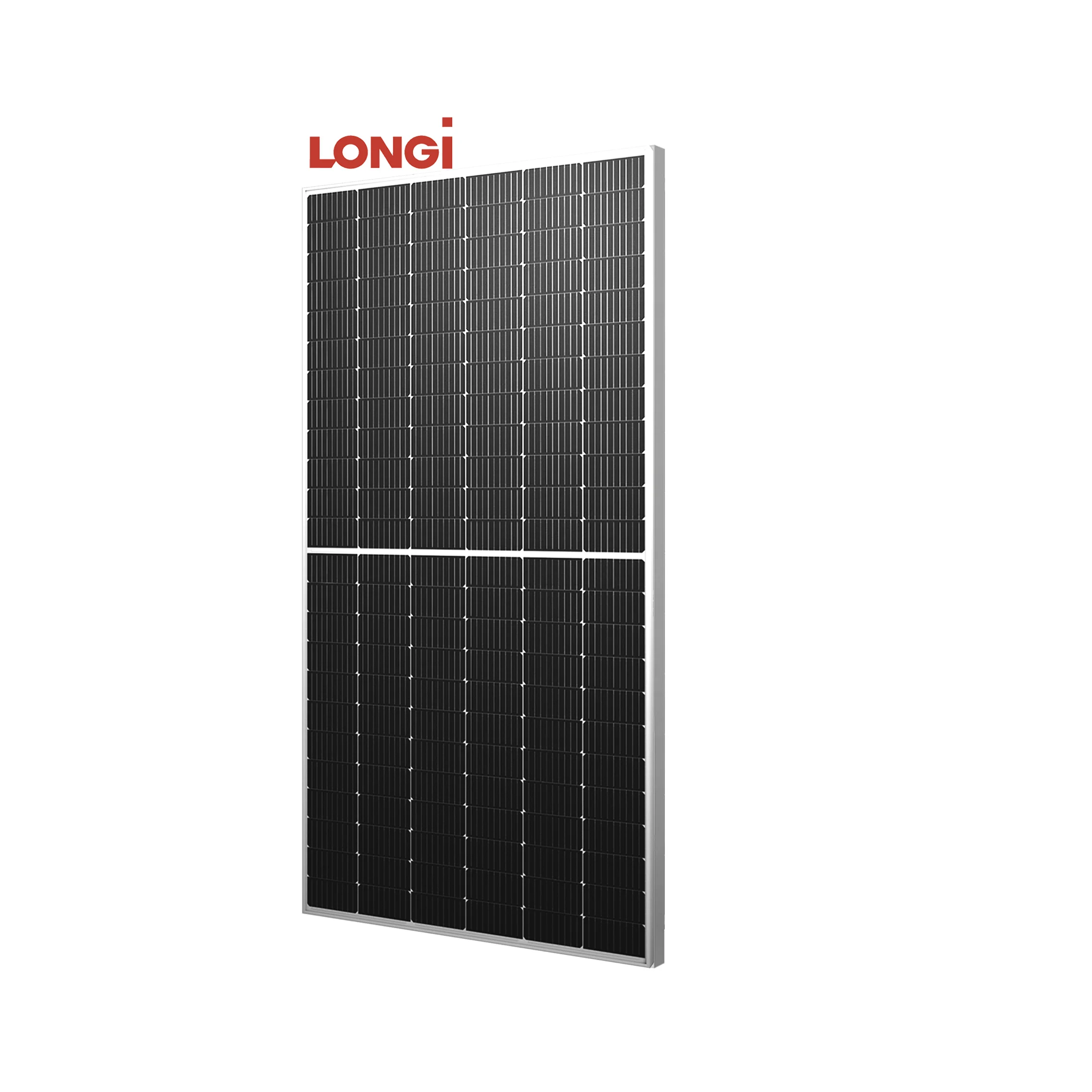

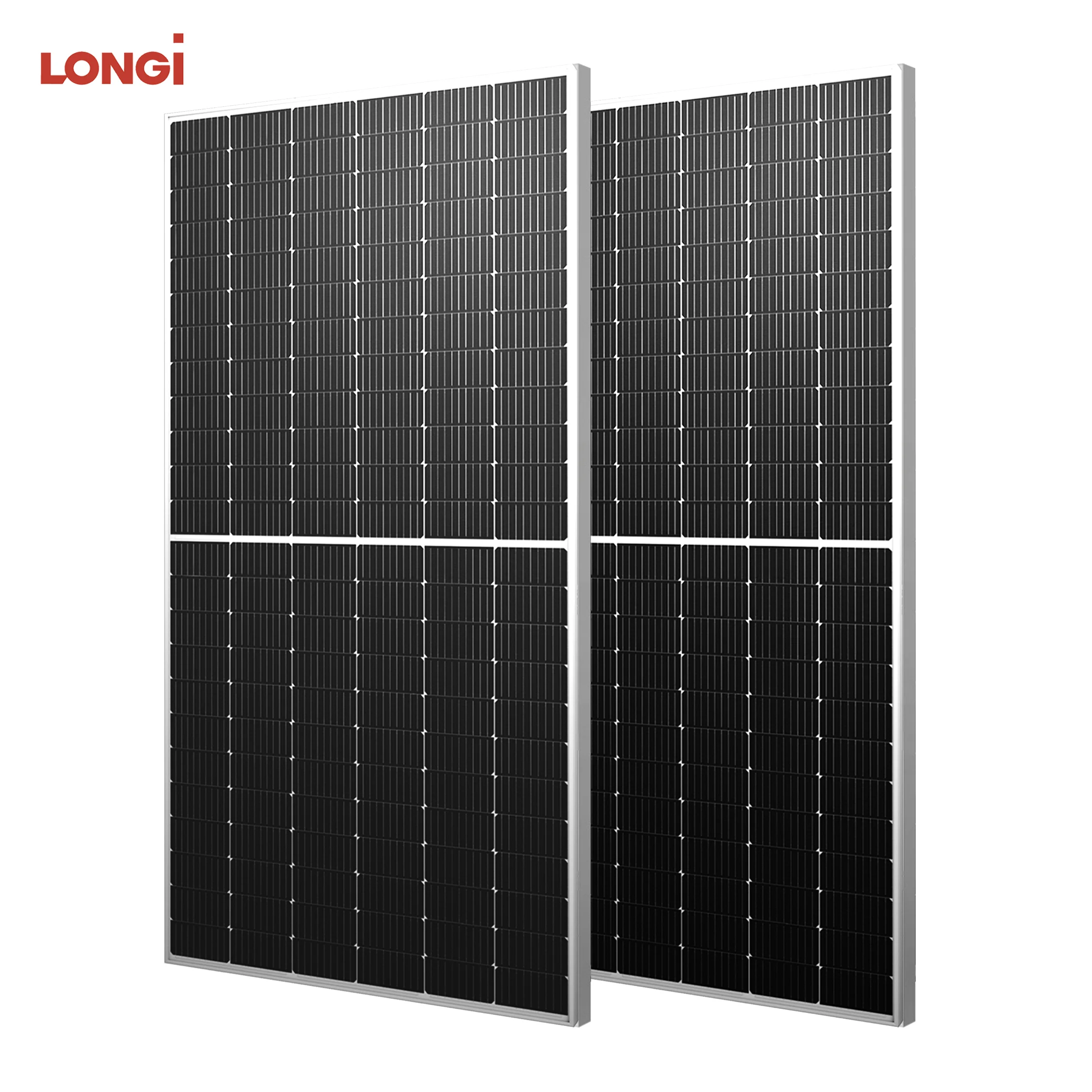

Одноэлементные солнечные панели бренда Longi 1 430 Вт 435 440 445
- Категория: Solar Panels >>>
- Поставщик: Xiamen,DJSC,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.66 $* | 0.50 $* |
| Aug-15-2025 | 0.83 $* | 0.4 $* |
| Jul-15-2025 | 0.85 $* | 0.21 $* |
| Jun-15-2025 | 0.11 $* | 0.3 $* |
| May-15-2025 | 0.63 $* | 0.28 $* |
| Apr-15-2025 | 0.18 $* | 0.7 $* |
| Mar-15-2025 | 0.18 $* | 0.65 $* |
| Feb-15-2025 | 0.43 $* | 0.82 $* |
| Jan-15-2025 | 0.5 $* | 0.22 $* |
Характеристики
Product Description
Module Type | LR4-72HPH 525~550M | LR4-72HBD-430 | LR4-72HBD 435 | LR4-72HBD 440 | LR4-72HBD 445 | LR4-72HBD-450 | ||||||
Rated output (Pmp/Wp) | 525 | 530 | 535 | 540 | 545 | 550 | ||||||
Open Circuit Voltage(Voc) | 49.05 | 49.20 | 49.35 | 49.50 | 49.65 | 49.80 | ||||||
Short Circuit Current(Isc) | 13.65 | 13.71 | 13.78 | 13.85 | 13.92 | 13.98 | ||||||
Maximum Power Voltage(Vmpp) | 41.20 | 41.35 | 41.50 | 41.65 | 41.80 | 41.95 | ||||||
Maximum Power Current(Impp) | 12.75 | 12.82 | 12.90 | 12.97 | 13.04 | 13.12 | ||||||
Module efficiency(%) | 20.5% | 20.7% | 20.9% | 21.1% | 21.3% | 21.5% | ||||||
Standard Test Condition(STC) | Irradianc 1000W/m², Cell Tempera ture 25ºC, AM1.5 | |||||||||||
Mechanical Characteristic | ||||||||||||
No.of Cells | 144(6x24) | |||||||||||
Weight | 27.2kg | |||||||||||
Dimension | 2256x1133x35mm | |||||||||||
Junction Box | IP68,three diodes | |||||||||||
Output Cables | 4mm2,positive 400mm /negative 200mm ,length can be customized | |||||||||||
Glass | Single glass,3.2mm coated tempered glass | |||||||||||
Frame | Anodized aluminum alloy frame | |||||||||||
Temperature Rating（STC） | ||||||||||||
Temperature Coefficient of Isc(α-jsc) | +0.048%/℃ | |||||||||||
Temperature Coefficient of Voc(β_Voc) | -0.270%/℃ | |||||||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.350%/℃ | |||||||||||
DJSC Solar, founded by a passionate team with over 35 years experience of solar industry, is committed to bring quick and professional service to our customers in all aspects of solar products and projects.
Being the top distributor of Tier 1 solar product brands including LONGi, Sungrow, Trina, JA, Solis, Growatt, Goodwe, DJSC Solar provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc. Customer can enjoy One-Stop Turnkey Solution here with high performance solar products at competitive cost.
Besides, DJSC solar has a strong expert technical team, which can also provide you best solution and after-sales service. In the future, through more localized operation, we will build up the global network organization, to ensure best products and convenient service for our customers.
Being the top distributor of Tier 1 solar product brands including LONGi, Sungrow, Trina, JA, Solis, Growatt, Goodwe, DJSC Solar provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc. Customer can enjoy One-Stop Turnkey Solution here with high performance solar products at competitive cost.
Besides, DJSC solar has a strong expert technical team, which can also provide you best solution and after-sales service. In the future, through more localized operation, we will build up the global network organization, to ensure best products and convenient service for our customers.
Payment Term | T/T | EXW | 30% T/T in advance, balance paid before shipment. | ||
FOB | |||||
CNF | 30% T/T in advance, balance paid against copy of B/L | ||||
CIF | |||||
Delivery Time | Ship from factory within 15 working days after received the deposit | ||||
