2 трубы Канальные горизонтальный потолочный скрытый FCU блок катушки вентилятора с низким уровнем

Описание и отзывы

Трекер стоимости

Характеристики

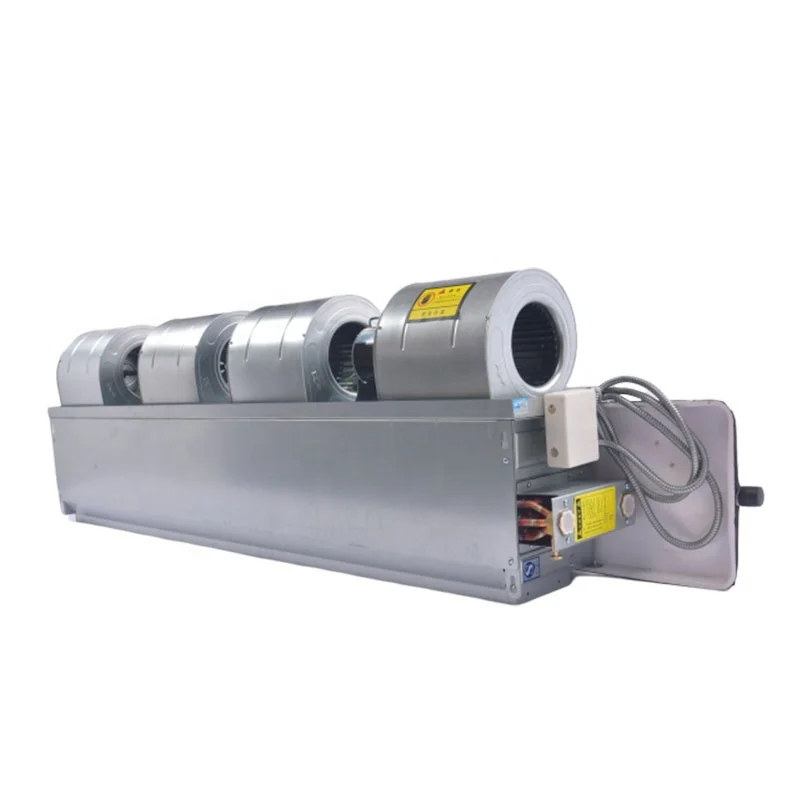

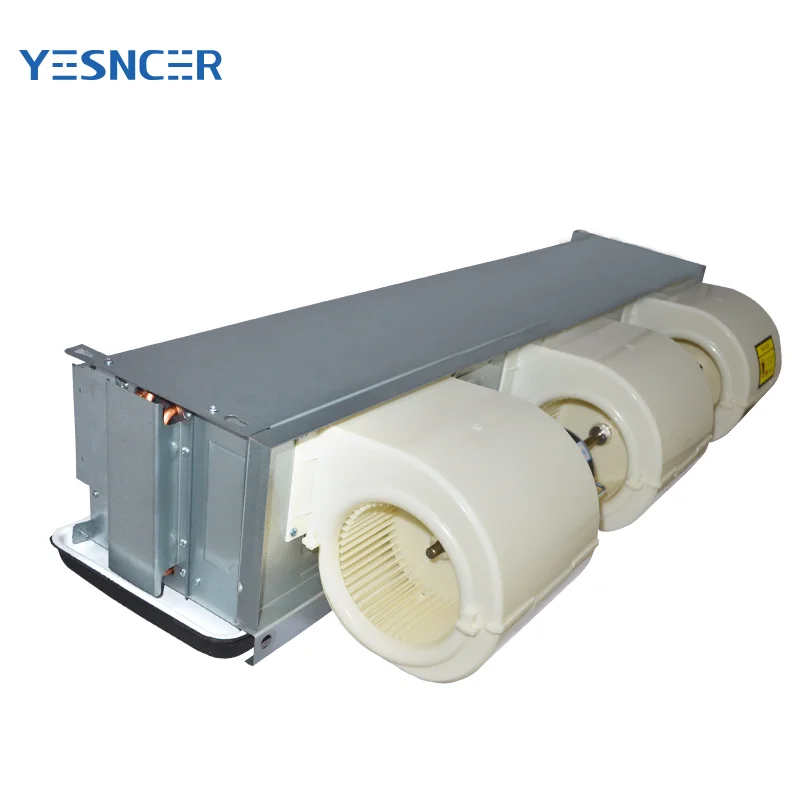

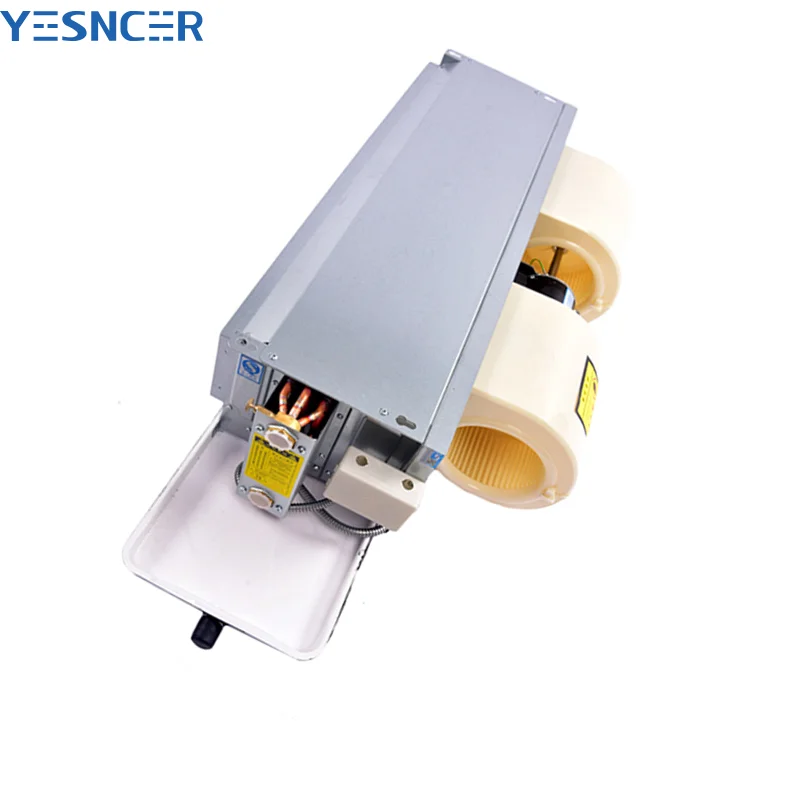

Intelligent Control Brushless DC Motor Ceiling Concealed Fan Coil Low Noise FCU

- Quiet operation
- Sensible and latent heat recovery
- Easy to be installed, low installation cost
- Matching hydrophilic aluminum fin to wear copper tube
- Compact structure and galvanized panels against the corrosion
-Air return box is optional, which can ease installation, reducing construction cost

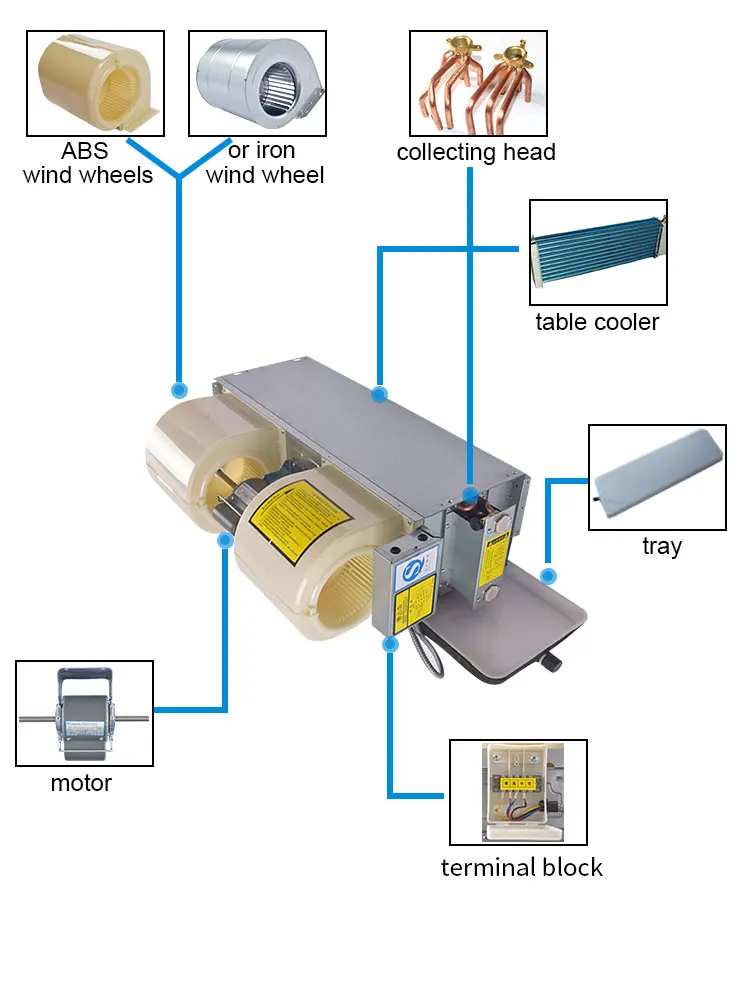

Condensate plate  /primary pressing/ hot dipping &paint baking

Motor : capaitance ,low noise fully enlosed rolling bearing



Collecting Head :Forging brass,the water flow distribution uniformity

Cooling coil -Fins : high purity seamless coper tube , adpot mechanical expansion pipe,High stength expansion joint connected tightly with fins improve hea exchange efficiency



Model and performance		FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204
Rated air flow M3/h	high	340	510	680	850	1020	1360	1700	2040
	Medium	260	390	510	640	770	1020	1280	1530
	low	170	260	340	430	510	680	850	1020
Rated cooling capacity Kcal/h	H	1.8	2.7	3.6	4.5	5.4	7.2	9.0	10.8
	H	1548	2322	3096	3870	4644	6192	7740	9288
Rated heat Kcal/h	H	2.7	4.05	5.4	6.75	8.1	10.8	13.5	16.1
	H	2322	3483	4644	5805	6966	9288	11610	13932
The input power W	12Pa	37	52	62	76	96	134	152	189
	30Pa	44	59	72	87	108	156	174	212
	50Pa	49	66	84	100	118	174	210	250
The amount of water Kg/h		319	478	638	797	956	1275	1594	1913
Flow resistance Kpa		30	30	30	30	40	40	40	40
power	220V/50HZ

   ---A:We are manufacturer about fan coil unit more than 10 years expriences.

2---Q:How to choose a suitable machine? And how to get a prompt quotation?

 ---A:Please let us know the machine usage, we have professional design team who will make a reasonable scheme. When you send the inquiry to us, please kindly provide the below technical information:

       1) Chiller type: Air cooled or water cooled

       2) Cooling capacity: Kcal/hr or KW

       3) Refrigerant: R22 or others

       4) Voltages and Frequency : V/PH/HZ

3---Q:Are OEM or ODM available?

  ---A:Sure, OEM and ODM are available,our factory has more than 10 years’ experiences in design and manufacturing chiller, we also supply the machine based on the specification provided by the customers. You just need to give us your detailed requests, we will design and manufacture after communication and confirmation.

4---Q:What kind of payment terms can you accept?

 ---A.We will confirm the payment with you when quoting, like FOB, CIF, CNF or others.  T/T ,Alibaba Credit Insurance Order,western union and L/C  are all acceptable .

5---Q:What’s your delivery method?---Usually we ship by sea, and the sea export is very convenient. Of course, if the customer's goods are urgent, we can also air, and Beijin Airport and Shijiazhuang International Airport are very close to us.

6---Q: Where do you mainly export your products?---A:Our products are mainly exported to dozens of countries including the United States, Germany, Japan, Spain, Italy, the United Kingdom, South Korea, Australia, and Canada.
