Оборудование для орошения большой фермы сельскохозяйственного
- Категория: >>>
- Поставщик: Dalian,Gengze,Agricultural,Equipment,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 6349.67 $* | 6476.20 $* |
| Jul-19-2025 | 5149.18 $* | 5252.57 $* |
| Jun-19-2025 | 6249.12 $* | 6374.44 $* |
| May-19-2025 | 6199.20 $* | 6323.32 $* |
| Apr-19-2025 | 4949.74 $* | 5048.65 $* |
| Mar-19-2025 | 6099.67 $* | 6221.91 $* |
| Feb-19-2025 | 6049.18 $* | 6170.97 $* |
| Jan-19-2025 | 5999.82 $* | 6119.75 $* |
Характеристики

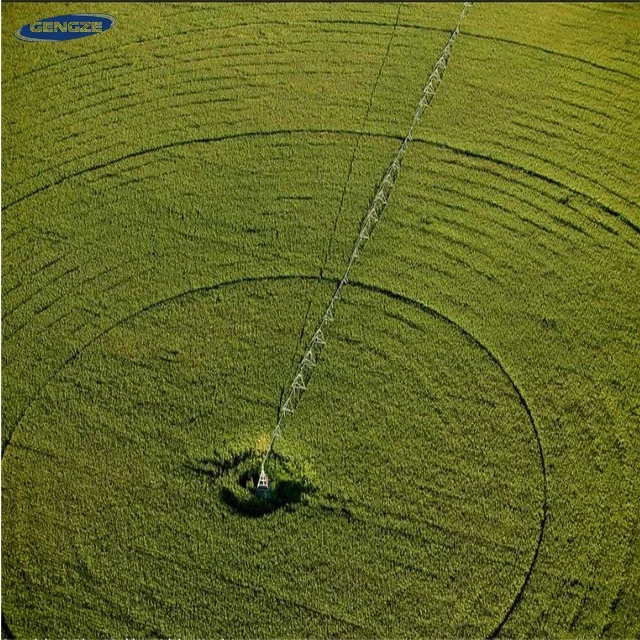

The center pivot is firmly fixed on the cement base to eliminate the force generated by the machine operating on irregular
terrains, , so that the water supply pipe can rotate freely in a circle radius to irrigate the whole round field.
terrains, , so that the water supply pipe can rotate freely in a circle radius to irrigate the whole round field.

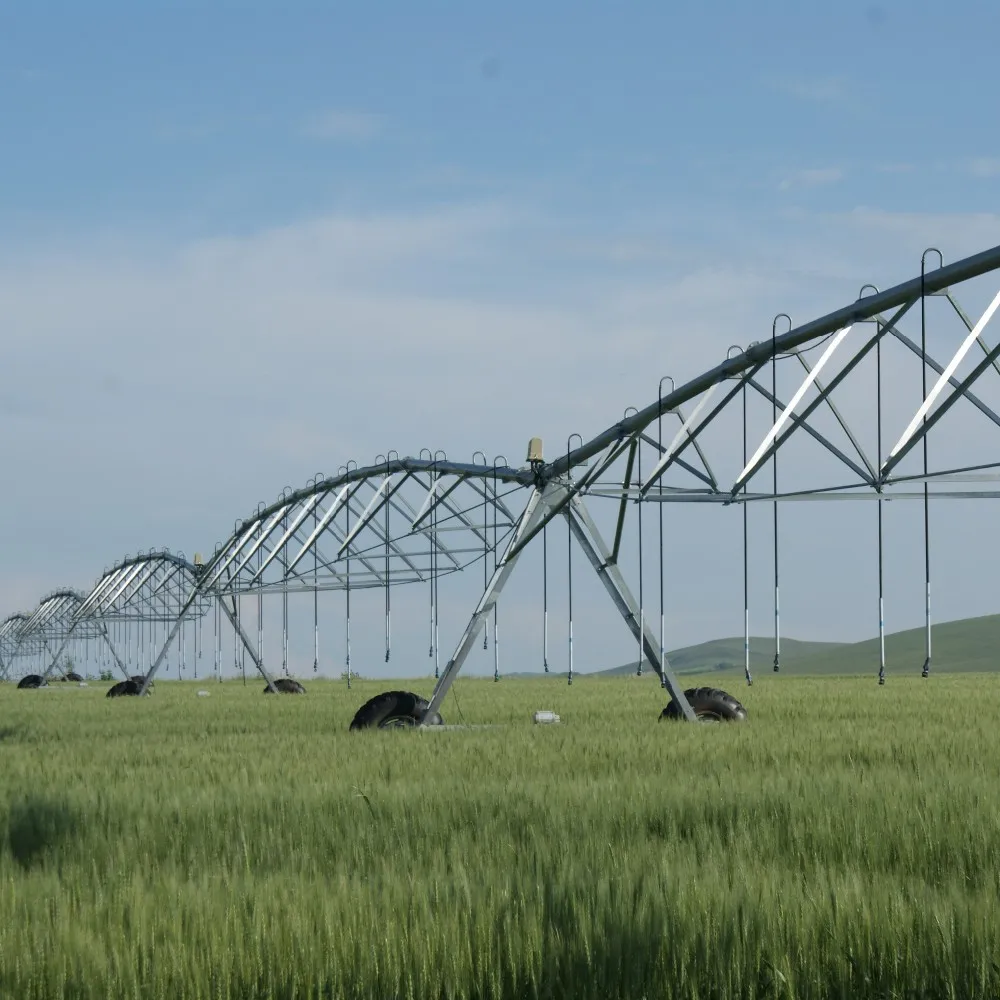

Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment
“Back and forth” irrigation via a linear of 10 spans maximum.
2021 modern agricultural center pivot irrigation system for sale
It can support both lateral moving and rotating irrigation.
Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment
Product Description
Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment
Can be operated on a various terrains such as deserts, flood plains, flat land and rolling hills and on a varieity of crops such as rice, patato, sugar cane, etc.
Gengze designs the irrigation system according to your specific climatic, topographical and cropping coonditions that maximizes time,labor and water savings for your induvidual needs.
Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment
Contact :Tina
Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment | ||
Pipeline Diameter | 141mm, 168mm, 203mm, 254mm | |
Pipeline Material | Hot-dip galvanized pipe, Steel 304 pipe ： Option: with poly span inside | |
Pipeline Thickness | 3.0mm | |
Pipe Length | 6.7m | |
Span Length | 61.3m, 54.5m, 48m, 41m | |
Maximum Machine Length | 1200m | |
Overhang Length | 22ft=6.7m/pc, not more than 3pcs | |
Sprinkler | Nelson D3000/R3000 | |
Working Voltage | 380-460V/50-60HZ: powered by Diesel generator or local power supply | |
Truss Diameter | 22mm,19.1mm,17.5mm( 61.3m:22mm; 54.5m&48m: 19mm; 41m&34m:17.5mm ) | |
Main pipe Flange thickness | 10mm, Flange and pipe adopt double welded technology | |
Irrigation intake pressure | 0.25-0.35Mpa | |
Irrigation intake | 1 water inlet in center point,quick pipe joint connected structure | |
Tire Options | 11.2x22.5; 11.2x24.5; 11.2''x24''; 14.9x24'' | |
Motor/Gearbox | American brand | |
Motor power | 0.75/1.5 HP | |
Span body tower structure | Adopt V model tower | |
Control Panel | Digital control or PLC | |
End Gun | Option: 35--45m | |
Details Images
The enforced standard pipes are normally carbon steel, their diameters are 6 5/8 inch(168 mm), which is 10% thicker than the competitor's top quality level.And they are effected the hot-dip galvanized process according to maritime standard.
Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment
If the water condition is unexpected hostile,the rubber liner inside the pipe will offer additional protection.
Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment
The sprinkler from most famous brand in the world, so that our system has more competitive price and higher working performance.
Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment
1. Work status indication and real-time monitoring
2. Failure alarm
3. Span synchronization protecting function
4. Auto-stop of irrigation machine and water pump
if water pressure is too low or if irrigation machine
encounters some problem
5. Auto-start of water pump with the start of the
machine
2. Failure alarm
3. Span synchronization protecting function
4. Auto-stop of irrigation machine and water pump
if water pressure is too low or if irrigation machine
encounters some problem
5. Auto-start of water pump with the start of the
machine
Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment

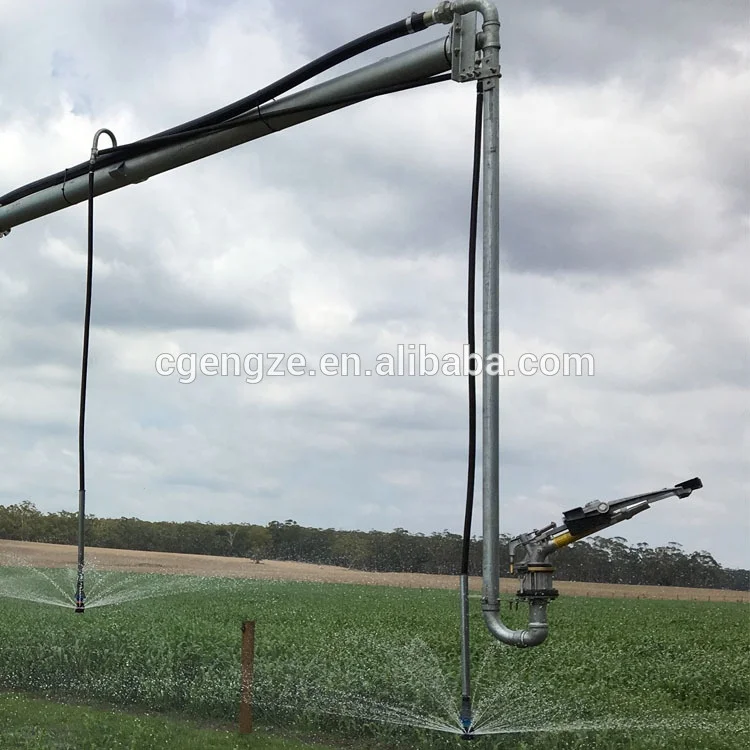

End spray gun
Reducer
Coupler
Drive unit
Filter
End tower end control box
Product Packaging
Only 40ft Container or 40HQ can load our equipment.
Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment
Our equpiments are all large scale, so normally would be delivered with full container load.
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.
The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
The standard export wooden boxes or pallets , which meet the international trading regulation, will be offered by our side.
The reliable shipping agent will be chosen, if the customer prefer the appointed shipping agent, also acceptable.
Installation
Company Profile
Office
Factory
FAQ
1. What about the MOQ?
- 1 set (at least 2 spans)
Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment
2. There are many similar unqualified products in the market, how can you make sure your quality control?
- We have got the certificates of CE and ISO 9001, and strict production procedures are effected in our company
3. What’s your accepted payment terms?
- T/T or LC
4. How many sets machine can be loaded in a 40ft container?
- About 1set with 500m or 2sets with 250m.
5. Whether you can support customized logo?
- OEM service is available.
6. How many years warranty you can support?
- One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
- 1 set (at least 2 spans)
Big Farm Agricultural Watering Irrigator Center Pivot Irrigation Equipment
2. There are many similar unqualified products in the market, how can you make sure your quality control?
- We have got the certificates of CE and ISO 9001, and strict production procedures are effected in our company
3. What’s your accepted payment terms?
- T/T or LC
4. How many sets machine can be loaded in a 40ft container?
- About 1set with 500m or 2sets with 250m.
5. Whether you can support customized logo?
- OEM service is available.
6. How many years warranty you can support?
- One year standard warranty, but will supply more service if you need, pls contact us for more discussion.
