Гидравлический мини-самосвал вместимость 2 тонны для
- Категория: Other Tricycles >>>
- Поставщик: Zhengzhou,Lianke,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 3511.87 $* | 3687.42 $* |
| Aug-18-2025 | 3481.42 $* | 3655.2 $* |
| Jul-18-2025 | 2921.16 $* | 3067.71 $* |
| Jun-18-2025 | 3422.83 $* | 3593.84 $* |
| May-18-2025 | 2980.42 $* | 3129.67 $* |
| Apr-18-2025 | 3363.68 $* | 3531.94 $* |
| Mar-18-2025 | 3334.27 $* | 3501.89 $* |
| Feb-18-2025 | 3304.38 $* | 3469.13 $* |
| Jan-18-2025 | 3275.4 $* | 3439.74 $* |
Характеристики
Details Images

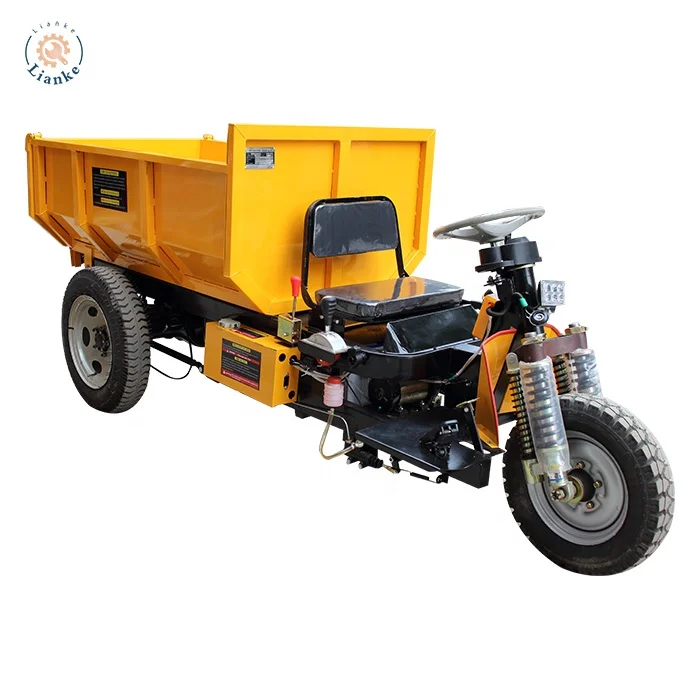

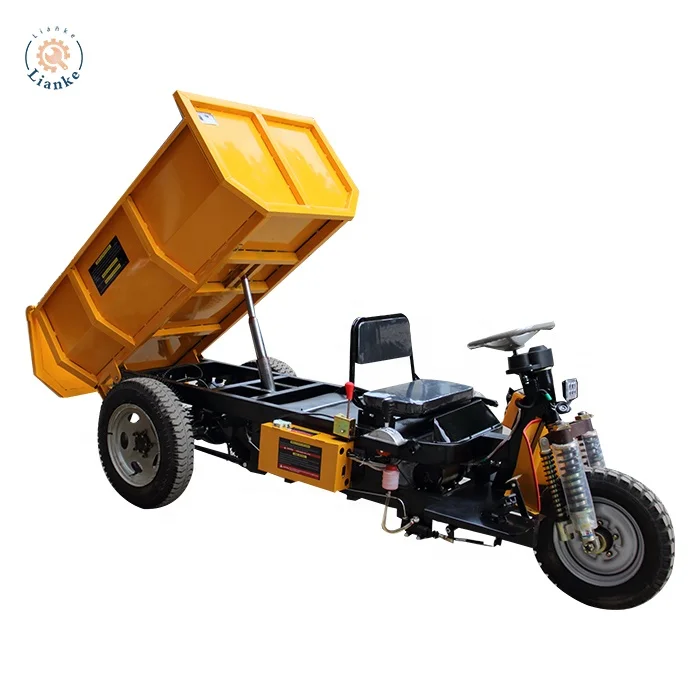

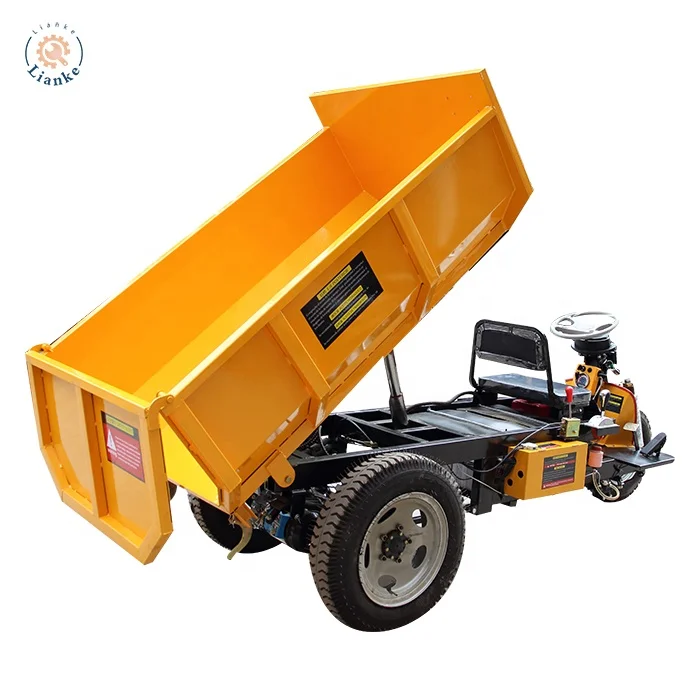

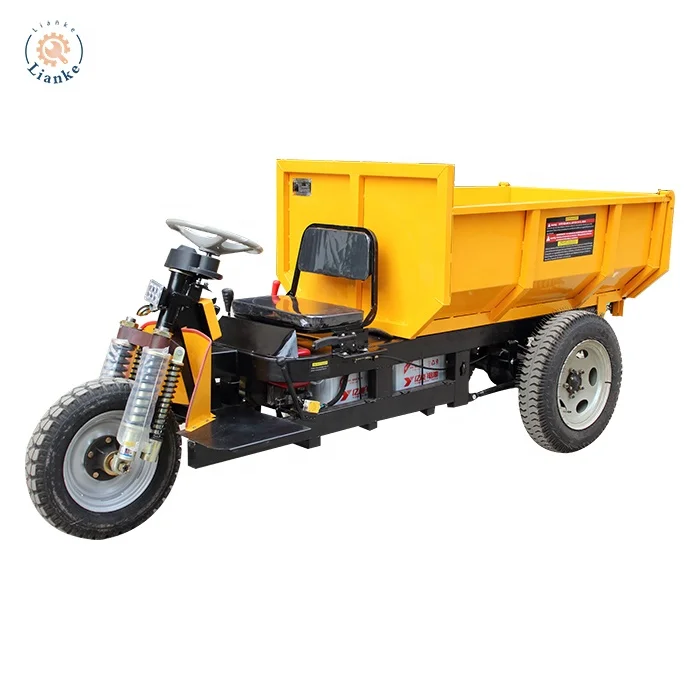

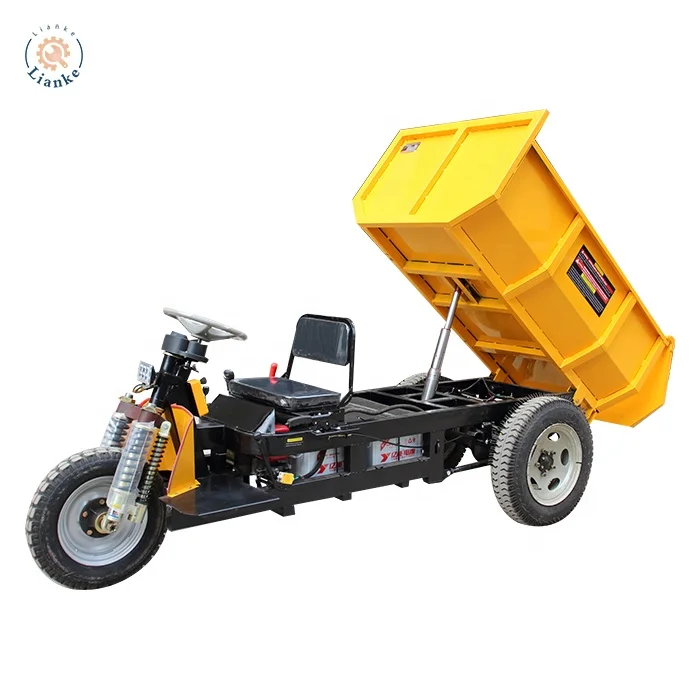

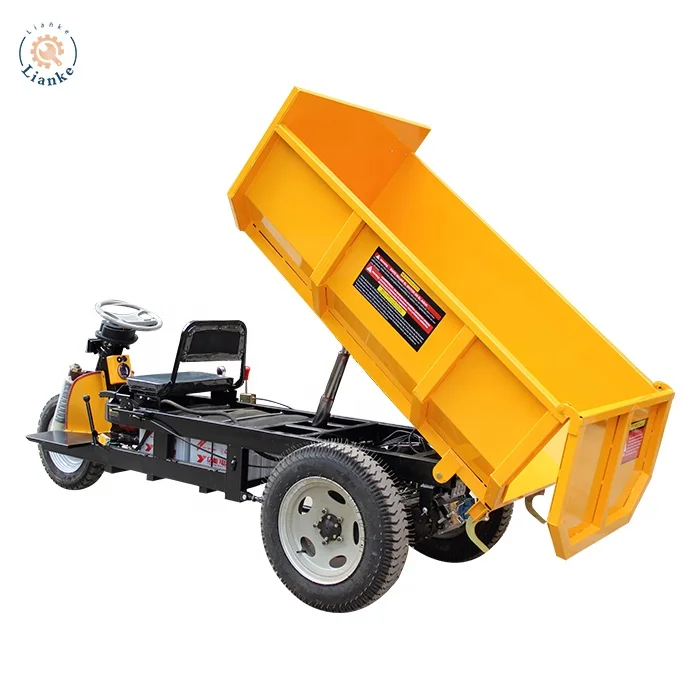

mini dumper mine is suitable for underground roadway mine, iron ore mine and rare metal mine. The truck has many advantages, such as high power, small footprint, compact sound, convenient and flexible operation, energy-saving and cost-saving, and convenient operation. The dump truck can be equipped with different engines according to the use environment and use, which can be customized according to customer requirements.
(Note: This main pictures are not a standard dumper. There will be some differences in prices.)
Toutube video links:
https://youtu.be/hMWGYB6RsJk (LK270 Detail display 1)
https://youtu.be/4YbgNTohBCQ (LK270 Detail display 2)
https://youtu.be/hNi61Ffg89c (LK270 The appearance shows)
Model | LK135 | LK270 |
Loading capacity | 1000kg | 2000kg |
Voltage | 48V | 72V |
Battery capacity | 150-80Ah | 180-120Ah |
Driving motor | 1000W | 3000W( brushless ) |
Lifting motor | 1000W | 1000W |
Front tire | 4.00-12 | 4.50-14 |
Rear tire | 5.00-14 | 6.00-16 |
Rotate Speed | 3500 (r/min) | 3500(r/min) |
Operating Speed | ≤25 Km/h | ≤25 Km/h |
Cargo Box Size | 1450*900*400 mm | 1800*1150 *500 mm |
Overall Size | 2900*1000*1100 mm | 3300*1150*1400 mm |
Net weight | 500kg | 1000kg |
Max Grade Ability | 25 degrees | 25 degrees |
Maximum tilt angle of cargo box | 45 degrees | 45 degrees |
Product Description
Cargo box size:
1800*1150 *500 mm
Double shock:
According to customer needs, double shock absorption can be customized, and additional money will be charged.
Single spring shock absorption:
The standard configuration of the product is a single spring shock absorber.
12V*6PCS=72V
This is the battery Quick Charger.
The charger can use the household power 110v or 220v to charge directly. Charger jack is Chinese two pin plug, it can be customized the standard US or European plug.
The charger can use the household power 110v or 220v to charge directly. Charger jack is Chinese two pin plug, it can be customized the standard US or European plug.
Double row chain:
Doble row chain has the advantages of simple structure, convenient assembly and disassembly, compact size, light weight, certain compensation ability, low installation accuracy, reliable work, long life and low cost. So it is very easy to have the daily maintenance.
Double steel spring:
The advantages of the leaf spring simple structure, reliable, low cost, easy maintenance. It is both a flexible element of the suspension and a guide for the suspension. It is hinged at one end with frame, which can convey various forces and moments and determine the trajectory of the wheel. At the same time, it itself has a certain role in the role of friction damping.
The lift motor is a 1000W motor, as is shown on the left side of the figure above. The red box on the right is the hydraulic tank, which works with the lift motor to control the movements of trunk.
Integrated rear axle and brake:
From the above figure we can roughly see the vehicle chassis structure, especially the integrated rear axle, ensureing that the vehicle has a strong enough bearing capacity. In addition, this model is used hydraulic brake, brake performance is good. Pedal throttle, the vehicle is not the front brake, only the rear brake.
The main wiring harness of the dumper is wrapped with insulating cloth, which increases the safety of the wiring harness.
A:Controller B: Contactor
Front tire: 4.50-14
Huanyan Brand tire
Front tire: 6.00-16
Huanyan Brand tire
A: Climbing gear B: Handbrake
Oil brake pump
Steering wheel type operation
Handle type operation
Straight type cargo box
This kind of cargo box can loading more, suit for have shape and regular goods,this way can get maximize the use of it.
This kind of cargo box can loading more, suit for have shape and regular goods,this way can get maximize the use of it.
Inclined type cargo boxThis kind of cargo box suit for no shape and irregular goods, such as ores, farm crops and fertilizer ect.
Customer Feedback
Our electric mini dumper belongs to cargo vehicles, mainly for loading rocks, minerals, soil, sands, cement, and other goods. It can be used in a variety of terrain, mainly is used in mine, to be used in farm is also no problem.
Packing & Delivery
LCL Delivery
For order one unit or order less container load we adopt standard wooden box packing, to convenient package we only remove the wheels.Other parts do not do any demolition, so when arrive you just need to assemble the wheels then can driving directly.
For order one unit or order less container load we adopt standard wooden box packing, to convenient package we only remove the wheels.Other parts do not do any demolition, so when arrive you just need to assemble the wheels then can driving directly.
FCL Delivery
For the order quantities more than 10 units, normally we advise to adopt full container load, full container shipment without any demolition, it‘s more convenient transportation and cost savings.One 20GP can hold 10 sets. One 40HC can hold 16 sets.
For the order quantities more than 10 units, normally we advise to adopt full container load, full container shipment without any demolition, it‘s more convenient transportation and cost savings.One 20GP can hold 10 sets. One 40HC can hold 16 sets.
Company Profile
Zhengzhou Lianke Machinery Manufacture Co.,Ltd. is a specialized in mini dumper mine. We are holding this line for more than 30 years, with well-equipped testing facilities and strong technical force. Our products are exported to many countries all over the world. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in construction, woodworking and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
Warranty
(1)The mini dumper all parts quality assurance period for 12 months. In normal use circumstances, there is any quality problem
during warranty period, we will use DHL, UPS, or other express delivery to send the accessories freely for customers after determine the damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
Warranty
(1)The mini dumper all parts quality assurance period for 12 months. In normal use circumstances, there is any quality problem
during warranty period, we will use DHL, UPS, or other express delivery to send the accessories freely for customers after determine the damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
