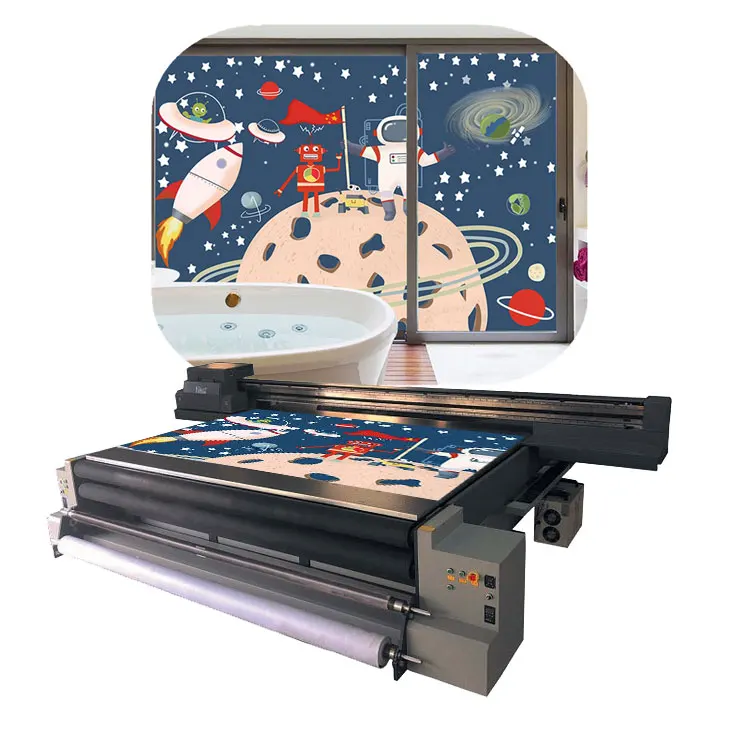

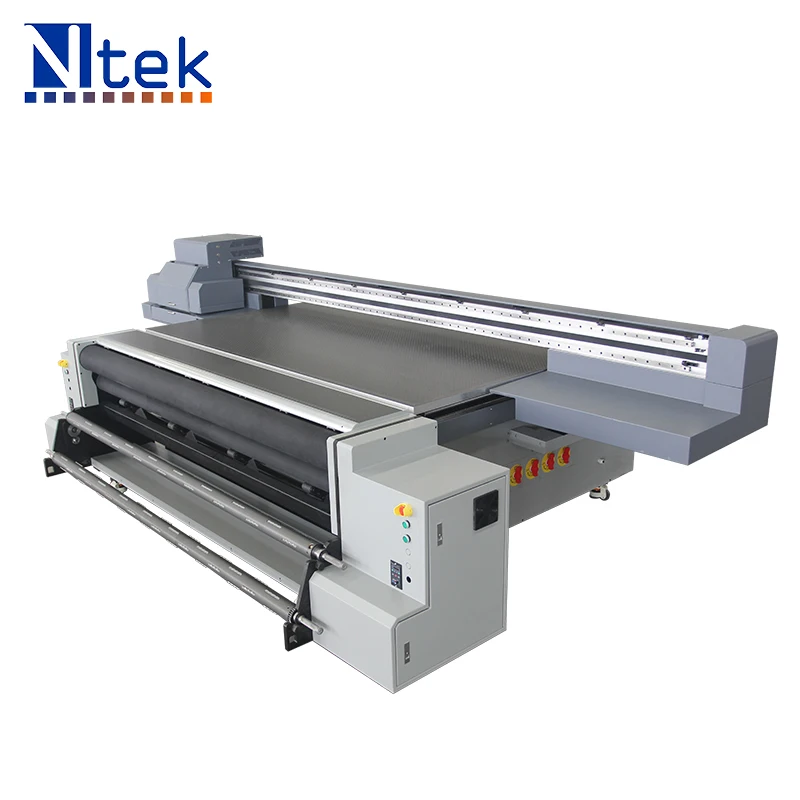

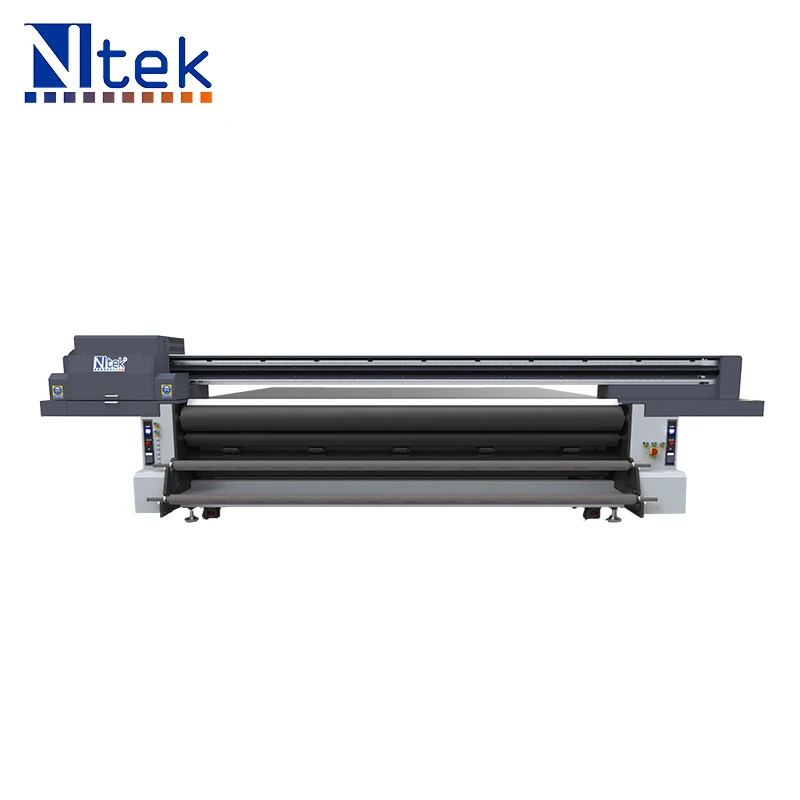

Плоский и рулонный принтер YC3321R лидер продаж гибридный УФ-принтер
- Категория: Printing Shop Machines >>>
- Поставщик: Linyi,Win-Win,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 3570.81 $* | 3749.53 $* |
| Aug-18-2025 | 3540.10 $* | 3717.58 $* |
| Jul-18-2025 | 2970.71 $* | 3119.20 $* |
| Jun-18-2025 | 3480.5 $* | 3654.54 $* |
| May-18-2025 | 3030.77 $* | 3182.37 $* |
| Apr-18-2025 | 3420.67 $* | 3591.25 $* |
| Mar-18-2025 | 3390.41 $* | 3560.69 $* |
| Feb-18-2025 | 3360.27 $* | 3528.67 $* |
| Jan-18-2025 | 3330.25 $* | 3497.80 $* |
Характеристики
Product Model | YC3321R |
Control Board | Hoson/ UMC optional |
Printhead Technology | Drop-on demand piezo electric |
Printhead Control | Printhead voltage is software adjustable |
Printhead Type | RICOH GEN5/GEN 6 |
Printhead Number | 2/3/4/5/6/8 |
Ink Characteristics | UV Curing Ink |
Ink reservoirs | Refillable on the fly while printing/1000ml per color |
Lamp | UV LED lamp |
Color Control | ICC based color, curves and density adjustment |
Printhead Arrangement | C M Y K LC LM W varnish optional |
Cleaning System | Positive Pressure Cleaning |
Guide Rail | Taiwan HIWIN |
Working Table | Vacuum Sucking |
Printing Size | 3300*2100mm Roll material print width 3300mm |
Print Interface | USB2.0 |
Media Thickness | 0-100mm, higher can be customized |
Print Resolution | 720*360dpi,720*720dpi,360*1080dpi,720*1080dpi, 720*1440dpi,1440*1440dpi,360*2160dpi |
Printing Speed | 15sqm/h-30sqm/h |
Life of Printed Image | 3 years(outdoor),10years(indoor) |
File Format | TIFF,JPEG,Postscript3,EPS,PDF etc. |
RIP Software | UltraPrint/ Photoprint optional |
Power Supply | 220V 50/60Hz(10%) >15A |
Operation Environment | Temperature 20 to 28℃, Humidity 40% to 60% |
Machine Dimension | 5370*3780*1460mm |
Weight | 2000kg |
Warranty | 12 months exclude the consumables |
Applicable Areas & Materials:
A.Decoration industry B.Glass, Ceramic industry C.Advertising&Sign industry D.Furniture and personalized products
The UV flatbed printer is used to print on glass, ceramic tile, PVC ceiling, aluminum sheet, wood MDF board, metal panel,
billboard, acrylic panel, paper board, foam board, PVC expansion board,KT board,corrugated cardboard, bamboo fiber
board etc; and for flexible materials such as PVC, canvas, leather, etc.
YC3321R can print roll material such as wallpaper mural,flex banner,car sticker,advertising banner, Vinyl, polyester, flex,
back-lit film etc.
