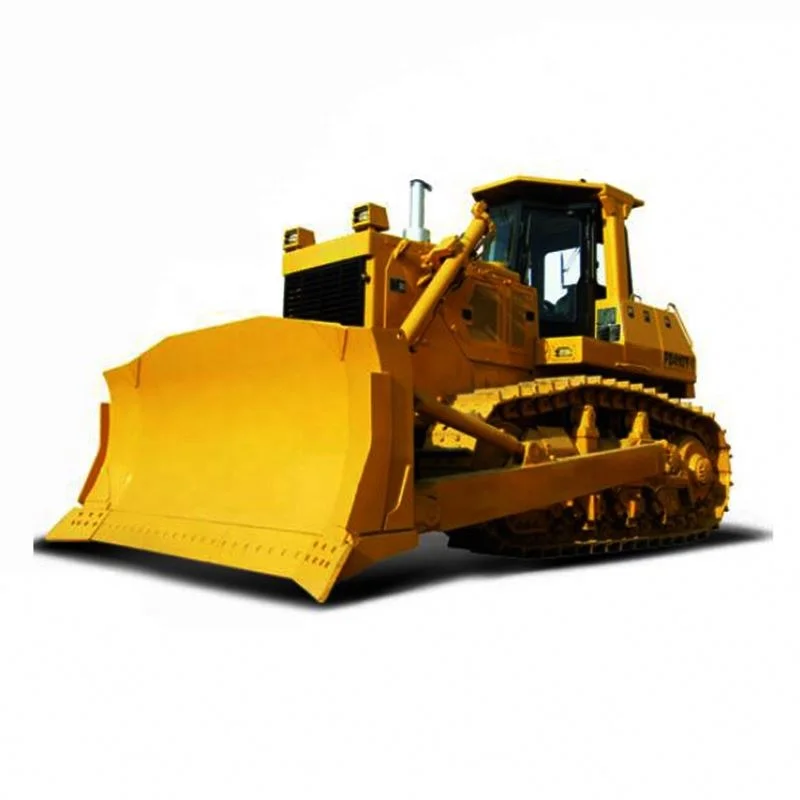

High quality Product Crawler Bulldozer Pengpu 220HP PD220Y-6 China Made Bulldozer



Main Configuration



♦ The appearance of the vehicle is based on optimizationdesign

♦ High engine power reserve, strong torque output, low fuelconsumption, reliable controls.

♦ 3 elements, single stage and single phase torque convertorfeatures high efficiency and capacity.

♦ The updated hexahedral cab features outstanding visibilityand good tightness.

♦ Using the triangle spline and the gear of crowned teethand tip relief in the final drive to average the loads on thetrans-mission components for more stability, prolong thelifetime.

♦ New blade is more durable and capacious.

♦ Alarming & monitoring system is efficient and reliable.Reliable manual - operated spool valve and externalmounted valve for easy maintenance



Product Description

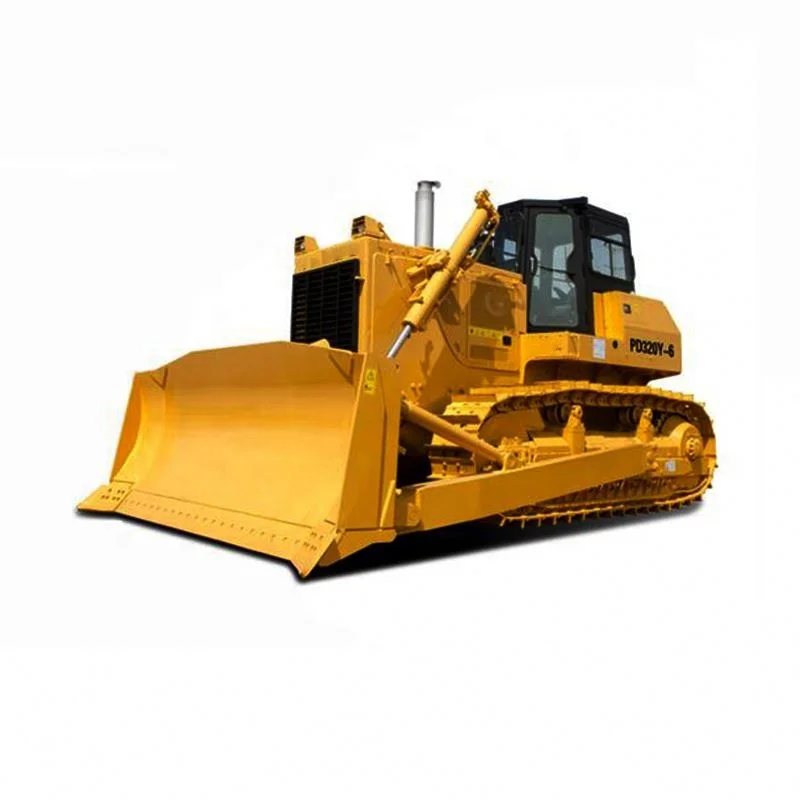

Model	PD165YS-5		PD165Y-5		PD220YS-2		PD220Y-6		PD320Y-6
Engine	Weichai WP10G178E355		Weichai WP10G178E355		QSNT-C235		QSNT-C235		QSNT-C345
Rated Power	131kW		131kW		175kW		175kW		257kW
Weight	18200kg		17800kg		26300kg		25500kg		35900kg
Blade type	Straight tilt blade	U dozer	Straight tilt blade	U dozer	Straight tilt blade	Dozer for garbage	Straight tilt blade	Dozer for garbage	Semi-U blade	Angle	U  dozer
Width * Height (mm)	3970*1050	3970*1514	3970*1050	3970*1514	4365*1230	4365*1760	4365*1230	4365*1760	4130*1590	4850*1140	4225*1745
Max.lift above ground (mm)	1180	1180	1180	1180	1350	1350	1350	1350	1560	1560	1560
Max.drop below ground (mm)	440	440	440	440	500	500	500	500	560	560	560
Pitch adjustment (°)	55	55	55	55	53.5	53.5	53.5	53.5	55	55	55
Max.Tilt (mm)	700	700	700	700	500	500	500	500	1000	1000	1000
Blade capacity (m³)	4.4	6.17	4.4	6.17	6.6	11.7	6.6	11.7	9.2	6.3	12.3

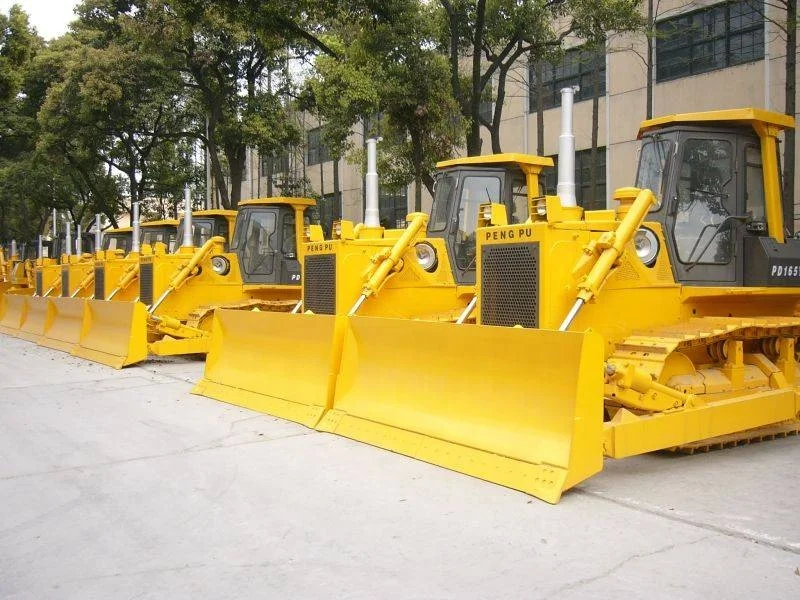

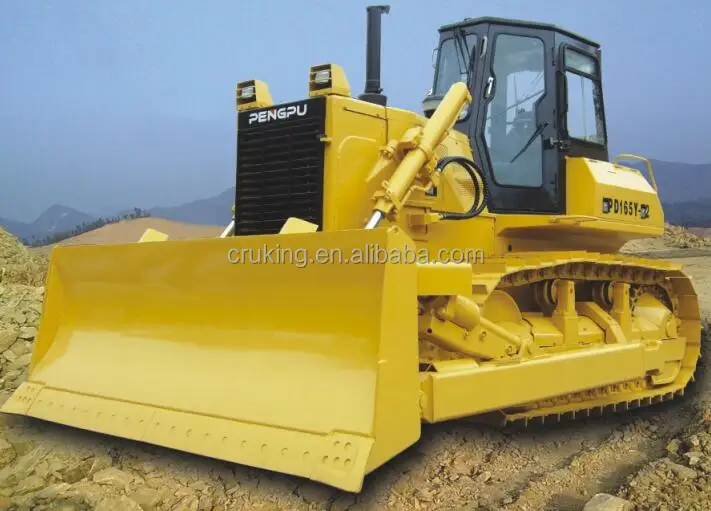

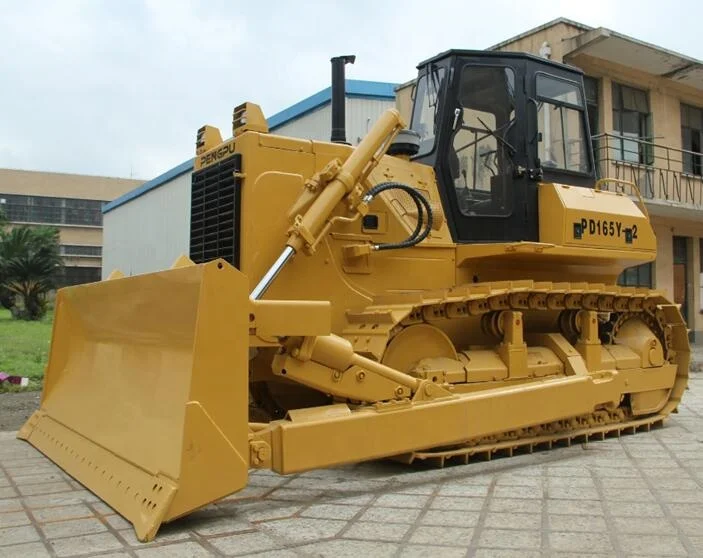

Product pic
