Шэньчжэнь завод нестандартного размера TN HTN STN VA 4 5 6 цифр ЖК-экран электронные весы по индивидуальному заказу от
- Категория: Segment Display >>>
- Поставщик: Shenzhen,Hexing,Optoelectronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.43 $* | 0.81 $* |
| Aug-20-2025 | 0.0 $* | 0.77 $* |
| Jul-20-2025 | 0.46 $* | 0.73 $* |
| Jun-20-2025 | 0.0 $* | 0.63 $* |
| May-20-2025 | 0.2 $* | 0.7 $* |
| Apr-20-2025 | 0.69 $* | 0.31 $* |
| Mar-20-2025 | 0.93 $* | 0.69 $* |
| Feb-20-2025 | 0.66 $* | 0.43 $* |
| Jan-20-2025 | 0.46 $* | 0.49 $* |
Характеристики
Product Description

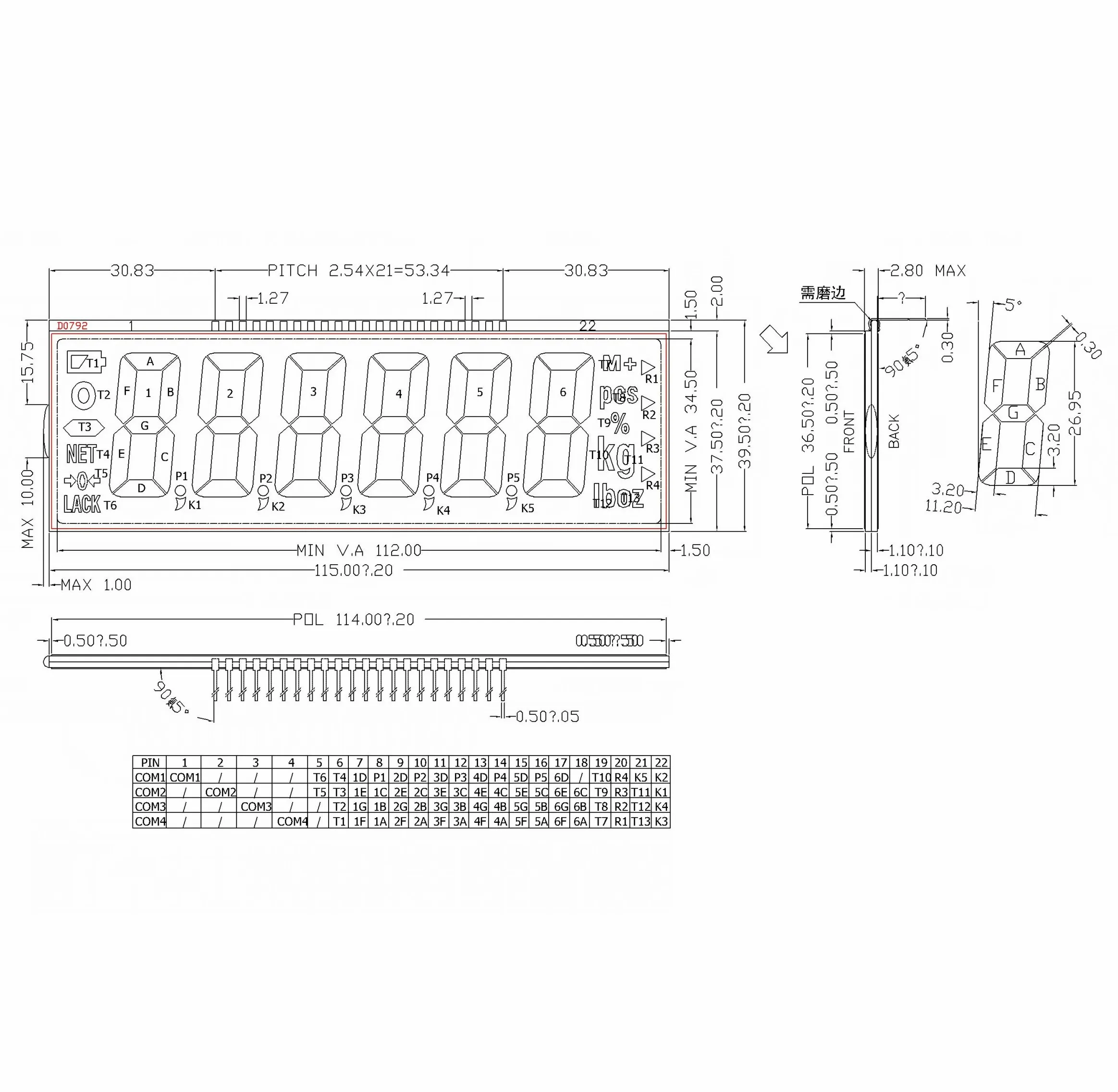

Specification
item | value |
Type | SEGMENT LCD |
Display Size | 112x34.5mm |
Place of Origin | China |
Guangdong | |
Model Number | HXP-020792SZ |
Brand Name | HEXING |
Application | Weigh-scale |
Outline dimensions | 115.0X39.5X2.9mm |
Display mode | TN STN FSTN VATN HTN |
Driving Method | 1/4 Duty 1/3 Bias |
Drive Voltage | 3.3V |
Operating Temperature | 0~50C |
Connector | Metal Pin |
Backlight | Optional |
Backlight color | Red/blue/green/orange |
Packing & Delivery
carton
Company Profile
20years experience focused on the design and production of LCD panel and LCD module make a stable base to support our customers with best technical routes to get satisfied quality and cost.
Our production lines covers TN/HTN/STN/FSTN/ASTN/VA type LCD panels and some high tech displays like Field telescope/Light Shutter LCD panels, besides, we have wide range of LCD modules production lines including SMT/COB/COG/COF/TAB process.
Our customers products covers most of the industrial and consumer applications such as Power meter/Elevator/Medical instrument/Control box/Home electrical appliance/welding helmet/3D and Sunglasses etc.
form the year of 2015, we expand our production linnes from Mono color type LCD to TFT LCD/OLED display/E-ink display and touch panels.
Our production lines covers TN/HTN/STN/FSTN/ASTN/VA type LCD panels and some high tech displays like Field telescope/Light Shutter LCD panels, besides, we have wide range of LCD modules production lines including SMT/COB/COG/COF/TAB process.
Our customers products covers most of the industrial and consumer applications such as Power meter/Elevator/Medical instrument/Control box/Home electrical appliance/welding helmet/3D and Sunglasses etc.
form the year of 2015, we expand our production linnes from Mono color type LCD to TFT LCD/OLED display/E-ink display and touch panels.
