Stainless steel single lenticular wine beer depth water multi stage filtration filter cartridge housing

Side Entry Bag Filter

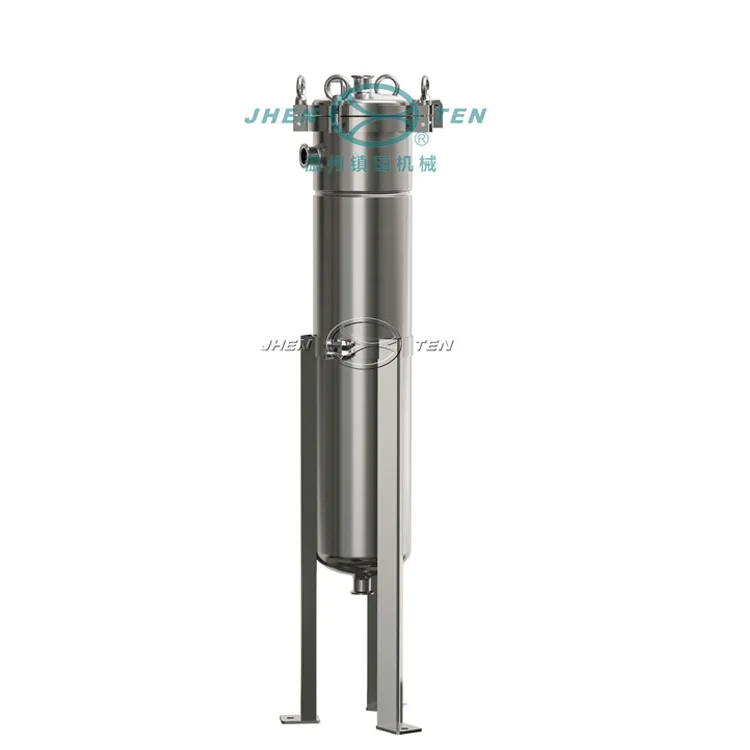

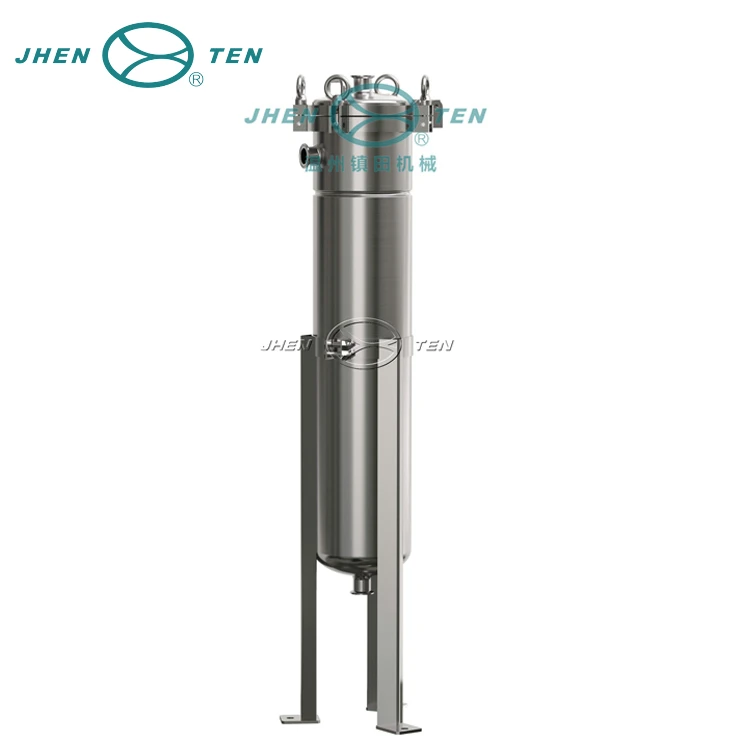

• JTGCD Side-entry bag filter with single filter bag is for some coarse filtration and pre-filtration process.
• Side entry structure is a economical and reasonable design which can effectively save space of the filter.
• Pressure ring and the spring ensure good seal between the filter and the filter bag.
• With adjustable legs, the installation size can be adjusted according to the requirements of the particular spot.



	Operating Conditions
	Max. operating pressure	0.6MPa  1.0MPa
	Max. operating temperture	150℃
	Material
	Shell	304, 316L
	Eyebolt	304
	Stabilizer blade	304
	O-ring	EPDM, PTFE Viton, Silicone
	Connection
	Connection of shell	Tri-clamp, Flange
	N1, N2 In- outlet	Flange, Tri-clamp, Thread
	N3 Pressure gauge(option)	1.5″Tri-clamp (1#bag/2#abg) M14*1.5Female thread (3#bag/4#bag)
	N4vent valve(option)	1/4″Male thread
	Surface Finish
	Finish type	Mechanical / electrolytic polishing, sand blasting
	Polishing precision	0.6um Inner surface Ra≤0.6um 0.8um Outside surface Ra≤08 m 0.6um Basket 0.6um



Dimension Parameters

	Molded Cover		Cover
	1#bag	2#bag	3#bag	4#bag
A: Total height	990	1365	525	635
B: The distance from inlet to center	147		92
C: Shell diameter	Φ204	Φ204	Φ114	Φ114
D1: The height from inlet to groundThe height from inlet to ground	835	1205	445	555
D2: The height from outlet to ground	250		300
In-outlet N1, N2 Size	1.5″ or 2″		1″ or 1.5″
E: Stabilizer blade	500	800	300	400
Max flow m³/h	20	40	6	12

The above-mentioned data is the standard, it can customize according tocustomers requirements.



Qty. of Bag Filter	Model of Bag Filter	Shell Material	In-outlet connection	O-ring
1PC	2S	4	F	E
	1S=1#bag Φ180*430	4=304	F=Flange	EPDM
	2S=2#bag Φ180*810	6=316L	K=Tri-clamp	PTFE
	3S=3#bag Φ105*230		L=Thread	Viton
	4S=4#bag Φ105*380			Silicone
