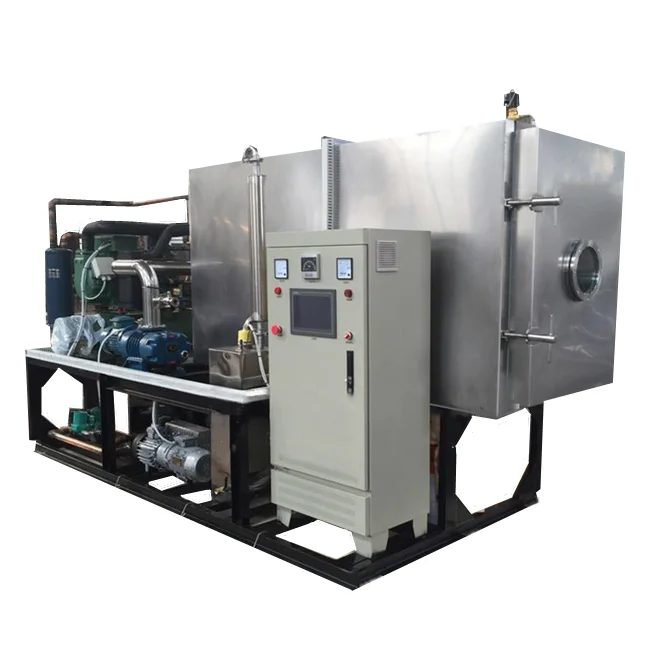

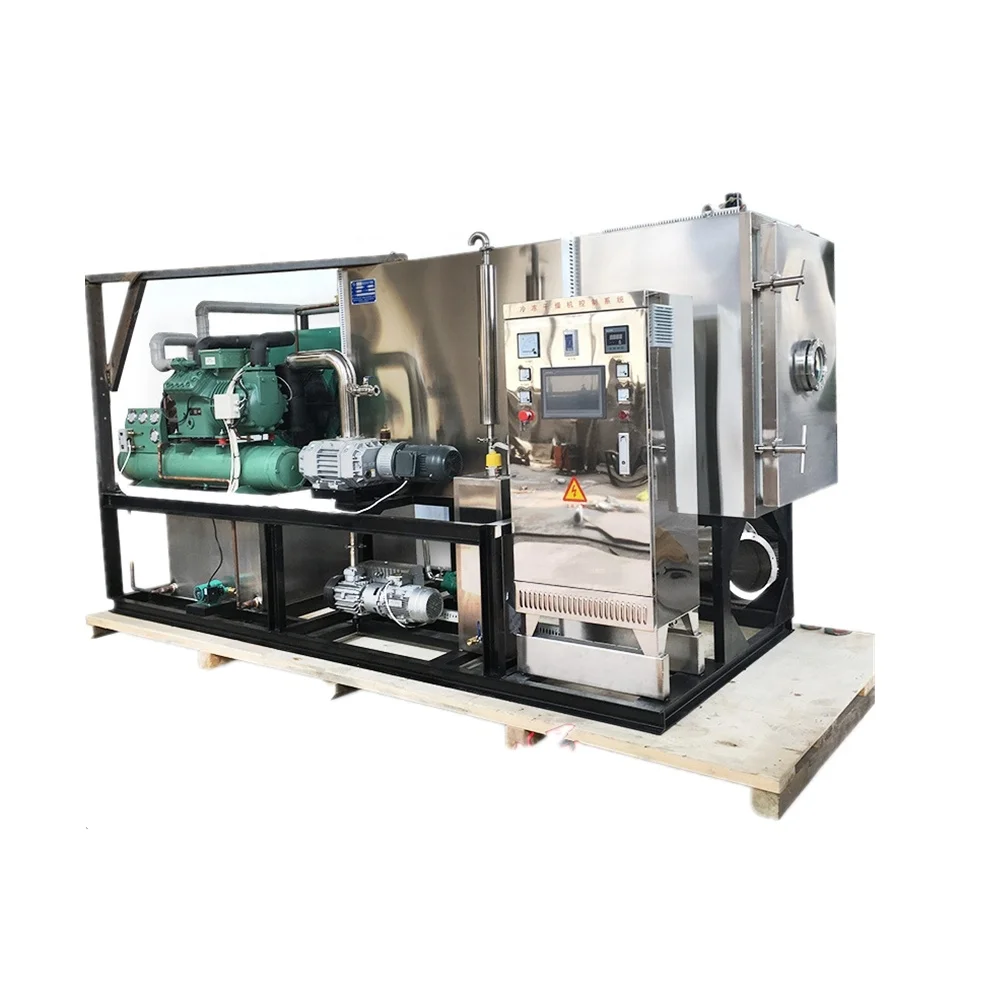

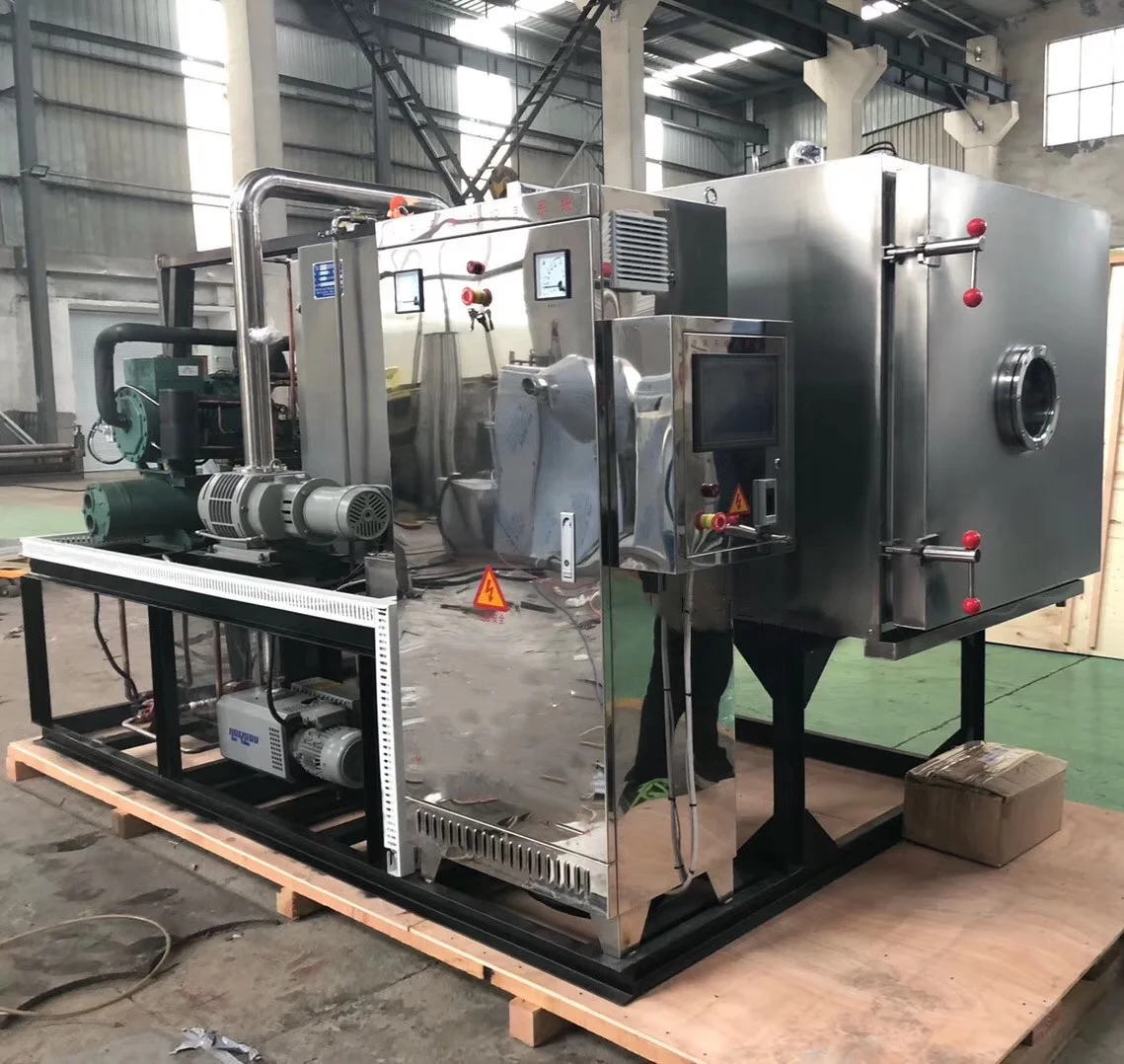

Коммерческий 10 квадратных метров емкость Манго Сублимационной сушилки личи фрукты лиофилизатор Лонган Вакуумная
- Категория: Freeze Drying Equipment >>>
- Поставщик: Henan,Workers,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 65450.63 $* | 68723.85 $* |
| Aug-17-2025 | 64900.47 $* | 68145.60 $* |
| Jul-17-2025 | 54450.97 $* | 57173.62 $* |
| Jun-17-2025 | 63800.98 $* | 66990.76 $* |
| May-17-2025 | 55550.94 $* | 58328.7 $* |
| Apr-17-2025 | 62700.0 $* | 65835.78 $* |
| Mar-17-2025 | 62150.14 $* | 65258.83 $* |
| Feb-17-2025 | 61600.51 $* | 64680.93 $* |
| Jan-17-2025 | 61050.59 $* | 64103.63 $* |
Характеристики
Product Description
Commercial Food Tray Drying Oven Machine Hot Air Circulating Stainless Steel Fruit Dryer In Stock
Hot air circulating drying oven applies a low-noise and high temperature-proof axial flow blower and an automatic temperature control system which is fully sealed, making that the heat efficiency of the drying oven increases from 3-7% of traditional oven to 35-45% of the present one, the highest heat efficiency can reach 50%. WKS series special drying oven adopts the axial flow fan, with automatic constant temperature control system. Its thermal efficiency is more than 95%, which uses electricity as heating source and adopts convective heat transfer method to heat the air by axial flow fan and heat exchanger . Fresh air from the air inlet supplement, waste damp is out from the dehumidification system. Constantly add fresh air and discharge damp to keep the correct relative humidity in the oven. The biggest characteristic of this series of drying oven is that most hot air is cycling in the cabinet, the entire cycle is closed, so as to enhance the heat transfer, saving the energy.
Main features
1. Most of hot air inside the loop, high thermal efficiency, energy conservation
2. The use of forced ventilation box with adjustable air divider plate, uniform drying, heat source can be steam, oil, electricity, hot water, far infrared and so on
3. Small machine noise, running balance, temperature automatically controlled, easy installation and maintenance
4. Applicable to a wide range, can be used for drying various materials and is a versatile drying equipment
2. The use of forced ventilation box with adjustable air divider plate, uniform drying, heat source can be steam, oil, electricity, hot water, far infrared and so on
3. Small machine noise, running balance, temperature automatically controlled, easy installation and maintenance
4. Applicable to a wide range, can be used for drying various materials and is a versatile drying equipment
-Power: 0.45kw
-Material: Aluminum alloy casting
-Speed: 2800r/min
-Air flow:3000m³/hour
-The fan has the feature of high temperature resistance, corrosion resistance, low noise, low power and large air flow.
The oven's default heat source is electricity, using a W-shaped stainless steel electric heating tube. Also according to customer requirements to use gas, LPG, oil, steam, coal, wood and other biomass particles as heat source..
-Double-sided stainless steel plate
-Reinforced rib
-Insulation rock wool with thickness of 80mm
-Resistant to 150 ℃
-Closed cabinet
In order to ensure uniform temperature in the oven, there are hot air circulation ducts of 300-500mm on the left and right sides and the top of the oven. The air ducts on the left and right sides are provided with adjustable air distribution plates, and the height of the hot air outlet can be manually adjusted to ensure that the hot air flows in parallel in the oven.
There is a temperature detection head inside the oven and it is connected to the control system.
There is a temperature detection head inside the oven and it is connected to the control system.
-Push-button electric control cabinet
-304 stainless steel control cabinet
-CHINT Electric Components
-Temperature Controller
-Customizable control panel language
-304 stainless steel control cabinet
-CHINT Electric Components
-Temperature Controller
-Customizable control panel language
-PLC control system provided
TROLLEY
-Made of 304 stainless steel-Dimensions: 750*900*1300mmm
-Shelf number: 12 shelves
-Shelf spacing:100mm
-Loading capacity: 24 trays
-Customized
-Made of 304 stainless steel
-Dimensions: 460*640*45mm
-Loading capacity: 2-5kg/pcs
-Three specifications tray to choose from
-mesh tray
-solid flat tray
-perforated tray
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our drying oven can be customerized. Before we can provide you with detailed quotation, we have to know the following information:
1) What are you going to dry?
2) Moisture content of before drying and dried product
3) Process capacity in kg/batch
4) What heat source you plan to use?electric, gas or other?
Q: How the dryer will be delivered ?
A: The drying oven is packed in wood box for shipping
Q: What standard models do you have?
A: We have the following standard models:
A: Our drying oven can be customerized. Before we can provide you with detailed quotation, we have to know the following information:
1) What are you going to dry?
2) Moisture content of before drying and dried product
3) Process capacity in kg/batch
4) What heat source you plan to use?electric, gas or other?
Q: How the dryer will be delivered ?
A: The drying oven is packed in wood box for shipping
Q: What standard models do you have?
A: We have the following standard models:
Model | WKS-1 | WKS-2 | WKS-3 | WKS-4 | WKS-5 | ||||
Power | 9kw | 15kw | 30kw | 45kw | 60kw | ||||
Capacity | 60-120kg | 120-240kg | 240-480kg | 360-600kg | 480-960kg | ||||
Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | ||||
Tray size | 460*640*45mm | ||||||||
QTY. of tray | 24 | 48 | 96 | 144 | 196 | ||||
Trolley size | 750*900*1300mm | ||||||||
QTY. of trolley | 1 | 2 | 4 | 6 | 8 | ||||
Dimensions | 1400*1200*2000 | 1400*1200*2000 | 2300*2200*2000 | 2300*2200*2000 | 5000*2300*2100 | ||||
Weight | 400kg | 600kg | 900kg | 1200kg | 2000kg | ||||
Application
Widely used for heating, solidification and dehydration of pharmacy, chemical, food, light industry, heavy industry materials and products, such as raw material medicine, medicine, Chinese Herbal Medicine, powders, granules, pill bottles, pigments, dyes, dehydrated vegetables, dried fruit, sausages, plastic resin, electric elements, drying varnish and so on.
Packaging & Shipping
Packaging: wooden case (fumigation free) or as per customers' requirements
Shipping: within 5 to 7 working days after receiving the balance payment
Shipping: within 5 to 7 working days after receiving the balance payment
