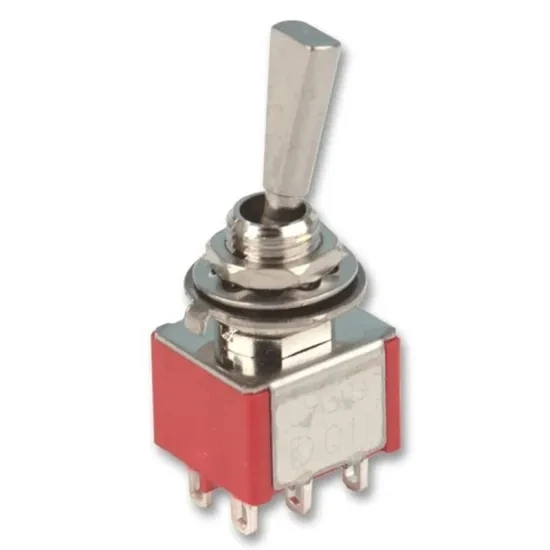

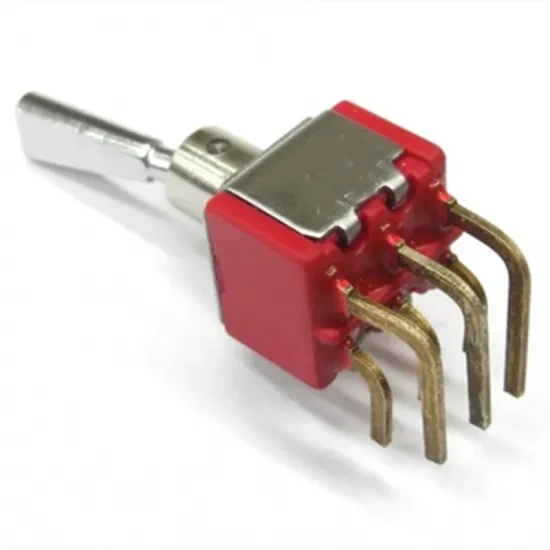

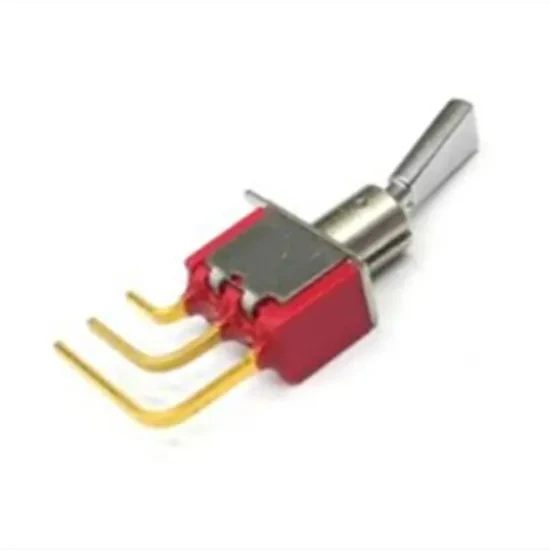

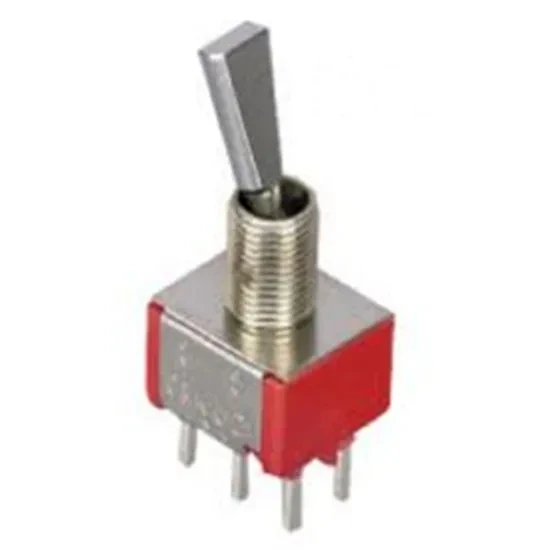

Двухполюсный (DPDT) переключатель плоский полированный хромированный
- Категория: Toggle Switches >>>
- Поставщик: Dongguan,Dason,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.97 $* | 0.61 $* |
| Aug-16-2025 | 0.44 $* | 0.61 $* |
| Jul-16-2025 | 0.0 $* | 0.51 $* |
| Jun-16-2025 | 0.82 $* | 0.4 $* |
| May-16-2025 | 0.78 $* | 0.40 $* |
| Apr-16-2025 | 0.12 $* | 0.91 $* |
| Mar-16-2025 | 0.30 $* | 0.93 $* |
| Feb-16-2025 | 0.89 $* | 0.35 $* |
| Jan-16-2025 | 0.91 $* | 0.93 $* |
Характеристики
Basic Info.
Structure
Amplifier Built-in Type
Usage
Control Button, Start Button, Reset Button
Kind
Double-pole on-off Switch
Contact Type
Solder, PC Pin, Quick Connect
Detection Method
Correlation Type
Brand
Cn
Certification
ISO9001, UL
Mechanical Life
40, 000 Make and Break Cycles
Operating Temperature
-40 to 85c
Contact Material
Copper Alloy, Silver or Gold Plated
Transport Package
1000PCS/Box
Specification
28*30*30cm
Origin
China
HS Code
85365000
2Specification for DPDT Toggle switches
| Mechanical life | 40,000 make-and-break cycles |
| Insulation resistance | 1,000MΩ min. |
| Dielectric strength | 1,000 Vrms min.@sea level |
| Operating temperature | -40ºC to 85 ºC |
| Contact Resistance | 100mA for both silver and gold plated contacts |
3Material for DPDT Toggle switches
| Case | Diallyl phthalate |
| Actuator | Brass, chrome plated |
| Bushing | Brass, nickel plated |
| Housing | stainless steel |
| Switch support | Brass, tin plated |
| Contact/terminals | copper alloy, silver or gold plated |
Dimension of DPDT Toggle switches
