Высокоточный Китайский ЧПУ v-образный пазовый станок для резки листового
- Категория: CNC Grooving Machine >>>
- Поставщик: Maanshan,Runguang,CNC,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 32130.35 $* | 33737.70 $* |
| Aug-17-2025 | 31860.3 $* | 33453.91 $* |
| Jul-17-2025 | 26730.6 $* | 28067.87 $* |
| Jun-17-2025 | 31320.3 $* | 32886.0 $* |
| May-17-2025 | 27270.97 $* | 28634.56 $* |
| Apr-17-2025 | 30780.86 $* | 32319.42 $* |
| Mar-17-2025 | 30510.72 $* | 32036.46 $* |
| Feb-17-2025 | 30240.99 $* | 31752.8 $* |
| Jan-17-2025 | 29970.24 $* | 31469.51 $* |
Характеристики
Product Description
Machine’s features:
1. CNC Hydraulic V-Grooving Machine no relative movement between table and sheet during process, so there won't be friction surface with working table and scratched surface.
2. CNC Hydraulic V-Grooving Machine only need cleaning the sheet metal, after processing is completed.
3. CNC Hydraulic V-Grooving Machine's big table, lateral foot and sheet top movable clamper design made this machine has fast cutting speed.
4.Whole table frame structure, ensures that the overall good rigidity, no deformation for future use.
5. AC frequency cutting speed adjustable ensure cutting process is stable, high efficiency and good cutting surface.
6. CNC system, From Taiwan Yitu company , stable and reliable.
7. Sheet clamp Unit: With lateral foot and sheet top movable clamper, hydraulic type.
8. South Korea brand alloy knife head, by three the alloy knife and processing.
1. CNC Hydraulic V-Grooving Machine no relative movement between table and sheet during process, so there won't be friction surface with working table and scratched surface.
2. CNC Hydraulic V-Grooving Machine only need cleaning the sheet metal, after processing is completed.
3. CNC Hydraulic V-Grooving Machine's big table, lateral foot and sheet top movable clamper design made this machine has fast cutting speed.
4.Whole table frame structure, ensures that the overall good rigidity, no deformation for future use.
5. AC frequency cutting speed adjustable ensure cutting process is stable, high efficiency and good cutting surface.
6. CNC system, From Taiwan Yitu company , stable and reliable.
7. Sheet clamp Unit: With lateral foot and sheet top movable clamper, hydraulic type.
8. South Korea brand alloy knife head, by three the alloy knife and processing.
TAlWAN HUST CNC SYSTEM
Simple operation, touch mode, parameter setting,position control.
Fixed point planing Automatic grooving
High integration of machine tools accurate control of cutting quality, precion machineing

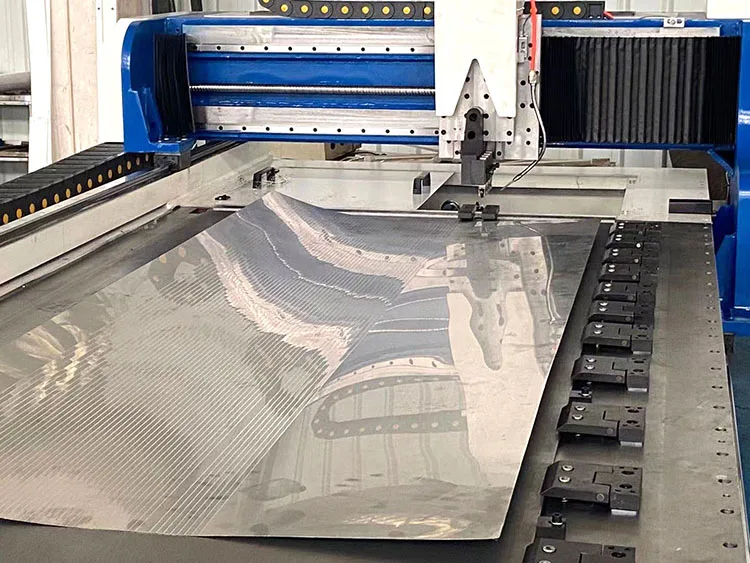

BALL SCREW AND LINEAR GUIDE
Eauipped with ball screw and
precision of repeated position- ing. Precision helical gear, rack naccuracy, long service life
precision of repeated position- ing. Precision helical gear, rack naccuracy, long service life
Pneumatic Material FeedingClamp

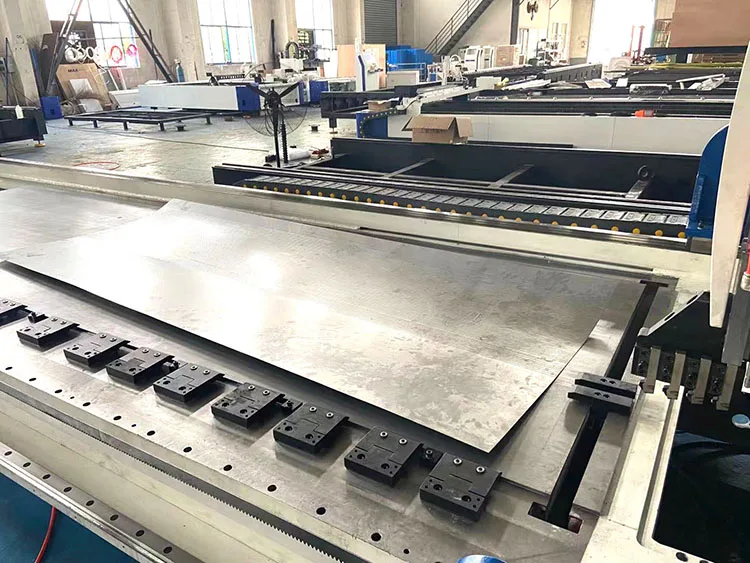

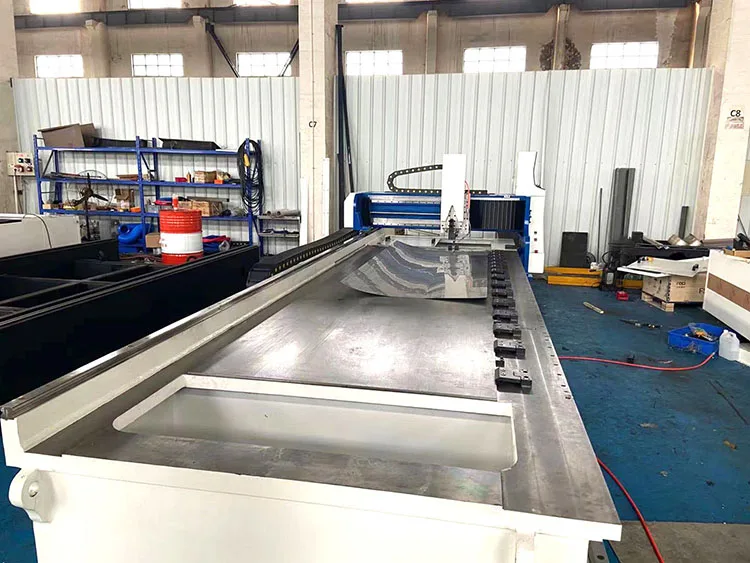

FULLY SELF PLANING TABLE, HIGH-SPEED SLIDING TOOL REST
Fully self planing table,high flatness, overall stress relief, good rigidity, strong and durable.The clamping is fim and fast.High speed sliding tool holder,four sets of blade planig efficiencv is high.
ACCURATE POSITIONING AND HIGH MACHINING ACCURACY
Easy to operate,flexible in action, fas in speed, high in efficiency and low in noise
Specification
rooving Plate Width | 1250mm | 1250mm | 1250mm | 1250mm |
Grooving Plate Length | 3200mm | 4000mm | 5000mm | 6000mm |
Grooving Plate Thickness | 0.50-4.00mm | 0.50-4.00mm | 0.50-4.00mm | 0.50-4.00mm |
V-Groove Margin | 6-8mm | 6-8mm | 6-8mm | 6-8mm |
X-axis Max moving Speed | 70m/min | 70m/min | 70m/min | 70m/min |
X-axis Max. Return Speed | 80m/min | 80m/min | 80m/min | 80m/min |
Y-axis Max Moving Speed | 20m/min | 20m/min | 20m/min | 20m/min |
Y.Z-axes Repositioning Accuracy | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
X-axis Motor power | 5.5KW | 5.5KW | 5.5KW | 5.5KW |
Y.Z-axes Motor Power | 1KW | 1KW | 1KW | 1KW |
Dimension (mm) | 5250x2300x1560 | 6050x2300x1560 | 7050x2300x1560 | 8050x2300x1560 |
Weight | 8T | 8.5T | 9T | 11T |
Company Profile
The company specializes in the production of various sheet metal equipment such as Press brake, shearing machine, v grooving machine, roll machine and other sheet metal equipment. Since the beginning of our establishment, we have established the business philosophy of "being first, doing things later, honesty and trustworthiness", and the business tenet of "meeting customer needs, thinking about customers, and satisfying customers" to meet the ever-increasing needs of customers. After years of development, we have achieved economic benefits and spiritual civilization. At present, we have formed a good business relationship with many surrounding customers for many years. Quality is the life of a brand, and service is the capital of brand transmission. We will work hard for the take-off of Runguang with first-class service, excellent quality, full work enthusiasm, and positive and serious work attitude!
Product packaging
Our service
FAQ
Q.How to confirm the Machine Model?
A:You can tell us the material ,max thickness and width of your plate.We will recommend the suitable model to you .
Q. How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q.What is the payment term?
A:T/T (30% advance payment, and 70% balance paid one week before shipment)
L/C (100% L/C at sight), this should be negotiated first.
Q.Will you show me how to install the machine?
A:Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas.
Q. After I buy the machine, what will you do if I don't know some of the function?
A: We will show you how to use the machine perfectly. Technical support and the video is available.
Q. What can I do if the machine troubled after I buy it?
A:We provide completely after sales service, and our engineers are available to service machinery overseas.
A:You can tell us the material ,max thickness and width of your plate.We will recommend the suitable model to you .
Q. How can I get a quotation?
A: Pls tell us the machine you need, including quantity, raw materials and other requirements.
Q.What is the payment term?
A:T/T (30% advance payment, and 70% balance paid one week before shipment)
L/C (100% L/C at sight), this should be negotiated first.
Q.Will you show me how to install the machine?
A:Certainly, we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to service machinery overseas.
Q. After I buy the machine, what will you do if I don't know some of the function?
A: We will show you how to use the machine perfectly. Technical support and the video is available.
Q. What can I do if the machine troubled after I buy it?
A:We provide completely after sales service, and our engineers are available to service machinery overseas.
