5V12V24V optional

The multi-function relay control module is specially designed for users with many different needs. It adopts a microcontroller as the main control unit and presets 32 kinds of functions, and users can use corresponding specific functions according to actual needs. It can be applied to water pump control, motor control, lamp strip control, solenoid valve control, etc.

1. New upgrade, the module function is increased to 32 kinds, to meet more application needs.

2. The power supply anti-reverse function will not damage the module due to wrong power supply.

3. Timing accuracy to 0.01 seconds timing. 0.1 seconds (minimum) ~ 999 minutes (maximum) optional

4. Low power consumption power saving setting, you can turn off the display area.

Product parameters:

Product Name: Multi-function time delay relay

Relay V number: DC5V/12V/24V optional

Input voltage: 5V version: DC5V power supply; 12V version: DC12V power supply; 24V version: DC24V power supply

Output load: within 30V DC, maximum 10A. Within 250V, maximum 5A.

Trigger signal: 5V version (high level: 5V); 12V version (high level: 12V), 24V version (high level: 24V) The low level is 0V.

Quiescent current: 20mA

Working current: 60mA

Working temperature: -25℃-85℃

Power-off memory: Yes

Product weight: ≈26g,

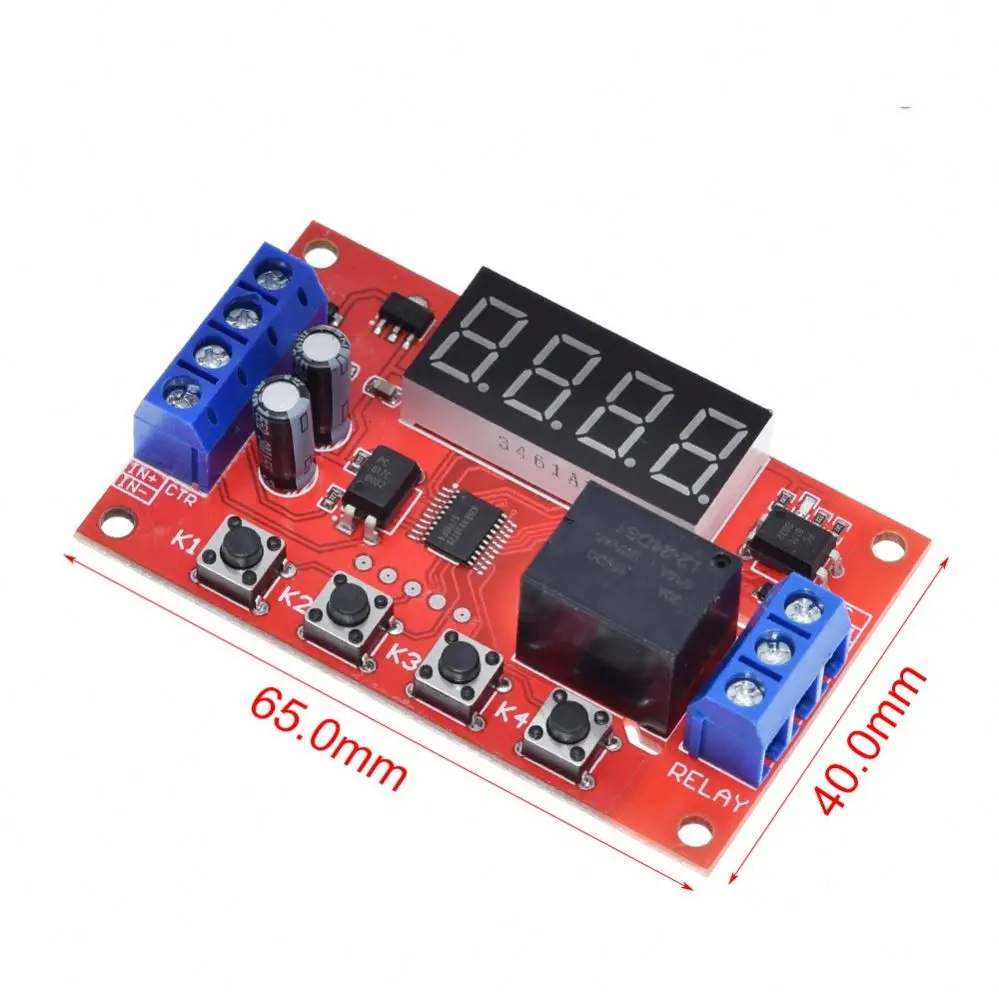

product size: 65* 34.3 * 17.5 (MM L*W*H)

The manual measurement is for reference only, the actual size is subject to the actual product

Precautions:

1. Please select the required V number version (according to the above relay identification difference, the relay is 5V instant 5V version) to avoid wrong purchase.

2. The relay output is a passive contact, without current output, to control the on-off function of a line.

3. Please input the trigger voltage strictly according to the selected version
