Product Description

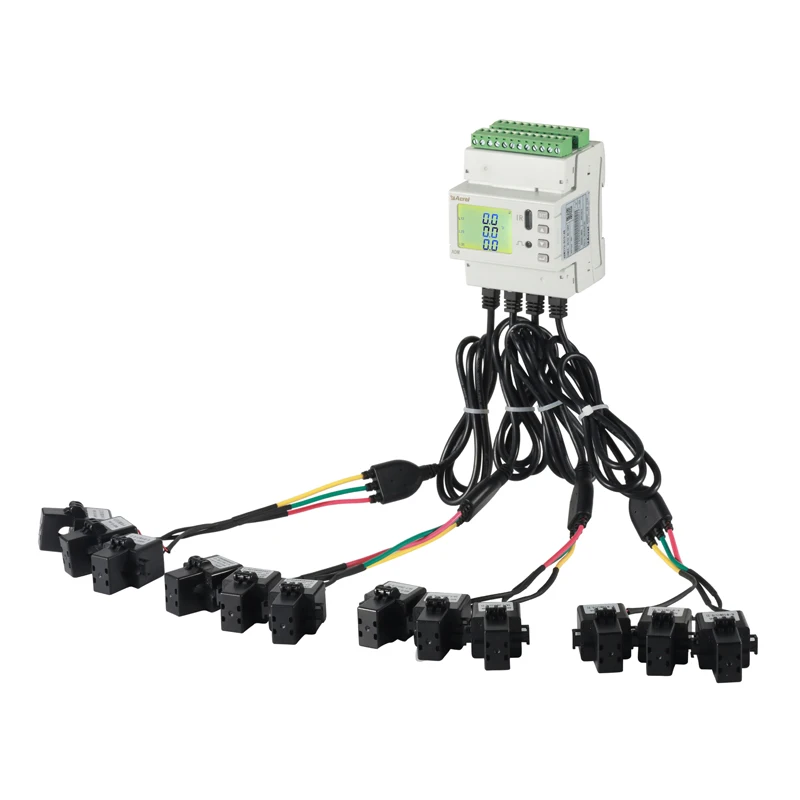

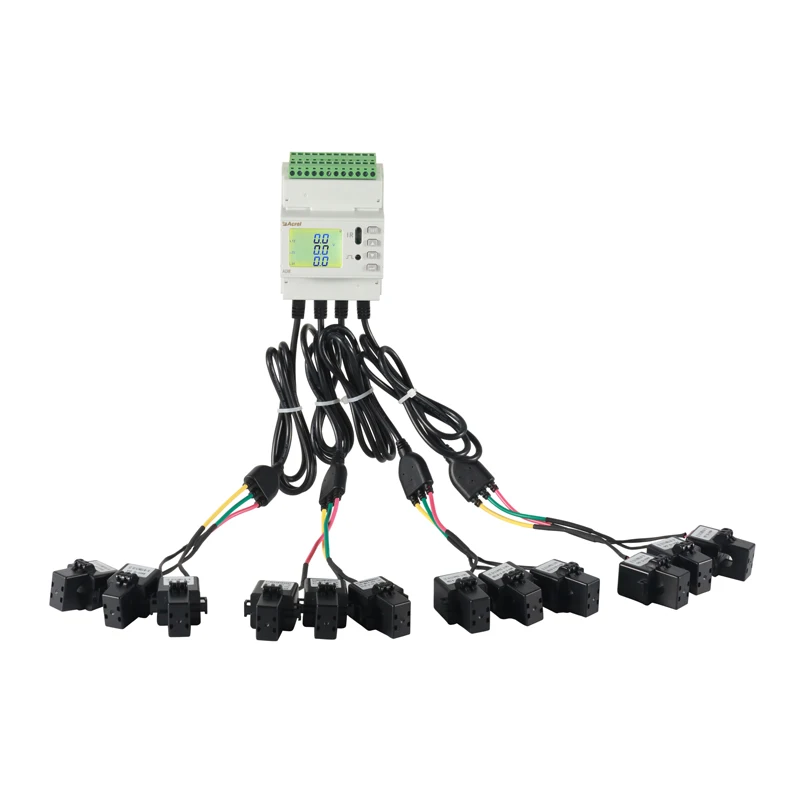

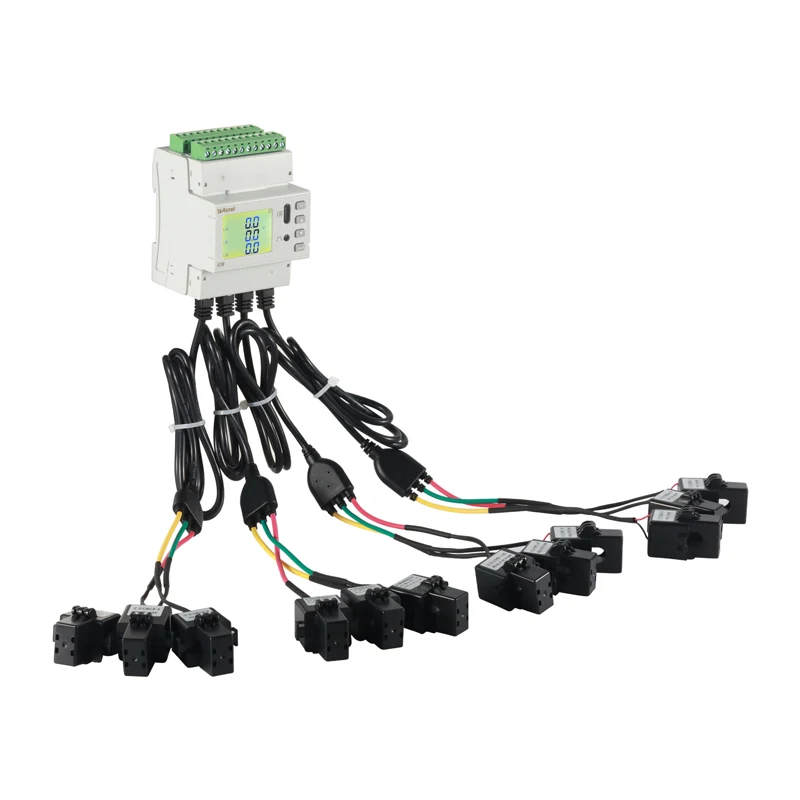

ADW210 Series Multi-Loop Power Meter
ADW210 series rail type multiloop power meters are mainly used for measuring the full electric parameters of multiple three-phase circuits. Up to four three-phase loop current inputs can be connected simultaneously. It can measure voltage and current, power,power factor, phase angle,unbalance, harmonic and other parameters.
* Full electric parameter measurement of N(1,2,3,4) three phase circuit, external current transformer
* Monitoring three phase voltage, current, zero current, frequency, power factor, harmonic
* 200 event records,record the action of DIDO
* Support over-voltage,over-current,phase failure,DI linkage and other alarm output
* 4 time zones14 periods rate setting
* Monitoring three phase voltage, current, zero current, frequency, power factor, harmonic
* 200 event records,record the action of DIDO
* Support over-voltage,over-current,phase failure,DI linkage and other alarm output
* 4 time zones14 periods rate setting
For example :ADW210-D16-3S
ADW210: with button and LCD display
D16: current transformer AKH-0.66/K-Φ 16N, hole size 16mm, rated current 100A
3S:3 circuits 3 phase
Please contact us for more information!

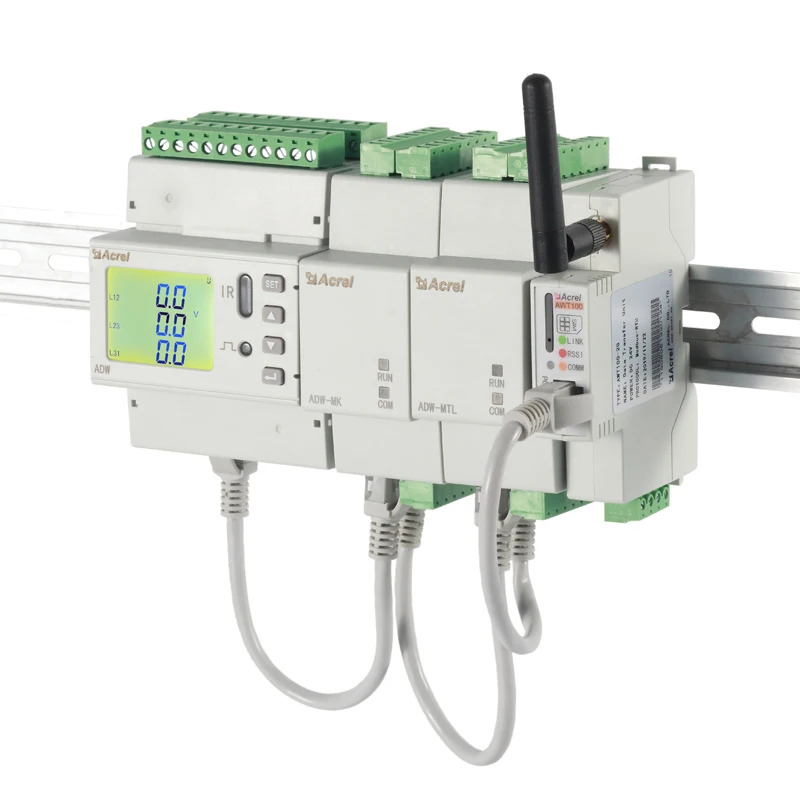

Module MK
12 channel switching inputs
4 channel switching outputs
4 channel switching outputs

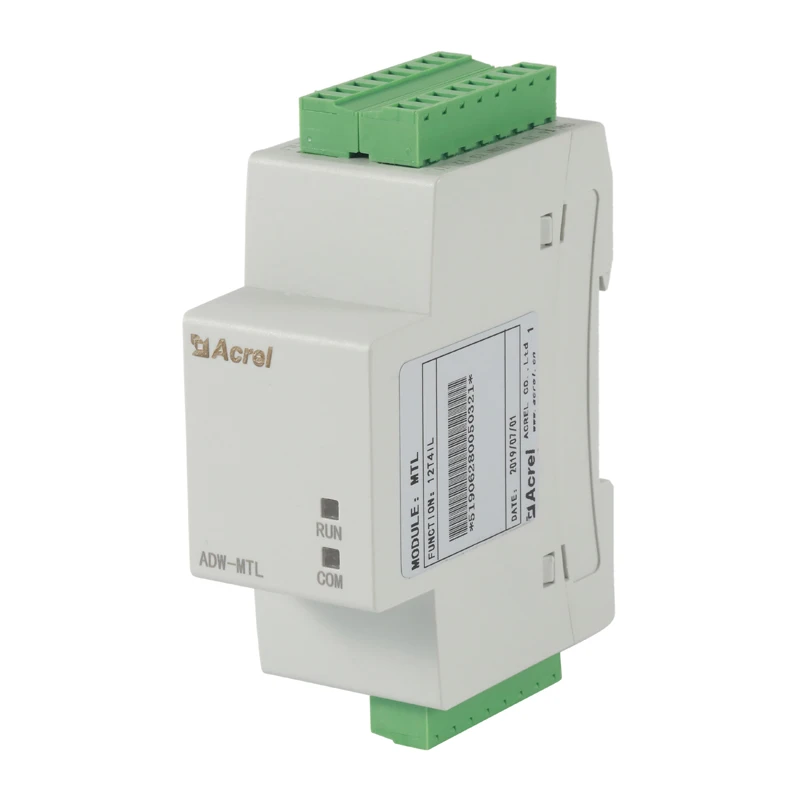

Module MTL
12 channel external NTC temperature
4 channel residual current (leakage current)measurement
4 channel residual current (leakage current)measurement
Current transformer
AKH-0.66/K-Φ 10N rated current 5A
AKH-0.66/K-Φ 16N rated current 100A
AKH-0.66/K-Φ 24N rated current 400A
AKH-0.66/K-Φ 36N rated current 600A
Residual current transformer
AKH-0.66-L45
AKH-0.66/K-Φ 16N rated current 100A
AKH-0.66/K-Φ 24N rated current 400A
AKH-0.66/K-Φ 36N rated current 600A
Residual current transformer
AKH-0.66-L45

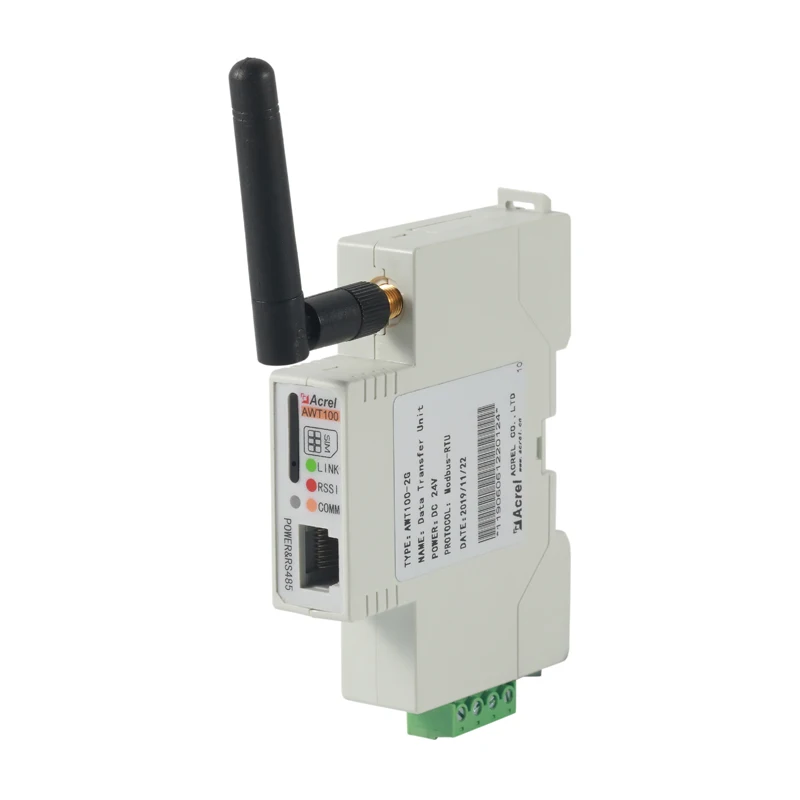

AWT100 gateway
AWT100-2G：2G wireless communication
AWT100-4G：4G wireless communication
AWT100-NB：NB-IoT wireless communication
AWT100-LoRa：LoRa wireless communication
AWT100-LW：LoRaWAN wireless communication
AWT100-4G：4G wireless communication
AWT100-NB：NB-IoT wireless communication
AWT100-LoRa：LoRa wireless communication
AWT100-LW：LoRaWAN wireless communication
Details Images
Specification
Switching module | Power | RJ45 interface,DC 12V,Power consumption≤1W |
Communication | RJ45 interface,Modbus-RTU,(Communication with the main part) | |
Switching input | Dry contact input,built in power supply | |
Switching output | Output mode:relay normally open contact output Contact rating:AC 250V/3A,DC 30V/3A | |
Temperature and leakage module | Power | RJ45 interface,DC 12V,Power consumption≤1W |
Communication | RJ45 interface,Modbus-RTU,(Communication with the main part) | |
Temperature measurement | -20~100℃ | |
Leakage measurement | 10~3000mA | |
Measurement accuracy | temperature ±2℃,leakage 1.0% |
Typical Connection
