Автоматическая система смешивания подачи HW JB120 1 2 куб. М самозагружающаяся

Автоматическая система смешивания подачи HW JB120 1 2 куб. М самозагружающаяся

Категория: Concrete Truck >>>
Поставщик: Shandong,Hengwang,Group,Co.,Ltd.

Цена:12 666,00 $ - 12 698,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	15073.24 $*	15827.40 $*
Aug-19-2025	14946.97 $*	15693.45 $*
Jul-19-2025	12539.11 $*	13166.41 $*
Jun-19-2025	14693.69 $*	15428.99 $*
May-19-2025	12793.75 $*	13433.59 $*
Apr-19-2025	14439.13 $*	15161.33 $*
Mar-19-2025	14313.80 $*	15029.52 $*
Feb-19-2025	14186.25 $*	14895.67 $*
Jan-19-2025	14059.48 $*	14762.79 $*

Характеристики

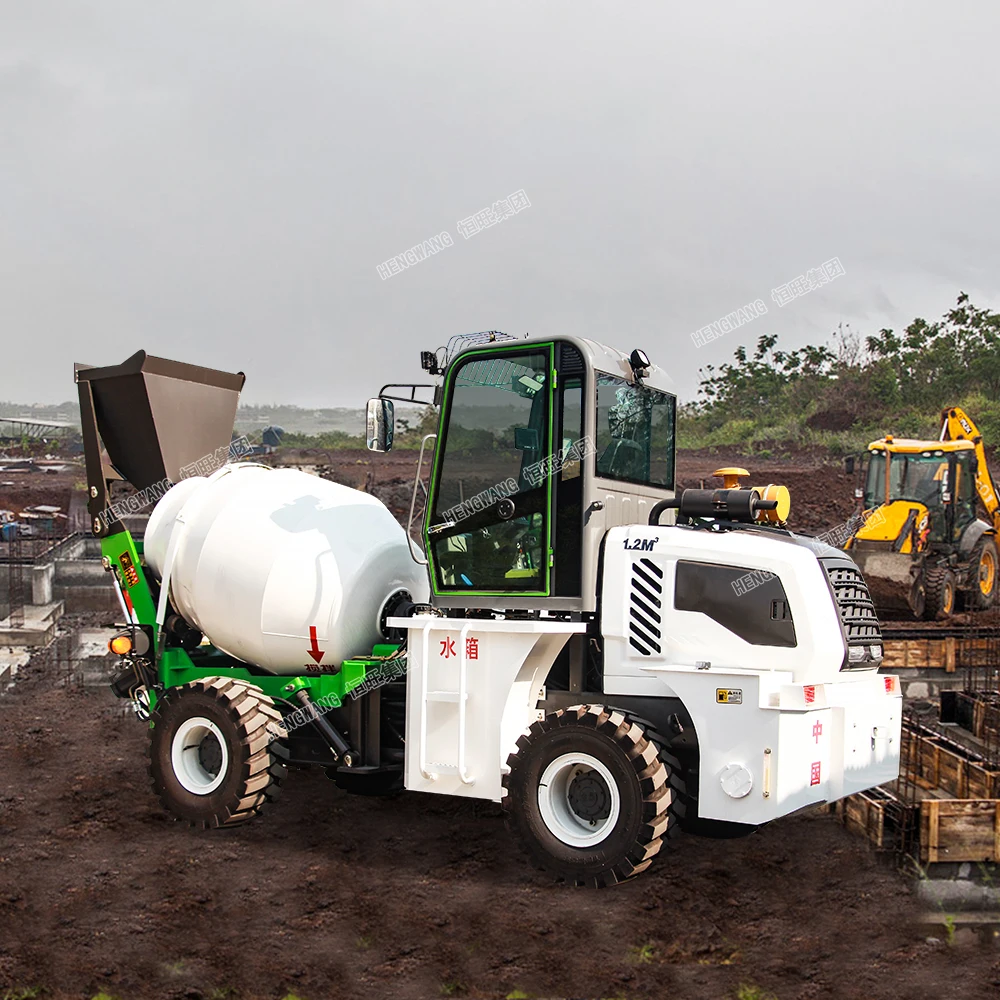

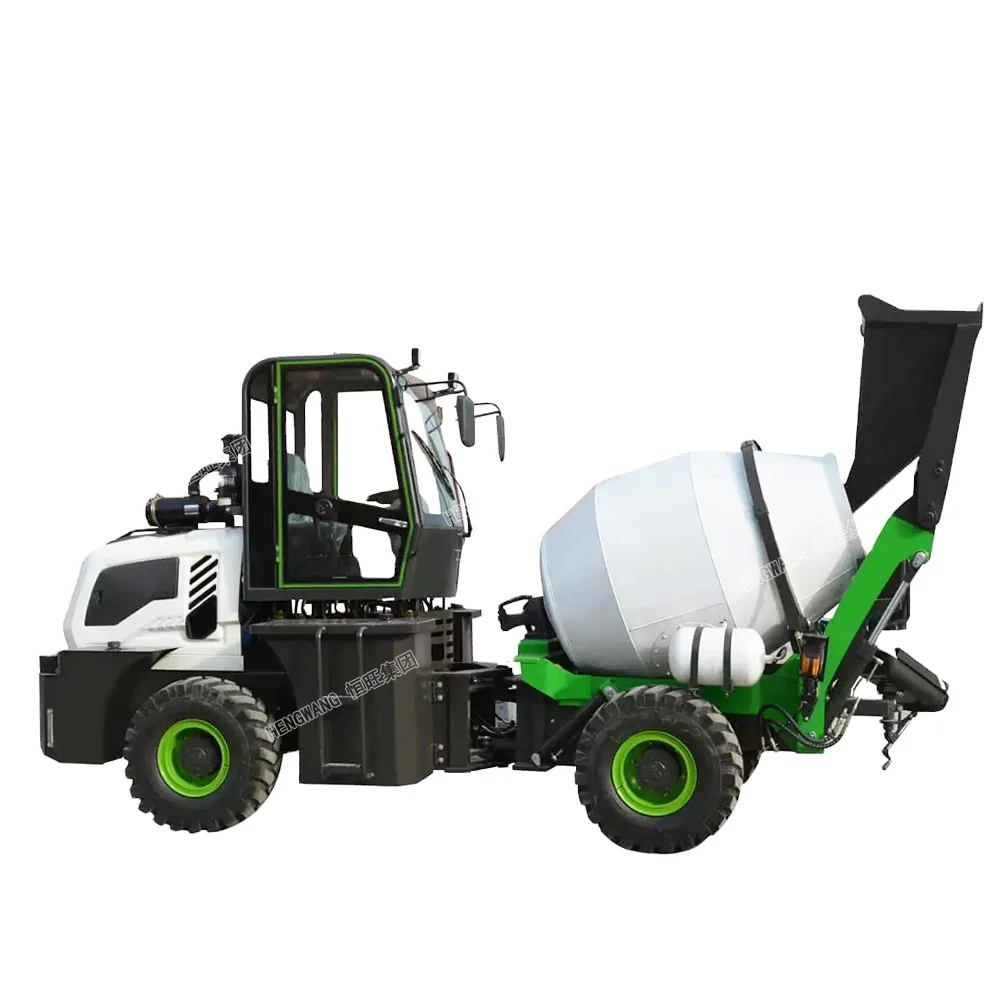

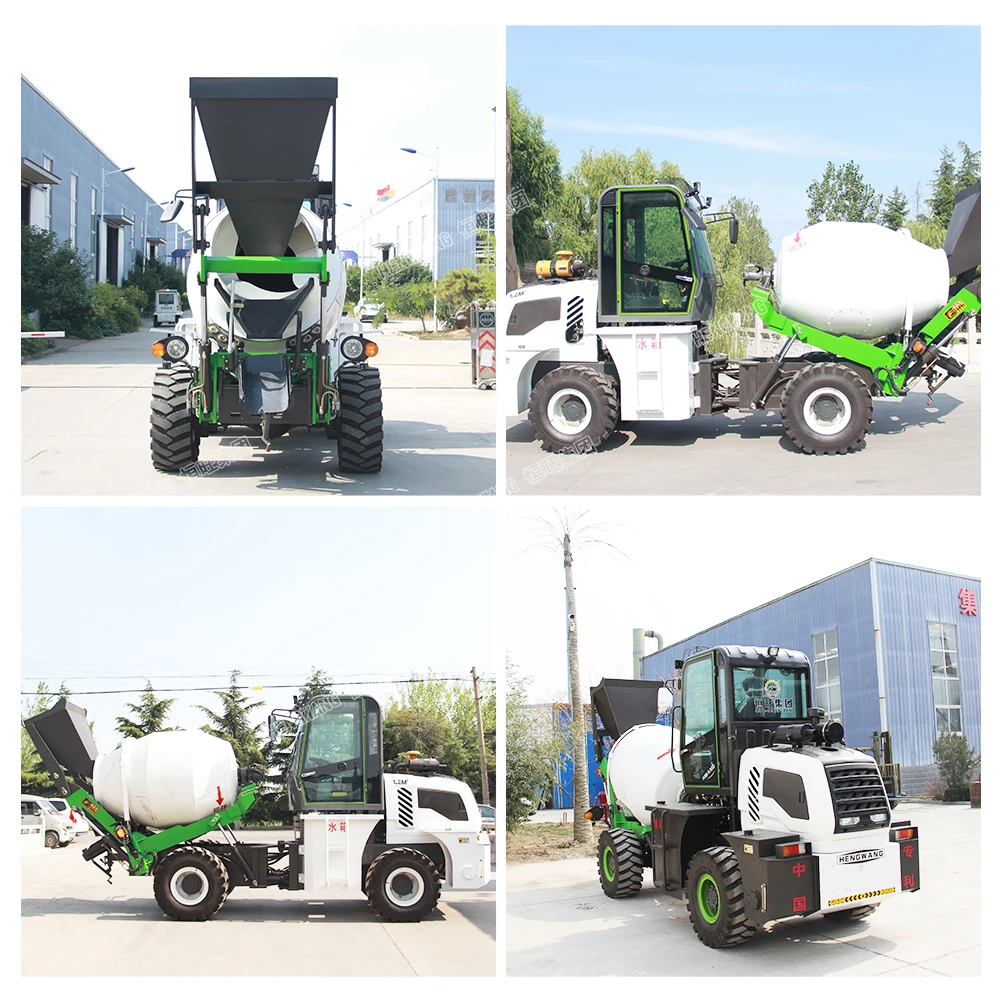

HW JB120 automatic feeding mixing system 1.2cbm mixing capacity self loading concrete mixer truck

TO Customers:

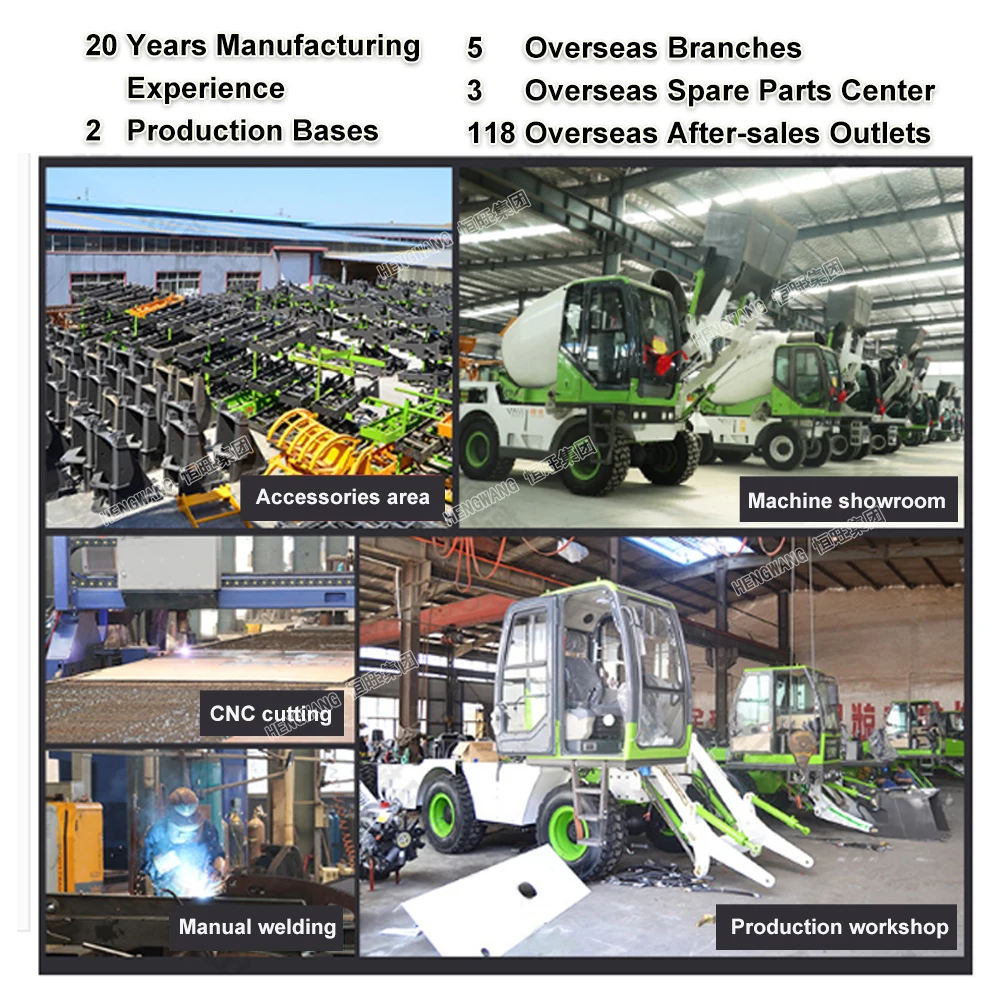

1. We are factory in Construction Machines for more than 10 years with CE, ISO, BV, TUV.

2.Machine could be equipped with EPA engine;

3.Specialized After-Sales Service Team for 24h aborad site serving;

4.3 Overseas Spare Parts Center,gurantee the sufficent spare parts locally;

5.Provide free maintenance service for up to 24 months;

6.The warranty service is extended by 1500 hours;

7.5% discount on working hours outside the warranty period;

Product Description

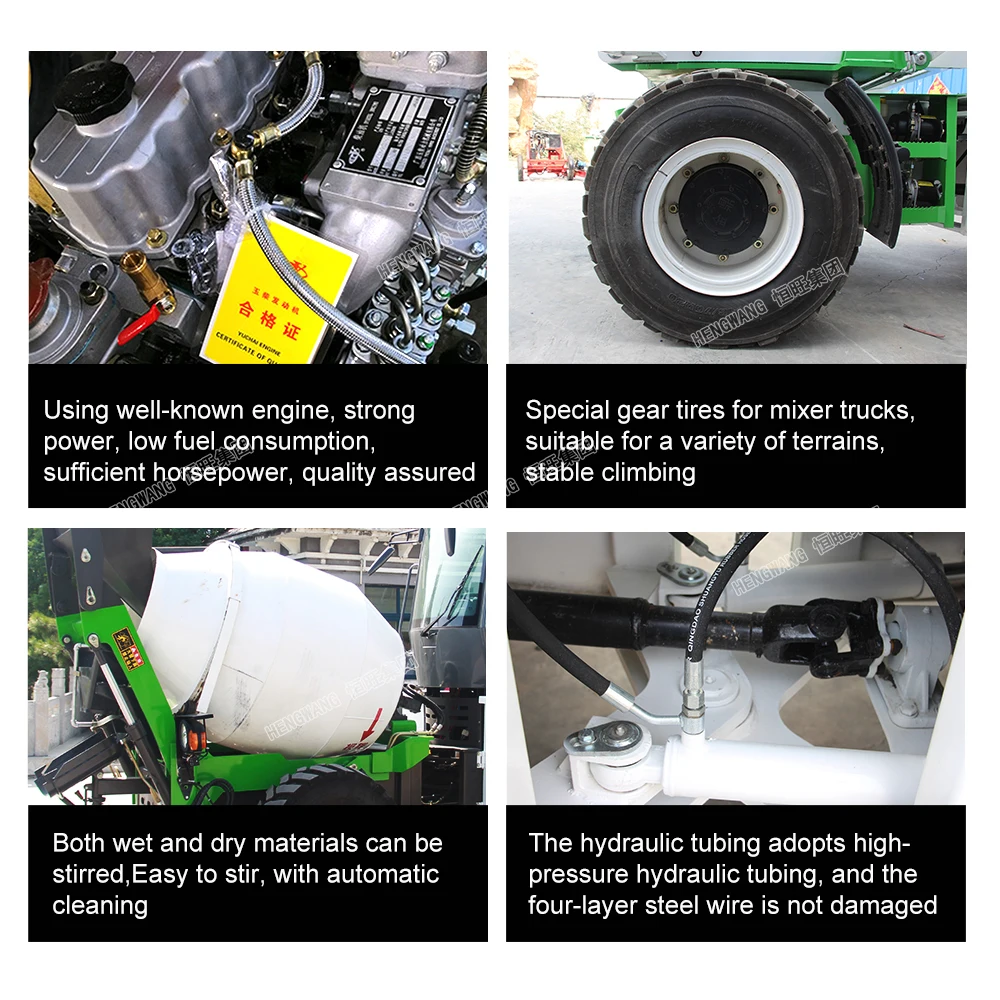

Product features:

1.Italy Leading Design，Automatic Feeding Mixing System
2.Simple And Convenient Operation
3.High Efficiency Output，Save Time And Labor，Save Cost
4.The Perfect Combination Of Mixing Truck And Loading Car

Specifications	Unit	Parameter
Model	/	HWJB120
Actual mixing capacity	m³	1.2
Rotary drum capacity	m³	1.4
Degree of bias	°	16
Rotational speed	r/min	0-14
Direction of rotation		Feed:clockwise output:counter clockwise
Mixing drum blade		Two sets of spiral blades and four sets of auxiliary blades
Slump of concrete	mm	70-260

Pump model	CBGV-4025
Hydraulic motor model	BMSS-250
Reducer ratio	01:10

Engine type / displacement	L	CF4B68G-Z-13B2/CF4C100T-Z-13B2
model		Straight injection type four stroke water cooled supercharged diesel engine
Rated power	kw/r/min	58KW/2400
Max torque	N.m/r/min	255/1500-1800 380/1500-1800
Max running speed	km/h	24
Min steering radius	mm	5000
Climbing capacity	%	26
Tire		23.5/70-16
Driving way		4×4
Weight	kg	4580
Maximum load capacity	kg	2800
Whole machinery weight	kg	7380
Overall size(LWH)	mm	610018503000
