Горячая продажа модный дизайн 3 фазы ev автомобильное зарядное устройство напольное 11 кВт 22 Тип
- Категория: Wall-mounted Charging Stations >>>
- Поставщик: Sichuan,Weiyu,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 423.43 $* | 431.31 $* |
| Jul-18-2025 | 343.98 $* | 350.79 $* |
| Jun-18-2025 | 416.64 $* | 424.64 $* |
| May-18-2025 | 413.16 $* | 421.27 $* |
| Apr-18-2025 | 330.8 $* | 337.6 $* |
| Mar-18-2025 | 406.11 $* | 414.14 $* |
| Feb-18-2025 | 403.87 $* | 411.8 $* |
| Jan-18-2025 | 400.47 $* | 408.15 $* |
Характеристики

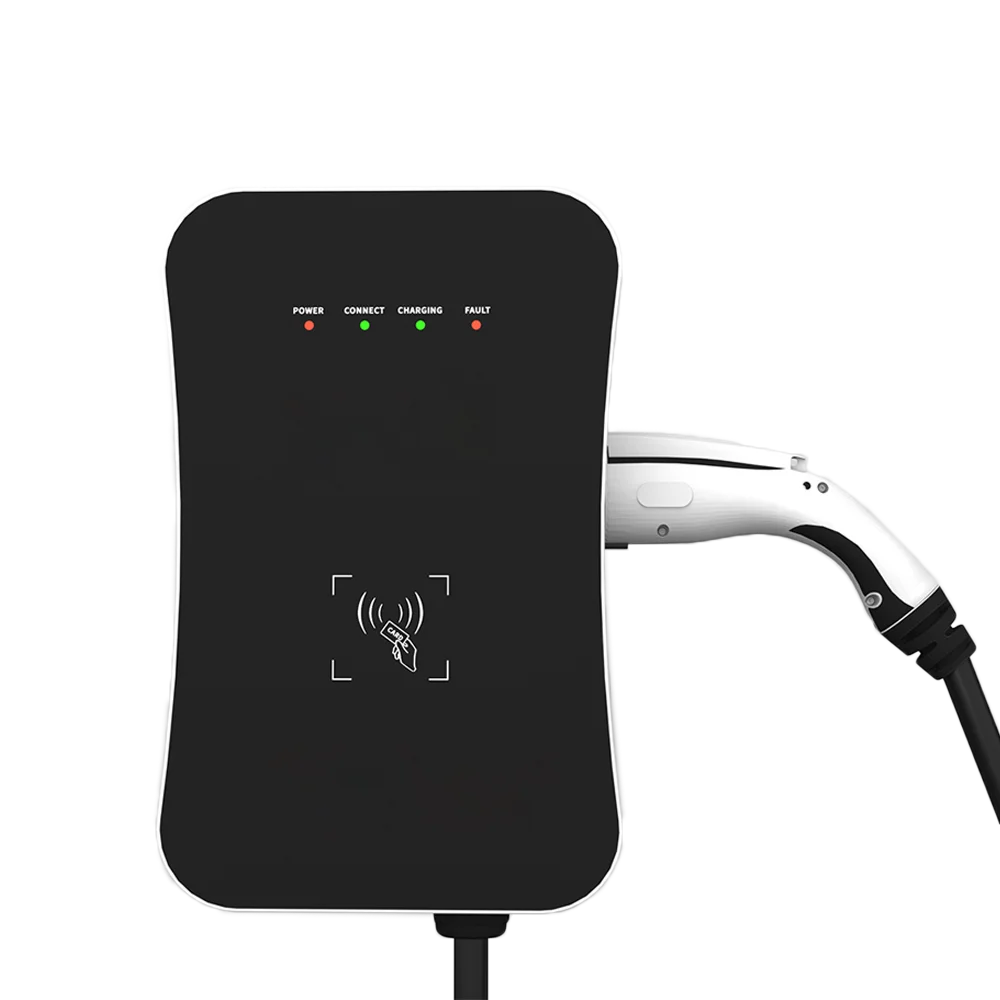

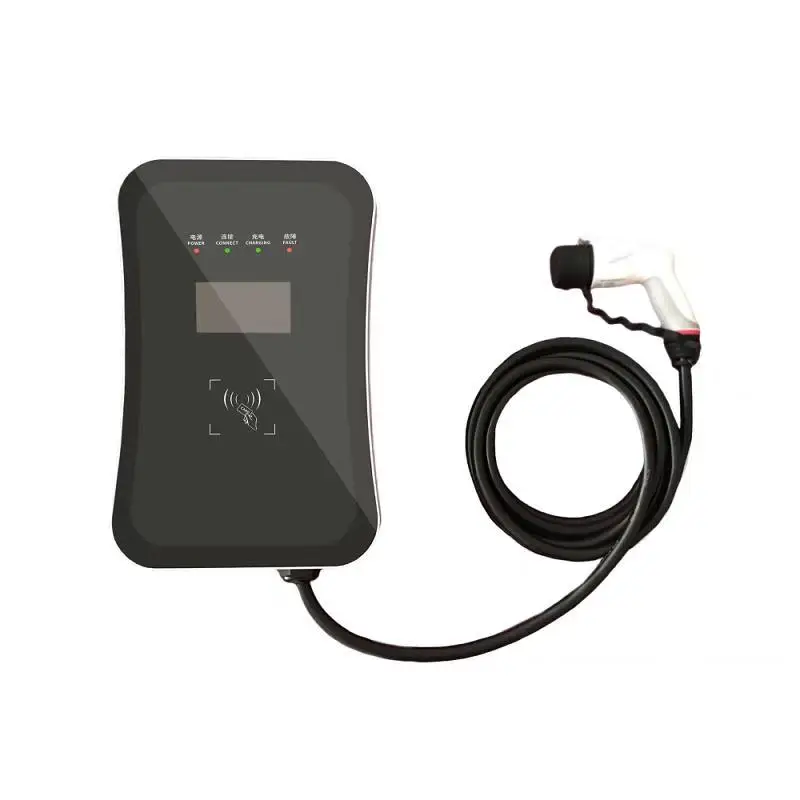

PRODUCT INTRODUCTION
Power Specification | ||||||||
AC Power Input Rating | SAE Standard | IEC Standard | ||||||
AC Level 2 | 1-Phase | 3-Phase | ||||||
240V | 220V ± 15% | 380V ± 15% | ||||||
AC Power Output Rating | 3.5kW/16A | 3.5kW/16A | 11kW/16A | |||||
7kW/32A | 7kW/32A | 22kW/32A | ||||||
10kW/40A | N/A | 43kW/63A | ||||||
Rated Frequency | 50/60Hz | 50/60Hz | 50/60Hz | |||||
Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||||||
User Interface & Control | ||||||||
Charging Control | Plug and Play, RFID Card or App | |||||||
Display Screen | 4.3-inch LCD Screen | |||||||
Voice Prompt (Optional) | Voice guide of the charging process in English | |||||||
Indicators | 4 LED indicators-Power/Connect/Charging/Fault | |||||||
External Communication | LAN (RJ-45) and Wi-Fi | |||||||
OCPP Protocol (Optional) | 1.6 or 2.0.1 | |||||||
Environmental | ||||||||
Storage Temperature | -40 to 75℃ （-40 to 167℉) ambient | |||||||
Operating Temperature | -30 to 55℃ （-22 to 131℉) ambient | |||||||
Operating Humidity | Up to 95% non-condensing | |||||||
Altitude | ≤2000m | |||||||
Protection | ||||||||
Protection Ratings | IP 65 | RCD | Type A / Type B | |||||
Over Voltage Protection | Yes | Under Voltage Protection | Yes | |||||
Over Load Protection | Yes | Short Circuit Protection | Yes | |||||
Earth Leakage Protection | Yes | Ground Protection | Yes | |||||
Over-temp Protection | Yes | Surge Protection | Yes | |||||
Wallbox Mechanical | ||||||||
Dimension (H x W x D, mm) | 410 x 260 x 164 | |||||||
Weight | 1-phase＜10kg; 3-phase＜12kg | |||||||
Charging Cable Length | 5m or Customize Length | |||||||
Enclosure Material | Front-Panel: Tempered Glass; Back-cover: Metal Plate | |||||||
Mounting Pole Mechanical (Optional) | ||||||||
Dimension (H x W x D, mm) | 1400 x 200 x 100 | |||||||
Weight | ＜8kg | |||||||
Enclosure Material | Metal | |||||||
SPECIFICATION
FEEDBACKS
COMPANY PROFILE
Founded in 2016, WEEYU is a manufacturer specialized in EV Charging Stations seeking for a place in new energy supply field as a EVSE supplier (Electric Vehicle Supply Equipment).
The original thought to build up this factory and brand is out of the concern for our environment and to facilitate our community, which has also been the guidance of our daily work and one of our long term goals in practice. With this intention, our founder, Mr. Wang, who’s been working in electric industry for over 25 years, also the founder of Sichuan Injet Electric which is a public listed company that has built a prestige name in electric industry as reliable key supplier for ABB, Siemens and China Nuclear group etc., bought this idea to the board. As Injet Electric itself and Mr. Wang are both sophisticatedly experienced in electric industry, the first and only subsidiary-Weeyu electric was established shortly as we have the people, the technology and determination to make it happen. And we aim to make EV charging easy, safe, fast and available for everyone! Soon we independently designed and manufactured our own ev chargers.
While the reality is EV is though EV is growing fast so as the need for ev chargers but it’s a newly emerged market. The situation of each country and each customer is different. There’re are different standards, different electricity supply and customer of different stage different size and different use. Facing some difficulties and rooted on reality, our ev charger has been involved for several versions now to meet the needs from different market and customers.
The market is always changing and chasing for better, faster, safer and more cost-effective products so are we. Little by little, day by day, each one of us is working hard to achieve our primary goals is to help our environment and to help ourselves. We hope that when dust settles down, our name Weeyu will be on the wall! And our customers will be with us!
