YORH-PEEO с высоким качеством твёрдые кабель управления дорожкой качения
- Категория: Wiring Ducts >>>
- Поставщик: Wuxi,Yorh-Peeo,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.35 $* | 0.71 $* |
| Aug-20-2025 | 0.50 $* | 0.79 $* |
| Jul-20-2025 | 0.83 $* | 0.48 $* |
| Jun-20-2025 | 0.98 $* | 0.18 $* |
| May-20-2025 | 0.74 $* | 0.54 $* |
| Apr-20-2025 | 0.28 $* | 0.81 $* |
| Mar-20-2025 | 0.62 $* | 0.63 $* |
| Feb-20-2025 | 0.27 $* | 0.84 $* |
| Jan-20-2025 | 0.45 $* | 0.20 $* |
Характеристики

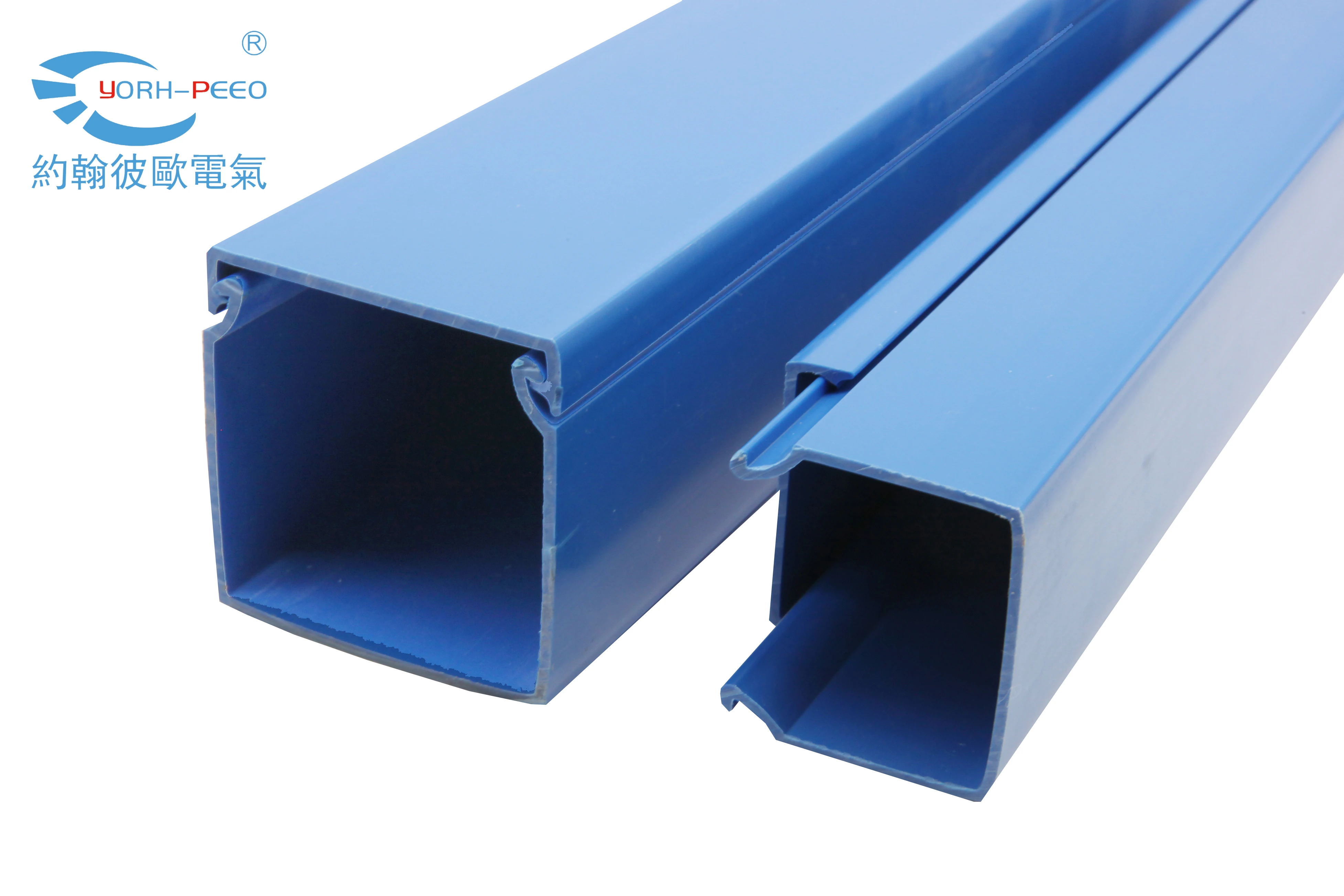

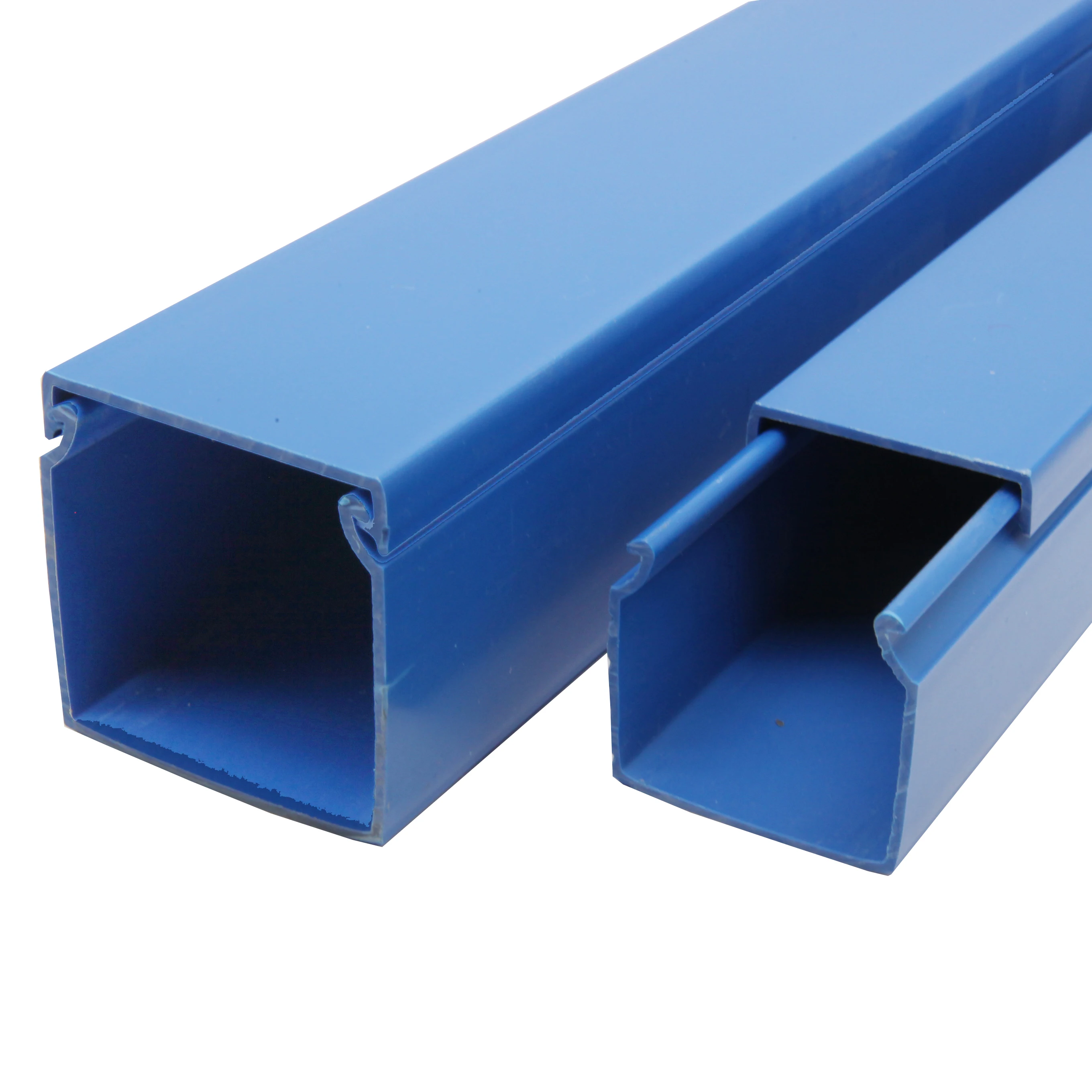

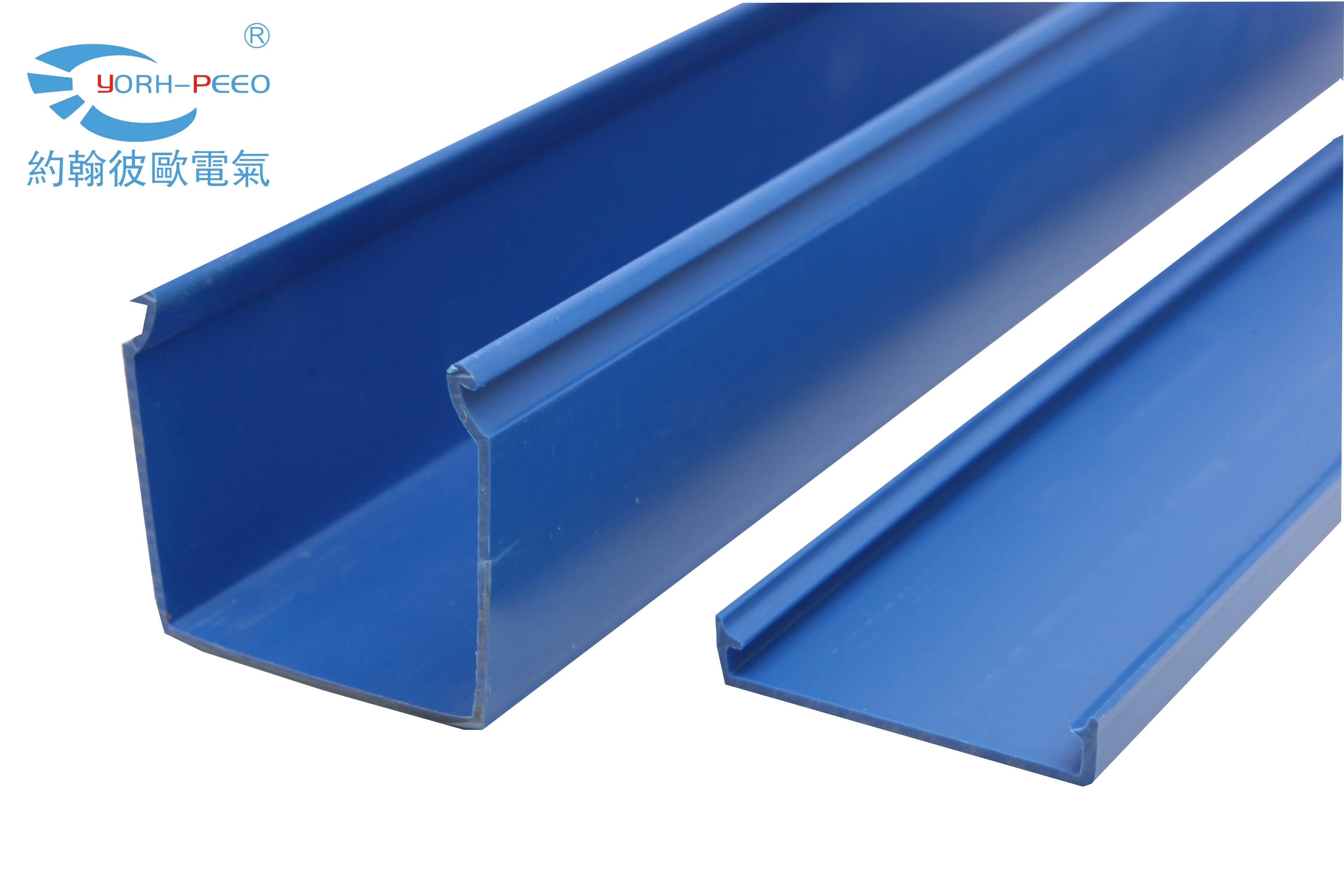

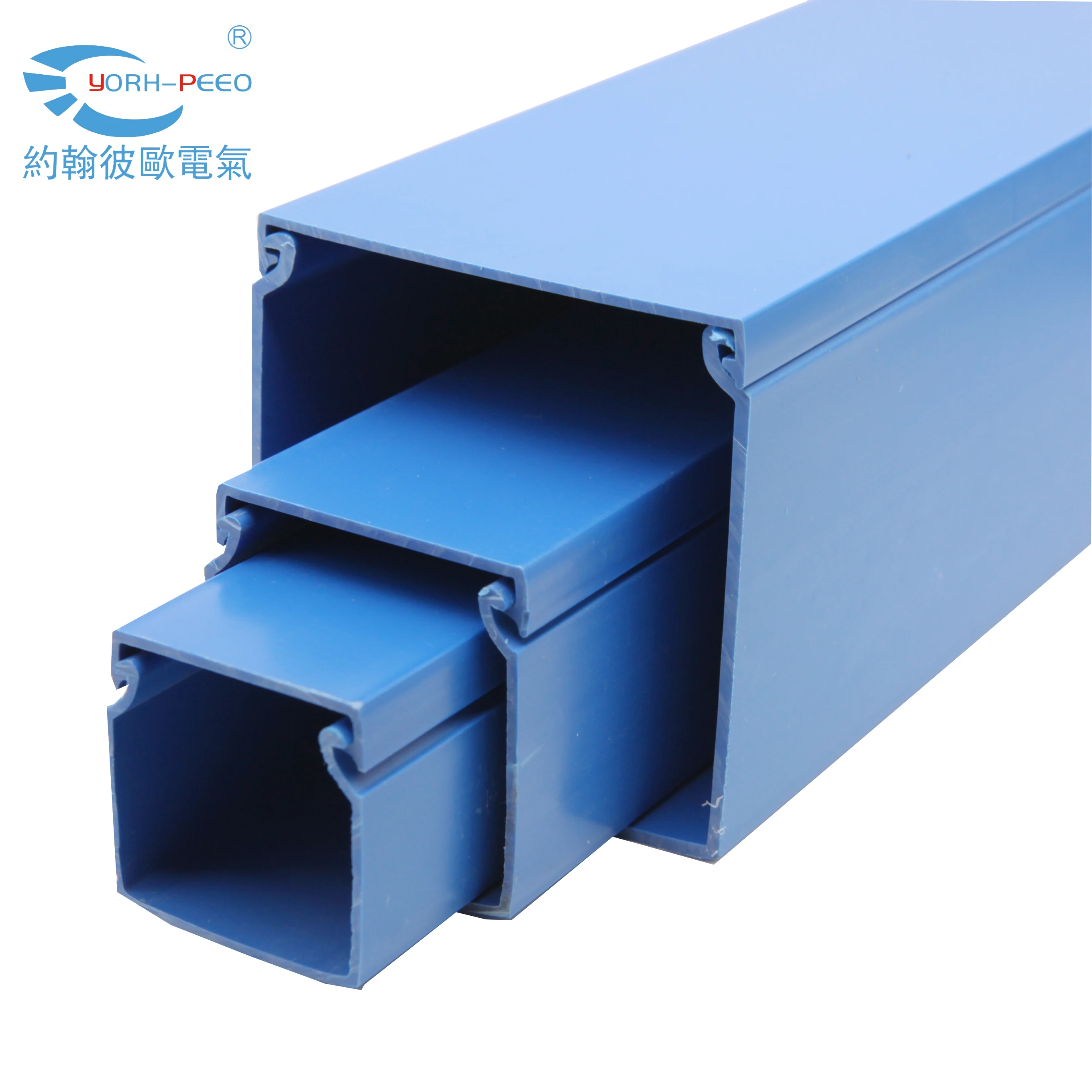

Solid Wall Wiring Duct Features
* Lead free, eco-friendly rigid PVC
* Widths from 0.6”(1.5cm) to 6”(15cm) and height from 0.6”(1.6cm) to 4”(10cm)
* Standard length is 2M/pc. Special length comes with MOQ request
* Gray (RAL 7042) is the basic color. MOQ is required for other colors
* Work Temperature: -40 °C (-104 °F) up to 60 °C (140 °F)
* Improved flush sidewall and cover style for greater wire capacity
* Cover does not slide when in vertical installation
* Mounting hole is an option when installation
* Widths from 0.6”(1.5cm) to 6”(15cm) and height from 0.6”(1.6cm) to 4”(10cm)
* Standard length is 2M/pc. Special length comes with MOQ request
* Gray (RAL 7042) is the basic color. MOQ is required for other colors
* Work Temperature: -40 °C (-104 °F) up to 60 °C (140 °F)
* Improved flush sidewall and cover style for greater wire capacity
* Cover does not slide when in vertical installation
* Mounting hole is an option when installation
Item No. | WxHxL | Wires(2.0sp) to be Contained | Packing |
(mm) | (pcs) | ||
AB1525 | 15x25x2000 | 5~12pcs | 112 |
AB1616 | 16x16x2000 | 3~10pcs | 144 |
AB2020 | 20x20x2000 | 5~12pcs | 100 |
AB2030 | 20x30x2000 | 10~25pcs | 56 |
AB2060 | 20x60x2000 | 20~30pcs | 42 |
AB2525 | 25x25x2000 | 10~25pcs | 60 |
AB2530 | 25x30x2000 | 15~25pcs | 50 |
AB2540 | 25x40x2000 | 20~25pcs | 50 |
AB2545 | 25x45x2000 | 20~25pcs | 40 |
AB2550 | 25x50x2000 | 20~30pcs | 30 |
AB2560 | 25x60x2000 | 40~45pcs | 30 |
AB2565 | 25x65x2000 | 40~45pcs | 30 |
AB2580 | 25x80x2000 | 60~80pcs | 40 |
AB25100 | 25x100x2000 | 60~100pcs | 36 |
AB3030 | 30x30x2000 | 15~25pcs | 50 |
AB3040 | 30x40x2000 | 20~30pcs | 50 |
AB3050 | 30x50x2000 | 30~40pcs | 40 |
AB3060 | 30x60x2000 | 30~50pcs | 30 |
AB3080 | 30x80x2000 | 50~60pcs | 36 |
AB3333 | 33x33x2000 | 25~45pcs | 32 |
AB3345 | 33x45x2000 | 40~55pcs | 32 |
AB3365 | 33x65x2000 | 60~75pcs | 48 |
AB33100 | 33x100x2000 | 180~200pcs | 32 |
AB3535 | 35x35x2000 | 20~30pcs | 32 |
AB3550 | 35x50x2000 | 30~40pcs | 48 |
AB3560 | 35x60x2000 | 30~50pcs | 26 |
AB3580 | 35x80x2000 | 50~70pcs | 32 |
AB35140 | 35x140x2000 | 90~110pcs | 16 |
AB4020 | 40x20x2000 | 20~40pcs | 48 |
AB4040 | 40x40x2000 | 60~70pcs | 42 |
AB4050 | 40x50x2000 | 60~70pcs | 42 |
AB4060 | 40x60x2000 | 100~115pcs | 42 |
AB4080 | 40x80x2000 | 120~135pcs | 28 |
AB40100 | 40x100x2000 | 130~175pcs | 28 |
AB4545 | 45x45x2000 | 60~70pcs | 36 |
AB4550 | 45x50x2000 | 60~70pcs | 36 |
AB4560 | 45x60x2000 | 100~110pcs | 42 |
AB4565 | 45x65x2000 | 110~120pcs | 36 |
AB4580 | 45x80x2000 | 120~140pcs | 24 |
AB5050 | 50x50x2000 | 80~90pcs | 36 |
AB5055 | 50x55x2000 | 80~90pcs | 30 |
AB5060 | 50x60x2000 | 90~100pcs | 36 |
AB5080 | 50x80x2000 | 190~210pcs | 24 |
AB50100 | 50x100x2000 | 210~260pcs | 20 |
AB5550 | 55x50x2000 | 110~130pcs | 30 |
AB6040 | 60x40x2000 | 100~115pcs | 30 |
AB6060 | 60x60x2000 | 120~135pcs | 30 |
AB6080 | 60x80x2000 | 180~210pcs | 20 |
AB60100 | 60x100x2000 | 240~290pcs | 20 |
AB6545 | 65x45x2000 | 110~120pcs | 30 |
AB6565 | 65x65x2000 | 180~200pcs | 30 |
AB70100 | 70x100x2000 | 250~300pcs | 16 |
AB8040 | 80x40x2000 | 120~135pcs | 24 |
AB8050 | 80x50x2000 | 180~200pcs | 24 |
AB8060 | 80x60x2000 | 180~210pcs | 24 |
AB8080 | 80x80x2000 | 240~290pcs | 16 |
AB80100 | 80x100x2000 | 260~350pcs | 16 |
AB10050 | 100x50x2000 | 200~250pcs | 18 |
AB10060 | 100x60x2000 | 240~290pcs | 18 |
AB10080 | 100x80x2000 | 260~350pcs | 12 |
AB100100 | 100x100x2000 | 300~400pcs | 12 |
AB12080 | 120x80x2000 | 300~400pcs | 8 |
AB130100 | 130x100x2000 | 350~500pcs | 8 |
AB15075 | 150x75x2000 | 335~500pcs | 8 |
