Сибо 5 дюймов POE настенный сенсорный планшет с NFC читатель организм
- Категория: Tablet PC >>>
- Поставщик: Shenzhen,Sibo,Industrial,&,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 112.43 $* | 118.11 $* |
| Aug-17-2025 | 111.45 $* | 117.89 $* |
| Jul-17-2025 | 93.7 $* | 98.67 $* |
| Jun-17-2025 | 109.79 $* | 114.23 $* |
| May-17-2025 | 95.53 $* | 100.30 $* |
| Apr-17-2025 | 107.95 $* | 112.59 $* |
| Mar-17-2025 | 106.77 $* | 111.77 $* |
| Feb-17-2025 | 105.30 $* | 110.68 $* |
| Jan-17-2025 | 104.76 $* | 109.28 $* |
Характеристики
Product Description
Product Name | SIBO 5 Inch POE Wall Mounted Touch Tablet With NFC Reader For Time Attendance |
Material | Indusrtial standard material |
Power Supply | DC-IN(12V); optional DC-IN(9V-36V), POE |
Main Function | POE, proximity Sensor, NFC reader, Zig-bee coordinator |
Interfaces | RJ45, Micro USB(OTG), TF slot, TTL UART(optional RS232, RS485), GPIO(optional 1 wire communication sensor) |
Installation | European and US standard gang box installation |
Warranty | 12 months |
SIBO 5 Inch POE Wall Mounted Touch Tablet With NFC Reader For Time Attendance:
-Android 7.1 OS with rooted right.
-IPS screen, resolution:1280x720
-POE, IEEE802.3af, 48V
-TTL UART, RS232, RS485, GPIO, 1 wire communication sensor
-Support source code to integrate with your software
-Bracket for wall mount
-Custom boot up logo
Details Images

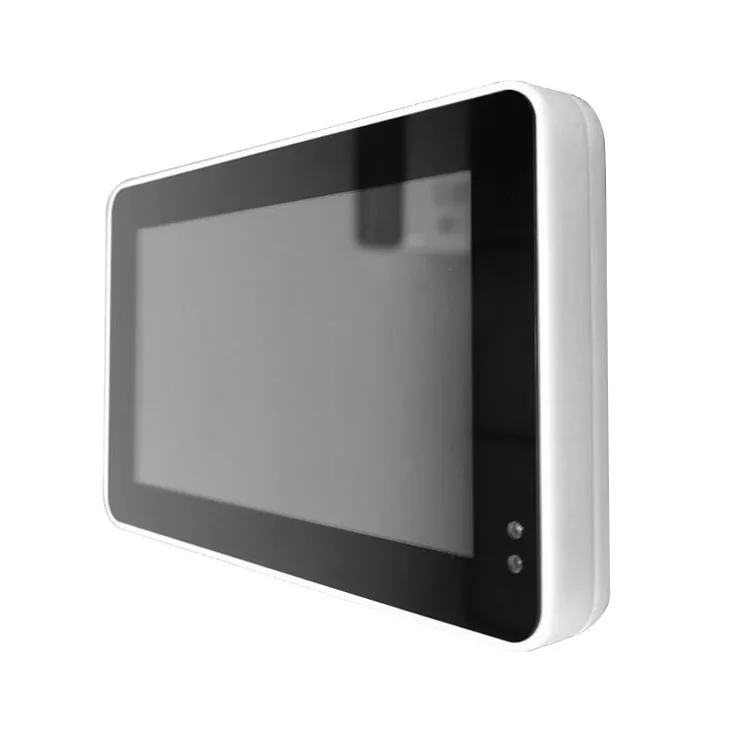

SIBO 5'' POE Tablet For Smart Home Control:
Nowadays, smart tablet with a small screen less than 5 inch is a trend for environment protection. SIBO 4.99 inch tablet Q5 is our newest model with full-view ips screen, resolution 1280x720. Tablet Q5 has optional proximity sensor and NFC reader, which will be provided source codes and demo apps for your software integration. Also the tablet can be powered by DC-IN or POE(IEEE802.3af, 48V). Zig-bee coordinator is the recommended function on this tablet for controlling devices in smart home such as lights, window curtains. As well as this 4.99 inch tablet has optional interfaces for device control: TTL UART (RS232 or RS485), GPIO (1 wire communication sensor). Meanwhile, tablet Q5 supports standard European and US gang box; screw nut installation.
Customized tablet in accordance with your requirements:
1.Support small quantity and sample order.
2.Sample lead time is 5-7 working days.
Micro USB(TOG) and TF slot on side, UBoot for reboot

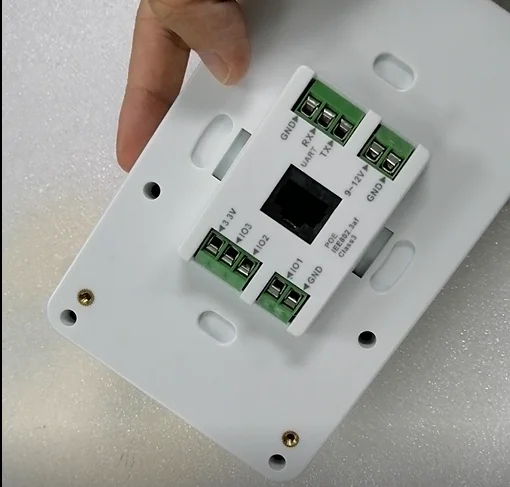

Default functions | Alternative options 1 | Alternative options 2 | |
J1 | GPIO 1 | - | - |
GND | - | - | |
J2 | 3.3V | 3.3V | - |
GPIO 2 | DATA(1 wire) | - | |
GND | GND | - | |
J3 | DC IN（12V） | DC IN (12-36V) | - |
GND | GND | - | |
J4 | UART TX | RS232 TX | RS485+ |
UART RX | RS232 RX | RS485- | |
GND | GND | GND | |
J5 | RJ45 | POE RJ45 | - |
J6 | - | NFC Reader | Zigbee Coordinator |
J7 | - | PS Sensor | - |
J8 | - | MIC and Sperker | MIC and Speaker + ECHO |
Front dimension is 140x88mm, and the thickness is 15mm
Installation Instructions

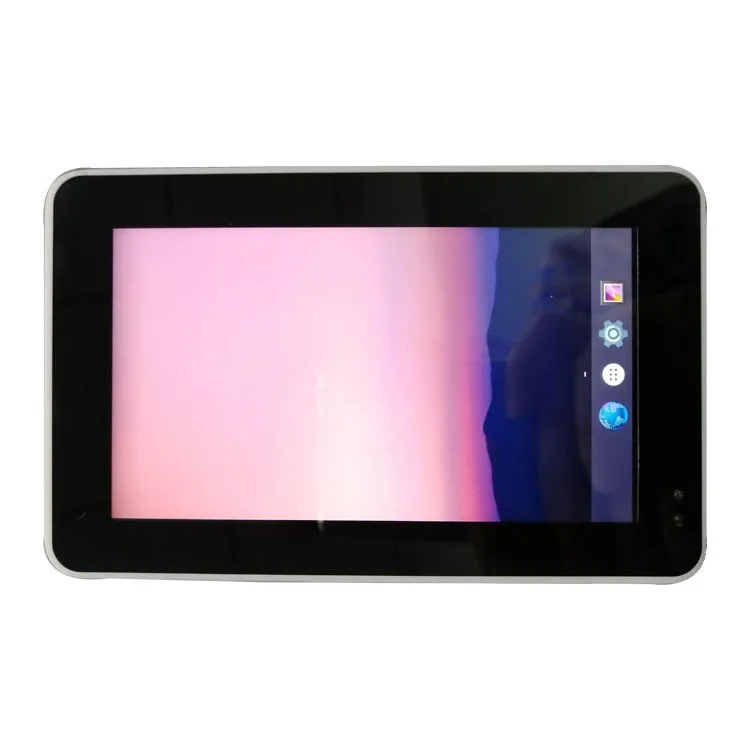

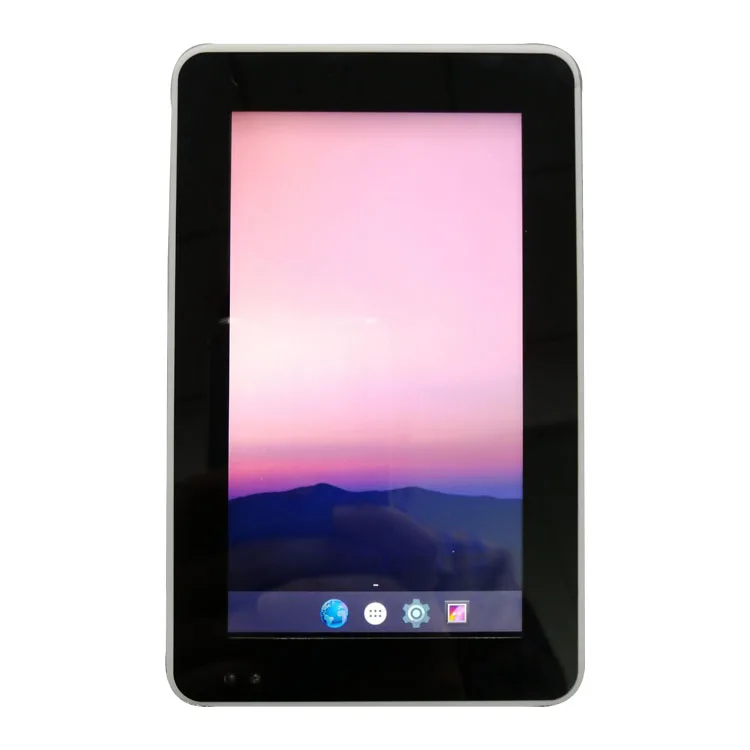

Vertical Installation
Horizontal Installation
Packing&Shipping
Packaging | 10 units/ ctn | |||
Carton dimension | 28.5x27.8x31.5cm | |||
Weight | 7.5kg/ctn | |||
Shipping | Fedex/DHL/UPS/TNT or your option | |||
Delivery day | Sample:5-7 days, batch goods:20-25 days | |||
Warranty | 12 months |
Company Introduction
About us:
Since established in 2001, Shenzhen SIBO Industrial & Development Co., Ltd already had an 18-year experience in tablet industry as a manufacturer. Right now, our mian product are 7'' , 9'' and 10.1'' custom tablets. With the good quality control and humanized customized service, SIBO company has already earned a good reputation from domestic and oversea. We will devote our expertise and technique to meet your business needs from designing to manufacuring the right products.
Our Services & Strength
* 18 Years Experiences in Tablet PC for Automation
* Competitive Price Directly From Manufacturer( Our Own Factory)
* Excellent Support for Software and Hardware Modification
* Services for Customized Logo and package
* Quick Response for after-sale Services
* On-time Delivery
* Competitive Price Directly From Manufacturer( Our Own Factory)
* Excellent Support for Software and Hardware Modification
* Services for Customized Logo and package
* Quick Response for after-sale Services
* On-time Delivery
FAQ
Question: Are you manufacturer?
Answer: Yes, we are professional manufacturer for intelligent control since established in 2001.
Question: What is your company mainly products?
Answer: Our mainly products are 5'', 7'', 9'' and 10.1'' tablet pc which applied for office reservation, time attendance, digital signage, access & security control, home automation, industrial control, energy & power management...
Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.
Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7 days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)
Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express.
Question: Can you put my brand name (logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.
Question: What service do you have?
Answer: We have full-technique support (offer sample app and original source code for RS485,GPIO, NFC, etc.)
Question: What is your warranty?
Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we repair you without labor charge collection.
Question: What is your product quality?
Answer: 1. We promise to use the best (original) components to ensure our product in high level.
2.All tablet PC have 24 hours aging test.
3.All products will be carefully tested by our QC department.
Answer: Yes, we are professional manufacturer for intelligent control since established in 2001.
Question: What is your company mainly products?
Answer: Our mainly products are 5'', 7'', 9'' and 10.1'' tablet pc which applied for office reservation, time attendance, digital signage, access & security control, home automation, industrial control, energy & power management...
Question: What is the Minimum Order Quantity(MOQ)?
Answer: No quantity limited, sample order is acceptable.
Question: What is the lead time? (How long do you need to prepare my goods?)
Answer: 5-7 days for sample orders, 20-25 days for mass production orders(based on different quantities, OEM, etc.)
Question: How will you deliver my goods to me?
Answer: We ship by air and sea generally. In the mean time, we cooperate with international expresses such as DHL, UPS, FedEx, TNT to enable our customers to get their goods rapidly.
Question: How long do I need to wait before my goods arrive?
Answer: 3-5 days for international express.
Question: Can you put my brand name (logo) on these products?
Answer: Of course, OEM service is the most important part of our trade purpose.
Question: What service do you have?
Answer: We have full-technique support (offer sample app and original source code for RS485,GPIO, NFC, etc.)
Question: What is your warranty?
Answer: Our warranty is 1 year after delivery,SIBO pays high attention to after-sales service. For those out of warranty, we repair you without labor charge collection.
Question: What is your product quality?
Answer: 1. We promise to use the best (original) components to ensure our product in high level.
2.All tablet PC have 24 hours aging test.
3.All products will be carefully tested by our QC department.
